TLVUM3IU-W (Online Connectivity Unit) LG Electronics Inc. FCCID: BEJTLVUM3IU-W What is the OCU(Online Connectivity Unit)  The OCU stands for Online Connectivity Unit  It’s a telematics device that LGE is developing for the Volkswa gen vehicles.  It is a small box installed deep inside passenger cars, and in charge of wireless communications in GSM, WCDMA and LTE network  It provides voice and data call functions and various online se rvices requested by VW GNSS Antenna Connector Power, CAN, Audio and other data connector GSM/WCDMA/LTE Antenna Connector WCDMA/LTE DRxAntenna Connector Product Image/ Function Telematics product supporting Emergency Call/LTE service Product Image • Emergency Call • Mobile Online Services • Positioning/Dead Reckoning-GPS, GLONASS, Galileo, BeiDou and QZSS Function Specification Supporting Bands WCDMA B5LTE FDD B5/B7 Modem Chip Qualcomm MDM9240GNSS GPS, GLONASS, Galileo, BeiDouand QZSS Bluetooth No WiFi No Size 130mm x 70.14mm x 37.5mm Weight 300g Power DC12V , 2A Specification Dimension The OCU3 Features • Call Services - Emergency Call- Automatic Collision Notification Call- Information Call- Road Side Assistance Call • Remote Function Services - Honking And Flashing- Speed Alert- Vehicle Disabling- Battery Charge Management- Departure Time Programming- Door Lock / Unlock- Pre-Trip Climatisation- Trip Statistics- Vehicle Status • Geo-Fencing • POI Address Import • Vehicle Health Report • Vehicle Tracking Major Services Concept GNSS Safety & Security Services Oriented Telematics Terminal Emergency Call Automatic Collision Notification Call Road Side Assistance Call Vehicle Tracking OCU Equipped Vehicles Block Diagram Confidential Notice FCCChanges or modifications not expressly approved by the party re sponsible for compliance could void the user's authority to ope rate the equipment. This device complies with part 15 of the FCC Rules. Operation i s subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any inter ference received, including interference that may cause undesir ed operation.This equipment has been tested and found to comply wi th the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecti on against harmful interference in a residential installation. T his equipment generates uses and can radiate radio frequency energy and, if n ot installed and used in accordance with the instructions, may c ause harmful interference to radio communications. However, there is no guar antee that interference will not occur in a particular installa tion. If this equipment does cause harmful interference to radio or televisio n reception, which can be determined by turning the equipment o ff and on, the user is encouraged to try to correct the interference by on e or more of the following measures: -Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different fr om that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for h elp. This device complies with FCC radiation exposure limits set for th for an uncontrolled environment. This device should be insta lled and operated with minimum distance 20cm between the radiating eleme nt of this device and the user. Frequency Band Acceptable antenna peak gain (incl. cable att.) (dBi) (ERP or EIRP Limit(FCC) - Max tune-up conducted power) 824-849MHz(B5) 10.9 2500-2570MHz (B7) 9.5 • Acceptable antenna peak gain (incl. cable att.) = ERP or EIRP L imit(FCC) - Max tune-up conducted power The maximum antenna gain including cable att. must not exceed t he table below.

Rev 1/26/2023 LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-23-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: LG Electronics USA certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Heejae Cho BEJTLVUM3IU-W Rev 1/26/2023 LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-22-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: LG Electronics USA certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Heejae Cho BEJTLVUM3IU-W

Rev 1/26/2023 LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03/22/2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: BEJ LG Electronics USA (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0023476120 Name: LG Electronics USA Address: 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Contact Person: Heejae Cho Tel.: 201-470-2696 Email: [email protected] Sincerely, LG Electronics USA Heejae Cho

LG Electronics USA, Inc. 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Date: 03/24/2023 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Request of Confidentiality FCC ID: BEJTLVUM3IU-W To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 Tune-up Procedure SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Contact Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs

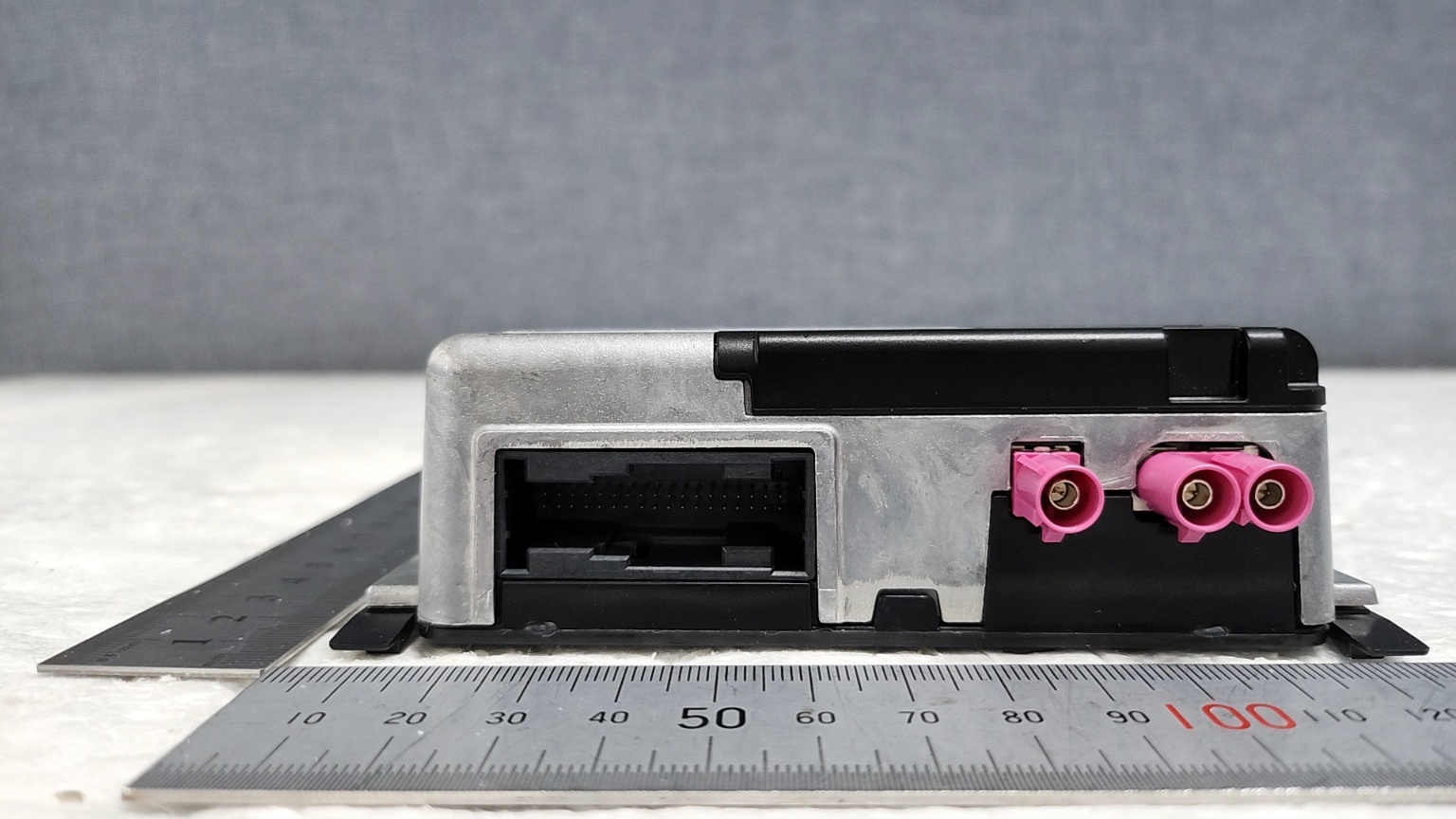

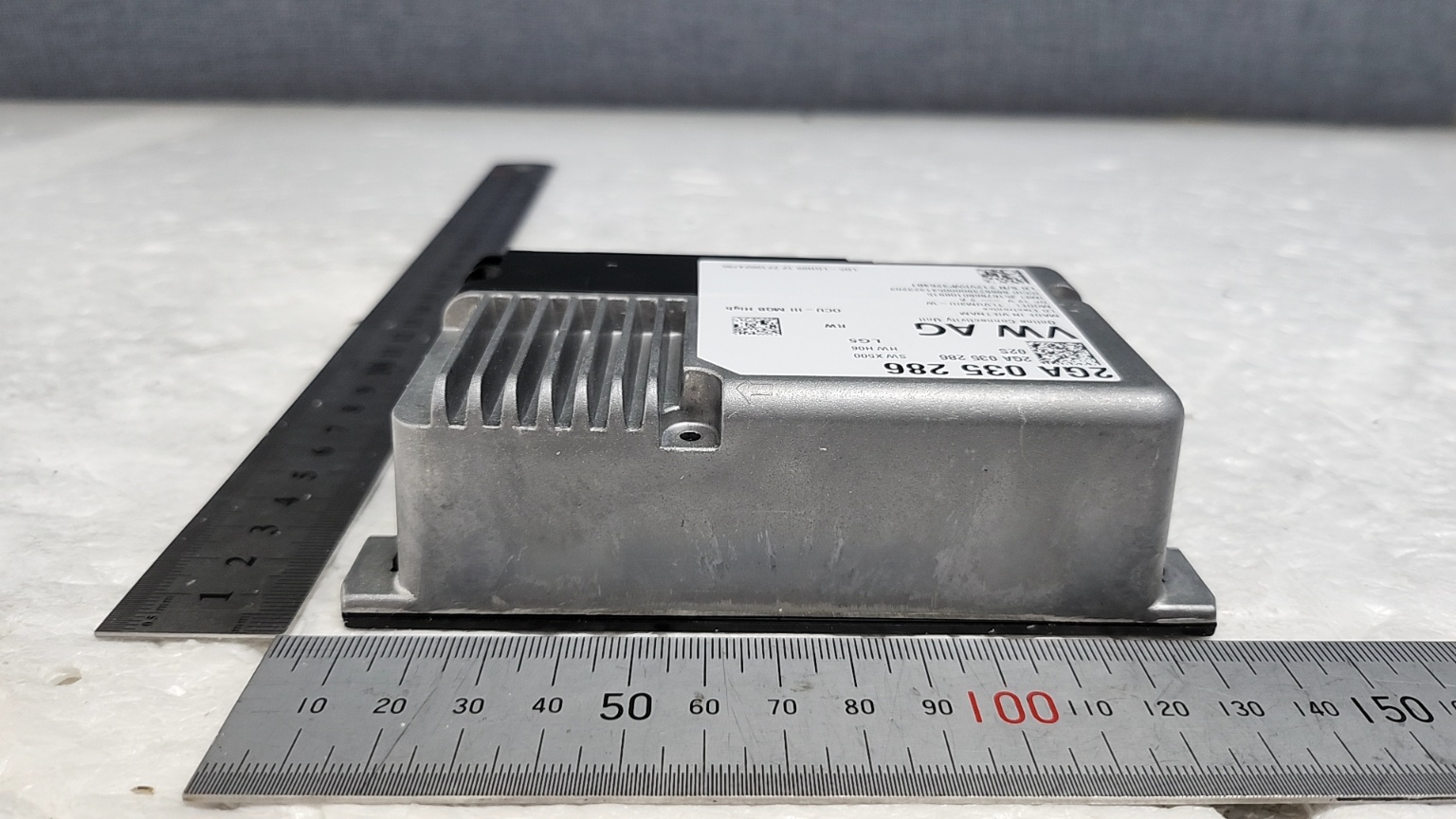

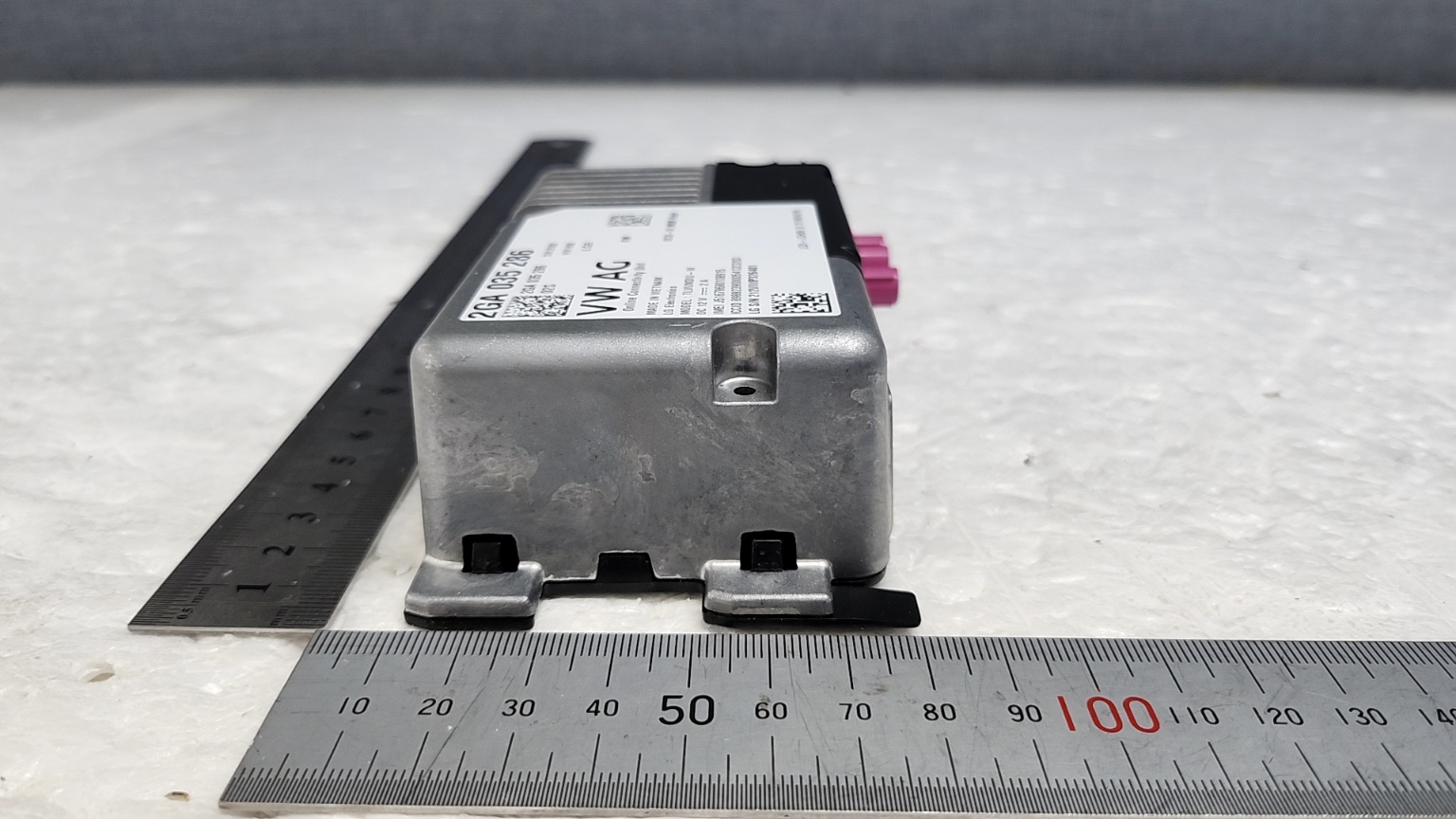

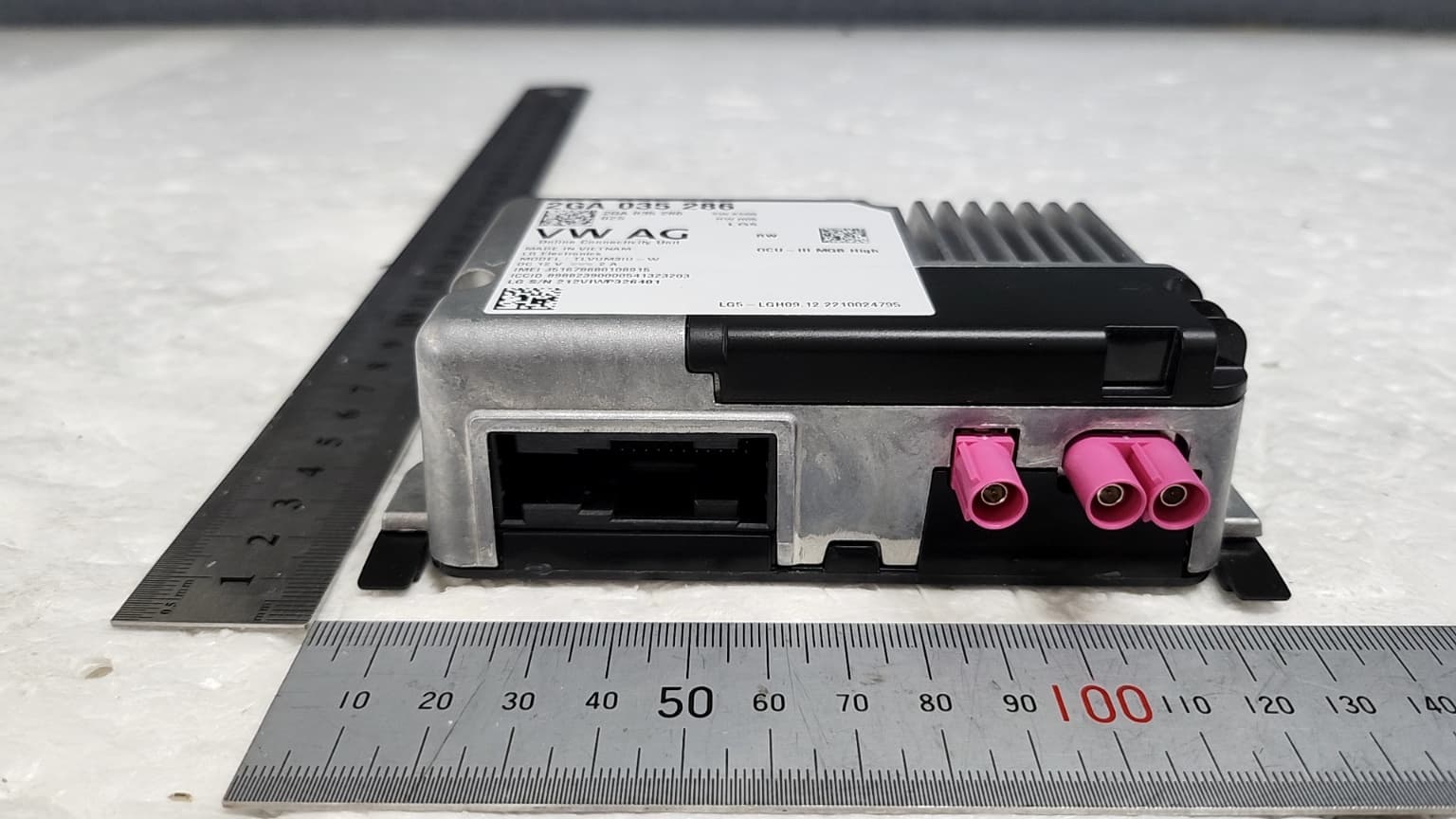

FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 1 FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 2 FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 3 FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 4 <Port> FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 5 <External Antenna> <External Antenna> FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 6 <External Antenna + Cable>

FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 1 FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 2 FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 3 FCC ID: BEJTLVUM3IU-W Copyright Ⓒ 2023, Dt&C Co., Ltd. View 4

FCC ID : RF feature(Mode) Tune-up Max power(dBm) ANT Gain (dBi) Cable loss between transmitter and antenna(dB) Duty Factor(dB) Adjusted EIRP to tune-up max(dBm) Maximum power density (mW/cm 2 ) Requirement (mW/cm 2 ) LTE Band 7 2 500.00 ~ 2 570.00 23.50 4.88 9.04 NA 19.34 0.017 1 1.000 0 LTE Band 5 824.00 ~ 849.00 23.50 3.44 4.35 NA 22.59 0.036 2 0.549 0 WCDMA 850 826.40 ~ 846.60 23.50 3.44 4.35 NA 22.59 0.036 2 0.550 0 ~~~~~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averaging time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : The exposure condition of this device is com pliant w ith FCC The MPE sample calculation for this exposure is shown below. R= Distance to the center of the radiation of the antenna(20cm) EIRP= Equivalent Isotr opic Radiated Power(mW) S= Maximum power density(mW/cm 2 ) ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Note2: EIRP(Adjusted EIRP to Tune- up Max) = Tune-up power(dBm) + Antenna gain(dBi) + Cable loss(dB) + Duty factor(dB) EIRP / ( 4 R 2 π ) 19.340 0.017 BEJTLVUM3IU-W MPE Calculation Frequency range (MHz) Note1: Please refer to the tune-up procedure for tune-up max.The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user.

TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 1 INTERNAL Datenblatt Antenne / Data sheet antenna VW-Teilenummer / VW part number: 5Q0.035.507.AH Montage auf Metalldach / Mounting on metal roof Technische Daten / Technical data Impedanz / Impedance 50 Ohm Dienst mit Frequenzbändern / Function with frequency bands GNSS: 1559 – 1605 MHz TEL: 703 - 960 MHz / 1452 - 1496 MHz / 1710 – 2170 MHz / 2300 – 2400 MHz / 2500 – 2690 MHz Anschluss / Input 2 x FAKRA Kodierung C, D male Gewicht / Weight 148 g Abmessungen / Dimensions 101,3 X 58,8 X 68mm Mechanische Befestigung / Mechanical interface 1 X Torx 30, Schraube M5 mit Befestigungsfeder Befestigung an Dach, Blechdicke: 0,5-1,2 mm inkl. Lack Hersteller / Manufacturer Molex CVS Hildesheim GmbH Daimlerring 31, D-31135 Hildesheim Existierende Zertifizierungen CE, Ukraine TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 2 INTERNAL Steckerbelegung / Connectors TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 3 INTERNAL Antennengewinn / Antenna gain Werte wurden auf 1m Massefläche direkt am FAKRA-Anschluss der Dachantenne gemessen. / Mounted on 1m groundplane measured direct at FAKRA connector. frequency band in MHz partial average gain of freq. band in dBi (Theta=[60-90]°) max. gain in partial area (Theta=[60-90]°) absolut maximum gain (Theta=[0-180]°) begin end in freq. band in dBi maximum in freq. band in dBi in freq. band in dBi 703 960 0,14 0,55 2,73 3,44 1452 1496 1,90 2,09 4,94 4,97 1710 2170 2,60 3,33 5,62 5,62 2300 2400 2,35 2,64 5,19 5,19 2500 2690 1,30 1,90 4,88 4,88 Im montierten Zustand auf dem Fahrzeugdach sind Abweichungen zu erwarten. / In mounting position at the car roof deviations are expected. TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 4 INTERNAL Horizontale Richtdiagramme / Horizontal radiation pattern -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 Polar Plot Horizontal Cut Elevation:0 Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=1452MHz 5Q0.035.507.AH_LTE_1m_groundplane f=1470MHz 5Q0.035.507.AH_LTE_1m_groundplane f=1492MHz Copyright Molex - LASET V4.9.3 29.09.2022 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 Polar Plot Horizontal Cut Elevation:0 Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=810MHz 5Q0.035.507.AH_LTE_1m_groundplane f=710MHz 5Q0.035.507.AH_LTE_1m_groundplane f=960MHz Copyright Molex - LASET V4.9.3 29.09.2022 TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 5 INTERNAL -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 Polar Plot Horizontal Cut Elevation:0 Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=1710MHz 5Q0.035.507.AH_LTE_1m_groundplane f=1990MHz 5Q0.035.507.AH_LTE_1m_groundplane f=2170MHz Copyright Molex - LASET V4.9.3 29.09.2022 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 Polar Plot Horizontal Cut Elevation:0 Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=2300MHz 5Q0.035.507.AH_LTE_1m_groundplane f=2350MHz 5Q0.035.507.AH_LTE_1m_groundplane f=2400MHz Copyright Molex - LASET V4.9.3 29.09.2022 TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 6 INTERNAL -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 Polar Plot Horizontal Cut Elevation:0 Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=2600MHz 5Q0.035.507.AH_LTE_1m_groundplane f=2500MHz 5Q0.035.507.AH_LTE_1m_groundplane f=2690MHz Copyright Molex - LASET V4.9.3 29.09.2022 TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 7 INTERNAL Vertikale Richtdiagramme / Vertical radiation pattern -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 Polar Plot Vertical Cut Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=810MHz 000° 5Q0.035.507.AH_LTE_1m_groundplane f=710MHz 000° 5Q0.035.507.AH_LTE_1m_groundplane f=960MHz 000° Copyright Molex - LASET V4.9.3 29.09.2022 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 Polar Plot Vertical Cut Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=1452MHz 000°5Q0.035.507.AH_LTE_1m_groundplane f=1470MHz 000° 5Q0.035.507.AH_LTE_1m_groundplane f=1492MHz 000° Copyright Molex - LASET V4.9.3 29.09.2022 TT. Monat JJJJ Abteilung: xxxx-xx Original: Kl. xx.x – xx Jahre | Kopie: Kl. 0.1 – max. 2 Jahre Seite 8 INTERNAL -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 -35 -30 -25 -20 -15 -10 -5 0 5 90 60 30 0 -30 -60 -90 -60 -30 0 30 60 Polar Plot Vertical Cut Polarisation:V 5Q0.035.507.AH_LTE_1m_groundplane f=1710MHz 000° 5Q0.035.507.AH_LTE_1m_groundplane f=1990MHz 000° 5Q0.035.507.AH_LTE_1m_g…
