BEJTM03LNNAHD0Telematics Module

LGE Confidential User Manual TM03LNNAHD0 astelematics module device equipped in the vehicles. In charge of wireless communications in LTE/WCDMA network Platform for Telematics Virtual Machine (VM) and other VMs based on Hypervisor TM03LNNAHD0 supports WCDMA B2/5, LTE B2/4/5/12network There will be perform some use-case to demonstrate LTE/WCDMA performances targeted 1. High throughput features 2. Low Latency features. below is just for example. User Manual •High throughput features Demonstrate high-throughput, high -quality image by hotspot. •Low Latency features Images and file uploaded from the car are displayed without delay to other devices Cellular Network Frequency Band ItemUplinkDownlink WCDMAFDD-LT E Band21850-19101930-1990VV Band41710-17552110-2155V Band5824-849869-894VV Band12699-716729-746V LGE Confidential Telematics NAD Module installation guide and information NAD Module as TM03LNNAHD0 Module is mounted with solder ball on the main TSU board. The strength of the RF field produced by the wireless module or modules embedded in th e TSU is well within all international RF exposure limits known at this time. Because the wir eless modules embedded in the TSU emit less than the maximum amount of energy permi tted in radio frequency safety standards and recommendations, the manufacturer believes these modules are safe for use. Regardless of the power levels, care should be taken to minimize human contact during n ormal operation. This module should be remain more than 20 cm (8 inches) from the body when wireless devices are on and transmitting. This transmitter must not be collocated or operated in conjunction with any other antenn a or transmitter. Operation is subject to the following two conditions: (1) this module does not cause interference , (2) this module accepts any interference that may cause undesired operation. Information for the integrator The integrator must not provide information to the end user regarding how to install or re move this RF module in the user manual of the end product. The user manual that is provi ded by the integrator for end users must include the following information in a prominent l ocation. To comply with FCC RF and IC RSS-102 exposure requirements, the antenna used f or this transmitter must be installed to provide a separation distance of at least 20 cm fro m all persons and must not be collocated or operated in conjunction with any other anten na or transmitter. The label for the end product must include FCC ID: BEJTM03LNNAHD0 or A RF transmitter inside, IC: 2703H-TM03LNNAHD0. LGE Confidential Telematics NAD Module installation guide and information This module complies with FCC/IC rules. FCC : Part 22, Part 24, Part 27 ISED : RSS-130, RSS-132, RSS-133, RSS-139 Furthermore, this device complies with FCC radiation exposure limits set forth for uncontr olled environments. This module must be installed and operated with minimum distance of 20 cm between th e radiating element and the user. This module must not be co-located with any other trans mitters or antennas. To comply with FCC regulations limiting both the maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable lo ss in a mobile-only exposure condition must not exceed the values listed in the following t able. To satisfy the FCC’s exterior labeling requirements, the following text must appear on the e xterior of the end product. Contains transmitter module FCC ID: BEJTM03LNNAHD0 Contai ns transmitter module IC: 2703H-TM03LNNAHD0 Changes or modifications to this equipment may cause harmful interference unless the mo difications are expressly approved in the instruction manual. Users may lose the authority to operate this equipment if an unauthorized change or codification is made. Note: If this module is intended for use in a portable device, additional testing will be requ ired to satisfy the RF exposure and SAR requirements of FCC Part 2.1093 and RSS-102. LGE Confidential Notice Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The OEM integrator is responsible for ensuring that the host product which is installed and operating with the module is in compliant with Part 15B unintentional Radiator requirements, please note that For a Class B digital device or peripheral, the instructions furnished the user manual of the end-user product shall include the following or similar statement, placed in a prominent location in the text of the host product manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC radiation exposure limits set forth f…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJTM03LNNAHD0 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; July 14, 2021 LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 111 Sylvan Ave, North Building, Englewood Cliffs, NJ 07632 United States Grantee Code BEJ FCC ID BEJTM03LNNAHD0 Authorized Contact Name Dae Woong Kim Contact Email [email protected] Contact Phone 201-816-2003 I, t he undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accor dance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accept ing a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) l abeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if t he Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accor dance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accor dance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) t he Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the A pplicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link t o CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: Ju ly 14, 2021 Print Name: Dae Woong Kim Title: Director, Regulatory and Environmental Affairs *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 July 14, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJTM03LNNAHD0 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electr onics USA 4 Tune-Up Procedure

Cover Letter-Modular Approval FCC ID: BEJTM03LNNAHD0 Date: June. 30, 2021 Gentlemen: There’s a TM03LNNAHD0 that would like to have your authorization as a m odular approval. The specific product as below, TM03LNNAHD0 with its designed features and specified description, meets special requirements for Single modular approva l on FCC KDB996369 by cross-reference list below. Company LG electronics Model Name Telematics Module Model Number TM03LNNAHD0 FCC ID BEJTM03LNNAHD0 Requirement of FCC KDB996369 Comply（Y/N） 1.The modular transmitter must have its own RF shielding. Y The EUT provides the RF shielding. See EUT photo. 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y The EUT has its buffered modulation. Please see the Schematic Diagram. 3.The modular transmitter must have its own power supply regulation. Y The EUT has its own power supply regulation, please see the Schematic Diagram. 4.The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y The EUT meets the FCC antenna requirements; photo of unique antenna are shown in the test report. 5.The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. Y The EUT was tested with a test board, Please see test report and setup photo. 6.The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: BEJTM03LNNAHD0” or “Contains FCC ID: BEJTM03LNNAHD0” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Y The FCC ID is marked on the module top by laser marking. Please, see laser marking draft design on module top. This laser marking design may be changed position or line, but FCC ID is marked on the module. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance wit h Section 15.247(b)(4). Y The EUT complies with RF exposure requirement. Thank you. Sincerely, By: ___________________ ___ _____ (Signature 1 ) (Print name) Title: On behalf of: LG Electronics USA Dae Woong Kim

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

TM03LNNAHD0 NAD module Shield CAN Cover laser marking draft design ■TM03LNNAHD0 NAD module Shield CAN Cover laser marking draft design NAD module Top AL Sheet FCC ID : BEJTM03LNNAHD0 Model : TM03LNNAHD0 EAX69522801 EBR31128501 XXXXXXXXXXX MEK644268 XX XX IC : 2703H-TM03LNNAHD0 TM03LNNAHD0 ICID2703H-TM03LNNAHD0 FCC IDBEJTM03LNNAHD0 ModelTM03LNNAHD0 NAD PCBP/NEAX67522801 NAD PCB Assembly P/NEBR31128501 - This laser marking design may be changed position or line, but FCC ID and IC ID are marked on the module.

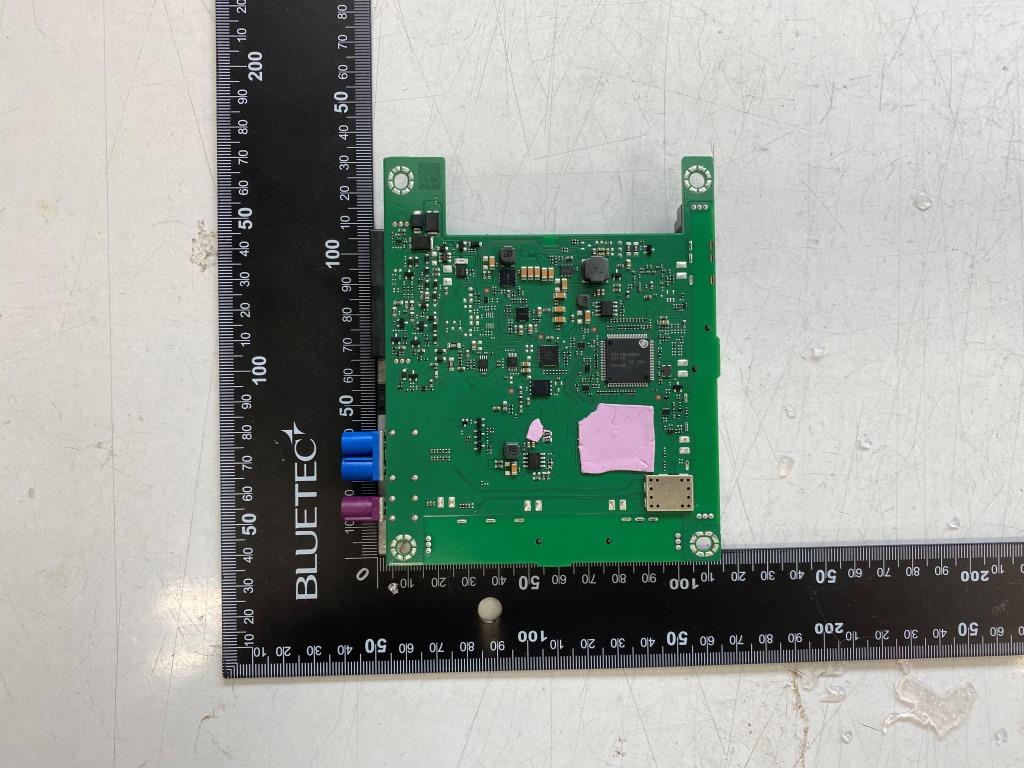

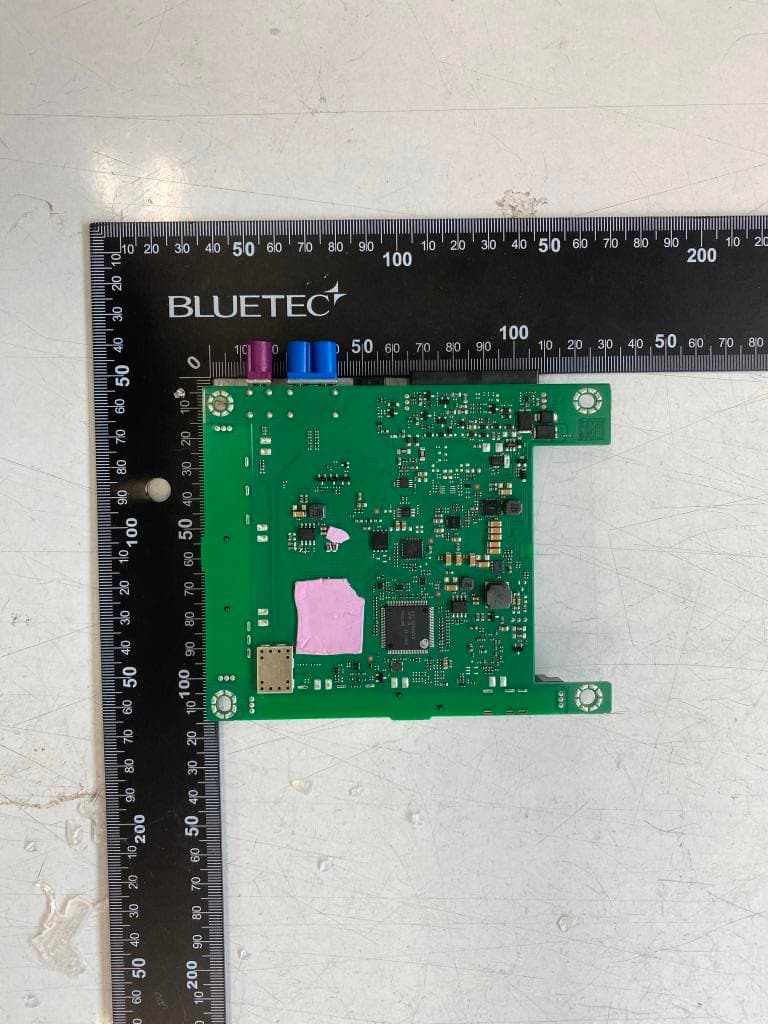

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB View of Antenna & Module WWAN Antenna WWAN Module

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002352 Page: 2 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002352 Page: 3 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Telematics Module Model Name TM03LNNAHD0 Serial Number 353342700000291, 353342700000309 Power Supply DC 3.90 V Rated Power W CDMA II, V: 23 ㏈m LTE Band 2, 4, 5, 12: 23 ㏈m Frequency Range W CDMA II: 1 850 ㎒ ~ 1 910 ㎒ W CDMA V: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ Modulation Technique QPSK, 16QAM Antenna Type Planar Inverted F Antenna Antenna Gain ※ 699 ㎒ ~ 716 ㎒: -2.85 ㏈i 824 ㎒ ~ 849 ㎒: 0.32㏈i 1 710 ㎒ ~ 1 780 ㎒: 2.86 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 2.83 ㏈i H/W Version Rev.C1 S/W Version TN23XA01 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL002352 2021.06.29 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002352 Page: 4 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002352 Page: 5 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance WCDMA 2 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 24.0 2.83 0.095 880 1 WCDM A 5 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 824 ~ 849 24.0 0.32 0.053 794 0.549 333 LTE Band 2 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 24.0 2.83 0.095 880 1 LTE Band 4 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 710 ~ 1 755 24.0 2.86 0.096 545 1 LTE Band 5 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 824 ~ 849 24.0 0.32 0.053 794 0.549 333 LTE Band 12 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 699 ~ 716 24.0 -2.85 0.025 926 0.466 000 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002352 Page: 6 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) Note; - The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20 ㎝ between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈ i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002351 Page: 2 of 124 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information ---------------------------------------------------------------------------------------- 3 2. RF Radiated Output Power & Spurious Radiated Emission ------------------------------------- 9 3. Conducted Output Power --------------------------------------------------------------------------------- 35 4. Occupied Bandwidth ---------------------------------------------------------- ----------------------------- 46 5. Peak-Average Ratio --------- ------------------------------------------------------------------------------ 57 6. Spurious Emissions at Antenna Terminal -------- ---------------------------------------------------- 71 7. Band Edge ---------------------------- ------------------------------------------------------------------------ 77 8. Frequency Stability ----------------------------------------------------------------------------------------- 119 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002351 Page: 3 of 124 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant FCC Applicant : LG Electronics USA FCC Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 IC Applicant : LG ELECTRONICS INC. IC Address : 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, Korea (Republic of), 451-713 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 1.4. Description of EUT Kind of Product Telematics Module Model Name TM03LNNAHD0 Serial Number 353342700000291, 353342700000309 Power Supply DC 3.90 V Rated Power LTE Band 2, 4, 5, 12: 23 ㏈m Frequency Range LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ Modulation Technique QPSK, 16QAM Antenna Type Planar Inverted F Antenna Antenna Gain ※ 699 ㎒ ~ 716 ㎒: -2.85 ㏈i 824 ㎒ ~ 849 ㎒: 0.32㏈i 1 710 ㎒ ~ 1 780 ㎒: 2.86 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 2.83 ㏈i H/W Version Rev.C1 S/W Version TN23XA01 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002351 Page: 4 of 124 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Jun. 16, 2021 Annual Jun. 16, 2022 Signal Generator R&S SMVB100A 255834 May 31, 2021 Annual May 31, 2022 Spectrum Analyzer R&S FSV30 103453 Nov. 04, 2020 Annual Nov. 04, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 Mobile Test Unit R&S CMW500 144034 Feb. 22, 2021 Annual Feb. 22, 2022 Power Meter Anritsu ML2495A 1223004 Ju n. 01, 2021 Annual Jun. 01, 2022 Power Sensor Anritsu MA2411B 1207272 Jun. 01, 2021 Annual Jun. 01, 2022 Temperature Chamber ESPEC CORP. PL-2J 15004184 Jun. 02, 2021 Annual Jun. 02, 2022 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-2 Feb. 08, 2021 Annual Feb. 08, 2022 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000-18000 -40SS 7 Mar. 08, 2021 Annual Mar. 08, 2022 High Pass Filter Wainwright Instrument GmbH WHKX2.2/12.75G-10SS 8 Mar. 04, 2021 Annual Mar. 04, 2022 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS 21 Jun. 04, 2021 Annual Jun. 04, 2022 High Pass Filter Wainwright Instrument GmbH WHK7.5/26.5G-6SS 11 May 17, 2021 Annual May 17, 2022 Directional Coupler KRYTAR 152613 122660 Jun. 15, 2021 Annual Jun. 15, 2022 DC Power Supply Agilent U8002A MY49030063 Feb. 02, 2021 Annual Feb. 02, 2022 Preamplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Preamplifier R&S SCU-18 10117 Jun. 09, 2021 Annual Jun. 09, 2022 Preamplifier TESTEK TK-PA1840H 130016 Jan. 07, 2021 Annual Jan. 07, 2022 Test Receiver R&S ESU26 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 01126 Dec. 12, 2020 Biennial Dec. 12, 2022 Horn Antenna R&S HF906 100326 Feb. 04, 2021 Annual Feb. 04, 2022 Horn Antenna Schwarzbeck Mess-Elektronik BBHA9170 9170-540 Nov. 26, 2020 Annual Nov. 26, 2021 Antenna Master Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Turn Table Innco systems GmbH DS 1200S N/A N.C.R. N/A N.…
