BEJTM04ANNABM1Telematics Module

1/9 Technical Specification (TM04ANNABM1) 2/9 History Ver. Date Contents Written by Checked by Approved by Note 1.0 2020. 12.28 3/9 Contents 1.2 Environmental Specifications ............................................................................... 4 1.3 Electrical Specifications ....................................................................................... 5 1.3.1 Absolute Maximum Rating and ESD Ratings ........................................................... 5 1.3.2 Current Consumption ............................................................................................... 5 1.4 Mechanical Specifications ................................................................................... 5 1.4.1 Physical Dimensions and Connection Interface ....................................................... 6 1.4.2 Mechanical Drawing ................................................................................................. 6 2. RF Specification ............................................................................................................ 7 2.1 LTE Specification ................................................................................................. 7 2.2 WCDMA Specification .......................................................................................... 8 2.3 GSM Specification ............................................................................................... 8 4/9 1. Product Introduction The TM04ANNABM1 are designed for the automotive industry. They support LTE and WCDMA air Interface standards. The TM04ANNABM1 are based on the Qualcomm MDM9250 wireless chipsets and support the following bands. Table 1. Supported Band Region NA Band LTE B2/B4/B5/B7/B10/B12/B17 /B66 WCDMA B2/B4/B5 GSM GSM850, GSM1900 1.1 Block Diagram Confidential Figure 1.1. TM04ANNABM1 Block diagram 1.2 Environmental Specifications The environmental specification for operating and storage of the TM04ANNABM1 are defined in the the table below. Table 2. Environmental Specifications Parameter Temperature Range 5/9 Operating Temperature -10°C to 85°C (ecall 85°C) Storage Temperature -10°C to +85°C Humidity 95% or less 1.3 Electrical Specifications This section provides details for some of the key electrical specifications of the TM04ANNABM1 embedded modules. 1.3.1 Absolute Maximum Rating and ESD Ratings This section defines the Absolute Maximum and Electrostatic Discharge (ESD) Ratings of the TM04ANNABM1 embedded modules. Warning: If these parameters are exceeded, even momentarily, damage may occur to the device. Table 3. Absolute Maximum Ratings Parameter Min Max Units VDD Power Supply Input - 6 V VIN Voltage on any digital input or output pin - VDD+0.5 V ESD Ratings ESD 1) Primary, Diversity antenna pads - Contact 1 kV 1) The ESD Simulator configured with 330pF, 2000Ω. Caution: The TM04ANNABM1 embedded modules are sensitive to Electrostatic Discharge. ESD countermeasures and handling methods must be used when handling the TM04ANNABM1 devices. 1.3.2 Current Consumption Table 4. TM04ANNABM1 Current Consumption (@12.5V TBD) Mode Parameter Typical Max Units LTE Max TX Output /Full RB 450 550 mA WCDMA Max TX Output /Full RB 450 550 mA LTE Idle, Registered 2 - mA WCDMA Idle, Registered 2 - mA 1.4 Mechanical Specifications 6/9 1.4.1 Physical Dimensions and Connection Interface The TM04ANNABM1 embedded modules are a Land Grid Array (LGA) form factor device. The device does not have a System or RF connectors. All electrical and mechanical connections are made via the 387 pad TM04ANNABM1 on the underside of the PCB. Table5. TM04ANNABM1 Embedded Module Dimensions Parameter Nominal Max Units Overall Dimension 39 x 43 39.35 x 43.35 mm Overall Module Height 3.65 3.85 mm PCB Thickness 1.0 1.1 mm Flatness Specification 0.1 mm Weight TBD g 1.4.2 Mechanical Drawing 1.4.2.1 NAD PCB [TOP View_Without shield Can cover] [TOP View_With shield Can cover] [SIDE View_With shield Can cover] 3.65mm 7/9 2. RF Specification The specifications for the LTE and WCDMA interfaces are defined. TM04ANNABM1 is designed to be compliant with the standard shown in the table below. Table6. Standards Compliance Technology Standards LTE • 3GPP Release 11 WCDMA • 3GPP Release 9 GSM • 3GPP Release 8 2.1 LTE Specification 2.1.1 LTE RX Sensitivity The Receiver Sensitivity of the TM04ANNABM1 are specified in the following table. Table7. Conducted RX (Receive) Sensitivity – LTE Bands BAND Method (DL CH) Specification BAND 2 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (900) in Band2 sensitivity : ≤-94.3 BLER : ≤ 5% BAND 4 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (2175) in Band4 sensitivity : ≤-96.3 BLER : ≤ 5% BAND 5 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (2525) in Band5 sensitivity : ≤-94.3 BLER : ≤ 5% BAND 7 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (3100) in Band7 sensitivity : ≤-94.3 BLER : ≤ 5% BAND 10 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (4450) in Band10 sensitivity : ≤-96.3 BLER : ≤ 5% BAND 12 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (5095) in Band12 sensitivity : ≤-93.3 BLER : ≤ 5% BAND 17 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (5790) in Band17 sensitivity : ≤-93.3 BLER : ≤ 5% 8/9 BAND 66 Reference sensitivity level(DUAL) Measure BLER of Mid Channel (66886) in Band66 sensitivity : ≤-95.8 BLER : ≤ 5% 2.2 WCDMA Specification 2.2.1 WCDMA RX Sensitivity The Receiver Sensitivity of the TM04ANNABM1 are specified in the following table. Table8. Conducted RX (Receive) Sensitivity – WCDMA Bands Item Method (DL CH) Specification BAND2 BER(Bit Error Rate) Measure BER of Middle Channel (CH=9800) in Band2 0.1% @≤-106.7dBm BAND4 BER(Bit Error Rate) Measure BER of Middle Channel (CH=1675) in Band4. 0.1% @≤-106.7dBm BAND5 BER(Bit Error Rate) Measure BER of Middle Channel (CH=4400) in Band5 0.1% @≤-106.7dBm 2.3 GSM Specification The Receiver Sensitivity of the TM04ANNA…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJTM04ANNABM1 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae You (or Jungmin Yang) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae You (or Jungmin Yang) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; March 09, 2021 LG Electronics USA 1000 Sylvan Ave Englewood Cliffs, NJ 07632-0763 United States i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours LG Electronics Inc. 222 LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea TEL: +82-31-610-6193 Dae Woong Kim Director, NA Regulatory and Environmental Affairs LG Electronics Inc.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 USA Grantee Code BEJ FCC ID BEJTM04ANNABM1 Authorized Contact Name Seungho, Hur Contact Email [email protected] Contact Phone +82-10-2468-2972 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 08 March 2021 Print Name: Dae Woong Kim Title: Director, NA Regulatory and Environmental Affairs *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Cover Letter-Modular Approval FCC ID: BEJTM04ANNABM1 D ate: 09 March 2021 Gentlemen: There’s a Cellular Module that would like to have your authorization as a modular approval. The specific product as below, Cellular Module, with its designed features and specified description, meets special requirements for full modular approval on Requirement of FCC KDB996369 by cross-reference list below. Compan y LG Electronics Inc. Model Name Telematics Module Model Number TM04ANNABM1 FCC ID B EJTM04ANNABM1 Comply(Y/N) a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Y b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Y c) The module must contain power supply regulation on the module; Y d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Y e) The module must contain power supply regulation on the module; N f) The module must demonstrate compliance in a stand-alone configuration; 6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748); Y g) The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee; Y ) The module must comply with RF exposure requirements (see Clause V below). Y Thank you. Sincerely, By: (Signature 1 ) Title: Director Dae Woong Kim (Print name) On behalf of: LG Electronics Inc. (Company Name) Telephone: 201-472-2623

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States March 09, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJTM04ANNABM1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: Confidential List Long-Term Block Diagram Operational Description Schematics Short-Term External Photos Internal Photos Test-Setup Photos User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will n ot be made public before the date of the Grant for this application. Sincerely, Tune-up procedure Part list Dae Woong Kim Director, NA Regulatory and Environmental Affairs LG El ectronics Inc.

Page 1 of 2 TECHNICAL JUSTIFICATION 05 March 2021 We, LG Electronics Inc., as a manufacturer of following product, hereby declare the product has hardware changes. Basic New FCC ID BEJ‐TM04ANNABM0 BEJTM04ANNABM1 ISED ID 2703H‐TM04ANNABM0 2703H‐TM04ANNABM1 Band differences between TM04ANNABM0 and TM04ANNABM1 GSM/UMTS/ Frequency FDD/TDDBand TM04ANNABM0 TM04ANNABM1 Band TxRx B2 1850~1910 1930~1990 FDD MidG, W, L G, W, L B4 1710~1755 2110~2155 FDD MidW, L W, L B5 824~849 869~894 FDD LowG, W, L G, W, L B7 2500~2570 2620~2690 FDD HighL L B12(B17) 699~716 729~746 FDD LowL L B13 777~787 746~756 FDD LowL B25 1850~1915 1930~1995 FDD MidL B26 814~849 859~894 FDD LowL B29 ‐717~728 FDD LowL(RXonly) B30 (2305~2315) 2350~2360 FDD HighL(RX only) B41 2496~2690 TDD HighL B66 1710~1780 2110~2200 FDD MidL L B71 663~698 617~652 FDD LowL ‐ G(GSM), W(WCDMA), T(TD‐SCDMA), L(LTE) Page 2 of 2 COMPONENTS CHANGES 1. Filter is removed form circuit due to B71 nonsupport. 2. Filter is removed form circuit due to B25 nonsupport. 3. SKYA22001 PAM is removed form circuit due to B21 nonsupport. 4. Filter is removed form circuit due to B21 nonsupport. 5. Filter is removed form circuit due to B30(RX) nonsupport. 6. Filter is removed form circuit due to B40 nonsupport. 7. Filter is removed form circuit due to B41 nonsupport. 8. Filter is removed form circuit due to B71(RX) nonsupport. 9. NAD MCP(Memory) component changed (pin‐to‐pin component) EVALUATION We compared band information, components differences and conduction power between TM04ANNABM0 and TM04ANNABM1. It is concluded that there is no difference for RF performance of TM04ANNABM1’s bands between TM04ANNABM0 and TM04ANNABM1. Heejae Cho LG Electronics USA, Inc.

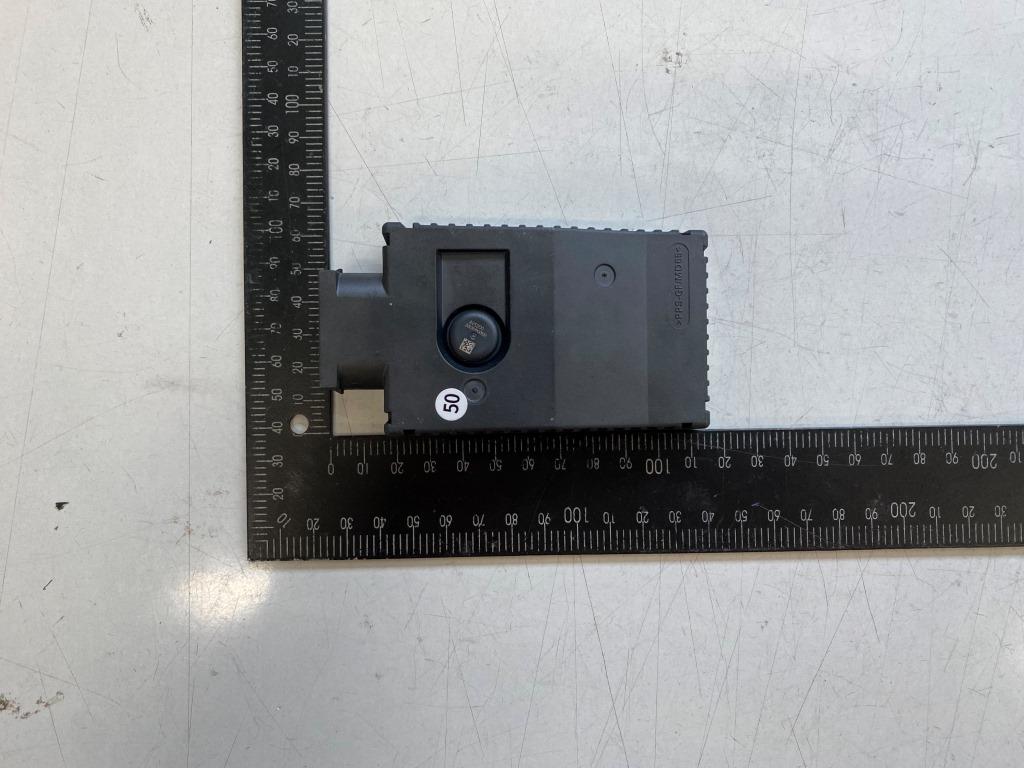

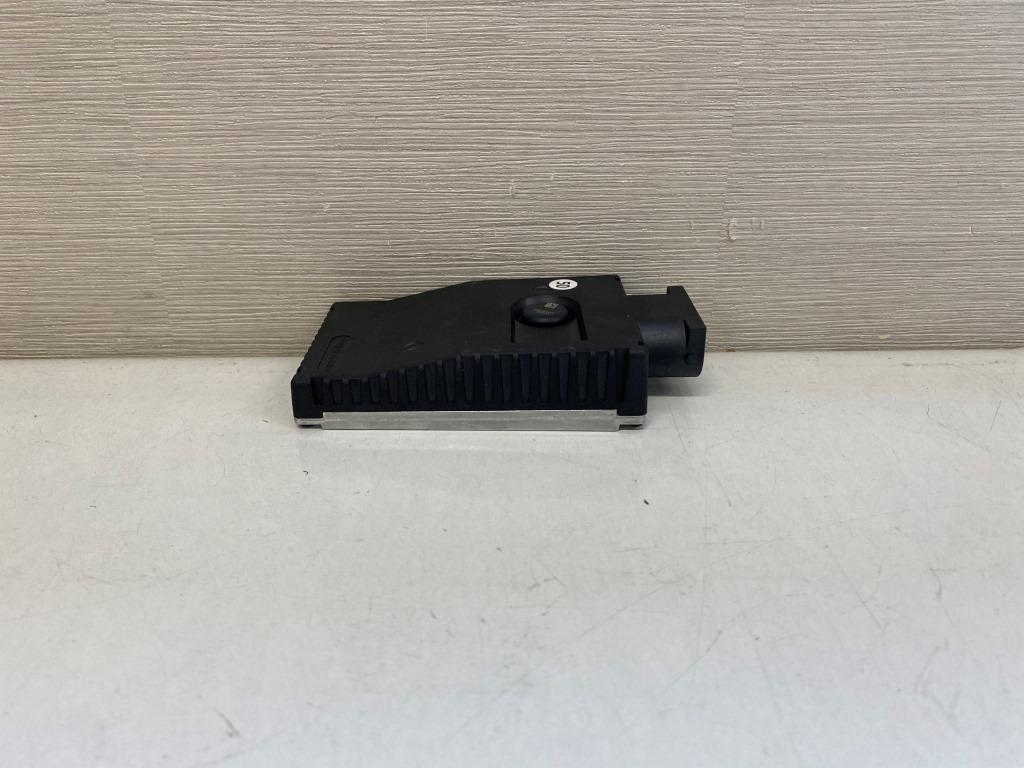

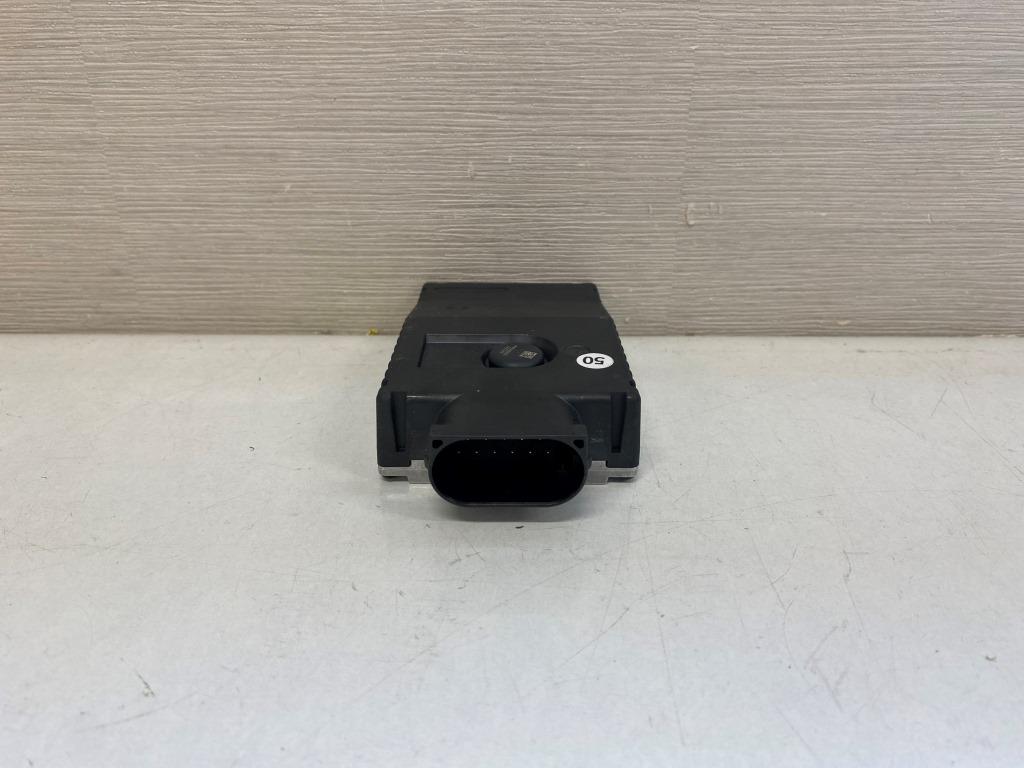

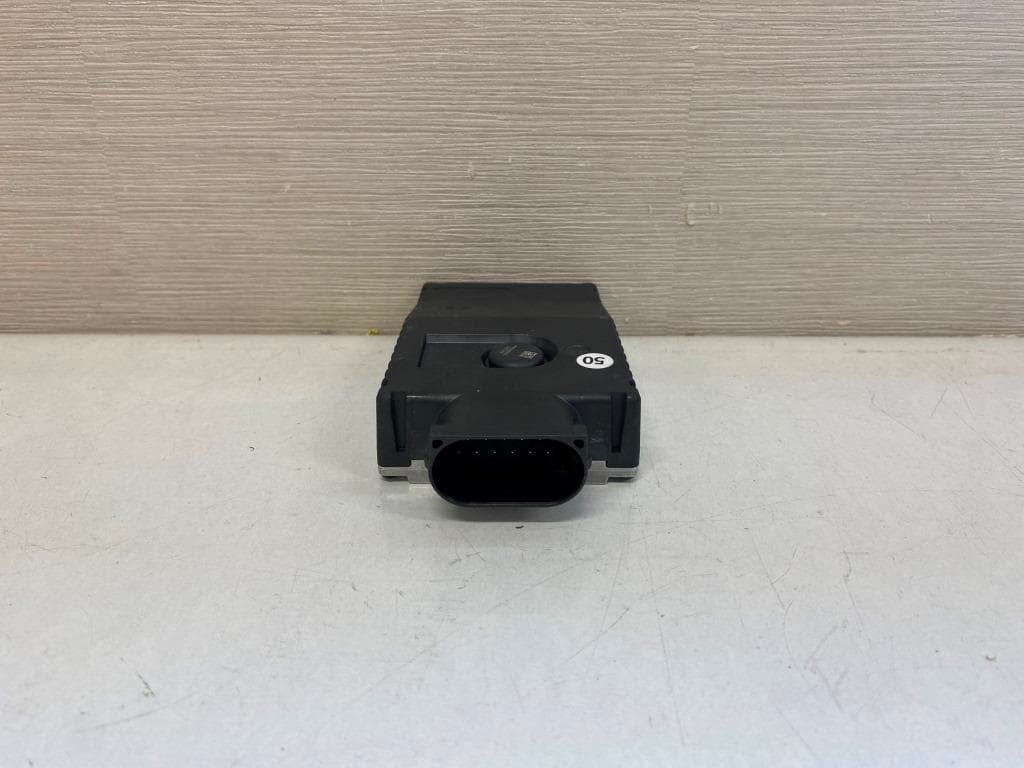

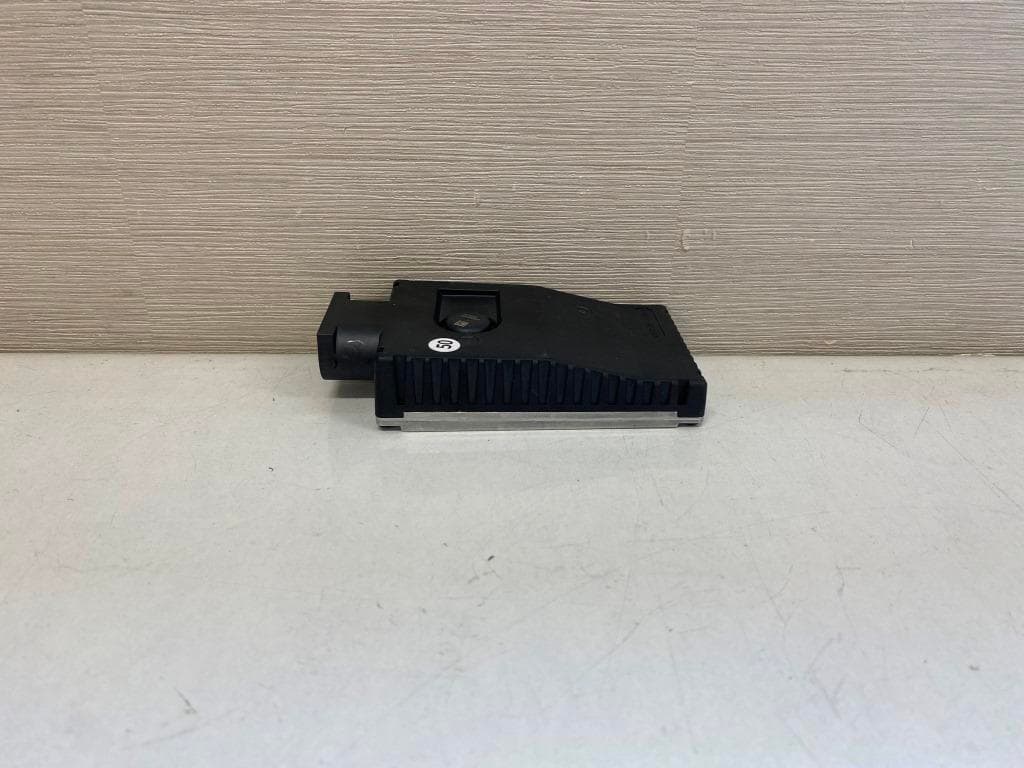

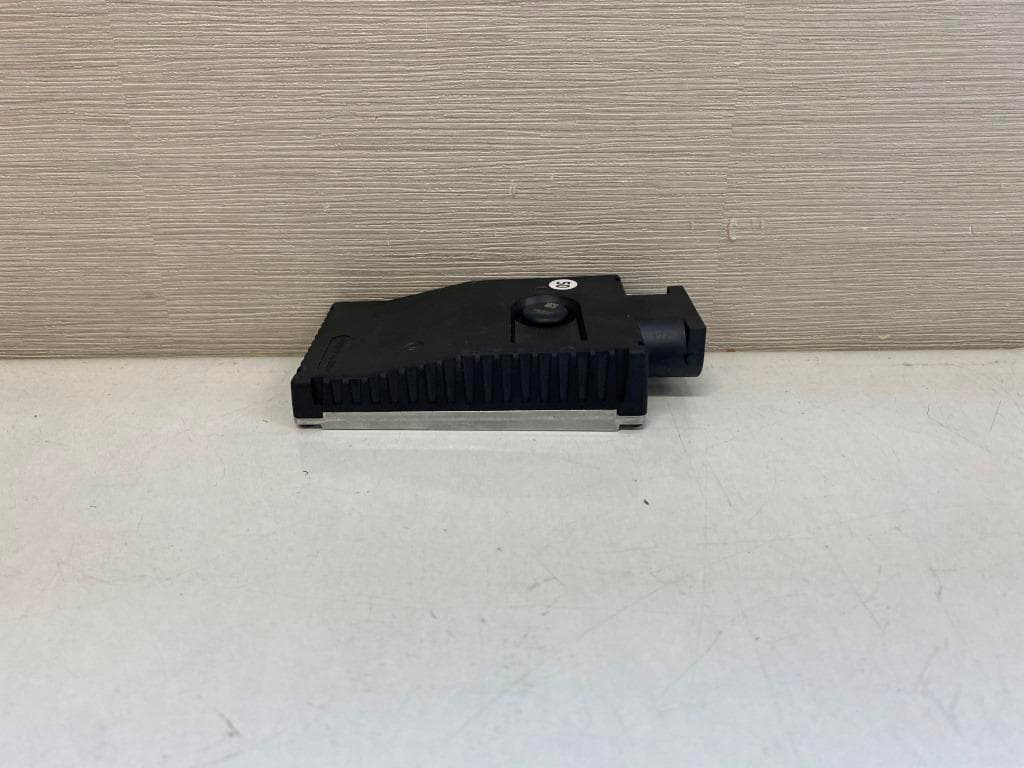

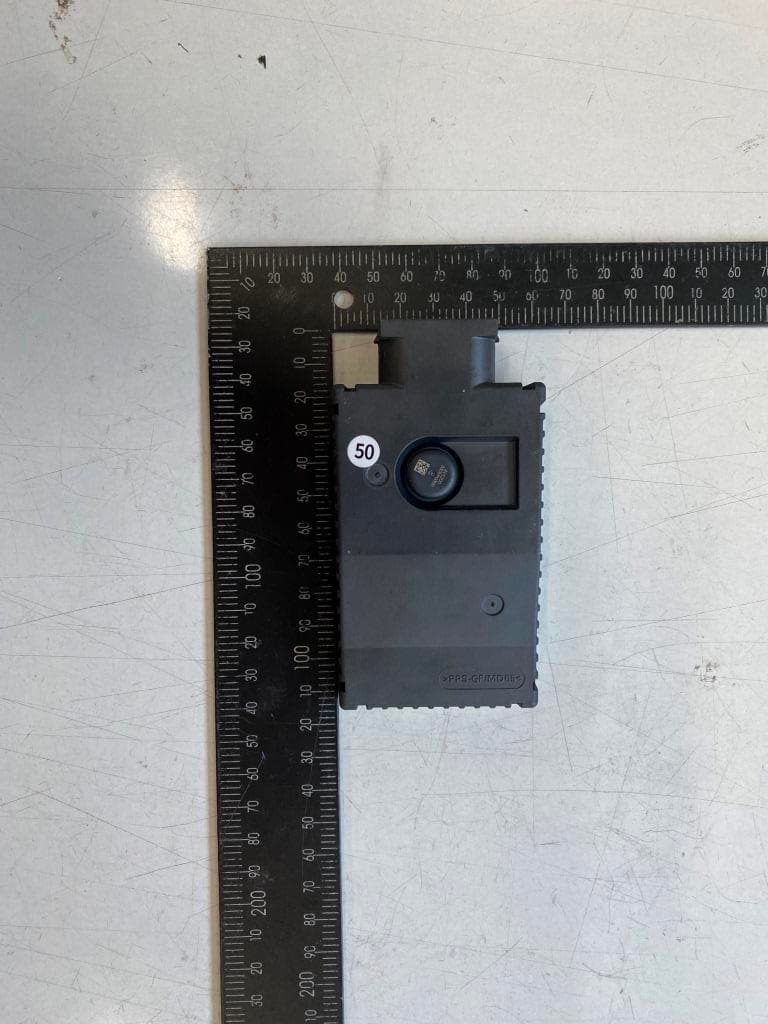

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

BMW WAVE LOW NAD Laser Marking Spec. NA - IC : 2703H-TM04ANNABM1 - FCC ID : BEJTM04ANNABM1 - Model # : TM04ANNABM1 - EBR : EBR31179001 * N/A : Not Available (No Marking), * TBD : To Be Determined (Need to mark) IC Model # FCC ID QR Code EBR PID

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001768 Page: 2 of 7 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001768 Page: 3 of 7 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant FCC Applicant : LG Electronics USA FCC Address : 111 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 IC Applicant : LG ELECTRONICS INC. IC Address : 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyenggi-do, Korea (Republic of), 451-713 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001768 Page: 4 of 7 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product Telematics Module Model Name TM04ANNABM1 Serial Number 001, 002 Power Supply DC 12.5 V Rated Power GSM 850: 33 ㏈m GSM 1 900: 30 ㏈m W CDMA II, IV, V: 24 ㏈m LTE Band 2, 4, 5, 7, 12, 17, 66: 23 ㏈m Frequency Range GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ WCDMA II: 1 850 ㎒ ~ 1 910 ㎒ WCDMA IV: 1 710 ㎒ ~ 1 755 ㎒ WCDMA V: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 17: 704 ㎒ ~ 716 ㎒ LTE Band 66: 1 710 ㎒ ~ 1 780 ㎒ Modulation Technique QPSK, 16QAM, GMSK, 8PSK Antenna Type Planar Inverted F Antenna Antenna Gain 699 ㎒ ~ 716 ㎒: -2.40 ㏈i 824 ㎒ ~ 849 ㎒: -0.82 ㏈i 1 710 ㎒ ~ 1 780 ㎒: -0.48 ㏈i 1 850 ㎒ ~ 1 915 ㎒: -0.48 ㏈i 2 500 ㎒ ~ 2 570 ㎒: -1.94 ㏈i H/W Version Rev.C S/W Version TN22XA01 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001768 2021.03.05 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001768 Page: 5 of 7 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001768 Page: 6 of 7 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance GSM 850 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 824 ~ 849 34 -0.82 25 0.103 450 0.549 333 GSM 1 900 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 31 -0.48 25 0.056 070 1 WCDM A II - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 25 -0.48 0.056 329 1 WCDM A IV - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 710 ~ 1 755 25 -0.48 0.056 329 1 WCDM A V - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 824 ~ 849 25 -0.82 0.052 087 0.549 333 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001768 Page: 7 of 7 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) LTE Band 2 - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 24 -0.48 0…
