BEJTM05GTJN2Car Telematics Device

LG Electronics Inc. 1 19-4-8 JLR VDC User Manual TM05GTJN2 Introduction V DC (Vehicle Domain Controller) Telematics module device equipped in the JLR(Jaguar Land Rover) vehicles. In charge of wireless communications in LTE-A/LTE/WCDMA/GSM network Platform for Telematics Virtual Machine (VM) and other VMs based on Hypervisor TM05GTJN2 supports GSM850/1900, WCDMA B2/4/5, LTE B2/4/5/7/12/26, 2.4/ 5GHz WLAN (UNII 1, 3) Service types which are provided by VDC Voice service : eCall, bCall1) via TSP2) SMS service : MO/MT SMS between Telematics VM – TSP2) Data service : Telematics services between Telematics VM – TSP 1/10 LG Electronics Inc. 2 19-4-8 Major functions of VDC (TM05GTJN2) Multi-mode LTE, Wi-Fi 11ac-Client, Ethernet connection. Micom for a vehicle interface and a power control, AP for an Ethernet interface and Wi-Fi operation Audio circuitry for Emergency Call and Breakdown Call. C ellular Operating Frequency Band Common Name Uplink Downlink GSM/EDGE UMTS FD-LTE 2100 (B1) 1920–1980 2110–2170 1900(B2) 1850–1910 1930–1990 V 1800 (B3) 1710–1785 1805–1880 850 (B5) 824–849 869–894 V V V 2600 (B7) 2500–2570 2620–2690 V 900 (B8) 880–915 925–960 800(B20) 832–862 791–821 850(B26) 814–849 859–894 V 700(B28) 703–748 758–803 Wi-F i Mode/Band Frequency Band (MHz) 802.11b, g, n / 2.4GHz 2412 ~ 2462 802.11a, n, ac / 5GHz 5180~5240, 5745~5825 V DC (Vehicle Domain Controller) supports highly integrated multimode, multiband RF CMOS transceiver IC. It provides a single-chip solution for LTE carrier aggregation support up to 20 MHz+20 MHz for 2DLCA. For the WiFi, Qualcomm engine are used. Overall the VDC d irectly supports with up to 2 GSM bands, 3UMTS bands and 6 FDD-LTE bands with 2DLCA. Additional Qualcomm IC as QCA6574 support WiFi 11ac. VDC is operating with LGE shark antenna approved for use with the device. 2/10 RFx information The strength of the RF field produced by the wireless module or modules embedded in the TCU is well within all international RF exposure limits known at this time. Because the wireless modules embedded in the TCU emit less than the maximum amount of energy permitted in radio frequency safety standards and recommendations, the manufacturer believes these modules are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation. This module should be remain more than 20 cm (8 inches) from the body when wireless devices are on and transmitting. This transmitter must not be collocated or operated in conjunction with any other antenna or transmitter. Operation is subject to the following two conditions: (1) this module does not cause interference , (2) this module accepts any interference that may cause undesired operation. Information for the integrator The integrator must not provide information to the end user regarding how to install or remove this RF module in the user manual of the end product. The user manual that is provided by the integrator for end users must include the following information in a prominent location. To comply with FCC RF and IC RSS‐102 exposure requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operated in conjunction with any other antenna or transmitter. Approbation FCC This module complies with FCC/IC rules. FCC : Part 15, Part 22, Part 24, Part 27, Part 90 ISED : RSS-130, RSS-132, RSS-133, RSS-139, RSS-199, RSS-247 Furthermore, this device complies with FCC radiation exposure limits set forth for uncontrolled environments. This module must be installed and operated with minimum distance of 20 cm between the radiating element and the user. This module must not be co-located with any other transmitters or antennas. To comply with F CC regulatio ns limiting both the maximum RF output power and human ex posure to RF r adiatio n, the maximum antenna gain including cable loss in a mobile- only ex posure condition must not exceed the values listed in the following table. Band Frequency Rang e [M Hz] Maximum Antenna Gain[dBi] GSM850 824~849 -3.57 GSM1900 1850~1910 0.01 WCDMA(B2) 1850~1910 0.01 WCDMA(B4) 1710~1755 0.33 WCDMA(B5) 824~849 -3.57 LTE(B2) 1850~1910 0.01 LTE(B4) 1710~1755 0.33 LTE(B5) 824~849 -3.57 LTE(B7) 2500~2690 -3.61 LTE(B12) 699~716 -2.61 LTE(B26) 814~849 -4.30 Approbation FCC To satisfy the FCC’s exterior labeling requirements, the following text must appear on the exterior of the end product. Contains transmitter module FCC ID: BEJTM05GTJN2 Contains transmitter module IC: 2703H-TM 05GTJN2 Changes or modifications to this equipment may cause harmful interference unless th e modifi cations are expressly approved in the instruction manual. Users may lose the authority to operate this equipment if an unauthorized change or codification is made. Note: If this module is intended for use in a portable device, additional testing will be required to satisfy the RF exposure and SAR requirements of FCC Part 2.1093 and RSS-102. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Approbation FCC Note: The OEM integrator is responsible for ensuring that the host product which is installed and operating with the module is in compliant with Part 15B unintentional Radiator requirements, please note that For a Class B digital device or peripheral, the instructions furnished the user manual of the end‐ user product shall include the following or similar statement, placed in a prominent location in the text of the host product manual: Note：This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJTM05GTJN2 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; February 9, 2021 LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632

Applicant Declaration Applicant Declaration Rev:0. 0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 111 Sylvan Ave, North Building, Englewood Cliffs, NJ 07632 United States Grantee Code BEJ FCC ID BEJTM05GTJN2 Authorized Contact Name Dae Woong Kim Contact Email [email protected] Contact Phone 201-816-2003 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: February 9, 2021 Print Name: Dae Woong Kim Title: Director, Regulatory and Environmental Affairs *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

LG Electronics USA 111 Sy lvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 February 9, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJTM05GTJN2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Software Security Document 5 Tune-Up Procedure Short-Term 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Dae Woong Kim Director, NA Regulatory & Environmental Affairs L G Electronics USA

Cover Letter-Modular Approval FCC ID: BEJTM05GTJN2 Date: Feb. 9, 2021 Gentlemen: There’s a TM05GTJN2 that would like to have your authorization as a modular approval. The specific product as below, TM05GTJN2 with its designed features and specified description, meets special requirements for Full modular approval on FCC KDB996369 by cross- reference list below. Company LG Electronics Model Name Car Telematics Device Model Number TM05GTJN2 FCC ID BEJTM05GTJN2 Requirement of FCC KDB996369 Comply（Y/N） 1.The modular transmitter must have its own RF shielding. Y The EUT provides the RF shielding. See EUT photo. 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y The EUT has its buffered modulation. Please see the Schematic Diagram. 3.The modular transmitter must have its own power supply regulation. Y The EUT has its own power supply regulation, please see the Schematic Diagram. 4.The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Y The EUT was tested with a test board, Please see test report and setup photo 6.The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed modul e. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: BEJTM05GTJN2” or “Contains FCC ID: BEJTM05GTJN2” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Y Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Y The EUT complies with RF exposure requirement. Thank you. Sincerely, By: _________________________ _________Dae Woong Kim_________ (Signature 1 ) (Print name) Title: Director, NA Regulatory and Environmental Affairs On behalf of: LG Electronics USA Telephone: 201-816-2003

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Information Model : TM05GTJN2 FCC ID : BEJT M05GTJN 2 IC : 2703H-T M05GTJN 2  Model : TM05GTJN2 FCC ID : BEJTM05GTJN2 IC : 2703H-TM05GTJN2   <Top vi ew of EUT>

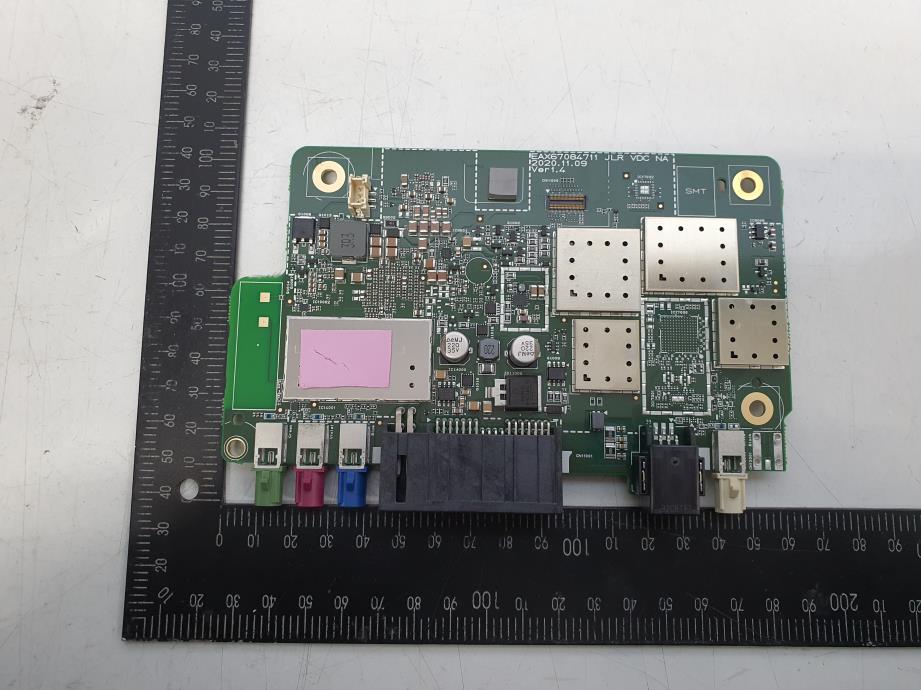

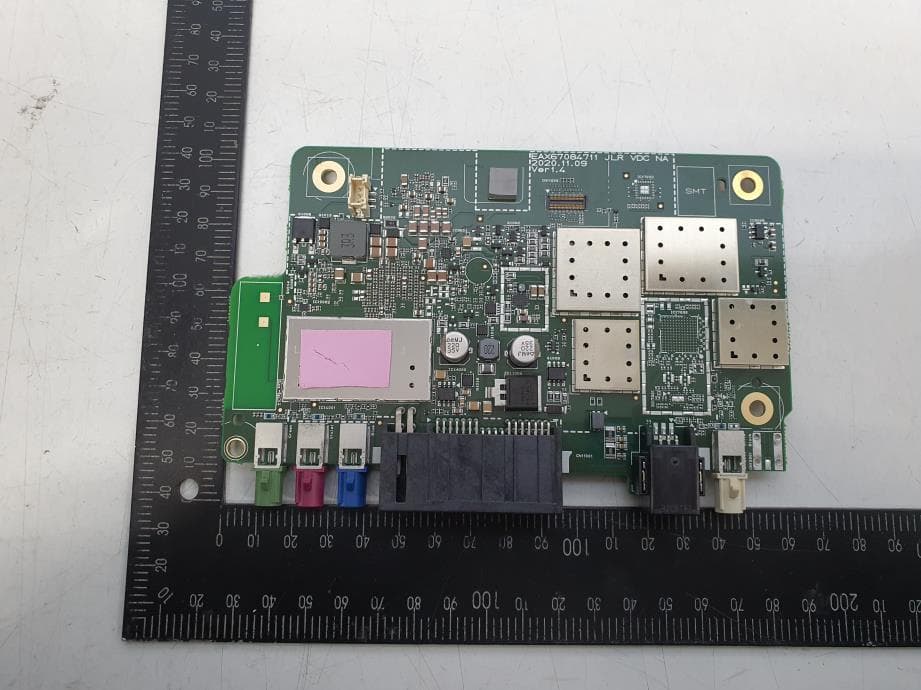

Internal photos of EUT Overview of EUT Top view of PCB Bottom view of PCB View of Antenna & Module WWAN Port WLAN Port WWAN Port WLAN Port

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001649 Page: 2 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001649 Page: 3 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United States, 07632 Contact Person : Kim, Dae-woong Phone No. : +1 201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001649 Page: 4 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product Car Telematics Device Model Name TM05GTJN2 Power Supply DC 12V Frequency Range GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ WCDMA 2: 1 850 ㎒ ~ 1 910 ㎒ WCDMA 4: 1 710 ㎒ ~ 1 755 ㎒ WCDMA 5: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 26: 814 ㎒ ~ 849 ㎒ WLAN 2.4G (11b/g/n_HT20, HT40): 2 412 ㎒ ~ 2 462 ㎒ WLAN 5G Band 1 (11a/n_HT20, 11ac_VHT20): 5 180 ㎒ ~ 5 240 ㎒ WLAN 5G Band 1 (11n_HT40, 11ac_VHT40): 5 190 ㎒ ~ 5 230 ㎒ WLAN 5G Band 1 (11ac_VHT80): 5 210 ㎒ WLAN 5G Band 3 (11a/n_HT20, 11ac_VHT20): 5 745 ㎒ ~ 5 825 ㎒ WLAN 5G Band 3 (11n_HT40, 11ac_VHT40): 5 755 ㎒ ~ 5 795 ㎒ WLAN 5G Band 3 (11ac_VHT80): 5 775 ㎒ Modulation Technique DSSS, OFDM, QPSK, 16QAM, 64QAM, GMSK, 8PSK Antenna Type External antenna Antenna Gain 2 400 ㎒ ~ 2 483.5 ㎒: 2.55 ㏈i (WLAN 2.4 G) 5 150 ㎒ ~ 5 250 ㎒: 3.96 ㏈i (WLAN 5 G) 5 725 ㎒ ~ 5 850 ㎒: 6.31 ㏈i (WLAN 5 G) 699 ㎒ ~ 716 ㎒: -1.85 ㏈i (LT E 12) 814 ㎒ ~ 824 ㎒: -3.18 ㏈i (LTE 26) 824 ㎒ ~ 849 ㎒: -2.45 ㏈i (GSM 850, WCDMA 5, LTE 26/5) 1 850 ㎒ ~ 1 910 ㎒: 1.13 ㏈i (GSM 1 900, WCDMA 2, LTE 2) 1 710 ㎒ ~ 1 755 ㎒: 1.45 ㏈i (WCDMA 4, LTE 4) 2 500 ㎒ ~ 2 570 ㎒: -1.67 ㏈i (LT E 7) H/W Version Rev.D S/W Version V9.1.02 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001649 2021.02.08 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001649 Page: 5 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001649 Page: 6 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Test information of Cable Loss and Antenna Gain Test Item Frequency Range (㎒) Cable Loss (㏈) Antenna Gain of EUT (㏈i) Final Antenna Gain (㏈i) GSM 850 824 ~ 849 -1.12 -2.45 -3.57 GSM 1900 1 850 ~ 1 910 -1.12 1.13 0.01 WCDMA 2 1 850 ~ 1 910 -1.12 1.13 0.01 WCDMA 4 1 710 ~ 1 755 -1.12 1.45 0.33 WCDMA 5 824 ~ 849 -1.12 -2.45 -3.57 LTE 2 1 850 ~ 1 910 -1.12 1.13 0.01 LTE 4 1 710 ~ 1 755 -1.12 1.45 0.33 LTE 5 824 ~ 849 -1.12 -2.45 -3.57 LTE 7 2 500 ~ 2 570 -1.94 -1.67 -3.61 LTE 12 699 ~ 716 -0.76 -1.85 -2.61 LTE 26 814 ~ 824 -1.12 -3.18 -4.30 LTE 26 824 ~ 849 -1.12 -2.45 -3.57 Note; -Final Antenna Gain = Cable Loss(㏈) + Antenna Gain of EUT(㏈i) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001649 Page: 7 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.4. Output Power into Antenna & RF Exposure Evaluation Distance WLAN (2.4G ) - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 17.5 2.55 0.…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001646 Page: 2 of 59 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------------------------- 3 2. Spurious Radiated Emission ---------------------------------------------------------------------------- 7 3. Conducted Output Power ---------------------------------------------------------------------------------- 18 4. Occupied Bandwidth ---------------------------------------------------------- ------------------------------ 21 5. Peak-Average Ratio --------- ------------------------------------------------------------------------------- 26 6. Spurious Emissions at Antenna Terminal -------- ----------------------------------------------------- 34 7. Band Edge ---------------------------------------------------------------------------------------------------- 46 8. Frequency Stability ----------------------------------------------------------------------------------------- 53 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001646 Page: 3 of 59 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant FCC Applicant : LG Electronics USA FCC Address : 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey, United Stated, 07632 IC Applicant : LG ELECTRONICS INC. IC Address : 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, Republic of Korea, 451-713 Contact Person : Kim, Dae-woong Phone No. : +201 266 2215 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 1.4. Description of EUT Kind of Product Car Telematics Device Model Name TM05GTJN2 Model Serial Number 001VITA000080 Power Supply DC 12 V Rated Power WCDMA II, IV, V: 23 ㏈m GSM 850: 33 ㏈m GSM 1 900: 30 ㏈m Frequency Range WCDMA II: 1 850 ㎒ ~ 1 910 ㎒ WCDMA IV: 1 710 ㎒ ~ 1 755 ㎒ WCDMA V: 824 ㎒ ~ 849 ㎒ GSM 850: 824 ㎒ ~ 849 ㎒ GSM 1 900: 1 850 ㎒ ~ 1 910 ㎒ Emission Designator WCDMA II: 4M15F9W (RMC) / 4M15F9W (HSDPA) WCDMA IV: 4M14F9W (RMC) / 4M12F9W (HSDPA) WCDMA V: 4M14F9W (RMC) / 4M14F9W (HSDPA) GSM 850: 240KGXW (VOICE) / 245KG7W (EDGE) GSM 1 900: 239KGXW (VOICE) / 246KG7W (EDGE) Modulation Technique QPSK, 16QAM, GMSK, 8PSK Antenna Type External antenna Antenna gain 824 ㎒ ~ 849 ㎒: -2.45 ㏈i 1 710 ㎒ ~ 1 755 ㎒: 1.45 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 1.13 ㏈i H/W Version R e v. D S/W Version V9.1.02 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001646 Page: 4 of 59 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Ju n. 18, 2020 Annual Ju n. 18, 2021 Signal Generator R&S SMBV100A 255834 Ju n. 03, 2020 Annual Ju n. 03, 2021 Spectrum Analyzer R&S FSV30 103101 Jun. 01, 2020 Annual Jun. 01, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 Spectrum Analyzer Agilent N9030A US51350132 Nov. 12, 2020 Annual Nov. 12, 2021 Mobile Test Unit R&S CMW500 144034 Feb. 28, 2020 Annual Feb. 28, 2021 Mobile Test Unit Anritsu MT8821C 6262192291 Oct. 08, 2020 Annual Oct. 08, 2021 Power Meter Anritsu ML2495A 1223004 Jun. 01, 2020 Annual Jun. 01, 2021 Power Sensor Anritsu MA2411B 1207272 Jun. 01, 2020 Annual Jun. 01, 2021 Temperature Chamber ESPEC CORP. PL-1J 15000796 Nov. 06, 2020 Annual Nov. 06, 2021 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000-18000 -40SS 7 Mar. 04, 2020 Annual Mar. 04, 2021 High Pass Filter Wainwright Instrument GmbH WHKX2.2/12.75G-10SS 8 Mar. 04, 2020 Annual Mar. 04, 2021 High Pass Filter Wainwright Instrument GmbH WHK7.5/26.5G-6SS 15 Jun. 05, 2020 Annual Jun. 05, 2021 Directional Coupler KRYTAR 152613 122660 Jun. 11, 2020 Annual Jun. 11, 2021 DC Power Supply Agilent U8002A MY53150029 Jun. 04, 2020 Annual Jun. 04, 2021 Preamplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Preamplifier R&S SCU 18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 May 08, 2020 Annual May 08, 2021 Test Receiver R&S ESU26 100109 Feb. 18, 2020 Annual Feb. 18, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 396 Mar. 21, 2019 Biennial Mar. 21, 2021 Horn Antenna R&S HF906 100326 Feb. 14, 2020 Annual Feb. 14, 2021 Horn Antenna R&S HF907 102270 Feb. 14, 2020 Annual Feb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA9170 9170-540 Jul. 24, 2019 Biennial Jul. 24, 2021 Antenna Master Innco systems GmbH MM4000 N/A N.C.R. N/A N.C.R.…
