BEJTM15FNNATY0NAD module

1/9 Technical Specification (TM15FNNATY0) FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Model Name : TM15FNNATY0 2/9 History Ver. Date Contents Written by Checked by Approved by Note 1.0 2022.12.02 3/9 Contents 1. Product Introduction .................................................................................................. 4 1.2 Environmental Specifications ...................................................................................... 4 1.3 Electrical Specifications .............................................................................................. 5 1.3.1 Absolute Maximum Rating and ESD Ratings ........................................................... 5 1.3.2 Current Consumption ............................................................................................... 5 1.4 Mechanical Specifications ........................................................................................... 5 1.4.1 Physical Dimensions and Connection Interface ....................................................... 5 1.4.2 Mechanical Drawing ................................................................................................. 5 2. RF Specification ............................................................................................................ 7 2.1 5G NR Specification .................................................................................................... 7 2.2 LTE Specification ........................................................................................................ 8 4/9 1. Product Introduction The TM15FNNATY0 are designed for the automotive industry. They support 5G NR, LTE and WCDMA air Interface standards. The TM15FNNATY0 are based on the Qualcomm SA515M wireless chipsets and support the following bands.  Only 5G NR and LTE will be supported in USA Table 1. Supported Band Region NA (North America) Band NR n2/n5/n12/n66/n77 LTE B2/4/5/12/14/66 WCDMA - 1.1 Block Diagram - Confidential 1.2 Environmental Specifications The environmental specification for operating and storage of the TM15FNNATY0 are defined in the the table below. Table 2. Environmental Specifications Parameter Temperature Range Operating Temperature Excluding the ME -30°C to 95°C -20°C to 95°C (BUB Discharge) ME -30°C to 100°C -20°C to 100°C (BUB Discharge) Storage Temperature Excluding the ME -40°C to 95°C ME -40°C to 100°C Humidity 95% or less 5/9 1.3 Electrical Specifications This section provides details for some of the key electrical specifications of the TM15FNNATY0 embedded modules. 1.3.1 Absolute Maximum Rating This section defines the Absolute Maximum Ratings of the TM15FNNATY0 embedded modules. Warning: If these parameters are exceeded, even momentarily, damage may occur to the device. 1.3.2 Current Consumption Table 4. TM15FNNATY0 Current Consumption (@3.9V) Mode Parameter Typical Max Units LTE Max TX Output /Full RB 550 TBD mA WCDMA Max TX Output /Full RB 550 TBD mA LTE Idle, Registered 2 - mA WCDMA Idle, Registered 2 - mA 1.4 Mechanical Specifications 1.4.1 Physical Dimensions and Connection Interface The TM15FNNATY0 embedded modules are a Land Grid Array(LGA) form factor device. The device does not have a System or RF connectors. All electrical and mechanical connections are made via the LGA pad on the underside of the PCB. Table5. TM15FNNATY0 Embedded Module Dimensions Parameter Nominal Max Units Overall Dimension 45 x 39 45.35 x 39.35 mm Overall Module Height 3.4 3.6 mm PCB Thickness 1.0 1.1 mm Flatness Specification 0.15 mm Weight TBD g 1.4.2 Mechanical Drawing 6/9 1.4.2.1 NAD PCB 7/9 2. RF Specification The specifications for the 5G NR & LTE interfaces are defined. TM15FNNATY0 is designed to be compliant with the standard shown in the table below. Table6. Standards Compliance Technology Standards 5G NR • 3GPP Release 15 LTE • 3GPP Release 15 2.1 5G NR Specification 2.1.1 NR RX Sensitivity The Receiver Sensitivity of the TM15FNNATY0 are specified in the following table. Table7. Conducted RX (Receive) Sensitivity – NR Bands BAND Method (DL CH) Specification n2 Reference sensitivity level Measure BLER of Mid Channel (392000) in Band2 sensitivity : ≤-94.1 BLER : ≤ 5% (SCS:15 kHz / BW:10 MHz) n5 Reference sensitivity level Measure BLER of Mid Channel (176300) in Band5 sensitivity : ≤-94.1 BLER : ≤ 5% (SCS:15 kHz / BW:10 MHz) n12 Reference sensitivity level Measure BLER of Mid Channel (147500) in Band12 sensitivity : ≤-93.1 BLER : ≤ 5% (SCS:15 kHz / BW:10 MHz) n66 Reference sensitivity level Measure BLER of Mid Channel (431000) in Band66 sensitivity : ≤-95.6 BLER : ≤ 5% (SCS:15 kHz / BW:10 MHz) n77 Reference sensitivity level Measure BLER of Mid Channel (650000) in Band77 sensitivity : ≤-84.1 BLER : ≤ 5% (SCS:30 kHz / BW:100 MHz) 8/9 2.2 LTE Specification 2.2.1 LTE RX Sensitivity The Receiver Sensitivity of the TM15FNNATY0 are specified in the following table. Table7. Conducted RX (Receive) Sensitivity – LTE Bands BAND Method (DL CH) Specification BAND 2 Reference sensitivity level Measure BLER of Mid Channel (900) in Band2 sensitivity : ≤-94.3 BLER : ≤ 5% BAND 4 Reference sensitivity level Measure BLER of Mid Channel (2175) in Band4 sensitivity : ≤-96.3 BLER : ≤ 5% BAND 5 Reference sensitivity level Measure BLER of Mid Channel (2525) in Band5 sensitivity : ≤-94.3 BLER : ≤ 5% BAND 12 Reference sensitivity level Measure BLER of Mid Channel (5095) in Band12 sensitivity : ≤-93.3 BLER : ≤ 5% BAND 14 Reference sensitivity level Measure BLER of Mid Channel (5330) in Band14 sensitivity : ≤-93.3 BLER : ≤ 5% BAND 66 Reference sensitivity level Measure BLER of Mid Channel (66886) in Band66 sensitivity : ≤-95.8 BLER : ≤ 5% 9/9 Notice Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device …

Text truncated - open the document above for the full version.

Rev 1/26/2023 LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-23-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: BEJTM15FNNATY0 LG Electronics USA certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Heejae Cho Rev 1/26/2023 LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-23-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: BEJTM15FNNATY0 LG Electronics USA certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Heejae Cho

Rev 1/26/2023 LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02/23/2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: BEJ LG Electronics USA (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0023476120 Name: LG Electronics USA Address: 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Contact Person: Heejae Cho Tel.: 201-470-2696 Email: [email protected] Sincerely, LG Electronics USA Heejae Cho

LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Date: 02/23/2023 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Geunki Son of Dt&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEJTM15FNNATY0 including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of Dt&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Contact Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs

LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Date: 02/23/2023 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Request of Confidentiality FCC ID: BEJTM15FNNATY0 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 Tune-up Procedure SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Contact Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs

LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 Date: 03/03/2023 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Letter of Declaration FCC ID: BEJTM15FNNATY0 To Whom It may Concern: We hereby declare that the module is not for sale and integration instructions are internal confidential manufacturing documents. We request that integration instructions be placed in operation description and treated as long-term confidential. Sincerely, Contact Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs

LG Electronics USA 111 Sylvan Avenue North Building Englewood Cliffs New Jersey United States 07632 MODULAR APPROVAL LETTER Date: 02/23/2023 FCC ID: BEJTM15FNNATY0 Modular Approval Requirement Answers (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes (iii) The modular transmitter must have its own power supply regulation. Yes (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Not applicable (This device is licensed transmitter. ) (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). Yes (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes (viii) Radio frequency devices operating under the provisions of this part are subject to the radio frequency radiation exposure requirements specified in §§ 1.1307(b), 1.1310, 2.1091, and 2.1093 of this chapter , as appropriate. Applications for equipment authorization of modular transmitters under this section must contain a statement confirming compliance with these requirements. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Technical information showing the basis for this statement must be submitted to the Commission upon request. Yes Sincerely, Contact Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs

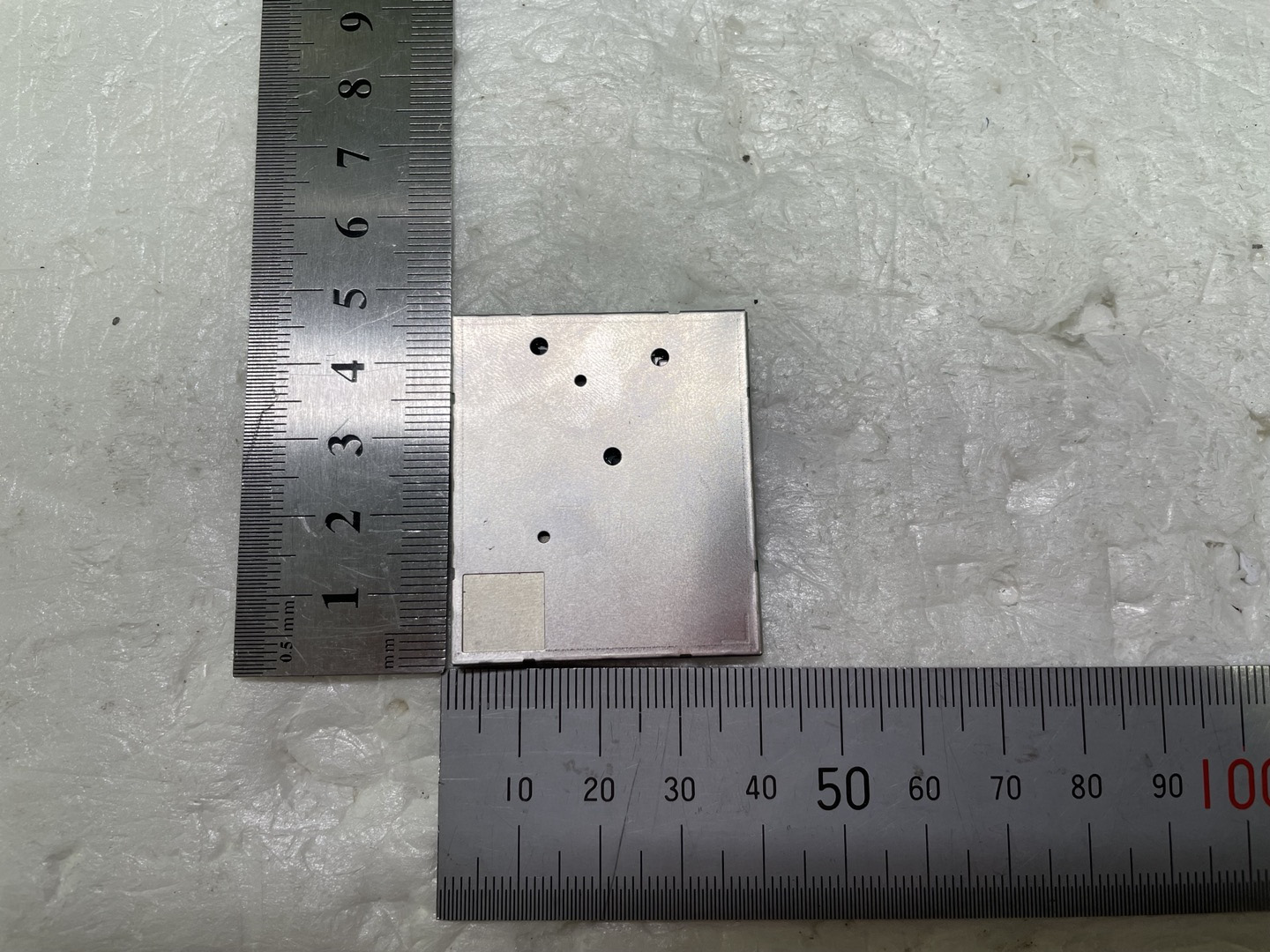

FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 1 FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 2 FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 3

1.1 ID Label Information FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Model Name : TM15FNNATY0 1.2 Label Location Drawing The laser marking shown shall be permanently marked at a conspicuous location on the device. Figure 1.1 Laser marking Location FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Model: TM15FNNATY0

FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 1 <Module> <Module> FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. <Module> FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 2 ANT1 ANT2 ANT1,2 ANT2 Trace path Trace path Trace path Trace path

FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 3 <Antenna 1> FCC ID: BEJTM15FNNATY0 IC: 2703H-TM15FNNATY0 Copyright Ⓒ 2023, Dt&C Co., Ltd. View 4 <Antenna 2>

FCC ID: RF feature(Worst Mode) Norminal Target Power(dBm) Note1 Tolerance (dB) ANT Gain (dBi) Note2 Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requirement (mW/cm 2 ) NR Band n2(ANT1)1850.00~1910.0023.002.701.8827.58572.7970.114 01.000 0 NR Band n5(ANT2)824.00~849.0023.002.70-0.0125.69370.6810.073 80.549 0 NR Band n12(ANT1)699.00~716.0023.002.70-1.1524.55285.1020.056 80.466 0 NR Band n66(ANT1)1710.00~1780.0023.002.700.1825.88387.2580.077 11.000 0 NR Band n77(ANT2)3450.00~3550.0022.502.50-1.1323.87243.7820.048 51.000 0 NR Band n77(ANT2)3700.00~3980.0022.502.50-2.3622.64183.6540.036 61.000 0 Band14(ANT2)788.00~798.0023.002.70-0.5425.16328.0960.065 30.525 0 ~ ~ ~ ~ ~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averaging time (minutes) 0.3 ~ 1.346141.63*10030 1.34 ~ 30824/f2.19 / f *180 / f 2 30 30 ~ 30027.50.0730.230 300 ~ 1,500f / 150030 1,500 ~ 100,0001.030 Conclusion : BEJTM15FNNATY0 MPE Calculation Frequency range (MHz) Note2: including path loss between conducted test feeding point and antenna feeding point. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. Note1: Please refer to the operation description for Max tune-up power. ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 572.797 S= Maximum power density(mW/cm 2 ) 0.114EIRP= Equivalent Isotropic Radiated Power(mW) R= Distance to the center of the radiation of the antenna(20cm)

1/11 APPROVAL SPECIFICATION Product : Internal Antenna Model Name : 24CY (LTE MAIN, LTE MIMO, GNSS) Date : 2023. 01. 03. LS Mtron Co. Ltd. Kiturami Building 6F, 396 Gonghang-daero Gangseo-gu, Seoul, 07649, Korea TEL.: 82-2-6958-6320, FAX.: 82-2-6958-6321 2/11 Table of Contents Page 1. Manufacturer ------------------------------------------------------------------------------ 3 2. Model Name ------------------------------------------------------------------------------- 3 3. Antenna Type ----------------------------------------------------------------------------- 3 4. Electrical Performance Data --------------------------------------------------------- 3 3/11 1. Manufacturer - LS Mtron Co. Ltd. - LS Mtron Part Number: LS01-I-22009-A1 2. Model Name - Basic Model: 24CY - Variation Model: - 3. Antenna Type - PIFA : Planar Inverted F Antenna 4. Electric Performance Data 4.1 Specification Sheet 4.1.1 LTE Antenna (LB+MB+HB) Electronic Specification Frequency Range (MHz) LTE B5/8/12/14/17/18/19/20/26/28/71 WCDMA B5/8 GSM900 LTE B1/2/3/4/9/25/34/38/39/40/66 WCDMA B1/3 GSM1800 617 698 803 824 880 894 960 1710 1880 1920 2170 2300 2400 Peak Gain(dBi) -1.81 -0.2 -0.94 -0.84 -2.62 -0.17 -1.31 1.63 3.36 2.33 0.51 1.39 1.73 Average Gain(dBi) -4.52 -4.08 -3.43 -3.29 -3.11 -3.75 -4.5 -3.52 -2.12 -3.07 -3.46 -2.89 -3.22 Frequency Range (MHz) LTE B7/41 SUB6 n77/78/79 MIMO 2500 2690 3300 3800 4200 4400 5000 Peak Gain(dBi) 2.77 2.81 3.23 2.68 3.26 3.08 2.69 Average Gain(dBi) -3.73 -2.78 -3.86 -2.24 -3.1 -2.54 -3.71 4/11 4.1.2 GNSS Antenna (L1, L5) 4.1.3 LTE Antenna (LB+MB+HB MIMO) Frequency Range GNSS(L1, L5) 1166MHz 1189MHz 1559MHz 1607MHz Peak Gain(dBi) 1.56 1.66 1.77 2.14 Average Gain(dBi) -3.07 -2.89 -2.9 -2.78 Electronic Specification Frequency Range (MHz) LTE B5/8/12/14/17/18/19/20/26/28/71 MIMO WCDMA B5/8 MIMO GSM900 MIMO LTE B1/2/3/4/9/25/34/38/39/40/66 MIMO WCDMA B1/3 MIMO GSM1800 MIMO 617 698 803 824 880 894 960 1710 1880 1920 2170 2300 2400 Peak Gain(dBi) -1.9 -0.35 0.57 1.11 0.78 0.7 -1.62 1.06 1.86 0.26 -1.17 -1.49 -0.72 Average Gain(dBi) -5.02 -4.01 -3.83 -4.01 -4.86 -5.09 -5.81 -4.25 -3.4 -3.71 -2.42 -3.3 -4.56 Frequency Range (MHz) LTE B7/41 MIMO SUB6 n77/78/79 2500 2690 3300 3800 4200 4400 5000 Peak Gain(dBi) -0.48 0.21 1.88 0.74 1.35 1.87 1.87 Average Gain(dBi) -4.38 -3.67 -3.09 -2.56 -2.5 -2.81 -3.14 5/11 4.2 3D Radiation Pattern 4.2.1 LTE Antenna (LB+MB+HB) 4.2.1.1 LTE LB (LTE B5/8/12/14/17/18/19/20/26/28/71, WCDMA B5/8, GSM900) 4.2.1.2 LTE MB (LTE B1/2/3/4/9/25/34/38/39/40/66, WCDMA B1/3, GSM1800) 6/11 4.2.1.3 LTE HB (B7/41) 4.2.1.4 LTE SUB6 (n77/78/79) MIMO 7/11 4.2.2 GNSS Antenna (L1, L5) 4.2.2.1 GPS Antenna (L5) 4.2.2.2 GPS Antenna (L1) 8/11 4.2.3 LTE Antenna (LB+MB+HB) MIMO 4.2.3.1LTE LB (LTE B5/8/12/14/17/18/19/20/26/28/71, WCDMA B5/8, GSM900) MIMO 4.2.3.2 LTE MB (LTE B1/2/3/4/9/25/34/38/39/40/66, WCDMA B1/3, GSM1800) MIMO 9/11 4.2.3.3 LTE HB (B7/41) MIMO 4.2.3.3 LTE SUB6 (n77/78/79)

FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 2 / 214 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2302-0009 Feb. 24, 2023 Initial issue JaeHyeok Bang JaeJin Lee FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 3 / 214 Table of Contents 1. GENERAL INFORMATION ........................................................................ 5 2. INTRODUCTION ........................................................................................ 8 2.1. EUT DESCRIPTION ............................................................................................................ 8 2.2. TESTING ENVIRONMENT .................................................................................................. 8 2.3. MEASURING INSTRUMENT CALIBRATION ...................................................................... 8 2.4. MEASUREMENT UNCERTAINTY ....................................................................................... 8 2.5. TEST FACILITY ................................................................................................................... 8 3. DESCRIPTION OF TESTS ......................................................................... 9 3.1. Maximum Output Power .................................................................................................... 9 3.2. PEAK TO AVERAGE RATIO ............................................................................................. 12 3.3. OCCUPIED BANDWIDTH ................................................................................................. 13 3.4. BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................... 14 3.5. SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................ 15 3.6. UNDESIRABLE EMISSIONS ............................................................................................ 16 3.7. FREQUENCY STABILITY ................................................................................................. 17 4. LIST OF TEST EQUIPMENT ................................................................... 18 5. SUMMARY OF TEST RESULTS .............................................................. 19 6. SAMPLE CALCULATION ........................................................................ 20 7. TEST DATA .............................................................................................. 21 7.1. OCCUPIED BANDWIDTH ................................................................................................. 21 7.2. PEAKTOAVERAGERATIO ................................................................................................ 21 7.3. BAND EDEG EMISSIONS (Conducted) ........................................................................... 21 7.4. SPURIOUS AND HARMONICS EMISSIONS (Conducted) .............................................. 21 7.5. Conducted Output Power ................................................................................................ 22 7.5.1. NR Band n12 ............................................................................................................. 22 7.5.2. NR Band n5 ............................................................................................................... 23 7.5.3. NR Band n66 ............................................................................................................. 25 7.5.4. NR Band n2 ............................................................................................................... 27 7.6. EIRP .................................................................................................................................. 29 7.6.1. NR Band n12 ............................................................................................................. 29 7.6.2. NR Band n5 ............................................................................................................... 30 7.6.3. NR Band n66 ............................................................................................................. 32 7.6.4. NR Band n2 ............................................................................................................... 34 7.7. UNDESIRABLE EMISSIONS (Radiated) .......................................................................... 36 7.7.1. NR Band n12 ............................................................................................................. 36 7.7.2. NR Band n5 ............................................................................................................... 38 7.7.3. NR Band n66 ............................................................................................................. 42 7.7.4. NR Band n2 ............................................................................................................... 44 7.8. FREQUENCY STABILITY ................................................................................................. 46 7.8.1. NR Band n12 ............................................................................................................. 46 FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 4 / 214 7.8.2. NR Band n5 ............................................................................................................... 47 7.8.3. NR Band n66 ............................................................................................................. 48 7.8.4. NR Band n2 ................................................…

Text truncated - open the document above for the full version.

FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 91 / 214 15 MHz / 256QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 92 / 214 10 MHz / π/2 BPSK / FULL RB Size 10 MHz / QPSK / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 93 / 214 10 MHz / 16QAM / FULL RB Size 10 MHz / 64QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 94 / 214 10 MHz / 256QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 95 / 214 5 MHz / π/2 BPSK / FULL RB Size 5 MHz / QPSK / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 96 / 214 5 MHz / 16QAM / FULL RB Size 5 MHz / 64QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 97 / 214 5 MHz / 256QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 98 / 214 8.2. PEAK TO AVERAGE RATIO 8.2.1. NR Band 12 15 MHz / π/2 BPSK / FULL RB Size 15 MHz / QPSK / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 99 / 214 15 MHz / 16QAM / FULL RB Size 15 MHz / 64QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 100 / 214 15 MHz / 256QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 101 / 214 10 MHz / π/2 BPSK / FULL RB Size 10 MHz / QPSK / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 102 / 214 10 MHz / 16QAM / FULL RB Size 10 MHz / 64QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 103 / 214 10 MHz / 256QAM / FULL RB Size FCC ID: BEJTM15FNNATY0 Report No.: DRTFCC2302-0009 IC : 2703H-TM15FNNATY0 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-250(00)230215 Pages: 104 / 214 5 MHz / π/2 BPSK / FULL RB Size 5 MHz / QPSK / FULL RB…
