BEJTM220Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL 1 TM220 Ver. 1.0 7 LG-TM220 Operating Manual (USER Manual) (Ver. 1.0) 2 TM220 Ver. 1.0 CONTENTS CHAPTER 1. THE NAME AND FUNCTIONS ................................................................4 Soft Icon ...........................................................................................................4 CHAPTER 2. BASIC FUNCTIONS ...............................................................................5 Turning the Phone On and Off ............................................................................5 Making a Call .....................................................................................................5 Correcting Dialing Mistakes ................................................................................7 Receiving Calls ...................................................................................................7 Mute ..................................................................................................................7 Redialing Last Outgoing Number.........................................................................7 Adjusting the Volume .........................................................................................8 CHAPTER 3. PHONE BOOK FEATURES.....................................................................9 Two types of Phone Books...................................................................................9 Personal Phone Book Memory .............................................................................9 Entering Characters ......................................................................................... 10 Recent Call History List .................................................................................... 12 Retrieving Numbers .......................................................................................... 12 Dialing Numbers from Your Phone Book ........................................................... 13 Advanced Phone Book Feature .......................................................................... 15 CHAPTER 4. MENU FEATURE................................................................................. 16 Menu Item Descriptions.................................................................................... 16 CHAPTER 5. Massage.............................................................................................. 24 Massage Service ............................................................................................... 24 TIA Safety Language................................................................................................ 27 EXPOSURE TO RADIO FREQUENCY SIGNALS.................................................. 27 ANTENNA CARE ............................................................................................... 27 PHONE OPERATION ......................................................................................... 27 DRIVING .......................................................................................................... 27 ELECTRONIC DEVICES.................................................................................... 28 Hearing Aids..................................................................................................... 28 Other Medical Devices ...................................................................................... 28 Posted Facilities................................................................................................ 28 AIRCRAFT ........................................................................................................ 29 BLASTING AREAS ............................................................................................ 29 POTENTIALLY EXPLOSIVE ATMOSPHERES ...................................................... 29 For Vehicles Equipped with an Air Bag.............................................................. 29 FDA Consumer Update............................................................................................ 30 3 TM220 Ver. 1.0 Version Notice Ver 1.0 12/4/20 00 K.B.K TM220 CDG2 Initial Release 4 TM220 Ver. 1.0 CHAPTER 1. THE NAME AND FUNCTIONS Soft Icon y zŽ•ˆ“Gz›™Œ•Ž›GOyzzpP p•G|šŒ u–GzŒ™ŠŒ kŽ›ˆ“GzŒ™ŠŒGšGˆˆ“ˆ‰“Œ y–ˆ”•Ž z–™›GtŒššˆŽŒGO}–ŠŒP iˆ››Œ™ GsŒŒ“ z–™›GtŒššˆŽŒGO{ŒŸ›P }‰™ˆ›–™Gl•ˆ‰“Œ‹ D h“ˆ™”Gl•ˆ‰“Œ 5 TM220 Ver. 1.0 CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1.Connect the terminal to the charged battery or the external power supply. 2.Press the [END/PWR] key for about 0.5 seconds until a red light appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the ending animation appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [SEND] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [SEND] key or press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. 6 TM220 Ver. 1.0 2. If you are not sure of the phone entry number, select the Soft Key(BOOK) with the Right Mouse Button. 3. Place the cursor on the Phone Book, and press the Soft Key(SEL) with the Left Mouse Button. 4. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key(BOOK) …

Text truncated - open the document above for the full version.

January 22, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, ___________________ Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. (I.C.) 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Tel: 201-816-2000 Fax: 201-816-2073 January 22, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJTM220 FCC E911 Requirements Per §22.921 Gentlemen: LG Electronics Inc. hereby certifies that the analog cellular telephone (FCC ID: BEJTM220), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. (I.C.) 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Tel: 201-816-2000 Fax: 201-816-2073 January 22, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJTM220 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. (I.C.) 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Tel: 201-816-2000 Fax: 201-816-2073 January 05. 2001 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJTM220 Tri -Mode Dual Band Analog/PCS Part 22, Part24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJTM220) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3861 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

January 22, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJTM220 Part 22/24 Certification Gentlemen: Attached herewith, on behalf of LG ELECTRONICS INC. is an application for Part 22/24 Certification of the following Tri-Mode Cellular Phone (AMPS/CDMA/PCS): FCC ID: BEJTM220 TRADE / MODEL(s): LGE / TM220 EUT TYPE: Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75MHz (PCS CDMA) Max. Output Power: 0.401 W ERP AMPS (26.033 dBm) 0.290 W ERP CDMA (24.621 dBm) 0.249 W ERP PCS/CDMA (23.921 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS INC.

February 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Steve Dayhoff SUBJECT: LG Electronics Inc. FCC ID: BEJTM220 731 Confirmation No.: EA99846 Correspondence Reference No.: 17951 Request for Tech. Info.: 02/02/2001 Dear Steve: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated February 2, 2001. 1. Please find attached the users manual for model: TM220. 2. Attached is the revised 731Form indicating the correct output power for 800MHz CDMA and PCS mode. 3. Please find attached the revised RF Warning statement. 4. Please find attached the revised tune up procedure. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

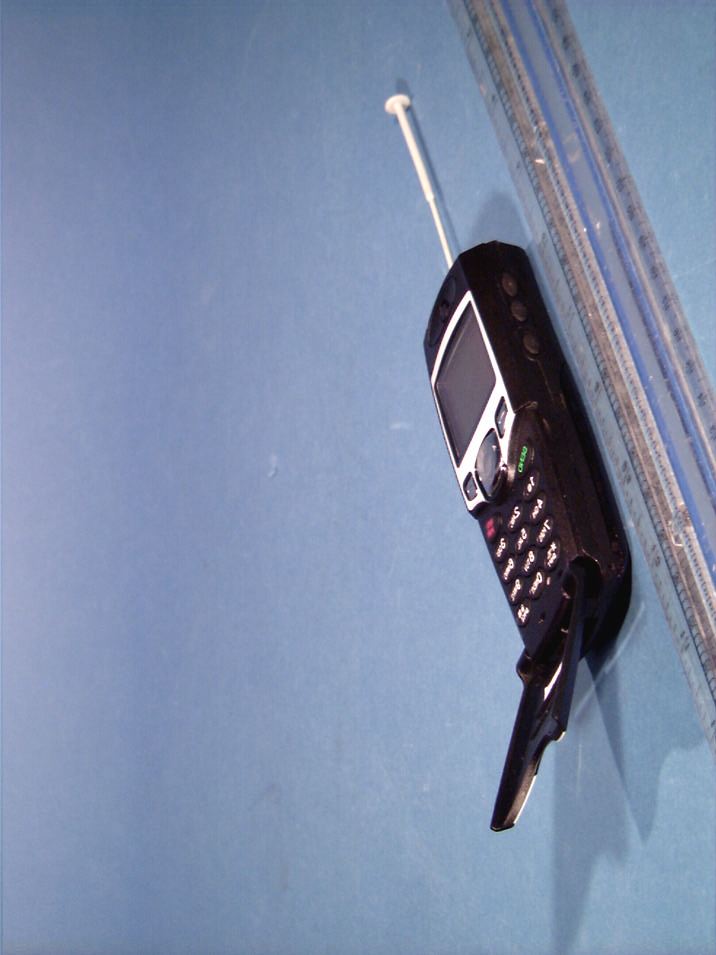

© 1998 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG ELECTRONICS, Inc. MODEL NO: TM220 FCC ID: BEJTM220 MADE IN KOREA LG ELECTRONICS, Inc.

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone

© 2001PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab LGE FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 Tri-Mode Cellular/PCS Phone (AMPS/CDMA) 800 MHz Body SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01011216_ZOOM.VLT Start : 12-Jan-101 02:45:35 pm End : 12-Jan-101 02:55:43 pm Radio Type : LGE Model Number : LG-TM220 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGE TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.5 dBm LGE TRI-MODE PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.500, Y = -1.750, Z = 0.000 (cm) Value = 12.498 Measured Values (volts) = 1.208E-002 1.064E-002 9.382E-003 8.065E-003 6.636E-003 4.975E-003 3.506E-003 2.314E-003 1.696E-003 1.561E-003 1.943E-003 2.596E-003 3.127E-003 3.235E-003 2.622E-003 1.776E-003 1.520E-003 6.283E-004 4.864E-004 4.227E-004 3.516E-004 Calc. Voltage @ Surface (Vs) = 0.0137 Voltage @ 1.00 cm (Vt) = 0.0081 Ave. Voltage (Vs+Vt)/2 = 0.0109 Ave. SAR over 1 g (mW/g) = 0.9011 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 mW/g -1012345 Z centimeters SAR Scan File : 01011216_ZOOM Start : 12-Jan-101 02:45:35 pm End : 12-Jan-101 02:55:43 pm LGE/LG-TM220/2;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01011216_ZOOM Start : 12-Jan-101 02:45:35 pm End : 12-Jan-101 02:55:43 pm LGE/LG-TM220/2;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.035 0.975 0.916 0.857 0.798 0.739 0.679 0.620 0.561 0.502 File : 01011216_ZOOM Start : 12-Jan-101 02:45:35 pm End : 12-Jan-101 02:55:43 pm LGE/LG-TM220/2;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.035 0.975 0.916 0.857 0.798 0.739 0.679 0.620 0.561 0.502 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01011213_ZOOM.VLT Start : 12-Jan-101 02:33:12 pm End : 12-Jan-101 02:43:20 pm Radio Type : LGE Model Number : LG-TM220 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGE TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.5 dBm LGE TRI-MODE PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -3.000, Y = -1.750, Z = 0.000 (cm) Value = 15.553 Measured Values (volts) = 1.506E-002 1.298E-002 1.111E-002 9.275E-003 7.284E-003 5.343E-003 3.753E-003 2.589E-003 2.177E-003 2.392E-003 2.982E-003 3.659E-003 4.096E-003 3.811E-003 2.785E-003 2.466E-003 1.076E-003 8.356E-004 6.986E-004 5.862E-004 5.042E-004 Calc. Voltage @ Surface (Vs) = 0.0175 Voltage @ 1.00 cm (Vt) = 0.0093 Ave. Voltage (Vs+Vt)/2 = 0.0134 Ave. SAR over 1 g (mW/g) = 1.1094 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01011213_ZOOM Start : 12-Jan-101 02:33:12 pm End : 12-Jan-101 02:43:20 pm LGE/LG-TM220/2;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01011213_ZOOM Start : 12-Jan-101 02:33:12 pm End : 12-Jan-101 02:43:20 pm LGE/LG-TM220/2;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.287 1.236 1.185 1.134 1.082 1.031 0.980 0.928 0.877 0.826 File : 01011213_ZOOM Start : 12-Jan-101 02:33:12 pm End : 12-Jan-101 02:43:20 pm LGE/LG-TM220/2;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.287 1.236 1.185 1.134 1.082 1.031 0.980 0.928 0.877 0.826 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01011209_ZOOM.VLT Start : 12-Jan-101 02:05:14 pm End : 12-Jan-101 02:15:38 pm Radio Type : LGE Model Number : LG-TM220 Serial Number : 2 Frequency : 836.49 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGE TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 26.5 dBm LGE TRI-MODE PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.750, Y = -1.750, Z = 0.000 (cm) Value = 11.980 Measured Values (volts) = 1.127E-002 9.324E-003 7.984E-003 6.719E-003 5.411E-003 3.968E-003 2.747E-003 1.878E-003 1.385E-003 1.405E-003 1.767E-003 2.215E-003 2.540E-003 2.403E-003 1.758E-003 1.176E-003 5.325E-004 4.534E-004 3.533E-004 2.951E-004 2.625E-004 Calc. Voltage @ Surface (Vs) = 0.0134 Voltage @ 1.00 cm (Vt) = 0.0067 Ave. Voltage (Vs+Vt)/2 = 0.0101 Ave. SAR over 1 g (mW/g) = 0.8324 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 mW/g -1012345 Z centimeters SAR Scan File : 01011209_ZOOM Start : 12-Jan-101 02:05:14 pm End : 12-Jan-101 02:15:38 pm LGE/LG-TM220/2;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01011209_ZOOM Start : 12-Jan-101 02:05:14 pm End : 12-Jan-101 02:15:38 pm LGE/LG-TM220/2;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.992 0.954 0.915 0.877 0.839 0.801 0.763 0.725 0.687 0.649 File : 01011209_ZOOM Start : 12-Jan-101 02:05:14 pm End : 12-Jan-101 02:15:38 pm LGE/LG-TM220/2;836.…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJTM220 (Model: LG-TM220) NVLAP Lab Code: 100431-0 LGE Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG ELECTRONICS, Inc. Dates of Tests: Jan. 8-18, 2001 Communication Terminal Research Lab Test Report S/N: SAR.210108013.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJTM220 APPLICANT LG ELECTRONICS, Inc. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.40 W ERP AMPS (26.33 dBm) / 0.29 W ERP CDMA (23.68 dBm) 0.247 W EIRP PCS CDMA (24.69 dBm) Trade Name/Model(s): LGE TM220 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.2896 W/kg AMPS Brain SAR; 1.1094 W/kg AMPS Body SAR 1.0475 W/kg CDMA Brain SAR; 0.4953 W/kg CDMA Body SAR 1.2882 W/kg PCS Brain SAR; 0.8183 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210108013.BEJ Test Report S/N: SAR.210108013.BEJ SAR Measurement Report Test Dates: Jan. 8-18, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION......................................................................................2 2.2 SAR Definition.......................................................................................................2 3.1 SAR MEASUREMENT SET-UP................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................7 7.1 SYSTEM SPECIFICATIONS.....................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................19 15.1 CONCLUSION.....................................................................................20 Test Report S/N: SAR.210108013.BEJ SAR Measurement Report Test Dates: Jan. 8-18, 2001 FCC Part 24/22 Certification FCC ID: BEJTM220 (Model(s): TM220) © 2001 PCTEST Lab LGE Tri-Mode Dual-Band Analog/PCS Phone 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC) and Industry Canada (IC). 2 Applicant Name: LG ELECTRONICS, Inc. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Seoul 153-023, Korea Attention: Harris Ahn, Principal Engineer • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: LGE • Model(s): TM220 • FCC IDENTIFIER: BEJTM220 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.32 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.430 W ERP AMPS (26.33 dBm) 0.233 W ERP CDMA (23.68 dBm) 0.295 W EIRP PCS CDMA (24.69 dBm) • Date(s) of Tests: Jan. 8-18, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210108013.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210108013.BEJ SAR Measurement Report Test Dates: Jan. 8-18, 2001 FCC Part 24/22 Certification FCC ID: BEJTM220 (Model(s): TM220) © 2001 PCTEST Lab LGE Tri-Mode Dual-Band Analog/PCS Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential ha…

Text truncated - open the document above for the full version.

Consumer Information on SAR (Specific Absorption Rate) THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phone employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions specified by the FCC with …

Text truncated - open the document above for the full version.
