LG-TM520 User Guide CDMA/AMPS/PCS TRI-MODE PHONE For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance with FCC RF exposure compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance requirements, and should be avoided. WARNING! Read this information before using your phone Contents Introduction Highlights Important Information Check Accessories Before You Start FCC RF EXPOSURE INFORMATION Chapter 1. Getting Started Cautions Phone Overview On screen Icons Chapter 2. Basic Functions Turning the Phone On and Off Making a Call Correcting Dialing Mistakes Receiving Calls Using Quick Mode Call Waiting Mute Redialing Calls Adjusting the Volume Power Save Mode Signal Strength Emergency Dialing Mini Display Speed Dialing Caller ID Phone Book Features Chapter 3. Menu Features General Guidelines to MENU Access and Settings Sound Display System Features Utility Security Voice Services Browser Start Chapter 4. Book Features Call History Phone Book Function of Scheduler General Guidelines to Scheduler Access and Settings Scheduler Item Descriptions Schedule Wake Up Viewing Your Telephone Number Chapter 5. Message Features Voice Send Msg New Text Old Text Erase All Setting Chapter 6. Functions used during a call Mute Memo Recording Key Tone Voice Privacy Chapter 7. Accessories Chapter 1. Getting Started Cautions l Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference. l Keep your phone in a safe place when not in use. l Only use the batteries, antennas, and chargers provided by LG. Using the wrong accessories could void your warranty. l Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. l Do not hold the antenna while the phone is in use. l Do not use the phone in designated “no cellular phone use” areas. l Do not expose the phone to high temperature or humidity. l Avoid getting your phone wet. If the phone gets wet, turn the power off immediately and remove the battery pack. If the phone is mal-functional, return it to the dealer for service. l Avoid shock or impact on the phone. Phone Overview Function Key Descriptions Lamp The red light goes on when you use the power key to turn on the phone and when there are incoming calls and messages. LCD screen Displays messages & indicator icons. END/PWR Used to turn power on/off. This key disconnects a call. Using this key, you can also exit out of a menu back to the phone’s standby display without changing the setting. SEND Allows user to place or answer calls. Mouse Key This mouse key allows quick access to text and voice mail notification messages. calendar, outgoing call log, phonebook Find name. Cellcase Close the active cellcase to the terminate a call in progress. Open the active cellcase to answer an incoming call. Soft Keys The current operation of a soft key is defined by the word at the bottom of the display. Soft Keys 2 : If you press this key once in a menu, you can go back one level and if you press and hold the key in a menu, you can go back to the standby display. Side Keys These keys enable you to adjust keybeep volume (in standby mode) and earpiece volume (in a call status). Scroll Keys These keys are used to scroll through the memory locations and menu items. - In the standby status, set the manner mode by pressing the button. (for 2 seconds) - In the standby status, set the lock function by pressing the button. (for 2 seconds) Alphanumeric Keypad These keys enable you to enter numbers and characters and choose menu items. Clear Key On screen Icons The phone screen displays several onscreen icons and onscreen icons appears when the phone is power on. Icons Descriptions Displays the strength of the signal received by the phone and current signal strength is indicated as the number of bars displayed on the screen. No service The phone is not receiving a system signal. In use A call is in progress. No icon indicates the phone is in standby mode. Digital indicator Digital service is available. Analog indicator Analog service is available Indicates that a text message or voice mail has been received Roaming The phone is outside of its home service area. Charge level Indicates battery charge level. Chapter 2. Basic Functions Turning the Phone On and Off Turning the Phone On 1. Install a charged battery pack or connect the phone to an external power source such as the cigarette lighter adapter or car kit. 2. Press [END/PWR] for a few seconds until the red ligh…

Text truncated - open the document above for the full version.

@ LG Electronics Inc.& May 10, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, General Manager of New York Office LG Electronics Inc. May 07. 2001 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJTM520 Tri -Mode Cellular Phone (CDMA & AMPS) Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE LGE LG Electronics Inc.& 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] May 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: BEJTM520 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:BEJTM520, using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Electronics Inc. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJTM520) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE May 06, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJTM520 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, E.S. Park Research Engineer CDMA Handset Lab. LG Electronics Inc. 459-9 Kasan-dong Kumchun-gu Seoul 153-023 Korea Tel : 82-2-850-3861 Fax : 82-2-850-3856 E_mail : [email protected] LGE LG Electronics Inc.

May 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJTM520 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 22/24 Certification of the following Tri-Mode Cellular Phone: FCC ID: BEJTM520 TRADE/MODEL(s): LGE LG-TM520 EUT TYPE: Tril-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.511 W ERP AMPS (27.082 dBm) / 0.394 W ERP CDMA (25.950 dBm) 0.252 W EIRP PCS CDMA (24.022 dBm) Max. SAR Measurement: 1.280 mW/g (1g) AMPS Head SAR; 0.963 mW/g (1g) CDMA Head SAR; 1.240 mW/g (1g) PCS CDMA Head SAR 0.829 mW/g (1g) AMPS Body SAR; 0.668 mW/g (1g) CDMA Body SAR; 0.566 mW/g (1g) PCS CDMA Body SAR 1.570 mW/g (10g) AMPS Hand SAR; 1.420 mW/g (10g) CDMA Hand SAR; 2.520 mW/g (10g) PCS CDMA Hand SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGE

June 19, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: LG Electronics Inc. FCC ID: BEJTM520 731 Confirmation No.: EA101103 Correspondence Reference No.: 19647 Request for Tech. Info.: 06/15/2001 Dear Frank: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated June 15, 2001. 1. Please find attached the revised test data. 2. We would like to confirm that the justification for the reported mixture is that it will lead to an overestimation of theSAR measurement value. This takes into account the measurement error and uncertainty for demonstrating compliance. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

June 25, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: LG Electronics Inc. FCC ID: BEJTM520 731 Confirmation No.: EA101103 Correspondence Reference No.: 19647 Request for Tech. Info.: 06/25/2001 Dear Frank: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated June 25, 2001. 1. Please find attached the confidentiality letter you have requested for We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

July 3, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Frank Coperich SUBJECT: LG Electronics Inc. FCC ID: BEJTM520 731 Confirmation No.: EA101103 Correspondence Reference No.: 19776 Request for Tech. Info.: 06/26/2001 Dear Frank: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment in response to the request for technical information dated June 26, 2001. 1. Please find attached the operational and circuit description. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

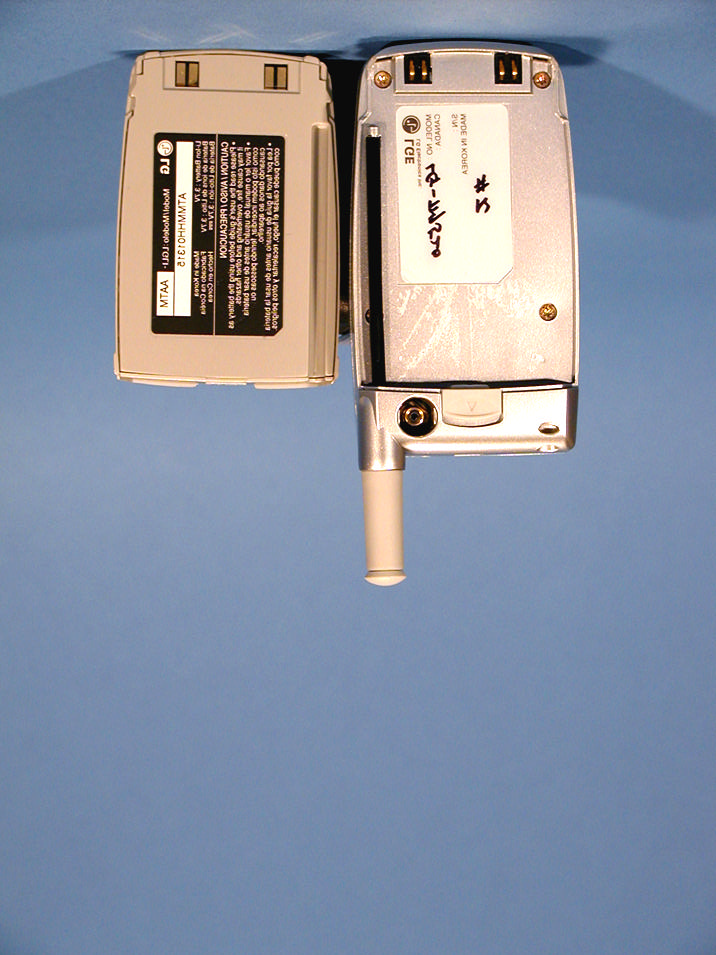

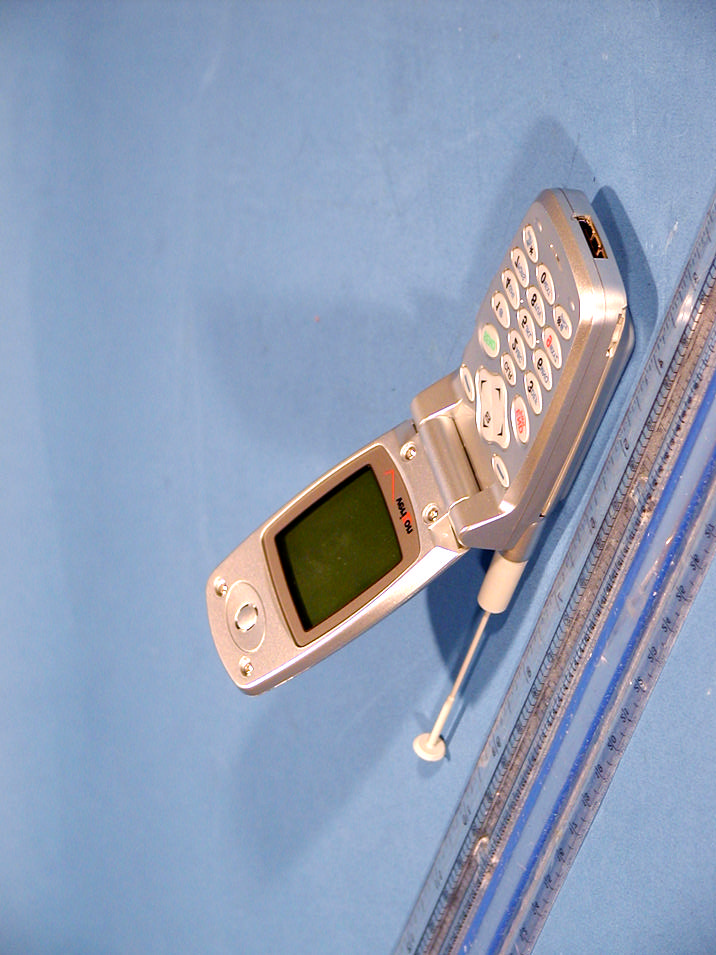

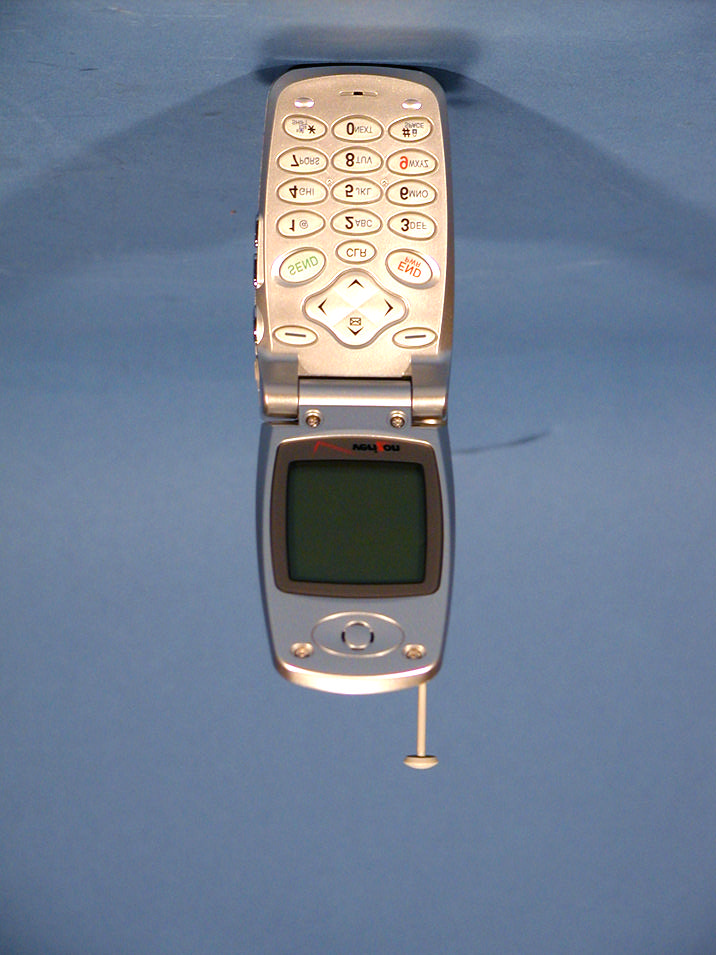

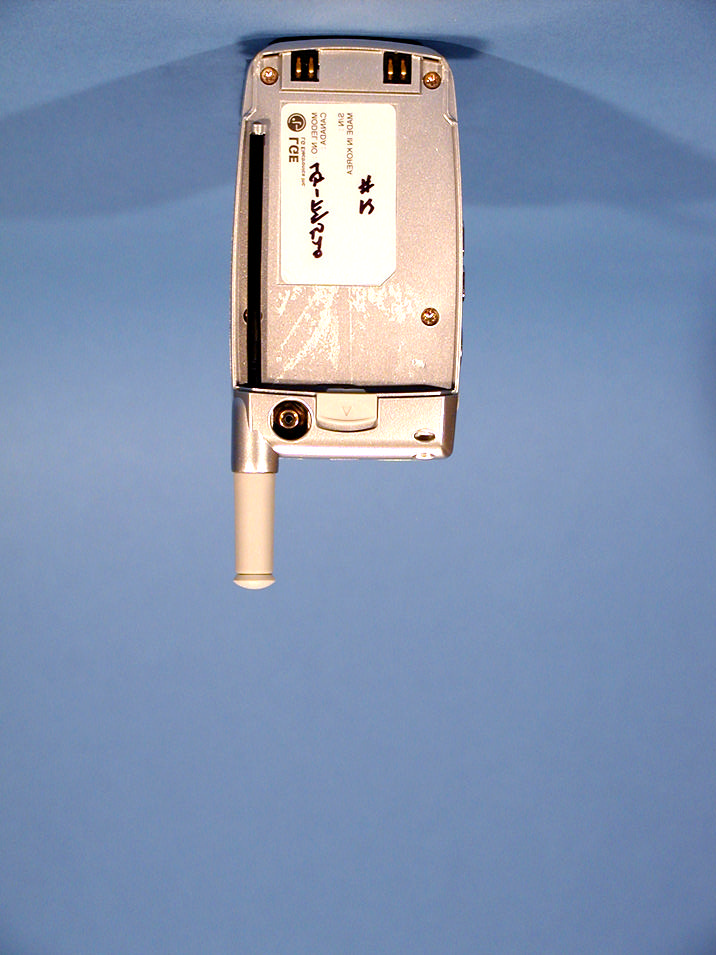

© 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. 2. 983 (f) Equipment Identification: LG Electronics Inc. LGE Model No. LG-TM520 FCC ID : BEJTM520 S/N : Made in Korea

© 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 1 (1) 1 VSWR Free space close (Retracted/Extended) A: ! LG, TM 520, WHIT LC MATCHING CIRCUIT, FS, CLOSE, EXTENDED A1(824,1.5) A2(894,1.29) A3(1850,8.48) A4(1990,4.81) B: ! LG, TM 520, WHIT LC MATCHING CIRCUIT, FS, CLOSE, RETRACTED B1(824,3.56) B2(894,1.75) B3(1850,7.55) B4(1990,2.98) 60080010001200140016001800200022002400 2 4 6 8 10 12 14 16 2-May-1 13:49 H:\TM520\NEW_MA~1\tmfscex.s1p f [MHz] SWR A1 A2 A3 A4 B1 B2 B3 B4 Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 2 (2) 2 VSWR Free space Open (Retracted/Extended) A: ! LG, TM 520, WHIT LC MATCHING CIRCUIT, FS, OPEN, EXTENDED A1(824,1.58) A2(894,1.55) A3(1850,9.75) A4(1990,4.88) B: ! LG, TM 520, WHIT LC MATCHING CIRCUIT, FS, OPEN, RETRACTED B1(824,3.12) B2(894,2.2) B3(1850,8.39) B4(1990,3.75) 60080010001200140016001800200022002400 2 4 6 8 10 12 2-May-1 13:50 H:\TM520\NEW_MA~1\tmfsoex.s1p f [MHz] SWR A1 A2 A3 A4 B1 B2 B3 B4 Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 3 (3) 3 VSWR Talk Position (Retracted / Extended) A: ! LG, TM 520, WHIT LC MATCHING CIRCUIT, TALK POSITION, EXTENDED A1(824,2.06) A2(894,1.91) A3(1850,9.06) A4(1990,4.35) B: ! LG, TM 520, WHIT LC MATCHING CIRCUIT, TALK POSITION, RETRACTED B1(824,3.93) B2(894,2.56) B3(1850,4.76) B4(1990,1.95) 60080010001200140016001800200022002400 2 3 4 5 6 7 8 9 10 11 2-May-1 13:51 H:\TM520\NEW_MA~1\tmtpex.s1p f [MHz] SWR A1 A2 A3 A4 B1 B2 B3 B4 Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 4 (4) 4 Free Space E1 Closed Telephone (Extended/ Retracted) Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 5 (5) 5 Free Space E1 Open Telephone (Extended/ Retracted) Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 6 (6) 6 Free Space E2 Closed Telephone (Extended/ Retracted) Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 7 (7) 7 Free Space E2 Open Telephone(Extended/ Retracted) Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 8 (8) 8 Free Space H Closed Telephone (Extended/ Retracted) Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 9 (9) 9 Free Space H Open Telephone (Extended/ Retracted) Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 10 (10) 10 Talk Position Issued by Valid from Checked by Approved by Reg no Issue Hamid Samavati 2001-05-02 Document name File Page TM 520, New matching circuit (LC) 11 (11) 11 TM 520 3.9 pF 8.2 nH

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: May 16-18, 2001 Communication Terminal Research Lab Test Report S/N: SAR.210511292.CKL 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Haris Ahn, Principal Engineer FCC ID BEJTM520 APPLICANT LG ELECTRONICS INC. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.511 W ERP AMPS (27.082 dBm) / 0.394 W ERP CDMA (25.950 dBm) 0.252 W EIRP (24.022 dBm) Max. SAR Measurement: 1.280mW/g AMPS Head SAR; 0.829mW/g AMPS Body SAR; 1.570mW/g AMPS Hand SAR 0.963mW/g CDMA Head SAR; 0.668mW/g CDMA Body SAR; 1.420mW/g CDMA Hand SAR 1.240mW/g PCS Head SAR; 0.566mW/g PCS Body SAR; 2.520mW/g PCS Hand SAR Trade Name/Model(s): LG-TM520 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; ET Docket 96.326 Application Type: Certification Antenna Manufacturer: ALLGON MOBILE Model No.: TM520 Antenna Dimensions: Length = 8.60 cm. [Helical / Whip] This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210511292.BEJ SAR Measurement Report FCC Part 24/22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-22 14.1 SAR TEST EQUIPMENT LIST 23 15.1 CONCLUSION 24 16.1 REFERENCES 25 Test Report S/N: SAR.210511292.BEJ SAR Measurement Report Test Date(s): May 16-18, 2001 FCC Part 24/22 Certification © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) 1 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Attention: Seoul 153-023, Korea Harris Ahn, Principal Engineer • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone • Trade Name / Model: LG-TM520 • FCC IDENTIFIER: BEJTM520 • Tx Frequency: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s): AMPS / CDMA • FCC Rule Part(s): §2.1093, Docket 96-326 • Max. RF Output Power: 0.511 W ERP - AMPS (27.082 dBm) 0.394 W ERP - CDMA (25.950 dBm) 0.252 W EIRP - PCS CDMA (24.022 dBm) • Max SAR Measurement: 1.280mW/g AMPS Head SAR; 0.829mW/g AMPS Body SAR; 1.570mW/g AMPS Hand SAR 0.963mW/g CDMA Head SAR; 0.668mW/g CDMA Body SAR; 1.420mW/g CDMA Hand SAR 1.240mW/g PCS Head SAR; 0.566mW/g PCS Body SAR; 2.520mW/g PCS Hand SAR • Application Type: Certification • Dates of Tests: May 16-18, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210511292.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210511292.BEJ SAR Measurement Report Test Date(s): May 16-18, 2001 FCC Part 24/22 Certification © 2001 PCTEST Lab LGE FCC ID: BEJTM520 (Model: LG-TM520) 2 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous El…

Text truncated - open the document above for the full version.

LGE FCC ID:BEJTM520 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.01 mW/g, SAR (10g): 0.700 mW/g LGE TriMode Phone Model:LG-TM520 FM Mode, Ch.0991 [824.04MHz]; Flip = Open Conducted Power = 26.0dBM Test Date -- 05/16/2001 SAR Tot [mW/g] 9.81E-2 2.94E-1 4.91E-1 6.87E-1 8.83E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM520 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.28 mW/g, SAR (10g): 0.882 mW/g LGE TriMode Phone Model:LG-TM520 FM Mode, Ch.0991 [824.04MHz]; Flip = Open Conducted Power = 26.0dBM Test Date -- 05/16/2001 SAR Tot [mW/g] 1.36E-1 4.08E-1 6.79E-1 9.51E-1 1.22E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM520 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.930 mW/g, SAR (10g): 0.640 mW/g LGE TriMode Phone Model:LG-TM520 FM Mode, Ch.0383 [836.49MHz]; Flip = Open Conducted Power = 26.0dBM Test Date -- 05/16/2001 SAR Tot [mW/g] 6.78E-2 2.03E-1 3.39E-1 4.75E-1 6.10E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM520 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.03 mW/g, SAR (10g): 0.708 mW/g LGE TriMode Phone Model:LG-TM520 FM Mode, Ch.0383 [836.49MHz]; Flip = Open Conducted Power = 26.0dBM Test Date -- 05/16/2001 SAR Tot [mW/g] 1.01E-1 3.03E-1 5.05E-1 7.06E-1 9.08E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM520 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.11 mW/g, SAR (10g): 0.766 mW/g LGE TriMode Phone Model:LG-TM520 FM Mode, Ch.0799 [848.97MHz]; Flip = Open Conducted Power = 26.0dBM Test Date -- 05/16/2001 SAR Tot [mW/g] 1.11E-1 3.33E-1 5.55E-1 7.77E-1 9.99E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM520 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.14 mW/g, SAR (10g): 0.779 m…
