BEJTWFMB006DWi-Fi module

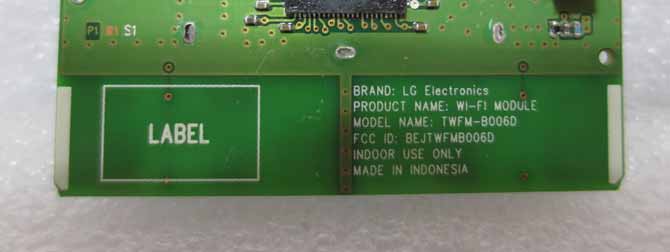

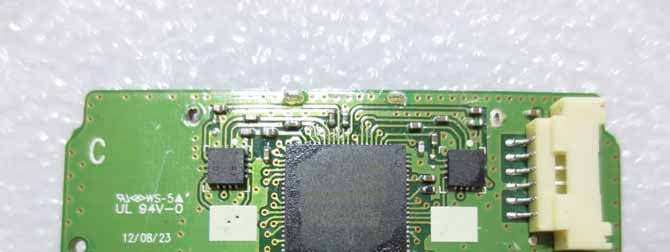

User Manual PRODUCT NAME : Dual Band 2T2R MIMO Wi-Fi Module MODEL NAME : TWFM-B006D (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 1 / 8 Table of Contents No.DescriptionPage 1Features2 2Module Photo2 3Block Diagram3 4Storage Conditions4 4Operating Conditions4 5Software Programming5 6Pin Description6 7Outline Drawing7 8Packing Information8 User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 2 / 8 2. Module Photo 1. Features TWFM-B006D is the small size and low power module for IEEE 802.11a/b/g/n wireless LAN. TWFM-B006D is based on Broadcom BCM43236B solution.
IEEE 802.11 a/b/g/n Dual Band WLAN infrastructure
Size : 48mm x 30mm x 6.7mm
2.4GHz and 5GHz internal PA
Two stream spatial multiplexing up to 300Mbps
External ANT : EPA(Embedded and Press Antenna)
Use on-chip OTP (One-Time Programmable)
USB 2.0
Supports drivers for Windows Vista, 2000, XP, Linux
Security : WPA,WPA2,AES(TKIP) ,IEEE 802.1X • Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 3 / 8 3. Block Diagram User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 4 / 8 ParameterMinMaxUnit Storage Temperature-10+80 °C Storage Humidity (@ 40°C) -90% Caution: The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. • Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. 4. Storage Conditions ParameterMinTypMaxUnit Operating Temperature0-+60 °C Operating Humidity (40°C) --85% Supply Voltage3.323.53.67Vdc 5. Operating Conditions User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 5 / 8 The module is controlled by wl command. It is intended for those evaluating and/or testing Broadcom’s IC, describes a subset of the commands available in wl, the Broadcom ® WLAN client utility. The syntax is as follows: wl <adapter> [-h] [-d|u|x] <command> [arguments] where -h this message and command descriptions -d output format signed integer -u output format unsigned integer -x output format hex decimal The [h,u] option is only to print help. Other syntax specifics are as follows: • Entries within square brackets, such as [arguments], are optional. In the above example, switches within brackets, such as –h, are typed as shown. The |symbol should not be typed, it represents the word or. • Entries within angle brackets, such as <adapter>, are required and indicate that a value must be inserted in place of the item contained within the angle brackets. • Entries shown outside of either square or angle brackets are to be typed as shown. • CMDS Syntax: wl cmds Purpose:Generates a list of available commands. Parameters:None Returns:All commands available to the attached 43XX chip. • VER Syntax: wl ver Purpose:Generates a list of available commands. Parameters:None Returns:All commands available to the attached 43XX chip. •Please refer to ‘80211-TI201-R’ technical document of Broadcom to other commands. 6. Software Programming 6-1. Command syntax 6-2. Command List and Version User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 6 / 8 7. Pin Description Pin No. Pin NameI/OPin Description 1VCCIVDD 3.5V 2D-I/OUSB Communication signal USB_DN 3D+I/OUSB Communication signal USB_DP 4GND-GND 5WOWIWake On WLAN 6NCINC < TOP View > Note. 1) Recommend a Module install sequence for prevent USB device failure - Supply 3.5V power - Connect to data signal (USB_DP, USB_DN) 2) If remove the module, proceed in reveres sequence 3) Connector : (CONN 12507WR-06L, YEONHO ELECTRONICS CO., LTD.) A A User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 7 / 8 8. Outline Drawing User Manual PAGE : REG. DATE : 2012.07.25 MODEL NAME :TWFM-B006D REV. DATE : 2012.07.25 REV.NO : 1.0 ©2012 LGIT. All rights reserved. 8 / 8 9. Packing Information • 1Tray Package Q’ty : 120EA • Tray Material : antistatic PET • 1Tray Weight : 0.2kg (1 Module Weight : 6.8 ±0.7g) • 1Box Package Q’ty : 720EA • Box Size : A x B x C (512 x 377 x 121.5) • Box Material : Corrugated Fibreboards • 1Box Packing Weight : 6.6 ±0.7kg • Tray Stacking Q’ty :6EA Corrugated Fibreboard Tray Inner Box • Total Packing Q’ty : 1,440EA • Total Packing Weight : 13.2 ±1.5kg PP Band Barcode LabelRoHS Marking • RoHS Marking : Label, Stamp, Printing • Marking Color : Gray or Red for Stamp, Label, Printing on the board and etc. Black only for Printing on Label. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc…
