C A R D O S Y S T E M S , I N C . QUICK GUIDE Cardo S-800 ™ Bluetooth ® Headset Cardo S-800 ™ Congratulations and thank you for choosing the Cardo S-800 Bluetooth ® headset. This Quick Guide will help you learn about the Cardo S-800’s many features, allowing you to make the best use of your headset. Cardo S-800 Overview 1 Microphone 2 Multi-Function Wheel (MFW) 3 LED Status Indicator 4 Power and Hot Dial Button 5 Charging Jack 6 Control Button (CTRL) 7 Speaker 8 Earloop 147 5 7 3 8 3 Cardo S-800 ™ Getting Started To use your Cardo S-800 (“the headset”), please follow these initial steps: • Charge your headset • Pair your headset with a Bluetooth ® -enabled mobile phone. 1. Charging your Headset The headset comes with a built-in rechargeable battery. Prior to using the headset, make sure to charge the headset for at least 4 hours. Normally it takes approximately 2 hours to fully charge the headset. 1. Connect the charger to an AC wall outlet and the charger plug to the headset’s Charging Jack. The headset’s LED status indica-- tor will be red during charging. 2. When the battery is fully charged, the red LED will turn off. 3. Disconnect the charger from AC wall outlet and the headset. NOTE: Charging indication may be delayed for a few seconds if the headset has not been used for a long time or the battery is drained. 4 Cardo S-800 ™ The fully charged battery offers up to 8 hours talk time and up to one week standby time. 2. Pairing your Headset Before you can use your headset you must pair the headset to your Bluetooth-enabled mobile phone. If you do not have a Bluetooth-enabled mobile phone, please visit http://cardosystems.com/adapter2.php for information on the Cardo BTA II Bluetooth Adapter. 1. Turn on your phone and turn ON its Bluetooth function. 2. Make sure the headset is turned OFF, then press and hold the Power Button for approximately 8 seconds until the LED status indicator begins alternating blue and red, indicating that the headset is in Pairing Mode...
Federal Communications Commission Date 3-19-07 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Sensus Metering Systems respectfully requests confidentiality of certain materials provided with the submission of the GCVTF under FCC ID: SDBCPRLM01 in accordance with FCC Regulations 0.459. The confidentiality request applies to the following exhibits: • 07-0126 - Schematics • 07-0126 – Parts List • 07-0126 - Theory of Operation • 07-0126 – Block Diagram • 07-0126 – Tune Up Procedure • 07-0126 – Internal Photos Confidentiality of the internal photographs is requested based on the fact this product is a non-consumer device and is not accessible by the general public. It is only serviceable by the licensee or his designated technicians. The GCVTF has been developed at considerable effort and expense by Sensus Metering Systems. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Name: William Jones_____________ Signature:_______________________________ Title: _ RF Engineer ________ Date: 3-19-07 Sensus Metering Systems Inc. Communications Group, Santa Barbara 44 Castilian Drive Goleta, Ca 93118 Telephone 805-562-5390 Facsimile 805-562-9134 Date: __03/19/2007_________________________

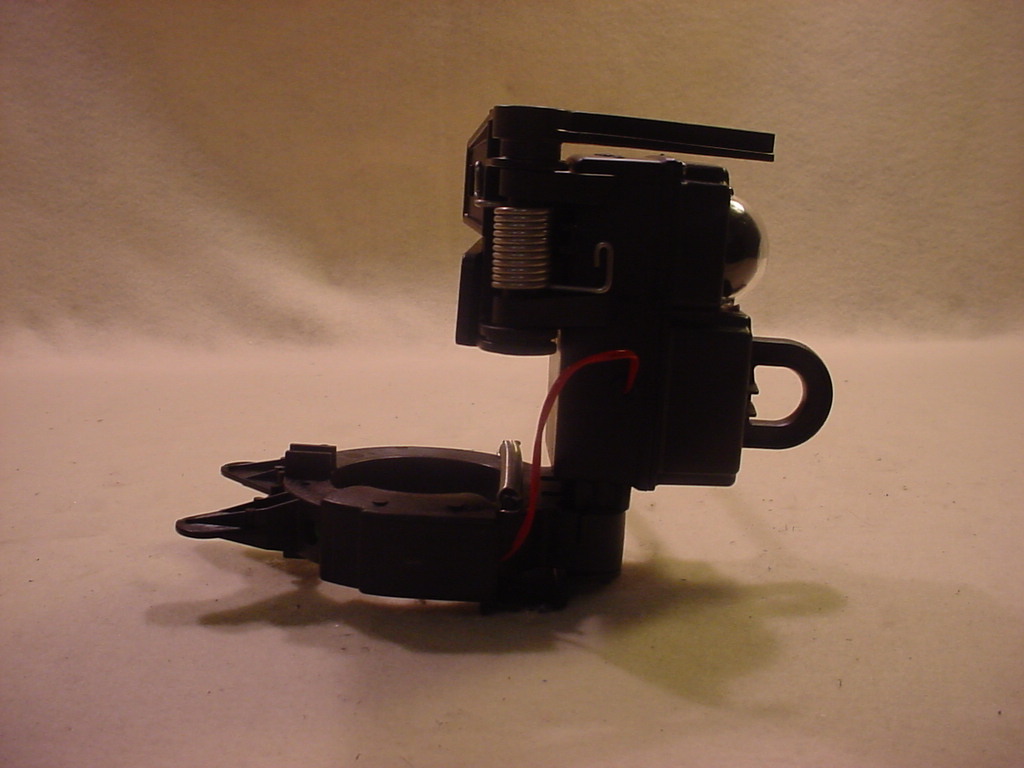

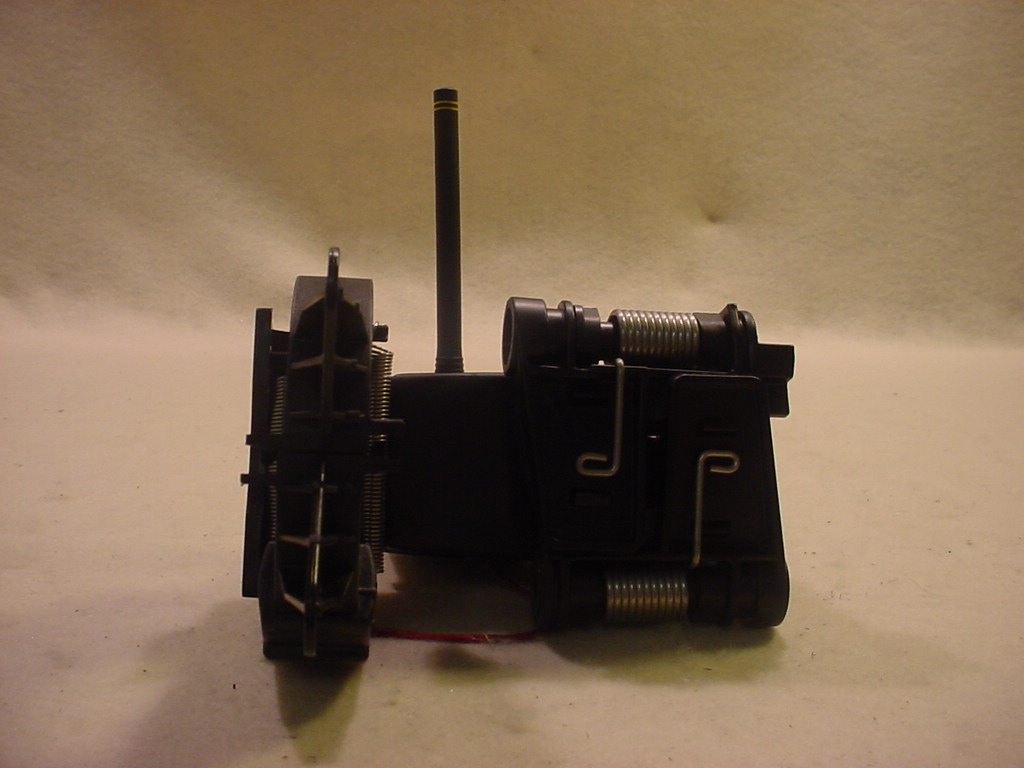

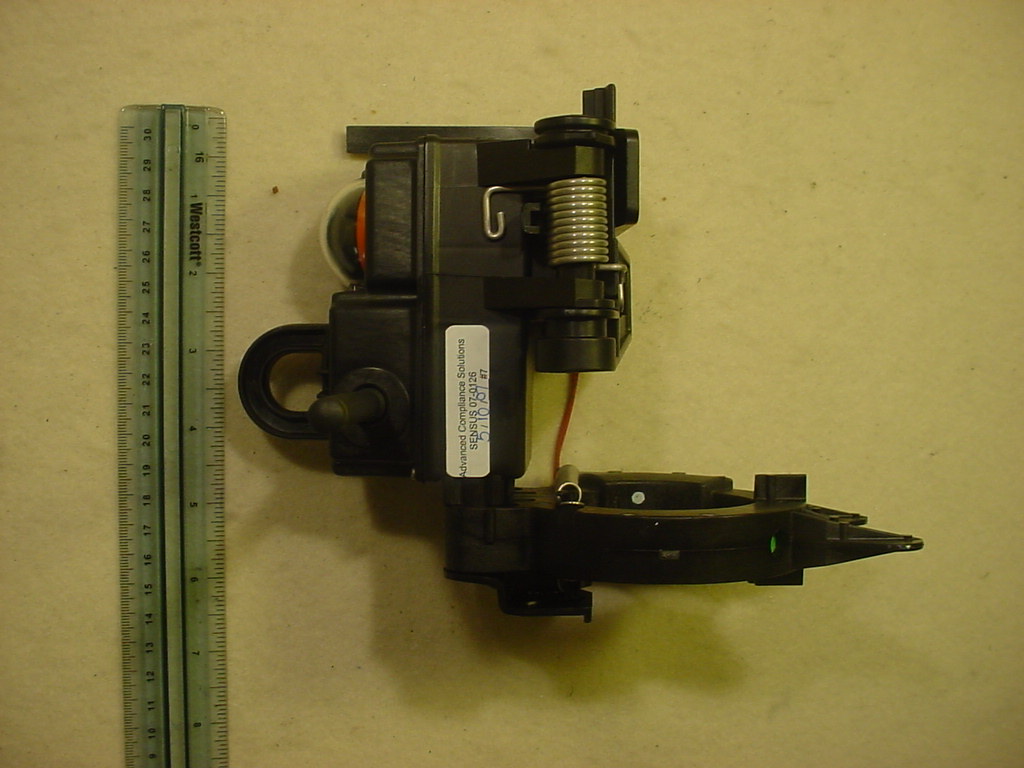

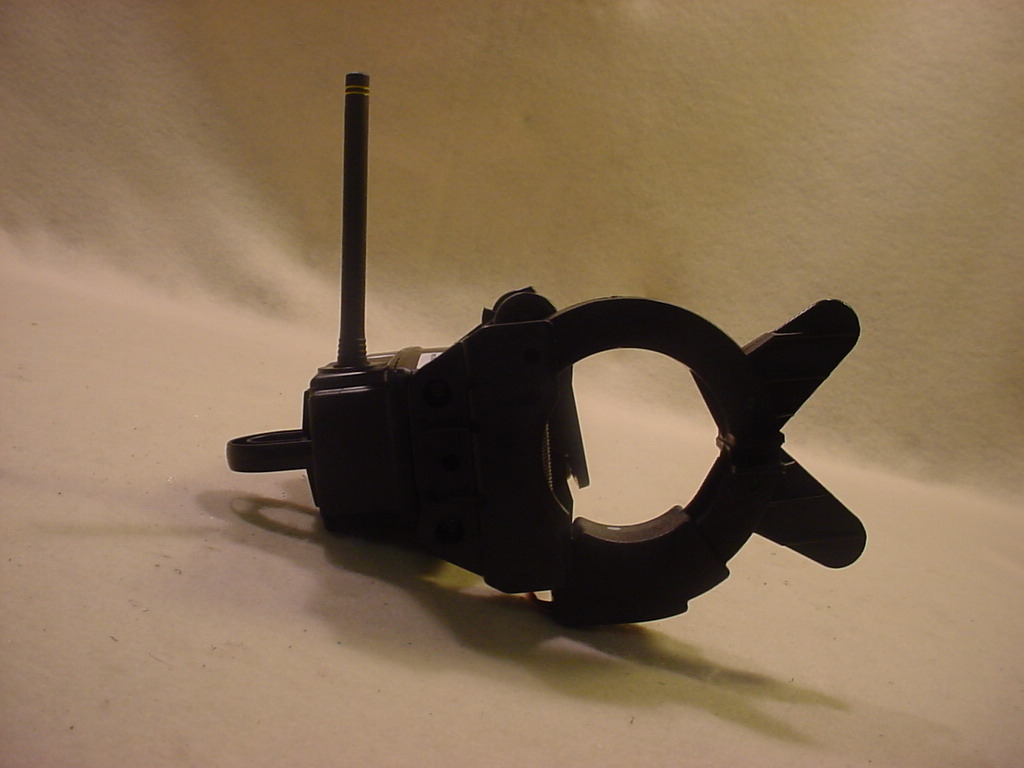

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBCPRLM01 FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 07-0126-LD Applicant: Sensus Metering Systems Model(s): GCVTF External Photographs 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Side1 View 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Side 2 View 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure3: Front View 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Rear View 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Top View 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Bottom View
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBCPRLM01 FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 07-0126-LD Applicant: Sensus Metering Systems Model(s): GCVTF Label Information Sample Label: (Enlarged to show text detail) Cooper Power Systems Grid Advisor MODEL: GCVTF FCC ID: SDBCPRLM01 IC: 2220A-CPRLM01 This device complies with Part 15 of the FCC Rules and Industry Canada requirements. Operation is subject to the following two condition: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numdrique de la classe B est conforme a la norme NMB-003 du Canada. 1.75” Cooper Power Systems Grid Advisor MODEL: GCVTF FCC ID: SDBCPRLM01 IC: 2220A-CPRLM01 This device complies with Part 15 of the FCC Rules and Industry Canada requirements. Operation is subject to the following two 1.60 condition: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numdrique de la classe B est conforme a la norme NMB-003 du Canada. Brady label: Thermal Transfer Printable Labels Permanent Polyimide, B-487 Use the zebra printer in the sand-fuse area Font type – Arial Rounded, Bold Height – 0.070” @ 100% (4.5 pt) Label Location Drawing: Label will be placed on the bottom side of the CPRLM housing as shown in the drawing below.
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBCPRLM01 FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 07-0126-LD Applicant: Sensus Metering Systems Model(s): GCVTF RF Exposure Model: GCVTF FCC ID: SDBCPRLM01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 General Information: Applicant: SENSUS METERING SYSTEMS ACS Project: 07-0126 FCC ID: SDBCPRLM01 Device Category: Fixed Environment: Uncontrolled/General Population Technical Information: Antenna Type: Integral ½ Wave Dipole Antenna Gain: 0.44dBi Max Transmitter Output Power: 30.56 dBm Max System EIRP: 30.56 dBm Operating Configuration: Fixed Mounted Exposure Conditions: Greater than 20cm MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Calculations were performed at low, middle, and high channels within the total band of operation. MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure 896.012530.580.601142.880.441.107 200.252 928.92530.390.621093.960.441.107 200.241 959.92529.90.64977.240.441.107 200.215 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual contains the text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general pop...
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBCPRLM01 FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 07-0126-LD Applicant: Sensus Metering Systems Model: GCVTF Test Begin Date: March 19, 2007 Test End Date: March 21, 2007 Report Issue Date: April 3, 2007 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Prepared by: Reviewed by: Jeff Woods Wireless Certification Engineer ACS, Inc. J. Kirby Munroe Manager Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 41 pages ACS Report: 07-0126-LD Advanced Compliance Solutions Page 2 Table of Content 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.3 Test Methodology 3 1.3.2 In-Band Testing Methodology 3 1.4 Emission Designators 4 2.0 Test Facilities 5 2.1 Location 5 2.2 Laboratory Accreditations/Recognitions/Certifications 5 2.3 Radiated Emissions Test Site Description 6 2.3.1 Semi-Anechoic Chamber Test Site 6 2.3.2 Open Area Tests Site (OATS) 7 2.4 Conducted Emissions Test Site Description 8 3.0 Applicable Standards and References 8 4.0 List of Test Equipment 9 5.0 Support Equipment 10 6.0 EUT Setup and Block Diagram 10 7.0 Summary of Tests 11 7.1 RF Power Output 11 7.1.1 Measurement Procedure 11 7.1.2 Measurement Results 11 7.2 Occupied Bandwidth (Emission Limits) 15 7.2.1 Measurement Procedure 15 7.2.2 Measurement Results 15 7.3 Spurious Emissions at Antenna Terminals 22 7.3.1 Measurement Procedure 22 7.3.2 Measurement Results 22 7.4 Field Strength of Spurious Emissions 28 7.4.1 Measurement Procedure 28 7.4.2 Measurement Results 2...
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBCPRLM01 FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 07-0126-LD Applicant: Sensus Metering Systems Model(s): GCVTF Test Set Up Photos 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Intentional Radiated Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Intentional Radiated Emissions 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Intentional Radiated Emissions – Substitution 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Unintentional Radiated Emissions. 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Unintentional Radiated Emissions.
6660-B Dobbin Road · Columbia, Maryland · United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.50 mW |
Notebook Computer
Stylus Pen
RF Module
Telematics
Microwave oven
