BEJV170XGMicrowave Oven

• To avoid improperly cooking some foods. - Do not heat any types of baby bottles or baby food.Uneven heating may occur and possibly cause personal injury. - Do not heat small-necked containers, such as syrup bottles. - Do not deep-fat fry in your microwave oven. - Do not attempt home canning in your microwave oven. - Do not heat the following items in the microwave oven: whole eggs in the shell, water with oil or fat, sealed containers, or closed glass jars. These items may explode. • Do not cover or block any openings in the oven. • Use your oven only for the operations described in this manual. • Do not run the oven empty, without food in it. • Do not let cord hang over edge of table or counter. • Preserve the oven floor: - Do not heat the oven floor excessively. - Do not allow the gray film on special microwave- cooking packages to touch the oven floor. Put the package on a microwavable dish. - Do not cook anything directly on the oven floor or turntable. Use a microwavable dish. - Keep a browning dish at least 3/16 inch above floor. Carefully read and follow the instructions for the browning dish. If you use a browning dish incorrectly, you could damage the oven floor. • Install or locate this appliance only in accordance with the provided installation instructions. • This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment. SAVE THESE INSTRUCTIONS - 5 - WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following: • Reorient the receiving antenna of the radio or television. • Relocate the Microwave Oven with respect to the receiver. • Move the microwave oven away from the receiver. • Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits. The manufactureris not responsible for any radio or TV interference caused by unauthorized modification to this microwave oven. It is the responsibility of the user to correct such interference. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ( U.S.A. ONLY) SAFETY

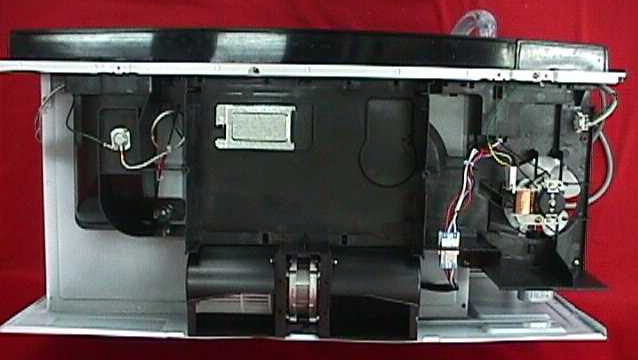

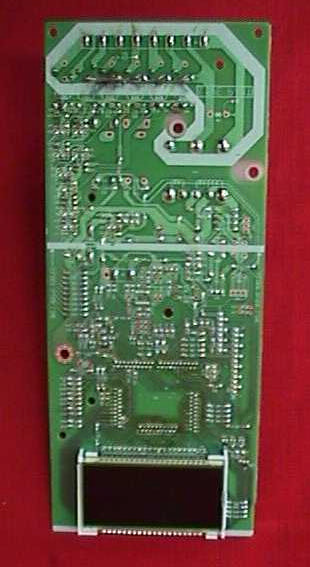

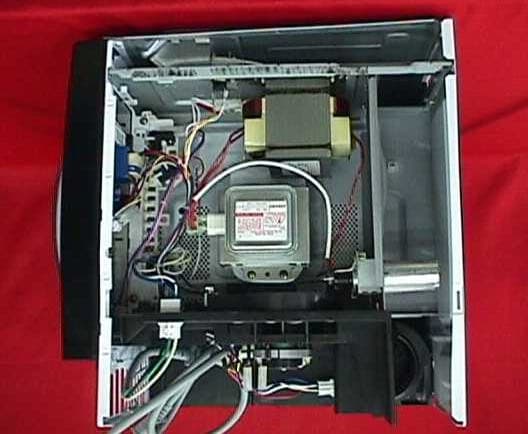

The EUT Photographs EXTERNAL VIEW FCC ID : BEJV170XG INTERNAL VIEW FCC ID : BEJV170XG PCB VIEW FCC ID : BEJV170XG

LABEL FCC ID : BEJV170XG Label Location

Schematic Diagram Model: MV-174DC FCC ID : BEJV170XG Schematic Diagram Model: MV-174DC(Micom. Part) FCC ID : BEJV170XG

LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue : Mar. 14, 2000Report no.: 00431-4521-F0052 Applicant :LG Electronics Inc. Regulation :FCC Part 18 Test procedure :MP-5 : 1985 Equipment Class : Industrial, Scientific, and Medical equipment EUT Type :Microwave oven Brand Name(s) :Goldstar Model No. :MV-174DC FCC ID :BEJV170XG This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5 : 1985. I assume full responsibility for the completeness of these measurements and vouch for the qualifi- cations of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center 1 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F0052 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including inten- tional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communica- tions Commission. Test Report No : 00431-4521-F0052 EUT Type : Microwave oven Model No. : MV-174DC FCC ID :BEJV170XG Rule Part : FCC Part 18 Test Procedure : MP-5 : 1985 Date of Test : Mar. 4, 2000 Date of Issue : Mar. 14, 2000 Test Result :Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is repro- duced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test condi- tions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the FCC Part15 : Digital device of accreditation under Lab Code : 200040-0. Tested by : Reviewed by : D.H.Lee / Research Engineer D.H.Kim / Senior Research Engineer Quality and Reliability Center Quality and Reliability Center 2 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F0052 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 CONTENTS Page 1. CLIENT INFORMATION..............................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)..............................................................................................................................3 2.1 IDENTIFICATION OF THE EUT...............................................................................................................................3 2.2 ADDITIONAL INFORMATION ABOUT THE EUT..................................................................................................3 3. TEST SITE.......................................................................................................................................................................4 3.1 SEMI-ANECHOIC CHAMBER.....................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENTS.............................................................................................4 5. DESCRIPTION OF TEST CONDITION....................................................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENTS...............................................................................................................4 6. MEASURING INSTRUMENTS AND SET-UP...........................................................................................................6 6.1 RADIATED EMISSIONS..............................................................................................................................................6 6.2 FREQUENCY MEASUREMENTS................................................................................................................................6 7. RF POWER OUTPUT MEASUREMENT AND RESULTS......................................................................................7 8. TEST DATA.....................................................................................................................................................................8 8-1. RADIATED EMISSIONS (SECTION 18.305).............................................................................................................8 8-2. FREQUENCY MEASUREMENTS..............................................................................................................................9 9. LIST OF INSTRUMENTS USED...............................................................................................................................10 APPENDIX A THE TEST GRAPH...............................................................................................................................11 APPENDIX B THE PHOTOGRAPHS OF TEST SET-UP.......................................................................................14 3 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F0052 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 1.…

Text truncated - open the document above for the full version.

Specification FCC ID: BEJV170XG 1Equipment ClassISM Consumer Device, Part 18 2Equipment nameMicrowave Oven 3Trade NameGoldstar 4Model Number MV-174DC, MV-174TC, MV-174SC, MV-1715W, MV-1715B 5FCC IDBEJV170XG 6Serial number & Manufacturer DateProto-Type (Not Produced yet) 7Date of Original GrantOriginal Model 8Rated RF Power Output1000W 9Rated Power Consumption1500W 10Rated Current13A 11Overall Dimensions (W*H*D)760 × 420 × 390 (mm) 12Cavity Dimensions (W*H*D)562 × 254 × 369 (mm) 13Cavity Volume1.7 cu.ft. 14Magnetron2M248J 15Mode of StirrerTurntable and stirrer fan 16Measurement FacilityLG 17Frequency Range in MHz2450 ±50 MHz 18Household Use
