BEJV170XGAMicrowave Oven

MICROWAVE OVEN Use and Care Manual R USE & CARE MANUAL MODEL No. 85130 85138 85139 KNOW YOUR UNIT Read this booklet so you will be able to enjoy all the features in your Kenmore Microwave Oven. Record in the space provided below the Model No. and the Serial No. of the appliance. Model No. Serial No. Retain this information for future reference. *Sold by Sears Canada Inc. Part No. 3828W5A1944 SEARS. CANADA INC., TORONTO. M5B 2B8 TABLE OF CONTENTS - 2 - TABLE OF CONTENTS ..........................................2 SAFETY ...................................................................3 Important Safety Instructions ................................3 Precautions To Avoid Possible Exposure To Excessive Microwave Energy ...............................4 INFORMATION........................................................5 Location of Model Number ....................................5 Oven Specifications ..............................................5 Electrical Rating ....................................................5 Electrical Requirements ........................................5 Grounding Instructions ..........................................5 Microwave Oven Features ....................................6 Oven Control Panel...............................................7 OPERATION............................................................9 LEARN ABOUT YOUR MICROWAVE OVEN......9 Time of Day........................................................9 Kitchen Timer .....................................................9 Light Timer ........................................................9 Hi/Low/Off ...............................................10 Hi/Low/Off ...............................................10 On/Off .......................................................10 Child Lock .........................................................10 Help....................................................................10 Hold Warm .........................................................10 Custom Set ........................................................11 Quick Touch Plus ...............................................11 Custom Cook .....................................................11 More / Less ........................................................12 Cooking at High Cook Power .............................12 Cooking at Lower Power Levels.........................12 Cooking Guide for “Lower Power Levels” ..........13 Popcorn..............................................................14 Beverage............................................................14 Potato.................................................................14 Pizza ..................................................................14 Cook...................................................................15 Cooking Guide for “Cook” .................................15 Reheat................................................................16 Cooking Guide for “Reheat” ...............................16 Quick Defrost .....................................................17 Express Defrost..................................................17 Express Defrost Chart........................................18 Use of the Two Position Metal Rack ..................20 MAINTENANCE.......................................................21 CARE AND CLEANING .......................................21 Metal Rack .........................................................21 Cleaning the Grease Filters ...............................21 Charcoal Filter(Optional) Replacement .............21 Cooktop/Night Light Replacement .....................22 Oven Light Replacement ...................................22 QUESTIONS AND ANSWERS.............................22 MICROWAVE UTENSIL GUIDE...........................23 BEFORE CALLING FOR SERVICE........................24 SEARS SERVICE ....................................................27 SEARS WARRANTY...............................................28 SERVICE AND REPAIR PARTS.............................29 WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy. • Read all the instructions before using your oven. • Do not allow children to use this oven without close supervision. • Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”found on page 4. • Use the microwave oven only for its intended use as described in its manual.Do not usecorrosive chemicals or vapors, in the microwave oven. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. • Do not use or storethis appliance outdoors. Do not use this product near water -for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. • Do not usethe cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. • Clean the ventilating hood frequently. Do not allow grease to accumulate on the hood or the filters. • When flaming foods under the hood, turn the fan on. • Suitable for use above both gas and electric cooking equipment 36 inches wide or less. • Use care when cleaning the vent hood filters. Corrosive cleaning agents such as lye-based oven cleaners, may damage the filters. • When cleaning the door and the surfaces that touch the door, use only mild, non-abrasive soaps or detergents and a sponge or soft cloth. • Do not tamper with the built-in safety switches on the oven door.The oven has several built-in safety switches to make sure the power is off when the door is open. • If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it again. • To avoid a fire hazard: - Do not severely overcook food.Severely overcooked foods can starts a fire in the oven. Watch the oven carefully, especially if you have paper, plastic, or other combustibles in the …

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M097 6660-B Dobbin Road Date: April 20, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJV170XGA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJV170XGA 2. Application Model no.: MV-1843MBLS (RF Power Output – IEC705: 1000 W) 3. Magnetron: 2M248J (Toshiba Hokuto Electronics Corp.) 4. Applied model is for household use. We have performed all tests using model MV-1843MBLS with Magnetron (2M248J, Toshiba) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M097 Authorization and Standards Branch Date: April 20, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJV170XGA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJV170XGA 2. Application Model no.: MV-1843MBLS (RF Power Output – IEC705: 1000 W) 3. Magnetron: 2M248J (Toshiba Hokuto Electronics Corp.) 4. Applied model is for household use. We have performed all tests using model MV-1843MBLS with Magnetron (2M248J, Toshiba) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

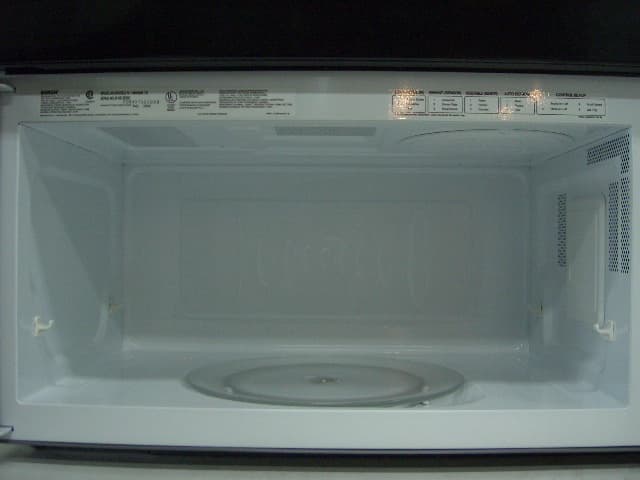

Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 22 / 26 LG Electronics Inc. FCC ID: BEJV170XGA APPENDIX E. EUT Photos Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 23 / 26 LG Electronics Inc. FCC ID: BEJV170XGA

Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 19 / 26 LG Electronics Inc. FCC ID: BEJV170XGA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJV170XGA MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MV-1843MBLS CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 24 / 26 LG Electronics Inc. FCC ID: BEJV170XGA Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 25 / 26 LG Electronics Inc. FCC ID: BEJV170XGA

Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 20 / 26 LG Electronics Inc. FCC ID: BEJV170XGA APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 20, 2005 Test Report No: 05-LAE-M097 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M248J (Toshiba Hokuto Electronics Corp.) Brand Name(s): LG Model No.: MV-1843MBLS FCC ID: BEJV170XGA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 1 / 26 LG Electronics Inc. FCC ID: BEJV170XGA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MV-1843MBLS FCC ID: BEJV170XGA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: April 15, 2005 – April 19, 2005 Date of Issue: April 20, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 2 / 26 LG Electronics Inc. FCC ID: BEJV170XGA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP5............................................................................ 10 7.3 RF P OWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705.................................................................. 11 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 12 7.5 P OWER D ENSITY S AFETY C HECK .................................................................................................................. 13 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FC…

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M097 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 21 / 26 LG Electronics Inc. FCC ID: BEJV170XGA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
