Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 29 / 29 LG Electronics FCC ID: BEJV204NTA APPENDIX F. Owner’s Manual with regard to FCC Instruction

LG Electronics Tianjin Appliance Co., Ltd. EMC Laboratory Xing Dian Road, Bei Chen Distr., Tianjin 300402, P.R.China Tel: + 86 22 2690 3777, Fax: +86 22 2690 2212 PCTEST Engineering Laboratory Inc. Ref. No.: 11-LTE-M012 6660-B Dobbin Road Date: March 17, 2011 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJV204NTA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJV204NTA 2. Model no.: MV1841GL (RF Power Output – IEC705: 950 W) 3. Magnetron: 2M214 (LG) 4. Applied model is for household use. We have performed all tests using model MV1841GL with Magnetron (2M214, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Joon-Ho, Park at LG Electronics Q&R Center or Mr. Christopher Johnson at LG Electronics New Jersey office. Best regards, Kim Dae Woong, Chief Research Engineer Joon-Ho, Park, General Manager Home Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-02-526-4157 LG Electronics Inc.

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 20 / 29 LG Electronics FCC ID: BEJV204NTA Requirements per section 2.1033 (5) of CFR Title 47. <Fig. 4. PCB Circuit Diagram>

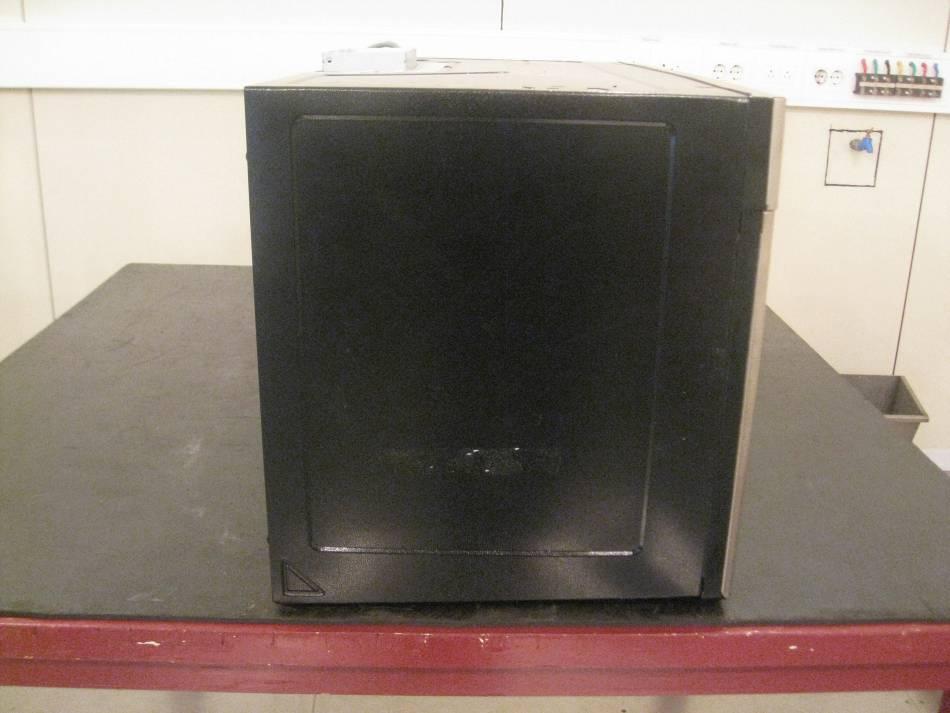

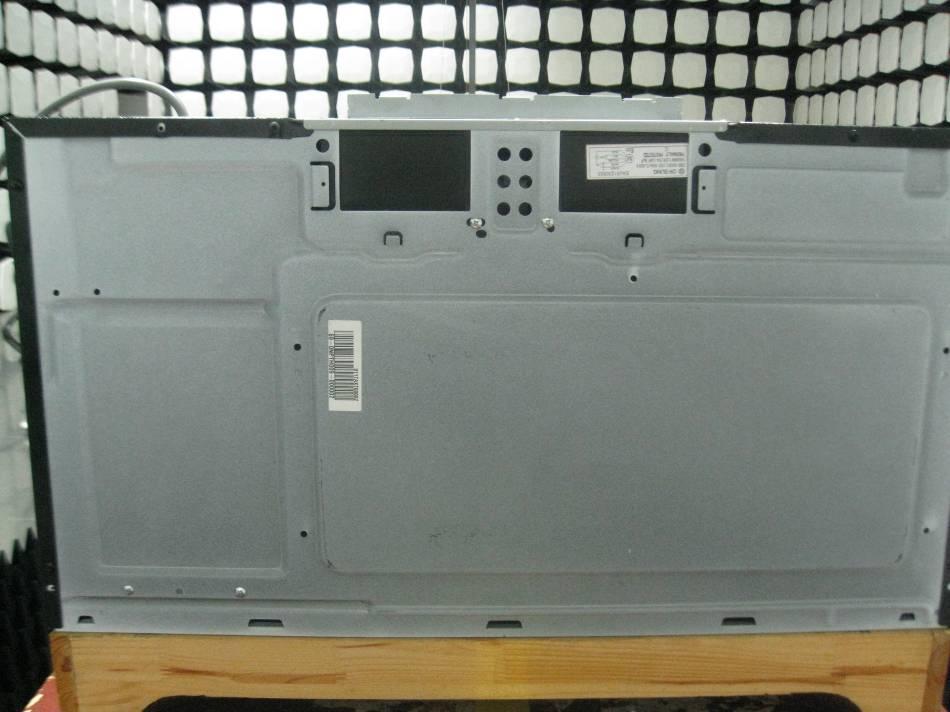

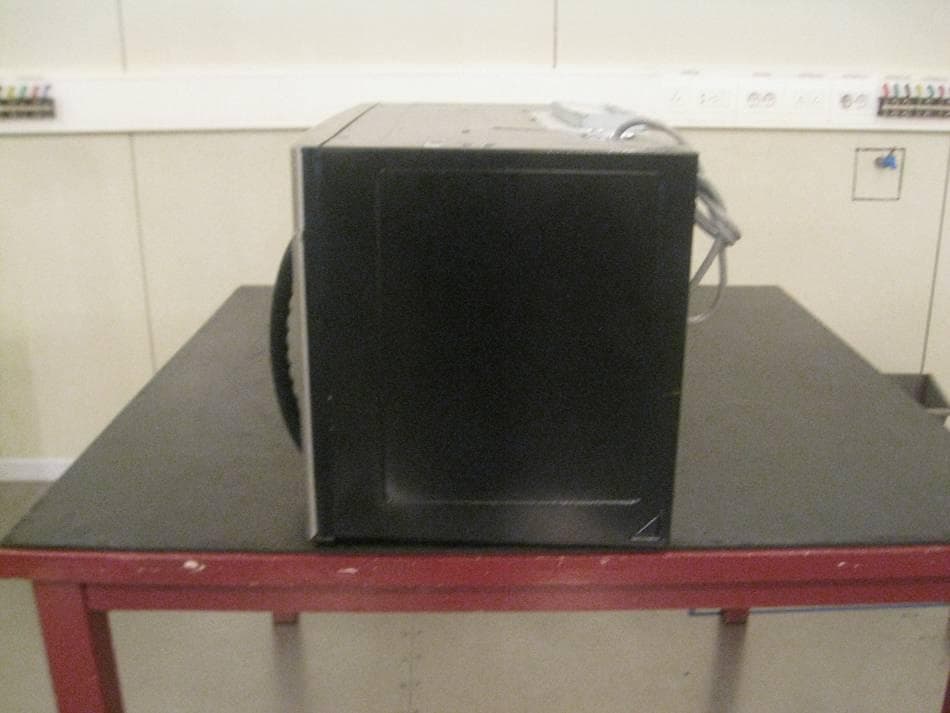

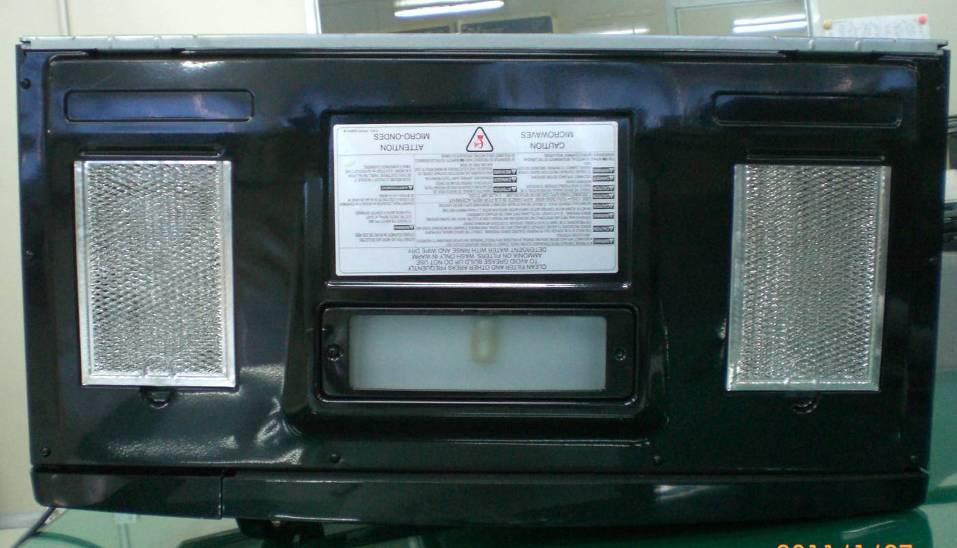

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 23 / 29 LG Electronics FCC ID: BEJV204NTA APPENDIX E. EUT Photos Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 24 / 29 LG Electronics FCC ID: BEJV204NTA Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 25 / 29 LG Electronics FCC ID: BEJV204NTA Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 26 / 29 LG Electronics FCC ID: BEJV204NTA

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 18 / 29 LG Electronics FCC ID: BEJV204NTA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. < Fig. 2. Photo of the physical location of the label> * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 27 / 29 LG Electronics FCC ID: BEJV204NTA Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 28 / 29 LG Electronics FCC ID: BEJV204NTA

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 3 / 29 LG Electronics FCC ID: BEJV204NTA 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Cooking & Cleaning Division (Manufacturer) 391-2, Ga Eum Jeong - Dong, Changwon City, Gyeong Nam, 641-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact: Xu Zhaoyin Telephone: +86-22-2690-3308 Fax: +86-22-2690-3643 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: MV1841GL (Buyer model: JVM1810SS1SS) Brand name: GE Serial number: N/A Magnetron: 2M214 by LG Noise Filter: EAM35001874 RF Frequency: 2450 +/- 50 MHz RF Power Output (IEC 705): 950 W Power Consumption Microwave Mode: 1500 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 13 A Cavity Volume: 1.8 and 2.0 Cu.ft Oven Type: OTR / Household Mode Stirrer: Turntable Power Cord: Unshielded Outer Dimensions (inch) 29 7/8" (W) * 16 7/8" (H) * 16 1/8" (D) EMI suppression device(s) installed in production: See schematics (Appendix C) EMI suppression device(s) added and/or modified during test: None

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 19 / 29 LG Electronics FCC ID: BEJV204NTA APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Tianjin Appliance Co., Ltd., EMC Center Xing Dian Road, Bei Chen Distr., Tianjin 300402, P.R..China Tel: + 86 22 2690 3777, Fax: +86 22 2690 2212 CERTIFICATION OF COMPLIANCE Date of Issue: March 17, 2011 Test Report No: 11-LTE-M012 Test Site: LG Electronics Tianjin Appliance Co., Ltd. EMC Laboratory Applicant: LG Electronics Tianjin Appliance Co., Ltd. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1986 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M214 (LG) Noise Filter: EAM35001874 Brand Name(s): GE Model No.: MV1841GL (Buyer model: JVM1810SS1SS) FCC ID: BEJV204NTA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1986. I assure full responsibility for the completeness of these measurements and vouch for the qualifica- tions of all persons taking them. Dae-Woong Kim, Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 1 / 29 LG Electronics FCC ID: BEJV204NTA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MV1841GL (Buyer model: JVM1810SS1SS) FCC ID: BEJV204NTA Rule Part: FCC Part 18 Test Procedure: MP-5: 1986 Date of Test: March 14, 2011 – March 16, 2011 Date of Issue: March 17, 2011 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entire- ty. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufactur- er’s responsibility to assure that additional production unit of this model is manufactured with identical electric- al and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 728166. Reviewed by: Approved by: Kwang-Mu Son / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Dae-Woong Kim / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Prepared by: Liu Pin / Research Engineer LGETA EMC Laboratory LG Electronics Tianjin Appliance Co., Ltd. Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 2 / 29 LG Electronics FCC ID: BEJV204NTA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT)................................................................................................................ 3 3. TEST SITE .......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT ................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 RADIATED EMISSIONS MEASUREMENT ............................................................................................................. 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA...................................................................................................................................................... 10 7.1 INPUT POWER ................................................................................................................................................ 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5........................................................................... 10 7.3 RF POWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705. ................................................................. 11 7.4 FREQUENCY MEASUREMENTS ....................................................................................................................... 12 7.5 POWER DENSITY SAFETY CHECK .................................................................................................................. 13 7.6 CONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 RADIATED EMISSIONS (SECTION 18.305) ....................................................................................................... 14 APPENDIX A. TEST PLOT ................................................................................................................................ 15 APPENDIX B. LABELING REQUIREMENTS ............................................................................................... 18 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS ..................................................................................... 19 APPENDIX D. TEST PHOTOS .........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 21 / 29 LG Electronics FCC ID: BEJV204NTA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 11-LTE-M012 FCC Part 18 (ISM) Report Issued date: March 17, 2011 Certification 22 / 29 LG Electronics FCC ID: BEJV204NTA
