BEJV204ZLMicrowave Oven

Use & Care Guide Model MV-2043MT Important Safety Instructions.................. 2-4 Features........................................................ 5-6 Operating Instructions ............................ 7-22 Care and Cleaning................................. 23-24 Cooking Utensils .......................................... 25 Troubleshooting ..................................... 26-27 Warranty......................................................... 28 Keep instructions for future reference. Be sure manual stays with oven. Form No. A/03/04©2004 Maytag Appliances 3828W5A3935Part No. 8112P267-60 Over The Range Microwave Oven 2 Important Safety Instructions Installer: Please leave this guide with this appliance. Consumer: Please read and keep this Use & Care Guide for future reference. Keep sales receipt and/or cancelled check as proof of purchase. Model Number ________________________________ Serial Number_________________________________ Date of Purchase ______________________________ In our continuing effort to improve the quality and performance of our appliances, it may be necessary to make changes to the appliance without revising this guide. If you have questions, write us (include your model number and phone number) or call: Maytag Services SM Attn: CAIR ® Center P.O. Box 2370 Cleveland, TN 37320-2370 1-800-843-0304 U.S.A 1-866-587-2002 Canada 1-800-688-2080 (U.S.A TTY for hearing or speech impaired) Internet: http://www.amana.com What You Need to Know About Safety Instructions Warning and Important Safety Instructions appearing in this Use & Care Guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating microwave. Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand. Recognize Safety Symbols, Words, Labels DANGER DANGER –Immediate hazards which WILLresult in severe personal injury or death. WARNING WARNING –Hazards or unsafe practices which COULD result in severe personal injury or death. CAUTION CAUTION –Hazards or unsafe practices which COULD result in minor personal injury. CAUTION To avoid personal injury or property damage, observe the following: 1. Do not deep fat fry in oven. Fat could overheat and be hazardous to handle. 2. Do not cook or reheat eggs in shell or with an unbroken yolk using microwave energy. Pressure may build up and erupt. Pierce yolk with fork or knife before cooking. 3. Pierce skin of potatoes, tomatoes, and similar foods before cooking with microwave energy. When skin is pierced, steam escapes evenly. 4. Do not operate oven without load or food in oven cavity. 5. Use only popcorn in packages designed and labeled for microwave use. Popping time varies depending on oven wattage. Do not continue to heat after popping has stopped. Popcorn will scorch or burn. Do not leave oven unattended. 6. Do not use regular cooking thermometers in oven. Most cooking thermometers contain mercury and may cause an electrical arc, malfunction, or damage to oven. 7. Do not use metal utensils in oven. 8. Never use paper, plastic, or other combustible materials that are not intended for cooking. 9. When cooking with paper, plastic, or other com-bustible materials, follow manufacturer's recom-mendations on product use. 10. Do not use paper towels which contain nylon or other synthetic fibers. Heated synthetics could melt and cause paper to ignite. 11. Do not heat sealed containers or plastic bags in oven. Food or liquid could expand quickly and cause container or bag to break. Pierce or open container or bag before cooking. 12. To avoid pacemaker malfunction, consult physician or pacemaker manufacturer about effects of microwave energy on pacemaker. 3 Important Safety Instructions WARNING • To avoid risk of electrical shock or death, this oven must be grounded. • To avoid risk of electrical shock or death, do not alter the plug. WARNING Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.To reduce the risk of injury to persons: 1. Do not overheat the liquid. 2. Stir the liquid both before and halfway through heating it. 3. Do not use straight-sided containers with narrow necks. 4. After heating, allow the container to stand in the microwave oven for a short time before removing the container. 5. Use extreme care when inserting a spoon or other utensil into the container. Grounding Instructions Oven MUST be grounded.Grounding reduces risk of electric shock by providing an escape wire for the electric current if an electrical short occurs. This oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or servicer if grounding instructions are not completely understood, or if doubt exists as to whether the oven is properly grounded. Do not use an extension cord.If the product power cord is too short, have a qualified electrician install a three-slot receptacle. This oven should be plugged into a separate 60 hertz circuit with the electrical rating as shown in specifications table. When the combination oven is on a circuit with other equipment, an increase in cooking times may be required and fuses can be blown. Microwave operates on standard household current, 110-120V. Federal Communications Commission Radio Frequency Interference Statement (U.S.A. Only) This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to ra…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 04-LAE-M123 6660-B Dobbin Road Date: April 14, 2004 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJV204ZL Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter to apply for FCC grant of new model as follows. 1. FCC ID: BEJV204ZL 2. Model no.: MV-2043MT (RF Power Output – IEC705: 1,200 W) 3. Magnetron: 2M282J (Toshiba Hokuto Electronics Corp.) 4. Applied model is for household use. We have performed all tests using model MV-2043MT with Magnetron type 2M282J ( Toshiba Hokuto Electronics Corp.) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Peter Byun at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3070 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 04-LAE-M123 Authorization and Standards Branch Date: April 14, 2004 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJV204ZL Gentleman, We, LG Electronics Inc., hereby submit this application letter to apply for FCC grant of new model as follows. 1. FCC ID: BEJV204ZL 2. Model no.: MV-2043MT (RF Power Output – IEC705: 1,200 W) 3. Magnetron: 2M282J (Toshiba Hokuto Electronics Corp.) 4. Applied model is for household use. We have performed all tests using model MV-2043MT with Magnetron type 2M282J ( Toshiba Hokuto Electronics Corp.) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Peter Byun at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer P. H. Byun, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

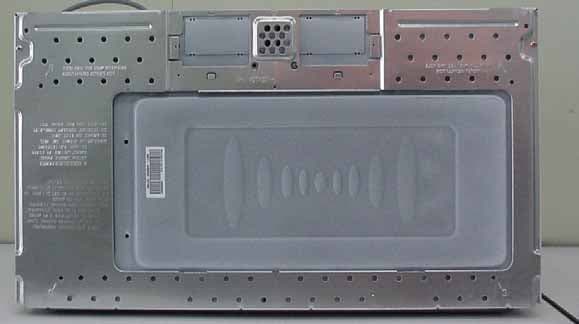

Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL APPENDIX E. EUT Photos Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL

Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 14.5 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJV204ZL MADE IN KOREA LISTED 57B5 U L R MICROWAVE OVEN (Household) MODEL NO. MV-2043MT CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG ELECTRONICS USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity.

Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL

Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL APPENDIX C. Block Diagram / Schematics Model No.: MV-2043MT FCC ID: BEJV204ZL <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 14, 2004 Test Report No: 04-LAE-M123 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M282J(Toshiba Hokuto Electronics Corp.) Brand Name(s): LG Model No.: MV-2043MT FCC ID: BEJV204ZL This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification 1 / 24 LG Electronics Inc. FCC ID: BEJV204ZL REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices includ- ing intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Fed- eral Communications Commission. EUT Type: Microwave oven Model No.: MV-2043MT FCC ID: BEJV204ZL Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: April 02, 2004 – April 13, 2004 Date of Issue: April 14, 2004 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Dong H. Kim / Senior Research Engineer Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center Digital Appliance Company, EMC Center LG Electronics Inc. LG Electronics Inc. Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification 2 / 24 LG Electronics Inc. FCC ID: BEJV204ZL CONTENTS Page 1. CLIENT INFORMATION ......................................................................................................................... 3 2. EQUIPMENT UNDER TEST (EUT) ........................................................................................................ 3 3. TEST SITE................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT............................................................................ 4 5. DESCRIPTION OF TEST CONDITION ................................................................................................. 4 5.1 R ADIATED EMISSIONS MEASUREMENT..................................................................................................... 4 6. MEASURING INSTRUMENT .................................................................................................................. 8 7. TEST DATA ................................................................................................................................................ 9 7.1 I NPUT POWER.......................................................................................................................................... 9 7.2 RF P OWER OUTPUT MEASUREMENT........................................................................................................ 9 7-3. F REQUENCY MEASUREMENTS............................................................................................................... 10 7-4. P OWER DENSITY SAFETY CHECK......................................................................................................... 11 7-5. R ADIATED EMISSIONS (SECTION 18.305) .............................................................................................. 12 APPENDIX A. TEST PLOT ........................................................................................................................ 12 APPENDIX B. LABELING REQUIREMENTS........................................................................................ 16 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS ............................................................................. 17 APPENDIX D. TEST PHOTOS................................................................................................................... 18 APPENDIX E. EUT PHOTOS..................................................................................................................... 20 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION ............................. 24 Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification 3 / 24 LG Electronics Inc. FCC ID: BEJV204ZL 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Cooking Appliances Division (Manufacturer) 391-2, Ga Eum Jeong - Dong, Changwon City, Gyeong Nam, 641-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of c…

Text truncated - open the document above for the full version.

Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 04-LAE-M123 FCC Part 18 (ISM) Test Date: April 14, 2004 Certification LG Electronics Inc. FCC ID: BEJV204ZL
