BEJVS740Cellular/PCS CDMA Phone with WLAN and Bluetooth

- 1 - User Manual VS740 Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. - 2 - Getting Started Unlocking Your Phone If you received your VS740 in the mail, you may need to unlock it before making calls. 1. Press the END/PWR Switch for 2~3 seconds. 2. Press soft key Unlock. 3. Enter your four-digit lock code. For security purposes, the code will not be visible as you type. Note: If you can’t recall your lock code, try using the last four digits of your Social Security number, the last four digits of your Phone Number or 0000. View of Phone 1. END/PWR Switch: Lets you power the phone on or off. 2. Antenna: Retractable antenna provides optimum reception for 800 MHz & 1900 MHz frequencies. 3. Power On Indicator: Illuminates red when the phone powers on or when you receive incoming calls. Flashes red when you have messages of scheduled alarms. 4. Headset Jack: Provides connection for an optional headset. 5. Volume Control Keys: Adjust the Ring Volume in the Main Menu or the Voice Volume during a call. The keys also scroll through mouths in the Calendar or pages in the MiniBrowser. 6. Mouse Key: Allows quick and easy scrolling through the menus. 7. OK: Lets you place a call, receive a call, end a call or select menu options. 8. CLR: Lets you clear an entry or back-up in the menu. 9. Folder : Lets you answer or end calls. - 3 - Installing and Removing the Battery To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then, push the battery down until the latch clicks. To remove the battery, press down on the latch and remove the battery from the phone. Turning Your Phone On and Off To turn your phone on, move the On/Off Switch (near the antenna) to the ON position. Your phone performs a short self-test before letting you know it is operational. If your phone does not turn on, make sure the battery is installed correctly and is adequately charged or has external power (via the AC Adapter, Cigarette Lighter Adapter or Hands-Free Car Kit). To turn your phone off, move the On/Off Switch to the OFF position. Power On/Off, Call End Back Menu Home Call - 4 - Main Menu When your phone acquires Service, the Greeting (a banner of text), the current time and date and the Main Menu are displayed. If you are in authorized analog cellular provider’s service area, you are ready to send and receive calls. Power Save Mode When the phone is in an area without service for 15 minutes, it stops searching for service and enters into the power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key. - 5 - Entering Characters Using the Keypad(T9) To enter a letter, punctuation or number when creating Phone Book or Scheduler entries, press the corresponding key until the desired character appears. By default, the first letter of a word is capitalized and following letters are lowercase. Characters in the following order: 1 . ? , ‘ & - @ ( ) / ~ P Q R S 7 p q r s A B C 2 a b c 2 T U V 8 t u v 8 D E F 3 d e f 3 W X Y Z 9 w x y z 9 G H I 4 g h i 4 Next 0 J K L 5 j k l 5 Shift M N O 6 m n o 6 Space After a character is entered, the cursor automatically advances to the next space after two seconds. You can also advance the cursor by pressing or entering a character not on the same key. If you make a mistake, press to move the cursor left or [CLR] to erase a character. To clear the entire entry, press and hold [CLR] for two seconds. 1 7PQRS 9WXYZ 8TUV 6MNO 5J 4G 3DEF ABC 1 * 0Space - 6 - Display Icons Display icons are the symbols your phone uses to communicate important information. They are as follows: ICON DESCRIPTION 3G send 3G receive 3G send receive Alarm Battery Antenna In use No service Location Location out Vo i c e Voice Privacy Vibrate Roaming TTY SSI Ringer Ringer off Text + voice - 7 - Antenna The antenna on your VS740 provides maximum reception by extending of retracting it. !!! WARNING – CHOKING HAZARD – ANTENNA MAY BECOME DISLODGED Attempting t…

Text truncated - open the document above for the full version.

 Date:March 3 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID:  4 Equipment Class:   To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act !hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for " days after the grant as outlined in Public Notice DA 04-1705. This provision will give  !temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: #$%!&&!& '($)$%*(&+,&,!,  -./ e0 1 Block Diagram 2 Operational Descriptions #$%!&& 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos '($)$% 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

From: 한봉효 Sent: Thursday, March 04, 2010 4:23 AM To: PCTEST TCB/CB Subject: Re: Quest ions Regarding FCC ID: BEJVS740 Importance: High Hello PCTEST TCB, Thank you for your e-mail. Please see the response below and find the attachments. Without any problem, please let me get the grants asap. Thank you! Best regards Han. ----- Original Message ----- From: PCTEST TCB/CB To: LGE - Bong Hyo Han Sent: Thursday, March 04, 2010 1:19 PM Subject: Questions Regarding FCC ID: BEJVS740 To: Mr. Bong-Hyo Han / LG Electronics Inc. From: Mr. Mark Czumak / PCTEST TCB RE: FCC ID: BEJVS740 Applicant: LG Electronics USA Correspondence Reference Number: BEJ100183 Confirmation Number: 1Y1002120183-86 Date of Original Email: March 3, 2010 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The main block diagram lists an LPO at 32.768 kHz but this LPO is not provided in the schematic diagrams. Please reconcile. → Please find the attachment. 2. Please confirm that the EUT is incapable of being modified by the user to enable VOIP operation. → The EUT doesn't support VoIP capability. 3. The EUT Type listed on page 1 and 3 of the 15B Certification report does not include EvDO. Please address. → Please find the attachment. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Mark Czumak Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

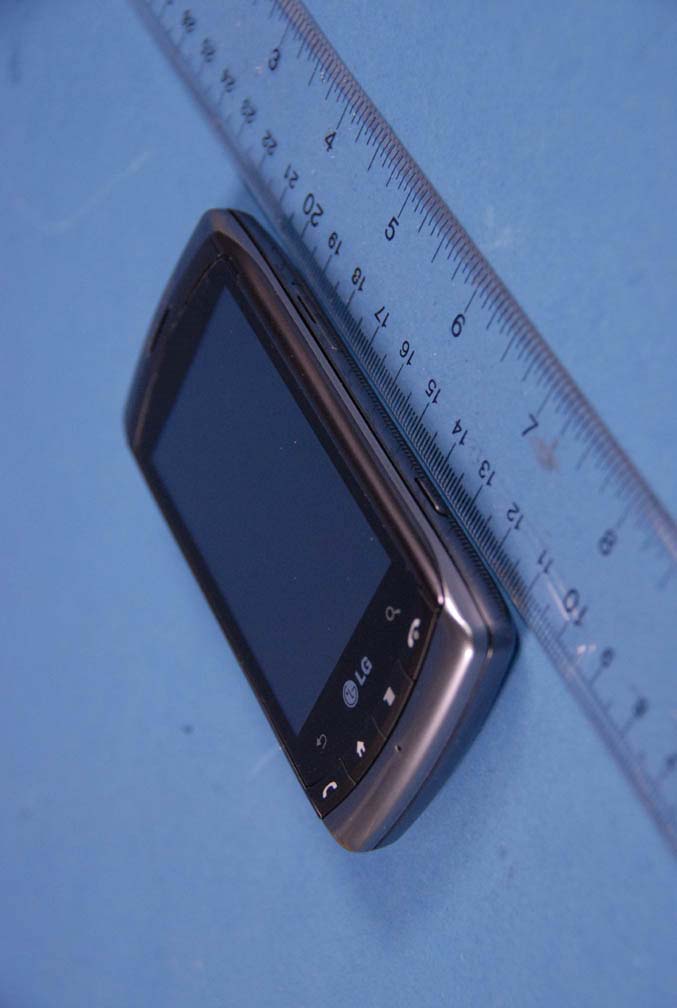

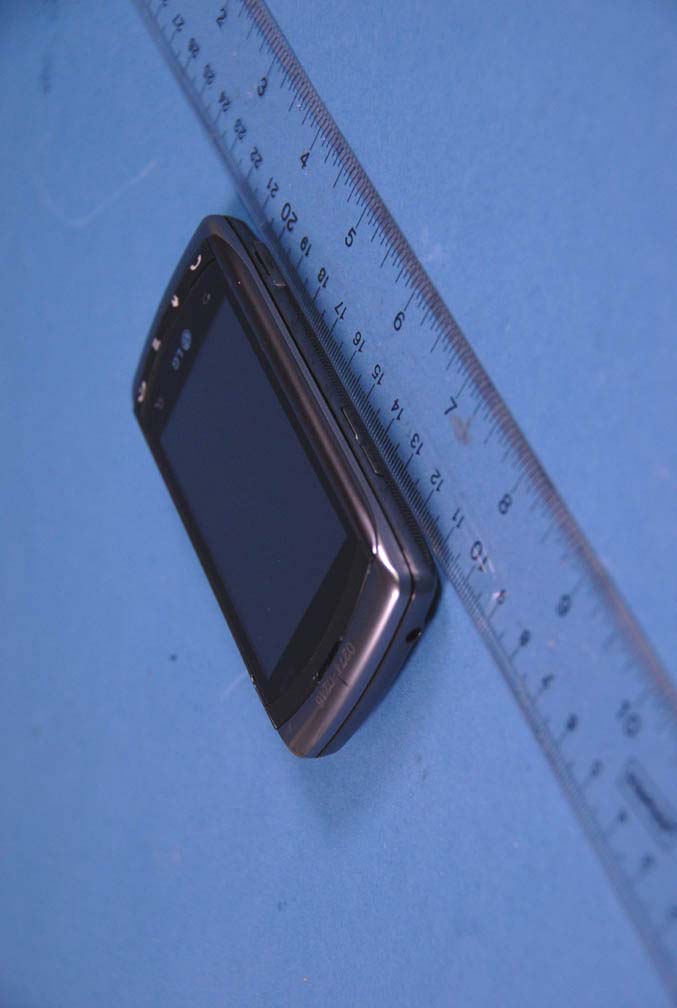

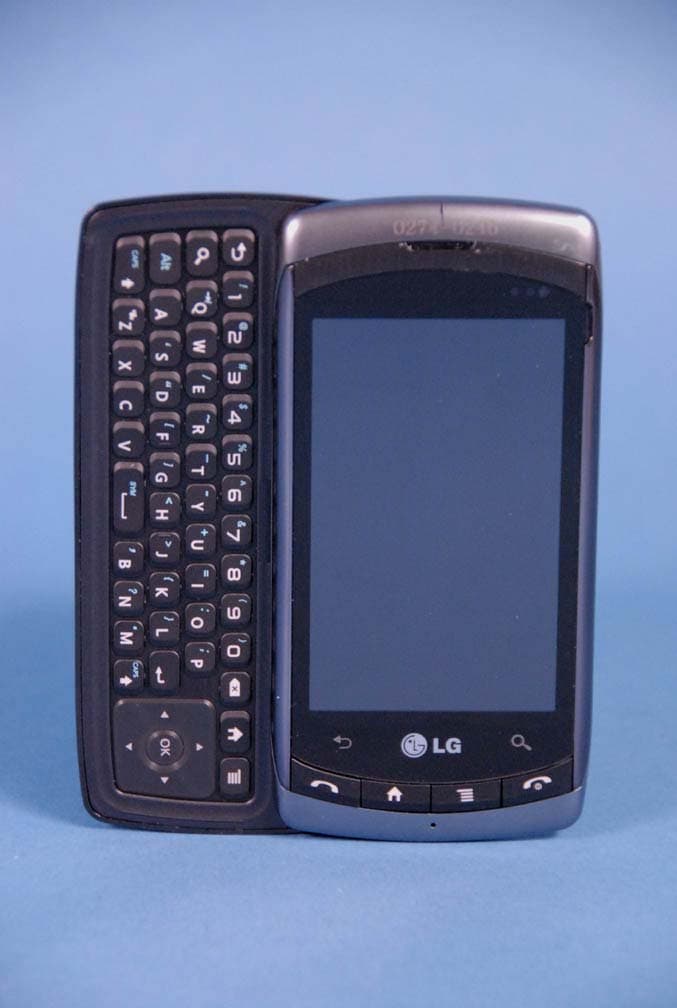

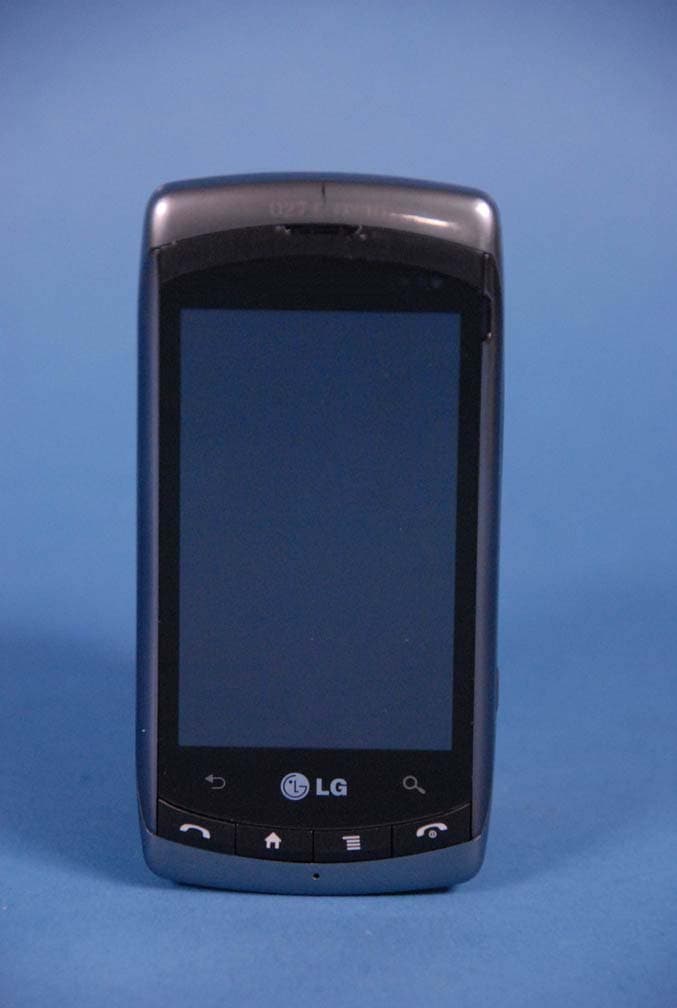

LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 5 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 5 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 3 of 5 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 4 of 5 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 5 of 5 © 2009 PCTEST Engineering Laboratory Inc.

Model No: VS740 FCC ID : BEJVS740 S/N : Made in Korea LG Electronics Inc. LGE

LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 14 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 3 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 4 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 5 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 6 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 7 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 8 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 9 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 10 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 11 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 12 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 13 of 14 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 14 of 14 © 2009 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 1 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Applicant Name: Date of Testing: LG Electronics USA 02/19/10 - 02/24/10 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1002120247.BEJ F C C I D : BE J V S 7 4 0 AP P L I C AN T : LG E LE CT RO N ICS US A EUT Type: Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): VS740, LG-VS740, LG-VS740DU, IQ-VS740 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) 2412 - 2462 MHz (WLAN) Conducted Power: 25.14 dBm Cell. CDMA 25.09 dBm PCS CDMA 14.01 dBm 2.4GHz WLAN Max. SAR Measurement: 1.19 W/kg Cell. CDMA Head SAR 0.48 W/kg Cell. CDMA Body SAR 1.36 W/kg PCS CDMA Head SAR 0.74 W/kg PCS CDMA Body SAR 0.02 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: SAR #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 2 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................16 11 MEASUREMENT UNCERTAINTIES .............................................................................................17 12 SYSTEM VERIFICATION...............................................................................................................18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................20 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................21 15 SAR DATA SUMMARY ..................................................................................................................26 16 EQUIPMENT LIST..........................................................................................................................30 17 CONCLUSION................................................................................................................................31 18 REFERENCES ...............................................................................................................................32 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................34 Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 3 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Saf…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJVS740 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120249.BEJ February 19 - 24, 2010 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 42 © 2010 PCTEST Engineering Laboratory, Inc. REV 2.8WBG 11/18/2009 Applicant Name: Date of Testing: LG Electronics USA February 19 - 24, 2010 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1002120249.BEJ FCC ID: BEJVS740 APPLICANT: LG Electronics USA Model(s): VS740, LG-VS740, LG-VS740DU, IQ-VS740 EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Max. RF Output Power: 23.28 mW (13.67 dBm) Conducted (b) 25.18 mW (14.01 dBm) Conducted (g) 10.94 mW (10.39 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 WLAN 802.11b/g/n Certification Reviewed by: FCC ID: BEJVS740 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120249.BEJ February 19 - 24, 2010 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 42 © 2010 PCTEST Engineering Laboratory, Inc. REV 2.8WBG 11/18/2009 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 28 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 31 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 35 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 36 7.0 CONCLUSION .......................................................................................................................................42 Reviewed by: FCC ID: BEJVS740 FCC P…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 34 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 19 S A R T E S T S E T U P P H O T O G R A P H S Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 35 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 36 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: BEJVS740 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120247.BEJ 02/19/10 - 02/24/10 Cellular/PCS CDMA/EvDO Phone with WLAN and Bluetooth Page 37 of 37 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6

LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 5 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 5 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 3 of 5 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 4 of 5 © 2009 PCTEST Engineering Laboratory Inc. LG ELECTRONICS CO. FCC ID: BEJVS740 Model: VS740 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 5 of 5 © 2009 PCTEST Engineering Laboratory Inc.
