BEJVX3400Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)

- 1 - User Manual VX3400 Ver. 1.0 2005. 08. 19 - 2 - LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. - 3 - (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Infocomm Inc. 201 James Record Road Huntsville, AL 35824 Tel. 1-800-793-8896 Fax. 1-800-448-4026 www.lgeservice.com DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS. Please call or write for the location of the LGIC authorized service center nearest you and for the procedures for obtaining warranty claims. ] - 4 - SUBJECT The VX3400 phone has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). This CDMA digital technology has greatly enhanced voice clarity and can provide a variety of advanced features. Currently, CDMA mobile communication technology has been commercially used in Cellular and Personal Communication Service (PCS). The difference between them is the operating frequency spectrum. Cellular uses 800MHz and PCS uses 1.9GHz. The VX3400 can operate on 1.9GHz or 800 MHz frequency, we usually call it dual-band phone. Also, VX3400 works on Advanced Mobile Phone Service (AMPS). We call it Tri -mode phone. This phone is the one of tri band Quad mode - 800Mhz CDMA, 1900Mhz PCS, 1500Mhz GPS. The CDMA technology adopts DSSS (Direct Sequence Spread Spectrum). This feature of DSSS enables the phone to keep communication from being crossed and to use one frequency channel by multiple users in the same specific area, resulting that it increases the capacity 10 times more compared with that in the analog mode currently used. Soft/Softer Handoff, Hard Handoff, and Dynamic RF power Control technologies are combined into this phone to reduce the call being interrupted in a middle of talking over the phone. Cellular and PCS CDMA network consists of MSO (Mobile Switching Office), BSC (Base Station Controller), BTS (Base station Transmission System), and MS (Mobile Station). The following table lists some major CDMA Standards. CDMA Standard Designator Description Basic air interface TIA/EIA-95A TSB-74 ANSI J-STD-008 TIA/EIA-IS2000 CDMA Dual-Mode Air Interface 14.4kbps radio link protocol and inter-band operations IS-95 adapted for PCS frequency band cdma2000 1xRTT Air Interface Network TIA/EIA/IS-634 TIA/EIA/IS/651 TIA/EIA/IS-41-C TIA/EIA/IS-124 MAS-BS PCSC-RS Intersystem operations Nom-signaling data comm. Service TIA/EIA/IS-96-B TIA/EIA/IS-99 TIA/EIA/IS-637 TIA/EIA/IS-657 IS-801 Speech CODEC Assign data and fax Short message service Pac…

Text truncated - open the document above for the full version.

November 17. 2005 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJVX3400 Tri band, Quad-Mode Cellular Phone Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82- 2-2033-3850 Fax : 82- 2-2033-3855 [email protected] 459- 9, Kasan-dong,Kemchun-ku Seoul 153- 023, Korea LG Electronics Inc. LGE

November 17, 2005 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: LG Electronics Inc. FCC ID: BEJVX3400 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab. LG Electronics Inc. LG Electronics Inc. LGE Tel : 82-2-2033-3850 Fax : 82-2-2033-3861 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea

December 15, 2005 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJVX3400 Part 20.19 Certification Gentlemen: We, LG Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, E.S.Park Chief Research Engineer Mobile Handset Lab. LG Electronics Inc. Tel : 82-2-2033-3850 Fax : 82-2-2033-2228 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

December 2, 2005 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJVX3400 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 24 Certification of the Tri-Mode Dual-Band CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

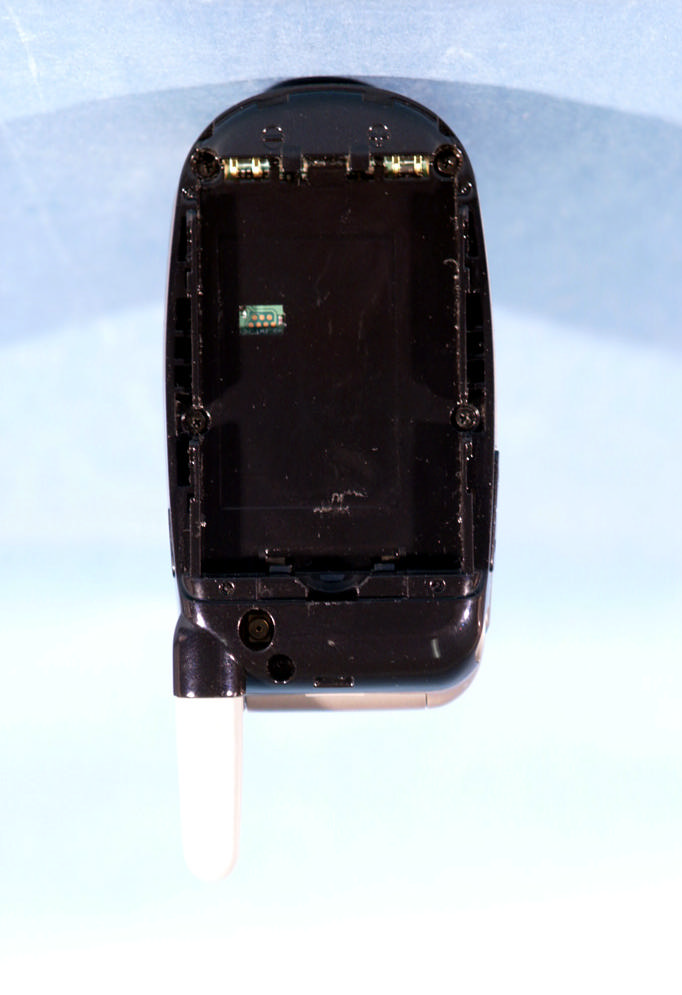

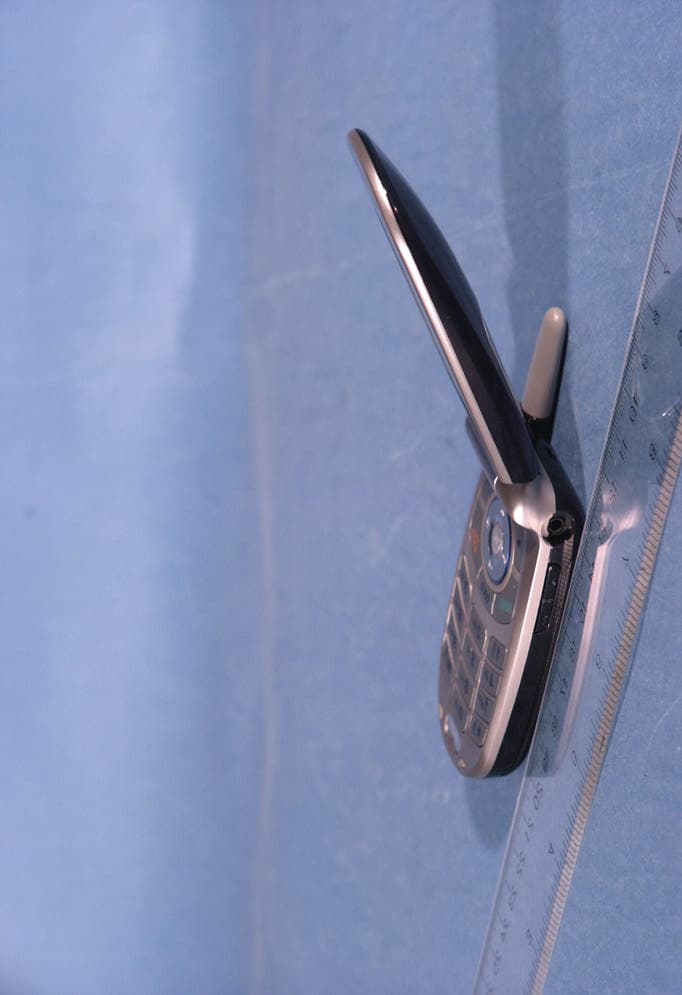

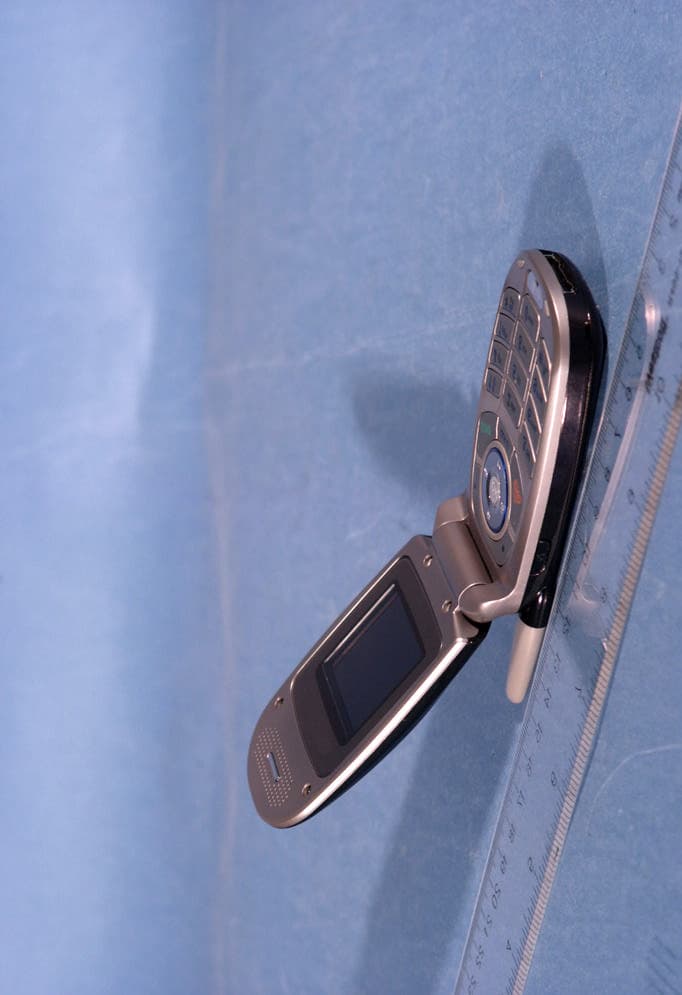

LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130

© 2005 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. 05-11-16 LG Electronics Inc. LGE Model No. VX3400 FCC ID : BEJV34000 S/N : Made in China

LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0511170808 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Analog/ CDMA FCC ID: BEJVX3400 Page 1 of 35 © 2005 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: September 15-16, 2005 1000 Sylvan Avenue Test Report S/N: 0509140636 Englewood Cliffs, NJ 07632 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJVX3400 APPLICANT: LG ELECTRONICS, INC. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.449 W ERP AMPS (26.523 dBm) / 26.5 dBm Conducted 0.322 W ERP CDMA (25.073 dBm) / 24.5 dBm Conducted 0.313 W ERP AMPS (24.951 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 0.937 W/kg AMPS Head SAR; 0.562 W/kg AMPS Body SAR; 0.642 W/kg CDMA Head SAR; 0.414 W/kg CDMA Body SAR; 0.498 W/kg PCS CDMA Head SAR; 0.331 W/kg PCS CDMA Body SAR Trade Name/Model(s): VX3400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: SAR1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0511170808 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Analog/ CDMA FCC ID: BEJVX3400 Page 2 of 35 © 2005 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP.........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM...................................................................................5 4. PROBE CALIBRATION PROCESS...................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................................7 6. TEST SYSTEM SPECIFICATIONS...................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.........................................................9 8. DEFINITION OF REFERENCE POINTS.........................................................................10 9. TEST CONFIGURATION POSITIONS............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS...........................................................14 11. MEASUREMENT UNCERTAINTIES...............................................................................15 12. SYSTEM VERIFICATION...............................................................................................16 13. SAR TEST DATA SUMMARY.....................................................................................17-32 15. SAR TEST EQUIPMENT..........................................................................................33 16. CONCLUSION..............................................................................................................34 17. REFERENCES..............................................................................................................35 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0511170808 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Analog/ CDMA FCC ID: BEJVX3400 Page 3 of 35 © 2005 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measureme…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Mode: AMPS, Right Head, Touch, Mid.ch Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.77 V/m Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.937 mW/g; SAR(10 g) = 0.621 mW/g 0 dB = 1.08mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Mode: AMPS, Right Head, Tilt, Mid.ch Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m Peak SAR (extrapolated) = 0.257 W/kg SAR(1 g) = 0.201 mW/g; SAR(10 g) = 0.156 mW/g 0 dB = 0.221mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Mode: AMPS, Left Head, Touch, Mid.ch Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.37 V/m Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.745 mW/g; SAR(10 g) = 0.507 mW/g 0 dB = 0.852mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Mode: AMPS, Left Head, Tilt, Mid.ch Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m Peak SAR (extrapolated) = 0.276 W/kg SAR(1 g) = 0.218 mW/g; SAR(10 g) = 0.169 mW/g 0 dB = 0.239mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 24.5 dBm Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Mode: CDMA, Right Head, Touch, Mid.ch Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.78 V/m Peak SAR (extrapolated) = 0.930 W/kg SAR(1 g) = 0.642 mW/g; SAR(10 g) = 0.426 mW/g 0 dB = 0.742mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 24.5 dBm Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Mode: CDMA, Right Head, Tilt, Mid.ch Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.6 V/m Peak SAR (extrapolated) = 0.197 W/kg SAR(1 g) = 0.154 mW/g; SAR(10 g) = 0.120 mW/g 0 dB = 0.169mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX3400; Type: LGE Tri Mode Phone; Serial: FCC-SAR1; Conducted Power: 24.5 dBm Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.87 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 11-28-2005; Ambient Temp: 23.2°C; Tissue Temp: 21.2°C Probe:…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0511170807 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Phone FCC ID: BEJVX3400 Page 1 of 32 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: November 28-29, 2005 1000 Sylvan Avenue Test Report S/N: 0511170807 Englewood Cliffs, NJ 07632 Test Site: PCTEST Lab, Columbia MD FCC ID BEJVX3400 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model: VX3400 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.449 W ERP AMPS (26.523 dBm) / 0.322 W ERP CDMA (25.073 dBm) 0.313 W EIRP PCS CDMA (24.951 dBm) Max. SAR Measurement: 0.937 W/kg AMPS Head SAR; 0.562 W/kg AMPS Body SAR; 0.642 W/kg CDMA Head SAR; 0.414 W/kg CDMA Body SAR; 0.498 W/kg PCS CDMA Head SAR; 0.331 W/kg PCS CDMA Body SAR Emission Designator(s): 40K0F8W/ 40K0F1D/1M25F9W Test Device Serial No. Identical Prototype [S/N: SAR1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0511170807 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Phone FCC ID: BEJVX3400 Page 2 of 32 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-10 5.1 EFFECTIVE RADIATED POWER OUTPUT 11-12 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 13 7.1 RADIATED MEASUREMENTS 14-22 8.1 FREQUENCY STABILITY 23-28 9.1 PLOTS OF EMISSIONS 29 10.1 LIST OF TEST EQUIPMENT 30 11.1 SAMPLE CALCULATIONS 31 12.1 CONCLUSION 32 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0511170807 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Phone FCC ID: BEJVX3400 Page 3 of 32 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: 1000 sylvan Avenue Englewood Cliffs, NJ 07632 • FCC ID: BEJVX3400 • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.449 W ERP AMPS (26.523 dBm) / 0.322 W ERP CDMA (25.073 dBm) 0.313 W EIRP PCS CDMA (24.951 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS / CDMA) • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: November 28-29, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0511170807 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0511170807 Test Dates: November 28-29, 2005 Phone Type: Tri-Mode Dual-Band Phone FCC ID: BEJVX3400 Page 4 of 32 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of …

Text truncated - open the document above for the full version.

LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA Phone Model: LX130 LG FCC ID: BEJVX3400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDM…
