BEJVX6000Dual-Band CDMA Phone (GPS)

January 13. 2003 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. Tri-band Tri-mode CDMA Phone (Cellular/PCS/GPS) Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJVX6000) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE January 13. 2003 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Subject : LG Electronics Inc.. FCC ID: BEJVX6000 User’ s Manual RF Exposure Warning Statement Gentlemen: LG Electronics, Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’ s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Lab. or me at (410)290-6652 Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc.

. January 24, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJVX6000 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, Inc., is an application for Part 22 and 24 Certification of the LG Electronics Dual-Band CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.

© 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000)

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000)

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT Measurement Report Reviewed by: Quality Manager SAR Filename: SAR-230114020.BEJ Test Dates: Jan. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 1 of 30 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, Inc. Dates of Tests: January 14-17, 2003 Communication Terminal Research Lab Test Report S/N: SAR.230114020.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 153-023 Attn: E.S. Park, Research Engineer FCC ID: BEJVX6000 APPLICANT: LG ELECTRONICS, INC. EUT Type: Dual-Band CDMA Phone (GPS) Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.256 W ERP CDMA (24.083 dBm) / 24.0 dBm Conducted 0.324 W EIRP PCS CDMA (25.111 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 1.320W/kg CDMA Head SAR; 0.686W/kg CDMA Body SAR; 1.200W/kg PCS CDMA Head SAR; 0.506W/kg PCS CDMA Body SAR Trade Name/Model(s): LG-VX6000 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [ S/N: 2 ] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. Belt clips or holsters may not contain metallic components. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230114020.BEJ PCTEST SAR REPORT Measurement Report Reviewed by: Quality Manager SAR Filename: SAR-230114020.BEJ Test Dates: Jan. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 2 of 30 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY3 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS..........................................................................11-13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17 14. SAR DATA SUMMARY...............................................................................................18-27 15. SAR TEST EQUIPMENT...................................................................................................28 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT Measurement Report Reviewed by: Quality Manager SAR Filename: SAR-230114020.BEJ Test Dates: Jan. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 3 of 30 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New…

Text truncated - open the document above for the full version.

LG Electronics FCC ID:BEJVX6000 -- 835MHz Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.92 mho/m ε r = 41.8 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.32 mW/g, SAR (10g): 0.814 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 19.5°C / Meas. Tissue Temp. = 19.4°C Cellular CDMA Mode , Ch.0384 [836.52MHz]; Conducted Power = 24.0dBm; Right Head, Cheek/Touch position Test Date -- 01/14/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.16E-1 3.48E-1 5.80E-1 8.12E-1 1.04E+0 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 835MHz Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.92 mho/m ε r = 41.8 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.208 mW/g, SAR (10g): 0.148 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 19.5°C / Meas. Tissue Temp. = 19.4°C Cellular CDMA Mode , Ch.0384 [836.52MHz]; Conducted Power = 24.0dBm; Right Head, Ear/15° Tilt position Test Date -- 01/14/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.06E-2 6.18E-2 1.03E-1 1.44E-1 1.85E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 835MHz Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.92 mho/m ε r = 41.8 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.29 mW/g, SAR (10g): 0.796 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 19.5°C / Meas. Tissue Temp. = 19.4°C Cellular CDMA Mode , Ch.0384 [836.52MHz]; Conducted Power = 24.0dBm; Left Head, Cheek/Touch position Test Date -- 01/14/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.34E-1 4.01E-1 6.68E-1 9.35E-1 1.20E+0 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 835MHz Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.92 mho/m ε r = 41.8 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.190 mW/g, SAR (10g): 0.136 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 19.5°C / Meas. Tissue Temp. = 19.4°C Cellular CDMA Mode , Ch.0384 [836.52MHz]; Conducted Power = 24.0dBm; Left Head, Ear/15° Tilt position Test Date -- 01/14/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.92E-2 5.76E-2 9.60E-2 1.34E-1 1.73E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 1900MHz Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 39.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.20 mW/g, SAR (10g): 0.663 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 18.7°C / Meas. Tissue Temp. = 19.1°C PCS CDMA Mode , Ch.0025 [1851.25MHz]; Conducted Power = 24.0dBm; Right Head, Cheek/Touch position Test Date -- 01/15/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 9.86E-2 2.96E-1 4.93E-1 6.90E-1 8.87E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 1900MHz Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 39.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.390 mW/g, SAR (10g): 0.201 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 18.7°C / Meas. Tissue Temp. = 19.1°C PCS CDMA Mode , Ch.0600 [1880.00MHz]; Conducted Power = 24.0dBm; Right Head, Ear/15° Tilt position Test Date -- 01/15/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.21E-2 9.63E-2 1.61E-1 2.25E-1 2.89E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 1900MHz Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 39.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.951 mW/g, SAR (10g): 0.508 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 18.7°C / Meas. Tissue Temp. = 19.1°C PCS CDMA Mode , Ch.0600 [1880.00MHz]; Conducted Power = 24.0dBm; Left Head, Cheek/Touch position Test Date -- 01/15/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.78E-2 2.63E-1 4.39E-1 6.15E-1 7.90E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 1900MHz Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 39.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.273 mW/g, SAR (10g): 0.151 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 18.7°C / Meas. Tissue Temp. = 19.1°C PCS CDMA Mode , Ch.0025 [1851.25MHz]; Conducted Power = 24.0dBm; Left Head, Ear/15° Tilt position Test Date -- 01/15/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.63E-2 7.89E-2 1.32E-1 1.84E-1 2.37E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID:BEJVX6000 -- 835MHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.40,6.40,6.40) Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 56.0 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.686 mW/g, SAR (10g): 0.453 mW/g LGE Dual Band Phone Model:VX6000; FCC ID:BEJVX6000 Tested with ACE antenna; Standard Battery; Ambient Temp. = 20.5°C / Meas…

Text truncated - open the document above for the full version.

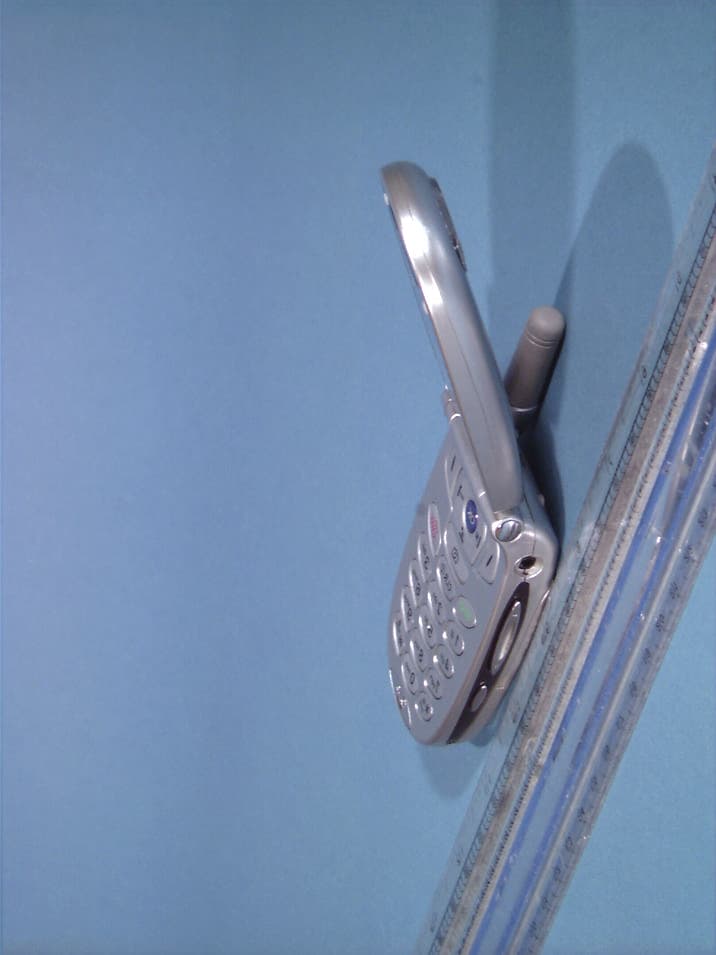

© 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000)

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.92 mho/m ε r = 41.8 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.48 mW/g , SAR (10g): 1.61 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 19.5°C / Meas. Tissue Temp. =19.4°C PCTEST Brain Tissue Simulating Liquid [01/14/2003] SAR Tot [mW/g] 2.56E-1 7.72E-1 1.27E+0 1.79E+0 2.30E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 39.9 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.90 mW/g, SAR (10g): 5.10 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 18.7° C / Meas. Tissue Temp. = 19.1°C PCTEST Brain Tissue Simulating Liquid [01/15/2002] SAR Tot [mW/g] 9.77E-1 2.86E+0 4.83E+0 6.81E+0 8.78E+0 PCTEST Engineering Laboratory, Inc.

PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.230114019.BEJ Test Dates: JAN. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 1 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, Inc. Dates of Tests: January 14-17, 2003 Communication Terminal Research Lab Test Report S/N: 22/24.230114019.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 153-023 Attn: E.S. Park, Research Engineer FCC ID BEJVX6000 APPLICANT LG ELECTRONICS INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22.901(d); §2 EUT Type: Dual-Band CDMA Phone (GPS) Model: LG-VX6000 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.256 W ERP CDMA (24.083 dBm) / 0.324 W EIRP PCS CDMA (25.111 dBm) Max. SAR Measurement: 1.320W/kg CDMA Head SAR; 0.686W/kg CDMA Body SAR; 1.200W/kg PCS CDMA Head SAR; 0.506W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: # 2] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. Belt clips or holsters may not contain metallic components. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230114019.BEJ PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.230114019.BEJ Test Dates: JAN. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 2 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 7.1 RADIATED MEASUREMENTS 11-16 8.1 FREQUENCY STABILITY 17-20 9.1 PLOTS OF EMISSIONS 21 10.1 LIST OF TEST EQUIPMENT 22 11.1 SAMPLE CALCULATIONS 23 12.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.230114019.BEJ Test Dates: JAN. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 3 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG Electronics Co., Ltd. Address: Kumkang Venturetel Bldg. 1108, Bisan-Dong Dongan-Gu, Annyang-City, Kyunggi-Do Attention: Kevin Lee, Associate Research Engineer Bruce Choi, General Manager • FCC ID: BEJVX6000 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.256 W ERP CDMA (24.083 dBm) 0.324 W EIRP PCS CDMA (25.111 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22.901(d) • Dates of Tests: January 14-17, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.230114019.BEJ PCTEST PT. 22/24 REPORT Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.230114019.BEJ Test Dates: JAN. 14-17, 2003 Phone Type: Dual-Band CDMA FCC ID: BEJVX6000 Page 4 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There …

Text truncated - open the document above for the full version.

© 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000) © 2003 PCTEST Lab LGE FCC ID: BEJVX6000 Dual-Band CDMA Phone (Model: LG-VX6000)
