BEJVX8000Dual-Band CDMA Phone

- 1 - User Manual VX8000 Ver. 1.1 2004-01-07 - 2 - LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. - 3 - (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Infocomm Inc. 201 James Record Road Huntsville, AL 35824 Tel. 1-800-793-8896 Fax. 1-800-448-4026 www.lgeservice.com DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS. Please call or write for the location of the LGIC authorized service center nearest you and for the procedures for obtaining warranty claims. ] - 4 - SUBJECT The phone VX8000 has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). The phone VX8000 support fully Multimedia - Dual color LCDs, 64poly Audio, 1.3M pixels Digital Camera, MPEG-4, Photo album, etc. This phone is the one of tri band Quad mode - 800Mhz CDMA, 1900Mhz PCS, 1500Mhz GPS. CDMA Standard Designator Description Basic air interface TIA/EIA-95A TSB-74 ANSI J-STD-008 TIA/EIA-IS2000 CDMA Dual-Mode Air Interface 14.4kbps radio link protocol and inter-band operations IS-95 adapted for PCS frequency band CDMA2000 1xRTT Air Interface Network TIA/EIA/IS-634 TIA/EIA/IS/651 TIA/EIA/IS-41-C TIA/EIA/IS-124 MAS-BS PCSC-RS Intersystem operations Nom-signaling data comm. Service TIA/EIA/IS-96-B TIA/EIA/IS-99 TIA/EIA/IS-637 TIA/EIA/IS-657 IS-801 Speech CODEC Assign data and fax Short message service Packet data Position Determination Service (gpsOne) Performance TIA/EIA/IS-97 TIA/EIA/IS-98 ANSI J-STD-018 ANSI J-STD-019 TIA/EIA/IS-125 Cellular base station Cellular mobile station PCS personal station PCS base station Speech CODEC EVDO TIA/EIA/IS-856 TIA/EIA/IS-878 TIA/EIA/IS-866 TIA/EIA/IS-890 CDMA2000 High Rate Packet Data Air Interface 1xEV-DO Inter-Operability Specification for CDMA2000 Access Network Interfaces Recommended Minimum Performance Standards for CDMA2000 High Rate Packet Data Access Terminal Test Application Specification(TAS) for High Rate Packet Data Air Interface * TSB –74: Protocol between an IS-95A system and ANSI J-STD-008 - 5 - Introduction Highlights Congratulations! Your new mobile phone will change your way of communicating and is a compact, lightweight personal communication system with added features for the person on the go. Our advanced digital mobile communication technology allows you to do the followings 1) Main Chipset : MSM6500, Memory(512Mbits NAND Flash + 256Mbits LP-SDRAM) 2) Display : Main LCD(176 x 220 pixels, 0.198 dot pitch, 262K colors TFT) Sub LCD(128 x 160 pixels, 0.162 dot pi…

Text truncated - open the document above for the full version.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJVX8000) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE January 9. 2004 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Subject : LG Electronics Inc.. FCC ID: BEJVX8000 User’ s Manual RF Exposure Warning Statement Gentlemen: LG Electronics, Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’ s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Lab. or me at (410)290-6652 Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc.

January 15, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics, Inc. FCC ID: BEJVX8000 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics, Inc., is an application for Part 22/24 Certification of the Dual-Band CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG Electronics, Inc.

January 9. 2004 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. Dual-Band CDMA Phone (Cellular/PCS/GPS) Part 22/ 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

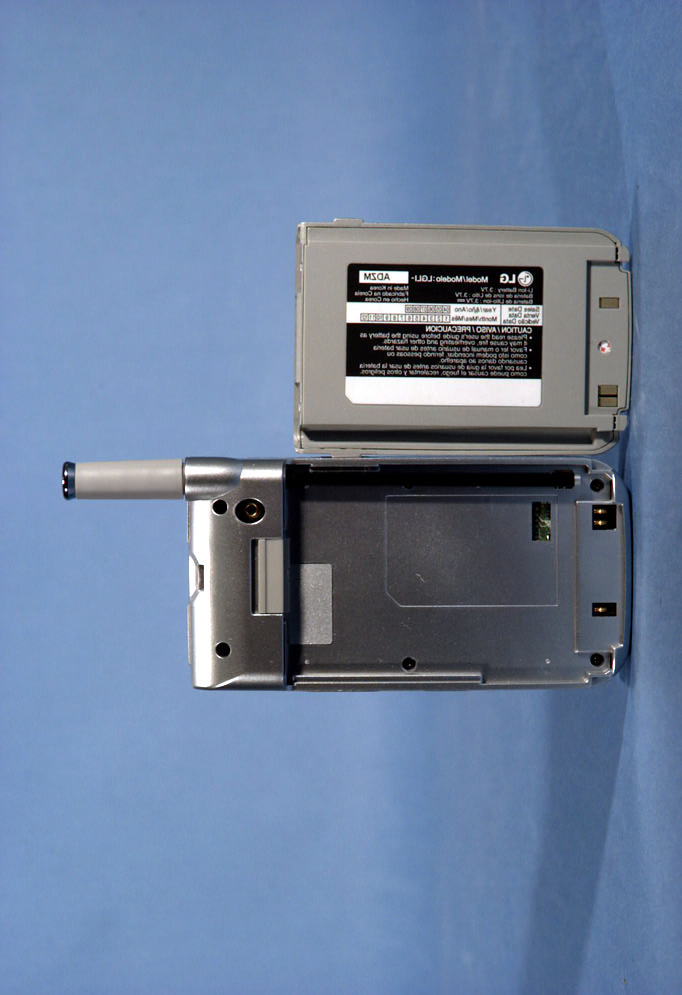

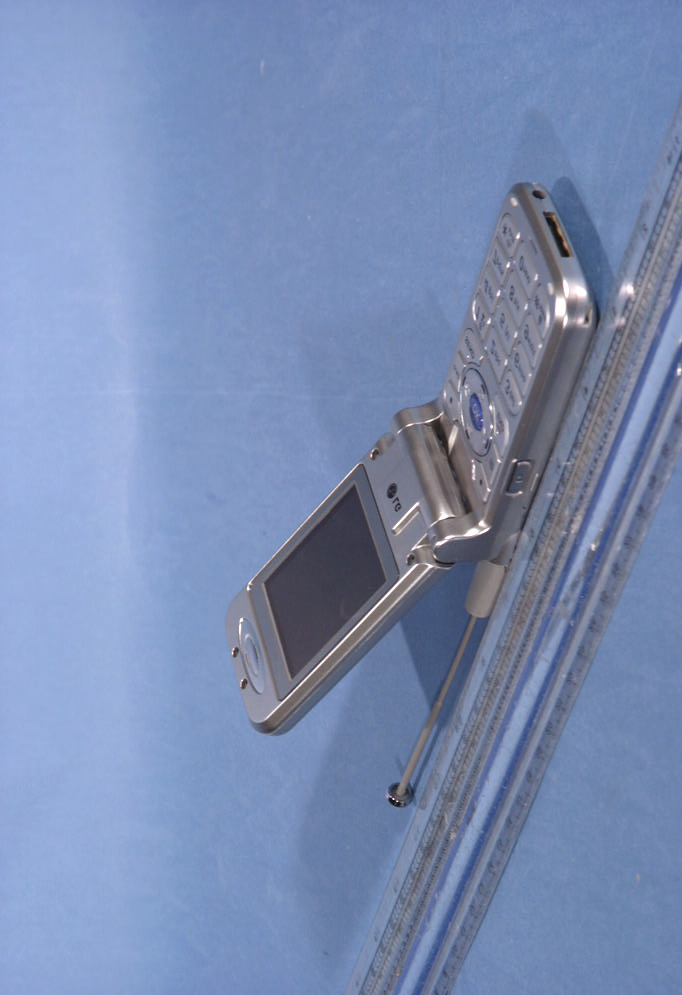

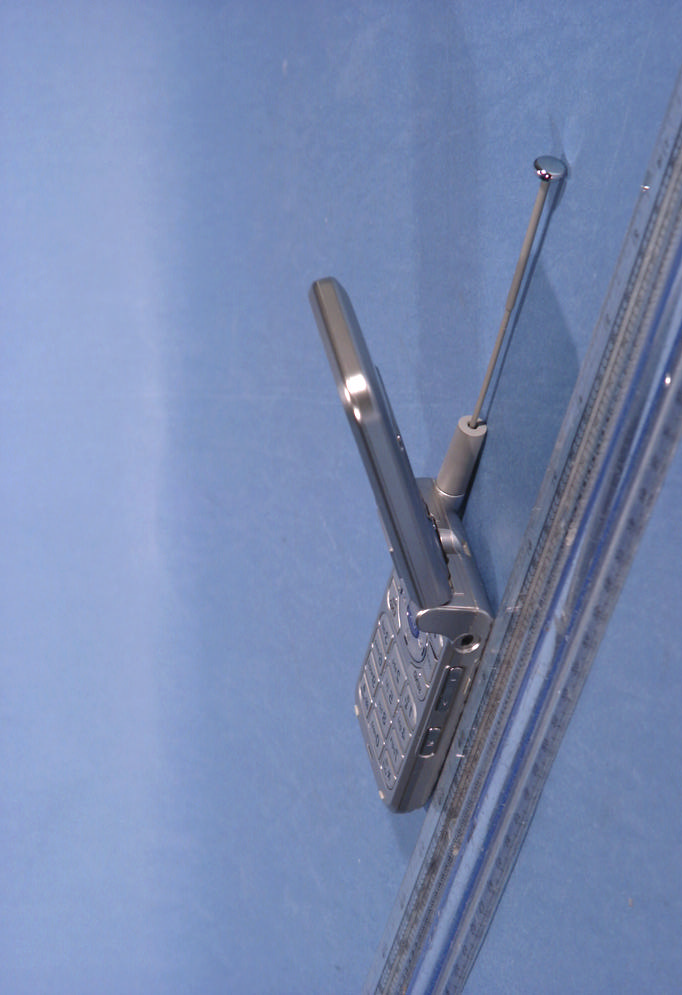

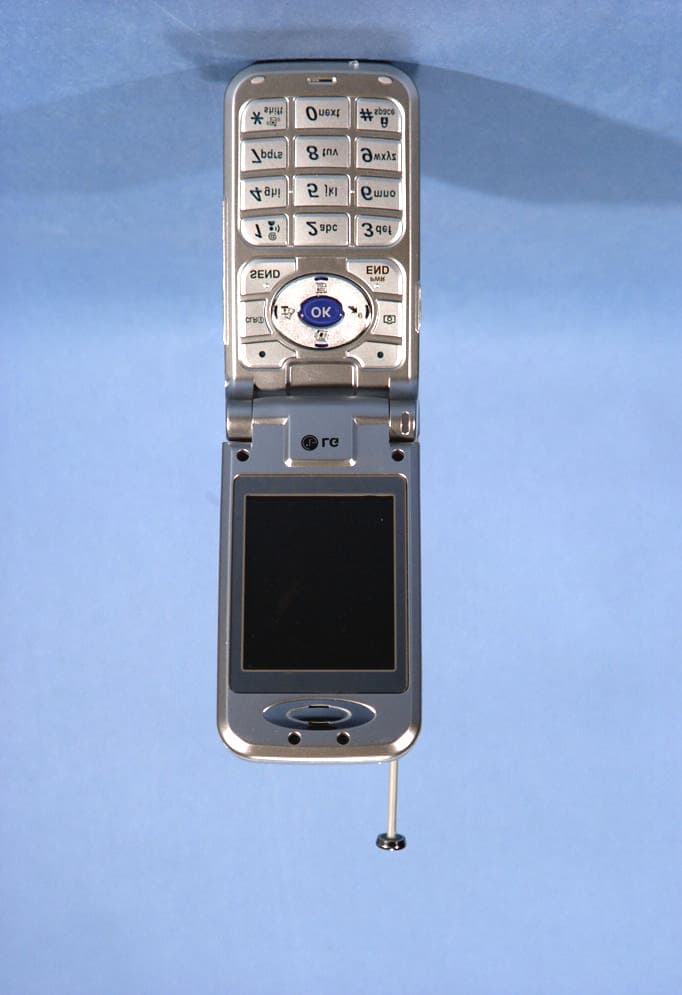

LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. 12 03-3-7 12/12 2.983 (e) Standard Test Conditions: 2. 983 (f) Equipment Identification: 2. 983 (g) Photograph : “Refer to additional documents” 2. 985 RF Power Output: “Refer to additional documents” 2. 987 Modulation Characteristics: “Refer to additional documents” 2. 989 Occupied Bandwidth “Refer to additional documents” 2. 991 Spurious Emissions at Antenna Terminals: “Refer to additional documents” 2. 993 Field Strength of Spurious Radiation: “Refer to additional documents” 2. 995 Frequency stability: “Refer to additional documents” 2. 997 Frequency spectrum to be investigated “Refer to additional documents” LG Electronics Inc. LGE Model No . VX8000 FCC ID : BEJVX8000 S/N : Made in Korea

LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240113030.BEJ Test Dates: January 13-15, 2004 Phone Type: Dual-Band Phone FCC ID: BEJVX8000 Page 1 of 30 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: January 13-15, 2004 2000 Milbrook Drive Test Report S/N: SAR.240113030.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJVX8000 APPLICANT: LG ELECTRONICS, INC. EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.319 W ERP CDMA (25.033 dBm) / 24.0 dBm Conducted 0.420 W EIRP PCS CDMA (26.221 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 0.865 W/kg CDMA Head SAR; 0.935 W/kg CDMA Body SAR; 0.295 W/kg PCS CDMA Head SAR; 1.040 W/kg PCS CDMA Body SAR Trade Name/Model(s): VX8000 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #48] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240113030.BEJ Test Dates: January 13-15, 2004 Phone Type: Dual-Band Phone FCC ID: BEJVX8000 Page 2 of 30 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ...........................................................................................3 SAR DEFINITION ..........................................................................................3 2. SAR MEASUREMENT SETUP............................................................................4 Robotic System................................................................................................4 System Hardware............................................................................................4 System Electronics...........................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.......................................................................5 Probe Measurement System..............................................................................5 Probe Specifications.........................................................................................5 4. Probe Calibration Process.................................................................................6 Dosimetric Assessment Procedure.....................................................................6 Free Space Assessment.....................................................................................6 Temperature Assessment..................................................................................6 5. PHANTOM & EQUIVALENT TISSUES...............................................................7 SAM Phantom.................................................................................................7 Brain & Muscle Simulating Mixture Characterization...........................................7 Device Holder for Transmitters.........................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................8 Automated Test System Specifications................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure...................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications................................9 8. DEFINITION OF REFERENCE POINTS.............................................................10 EAR Reference Point......................................................................................10 Handset Reference Points...............................................................................10 9. TEST CONFIGURATION POSITIONS..............................................................11 Positioning for Cheek/Touch...........................................................................11 Positioning for Ear / 15° Tilt............................................................................12 Body Holster /Belt Clip Configurations.............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.....................…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240113029.BEJ Test Dates: January 13-15, 2004 Phone Type: Dual-Band CDMA FCC ID: BEJVX8000 Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: January 13-15, 2004 2000 Milbrook Drive Test Report S/N: 22/24.240113029.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID BEJVX8000 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Dual-Band CDMA Phone Model: VX8000 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.319 W ERP CDMA (25.033 dBm) / 0.420 W EIRP PCS CDMA (26.221 dBm) Max. SAR Measurement: 0.865 W/kg CDMA Head SAR; 0.935 W/kg CDMA Body SAR; 0.295 W/kg PCS CDMA Head SAR; 1.040 W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: #48 ] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240113029.BEJ Test Dates: January 13-15, 2004 Phone Type: Dual-Band CDMA FCC ID: BEJVX8000 Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240113029.BEJ Test Dates: January 13-15, 2004 Phone Type: Dual-Band CDMA FCC ID: BEJVX8000 Page 3 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Communication Terminal Research Lab Address: 459-9, Kasan-dong, Keumchun-Ku Seoul, KOREA 153-023 • FCC ID: BEJVX8000 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.319 W ERP CDMA (25.033 dBm) 0.420 W EIRP PCS CDMA (26.221 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: January 13-15, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.240113029.BEJ PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240113029.BEJ Test Dates: January 13-15, 2004 Phone Type: Dual-Band CDMA FCC ID: BEJVX8000 Page 4 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 …

Text truncated - open the document above for the full version.

LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000 LGE FCC ID: BEJVX8000 EUT Photographs © 2004 PCTEST Lab. Dual-Band CDMA Phone Model: VX8000
