BEJVX8400Dual-Band CDMA Phone with Bluetooth Transmitter

- 1 - User Manual VX8400 Ver. 1.1 2005. 10. 6 - 2 - LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. - 3 - (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Infocomm Inc. 201 James Record Road Huntsville, AL 35824 Tel. 1-800-793-8896 Fax. 1-800-448-4026 www.lgeservice.com DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS. Please call or write for the location of the LG Electronics, Inc authorized service center nearest you and for the procedures for obtaining warranty claims. - 4 - SUBJECT The phone VX8400 has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). The phone VX8400 support fully Multimedia - Dual color LCDs, 64poly Audio, 1.3M pixels Digital Camera, MPEG-4, Photo album, etc. This phone is the one of tri band Quad mode - 800Mhz CDMA, 1900Mhz PCS, 1500Mhz GPS. CDMA Standard Designator Description Basic air interface TIA/EIA-95A TSB-74 ANSI J-STD-008 TIA/EIA-IS2000 CDMA Dual-Mode Air Interface 14.4kbps radio link protocol and inter-band operations IS-95 adapted for PCS frequency band CDMA2000 1xRTT Air Interface Network TIA/EIA/IS-634 TIA/EIA/IS/651 TIA/EIA/IS-41-C TIA/EIA/IS-124 MAS-BS PCSC-RS Intersystem operations Nom-signaling data comm. Service TIA/EIA/IS-96-B TIA/EIA/IS-99 TIA/EIA/IS-637 TIA/EIA/IS-657 IS-801 Speech CODEC Assign data and fax Short message service Packet data Position Determination Service (gpsOne) Performance TIA/EIA/IS-97 TIA/EIA/IS-98 ANSI J-STD-018 ANSI J-STD-019 TIA/EIA/IS-125 Cellular base station Cellular mobile station PCS personal station PCS base station Speech CODEC EVDO TIA/EIA/IS-856 TIA/EIA/IS-878 TIA/EIA/IS-866 TIA/EIA/IS-890 CDMA2000 High Rate Packet Data Air Interface 1xEV-DO Inter-Operability Specification for CDMA2000 Access Network Interfaces Recommended Minimum Performance Standards for CDMA2000 High Rate Packet Data Access Terminal Test Application Specification(TAS) for High Rate Packet Data Air Interface * TSB –74: Protocol between an IS-95A system and ANSI J-STD-008 - 5 - Table of Contents Introduction Highlights Important Information Check Accessories Before You Start Safety Instructions SUBJECT ......................................................................................... 4 Introduction..................................................................................... 7 Highlights.................................................................................................... 7 Important Information ...........…

Text truncated - open the document above for the full version.

October 11, 2005 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: LG Electronics Inc. FCC ID: BEJVX8400 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer Mobile Handset Lab. LG Electronics Inc. LG Electronics Inc. LGE Tel : 82-2 -2033-3850 Fax : 82-2-2033-3855 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea

October 11 2005 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJVX8400 Class II Permissive Change - HAC Gentlemen: We, LG Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Thus, the only change in this permissive change application is the addition of the HAC compliance designation. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, E.S.Park Chief Research Engineer Mobile Handset Lab. LG Electronics Inc. Tel : 82-2-2033-3850 Fax : 82-2-2033-3855 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

October 11, 2005 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJVX8400 Dual band, Tri-Mode Cellular Phone Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Specification, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer Mobile Handset Lab. LG Electronics Inc. Tel : 82- 2-2033-3850 Fax : 82- 2-2033-3855 [email protected] 459- 9, Kasan-dong,Kemchun-ku Seoul 153- 023, Korea LG Electronics Inc. LGE

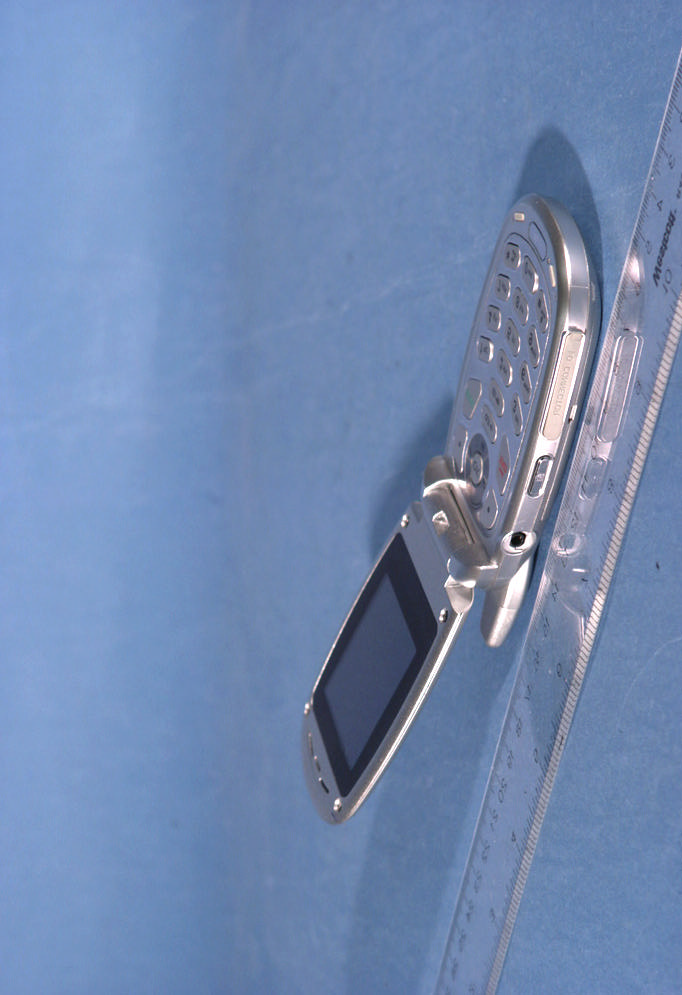

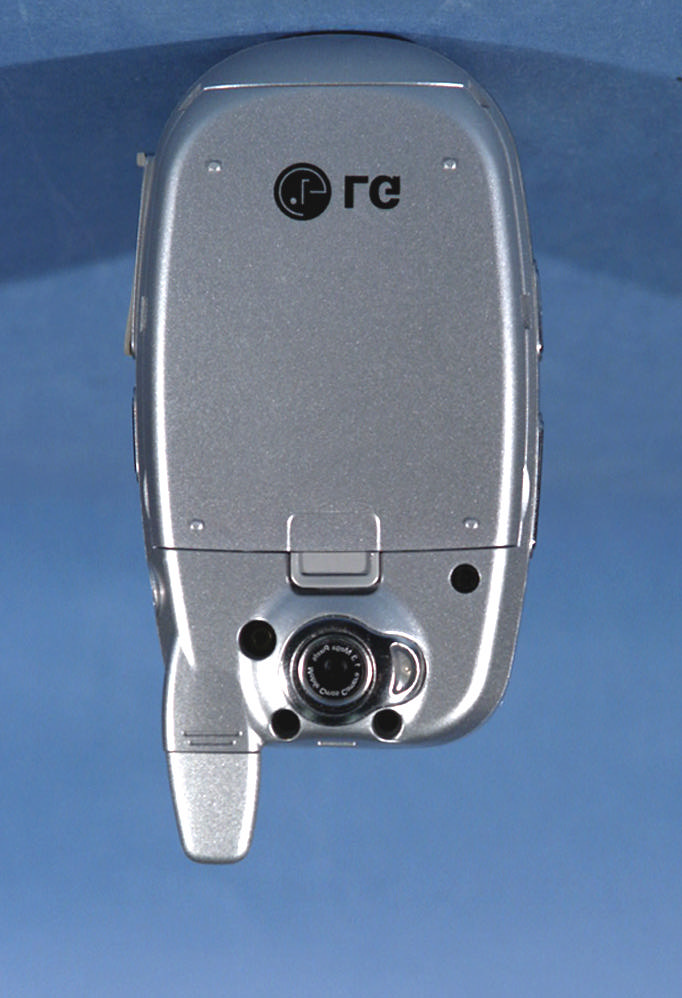

LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400



















LG Electronics Inc. LG Electronics Inc. LGE Model No. LG-VX8400 FCC ID : BEJVX8400 S/N : Made in Korea

LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0510120711 Test Dates: October 24-25, 2005 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: BEJVX8400 Page 1 of 30 © 2005 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: October 24-25, 2005 1000 Sylvan Avenue Test Report S/N: 0510120711 Englewood Cliffs, NJ 07632 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJVX8400 APPLICANT: LG ELECTRONICS, INC. EUT Type: Dual-Band CDMA Phone with Bluetooth Tx Frequency: 824.70 – 848.31 MHz (CDMA)/1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.353 W ERP CDMA (25.473 dBm) / 24.0 dBm Conducted 0.319 W EIRP PCS CDMA (25.031 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 0.667 W/kg CDMA Head SAR; 0.547 W/kg CDMA Body SAR; 1.27 W/kg PCS CDMA Head SAR; 0.577 W/kg PCS CDMA Body SAR Trade Name/Model(s): VX8400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0510120711 Test Dates: October 24-25, 2005 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: BEJVX8400 Page 2 of 30 © 2005 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP.............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...........................................................................11-13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-27 15. SAR TEST EQUIPMENT..........................................................................................28 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0510120711 Test Dates: October 24-25, 2005 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: BEJVX8400 Page 3 of 30 © 2005 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in …

Text truncated - open the document above for the full version.

Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0511010759.BEJ November 1 - 7, 2005 Dual-Band CDMA Phone BEJVX8400 Page 1 of 69 © 2005 PCTEST Engineering Laboratory, Inc. v02.10 Applicant Name: Date of Testing: LG Electronics USA November 1 - 7, 2005 2000 Millbrook Drive Test Site/Location: Linconshire, IL 60069 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: HAC.0511010759.BEJ FCC ID: BEJVX8400 APPLICANT: LG ELECTRONICS USA Application Type: Class II Permissive Change FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI PC63.19-2005 D3.6 FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band CDMA Phone Model(s): LG-VX8400 Tx Frequency: 824.70 - 848.31 MHz (CDMA) 1851.25 - 1908.75 MHz (PCS) Test Device Serial No.: Pre-Production Sample [S/N: 1] Adding HAC Rating PC63.19 HAC Rated Category: M3 (RF EMISSIONS) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. PC63.19 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY CERTIFICATE Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0511010759.BEJ November 1 - 7, 2005 Dual-Band CDMA Phone BEJVX8400 Page 2 of 69 © 2005 PCTEST Engineering Laboratory, Inc. v02.10 TABLE OF CONTENTS 1. INTRODUCTION ..............................................................................................................................3 2. TEST SITE LOCATION ....................................................................................................................4 3. EUT DESCRIPTION .........................................................................................................................5 4. ANSI/IEEE PC63.19 PERFORMANCE CATEGORIES ...................................................................6 5. SYSTEM SPECIFICATIONS............................................................................................................7 6. TEST PROCEDURE ......................................................................................................................14 7. SYSTEM CHECK ...........................................................................................................................16 8. MODULATION FACTOR................................................................................................................19 9. OVERALL MEASUREMENT SUMMARY ......................................................................................21 10. EQUIPMENT LIST..........................................................................................................................24 11. MEASUREMENT UNCERTAINTY .................................................................................................25 12. TEST DATA ....................................................................................................................................26 13. CALIBRATION CERTIFICATES.....................................................................................................35 14. CONCLUSION................................................................................................................................65 15. REFERENCES ...............................................................................................................................66 APPENDIX A. SETUP PHOTOGRAPHS ....................................................................................................68 Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0511010759.BEJ November 1 - 7, 2005 Dual-Band CDMA Phone BEJVX8400 Page 3 of 69 © 2005 PCTEST Engineering Laboratory, Inc. v02.10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: ƒ RF Electric-field emissions ƒ RF Magnetic-field emissions ƒ T-coil mode, magnetic-signal strength in the audio band ƒ T-coil mode, magnetic-signal frequency response through the audio band ƒ T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for: ƒ RF immunity in microphone mode ƒ RF immunity in T-coil mode In the following tests and results, this report includ…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510120710 Test Dates: October 17-19, 2005 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: BEJVX8400 Page 1 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: October 24-25, 2005 2000 Milbrook Drive Test Report S/N: 0505050343 Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID BEJVX8400 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band CDMA Phone Model: VX8400 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.353 W ERP CDMA (25.473 dBm) / 0.319 W EIRP PCS CDMA (25.031 dBm) Max. SAR Measurement: 0.667 W/kg CDMA Head SAR; 0.547 W/kg CDMA Body SAR; 1.27 W/kg PCS CDMA Head SAR; 0.577 W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510120710 Test Dates: October 17-19, 2005 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: BEJVX8400 Page 2 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510120710 Test Dates: October 17-19, 2005 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: BEJVX8400 Page 3 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: 2000 Milbrook Drive Lincolnshire, IL 60069 • FCC ID: BEJVX8400 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.353 W ERP CDMA (25.473 dBm) 0.319 W EIRP PCS CDMA (25.031 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: October 24-25, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0510120710 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510120710 Test Dates: October 17-19, 2005 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: BEJVX8400 Page 4 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4…

Text truncated - open the document above for the full version.

Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0511010759.BEJ November 1 - 7, 2005 Dual-Band CDMA Phone BEJVX8400 Page 68 of 69 © 2005 PCTEST Engineering Laboratory, Inc. v02.10 APPENDIX A. SETUP PHOTOGRAPHS See following Attached Pages for setup photographs. Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0511010759.BEJ November 1 - 7, 2005 Dual-Band CDMA Phone BEJVX8400 Page 69 of 69 © 2005 PCTEST Engineering Laboratory, Inc. v02.10 Figure 30 Figure 31

LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth Phone Model: VX8400 LG FCC ID: BEJVX8400 EUT Photographs © 2005 PCTEST Lab. Dual-Band CDMA w/ Bluetooth …
