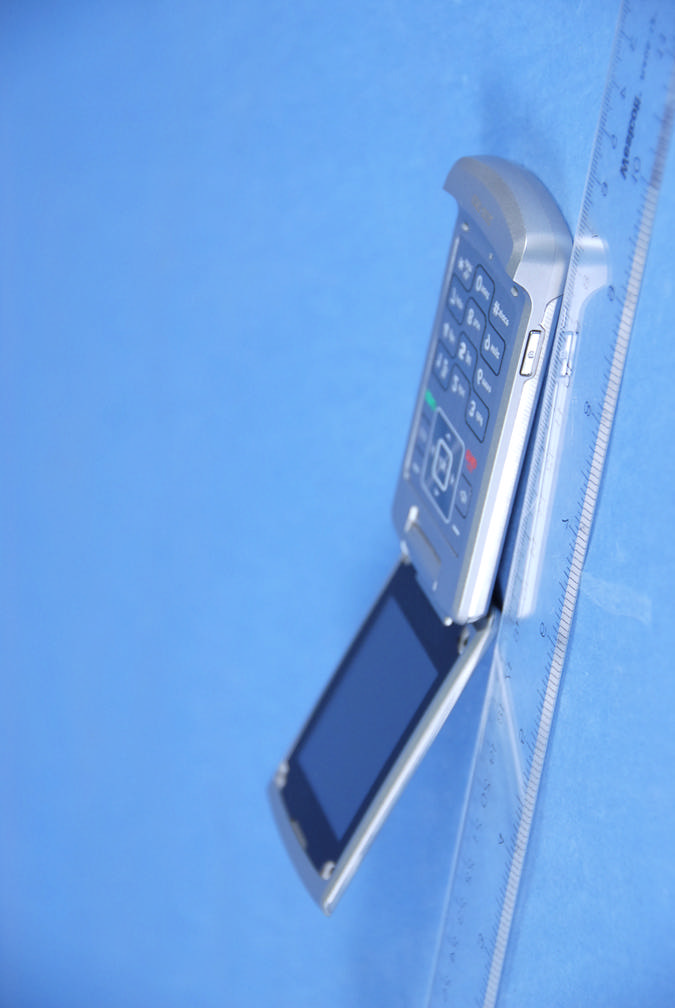

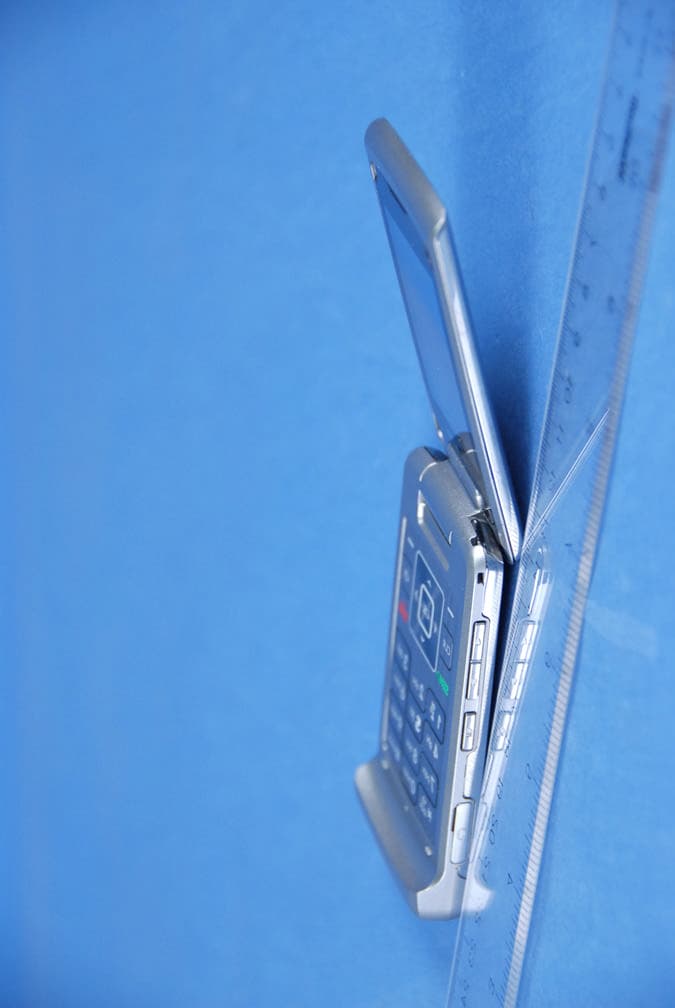

LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700

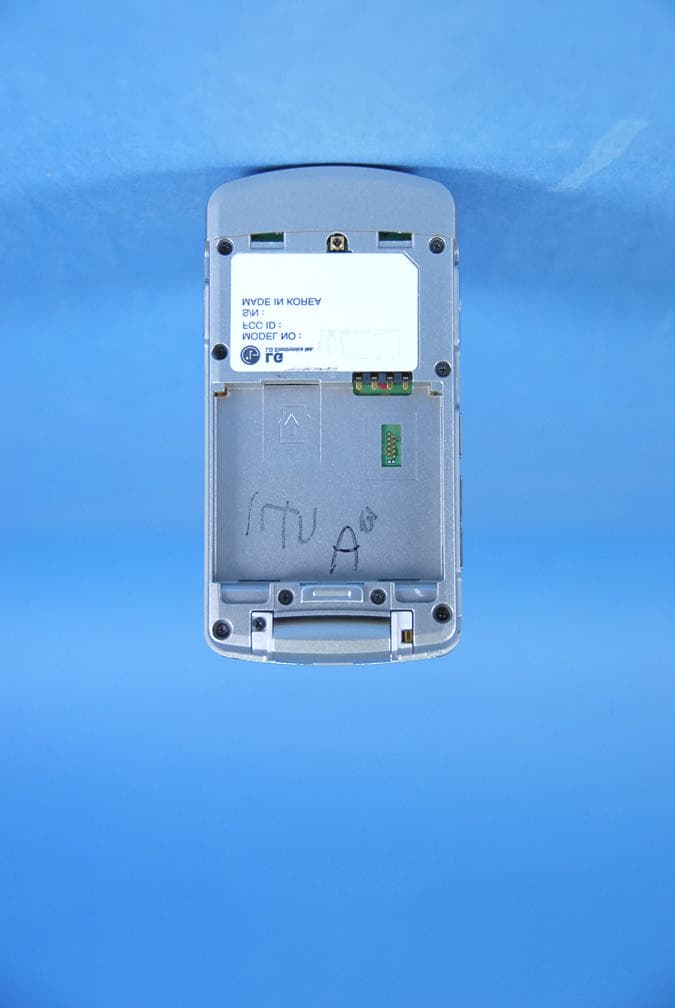

BEJVX8700 VX8700 FCC ID label shown will be readi ly visible at the time of purch ase.

LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700 LGE FCC ID: BEJVX8700 EUT Photographs © 2007 PCTEST Lab. Dual-Band CDMA/EvDO Phone with Bluetooth Model: VX8700

Reviewed by: FCC ID: BEJVX8700 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0611241052 12/11/06 - 12/13/06 Dual-Band CDMA Phone with Bluetooth and EVDO Page 1 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.7C 11/30/06 Applicant Name: Date of Testing: LG Electronics USA 12/11/06 - 12/13/06 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0611241052 FCC ID: BEJVX8700 APPLICANT: LG ELECTRONICS USA EUT Type: Dual-Band CDMA Phone with Bluetooth and EVDO Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): VX8700 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 24 dBm CDMA / 24 dBm PCS Max. SAR Measurement: 0.79 W/kg CDMA850 Head SAR / 0.518 W/kg CDMA Body SAR 1.13 W/kg CDMA1900 Head SAR / 0.492 W/kg PCS Body SAR Test Device Serial No.: Pre-Production [S/N: 0x80454632] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: BEJVX8700 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0611241052 12/11/06 - 12/13/06 Dual-Band CDMA Phone with Bluetooth and EVDO Page 2 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.7C 11/30/06 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS..........................................................................14 11 MEASUREMENT UNCERTAINTIES .............................................................................................15 12 SYSTEM VERIFICATION...............................................................................................................16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ............................................................17 14 SAR DATA SUMMARY ..................................................................................................................19 15 EQUIPMENT LIST..........................................................................................................................22 16 CONCLUSION................................................................................................................................23 17 REFERENCES ...............................................................................................................................24 Reviewed by: FCC ID: BEJVX8700 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0611241052 12/11/06 - 12/13/06 Dual-Band CDMA Phone with Bluetooth and EVDO Page 3 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.7C 11/30/06 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-11-2006; Ambient Temp: 23.2°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Right Head, Touch, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.60 V/m Peak SAR (extrapolated) = 0.814 W/kg SAR(1 g) = 0.555 mW/g; SAR(10 g) = n.a. 0 dB = 0.657mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-11-2006; Ambient Temp: 23.2°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.85 V/m Peak SAR (extrapolated) = 0.145 W/kg SAR(1 g) = 0.117 mW/g; SAR(10 g) = 0.091 mW/g 0 dB = 0.127mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-11-2006; Ambient Temp: 23.2°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Left Head, Touch, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.15 V/m Peak SAR (extrapolated) = 1.57 W/kg SAR(1 g) = 0.790 mW/g; SAR(10 g) = 0.534 mW/g 0 dB = 0.878mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12 -11-2006; Ambient Temp: 23.2° C; Tissue Temp: 21.7 °C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: CDMA, Left Head, Tilt, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m Peak SAR (extrapolated) = 0.169 W/kg SAR(1 g) = 0.133 mW/g; SAR(10 g) = 0.101 mW/g 0 dB = 0.146mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 40.56, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-11-2006; Ambient Temp: 22.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3550; ConvF(6.65, 6.65, 6.65); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: PCS, Right Head, Touch, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.23 V/m Peak SAR (extrapolated) = 0.959 W/kg SAR(1 g) = 0.598 mW/g; SAR(10 g) = 0.355 mW/g 0 dB = 0.682mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 40.56, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 12-11-2006; Ambient Temp: 22.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3550; ConvF(6.65, 6.65, 6.65); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: PCS, Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.82 V/m Peak SAR (extrapolated) = 0.391 W/kg SAR(1 g) = 0.234 mW/g; SAR(10 g) = 0.137 mW/g 0 dB = 0.273mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8700; Type: CDMA Dual Band + BT + EVDO; Serial: SAR 1 Communication System: PCS CDMA; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 40.56, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 12-11-2006; Ambient Temp: 22.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3550; ConvF(6.65, 6.65, 6.65); Calibrated: 1/18/2006 S…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12-11-2006; Ambient Temp: 23.2°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.2 mW/g; SAR(10 g) = 1.44 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = - 5.26 % 0 dB = 2.57mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.46, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12-12-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.25 mW/g; SAR(10 g) = 1.47 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = -7.37 % 0 dB = 2.64mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 40.56, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Date: 12-11-2006; Ambient Temp: 22.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3550; ConvF(6.65, 6.65, 6.65); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.85 mW/g; SAR(10 g) = 1.99 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = - 3.02 % 0 dB = 4.80mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.41 mho/m, ε r = 40.56, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 12-13-2006; Ambient Temp: 23.8°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3550; ConvF(6.65, 6.65, 6.65); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.89 mW/g; SAR(10 g) = 2 mW/g SAR(1g) = 3.97 mW/g; Deviation = - 2.02 % 0 dB = 4.86mW/g

Reviewed by: FCC ID: BEJVX8700 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0611241051 December 18 - 20, 2006 Dual-Band CDMA/EvDO Phone with Bluetooth 1.x Page 1 of 38 © 2006 PCTEST Engineering Laboratory, Inc. REV 5.1C 12/15/06 Applicant Name: Date of Testing: LG Electronics USA December 18 - 20, 2006 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0611241051 FCC ID: BEJVX8700 APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Dual-Band CDMA/EvDO Phone with Bluetooth 1.x Model(s): VX8700 Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 - 893.31MHz (Cell. CDMA) / 1931.25 - 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.205 W ERP Cell. CDMA (23.120 dBm) 0.309 W EIRP PCS CDMA (24.900 dBm) Max. SAR Measurement: 0.790 W/kg Cell. CDMA Head SAR, 0.518 W/kg Cell. CDMA Body SAR; 1.130 W/kg PCS CDMA Head SAR, 0.492 W/kg PCS CDMA Body SAR Emission Designator(s): 1M26F9W (CDMA) / 1M26F9W (PCS) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: BEJVX8700 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0611241051 December 18 - 20, 2006 Dual-Band CDMA/EvDO Phone with Bluetooth 1.x Page 2 of 38 © 2006 PCTEST Engineering Laboratory, Inc. REV 5.1C 12/15/06 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ...........…
