BEJWCFCM00N105Vehicle Installed Wireless Charging System

Wireless charger Unit Located in center console 1 / 2 Installation & User manual 1.Put your phone on wireless charging pad directly and on the center of charging pad. 2. Check the phone if it was charged or not. you can check on the mobile phone screen If the phone was not charged, please try to put your phone on the charging area again. Device Type : Wireless Power charger Model Type : WCFCM00N105 Manufacturer: LG Electronics Inc. Dimension: 124.9(L) x 94.9(W) x 44.21(H) mm Support WPC (Qi) 1.2 standard •Mainly this wireless charging unit can be used for wireless charging mobile phone. •Also can charge all devices meet WPC(Qi) standards FCC ID : BEJWCFCM00N105 2 / 2 FCC Compliance statement FCC Notice : This device complies with part 15 of the FCC rules and to RSS-Gen of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changed or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed to operate with a minimum distance of 6cm between the radiator and the end-user's body.

LG Electronics Inc LG Electronics Inc. 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea Date: May 12, 2020 PCTEST Certification Body Division of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 FCC ID: BEJWCFCM00N105 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. Sincerely, Signature Kyung-su Han Director Standard & Compliance LG Electronics USA

LG Electronics Inc LG Electronics Inc 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea Date: May 12, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJWCFCM00N105 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics Inc hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics Inc temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions 3 Parts Lists 4 Schematics SHORT-TERM CONFIDENTIAL 5 External Photos 6 Internal Photos 7 Antenna Location 8 Test-Setup Photos 9 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Signature Kyung-su Han Director Standard & Compliance LG Electronics USA

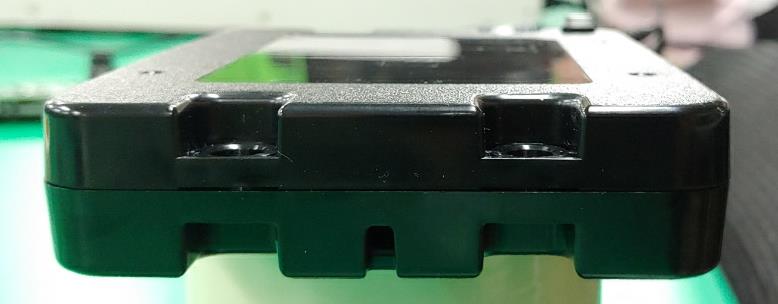

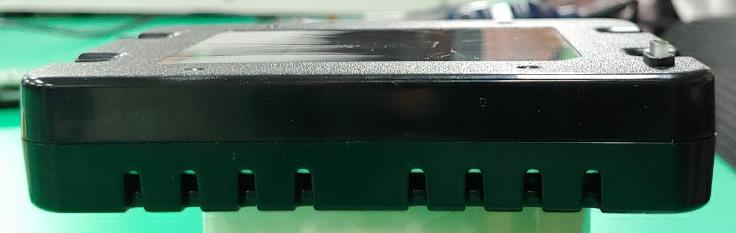

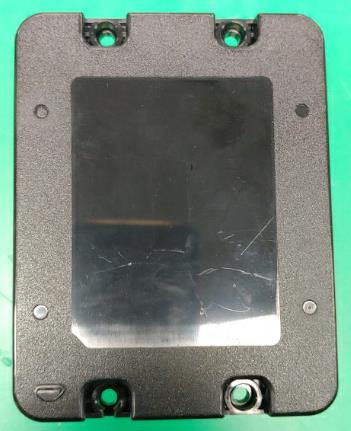

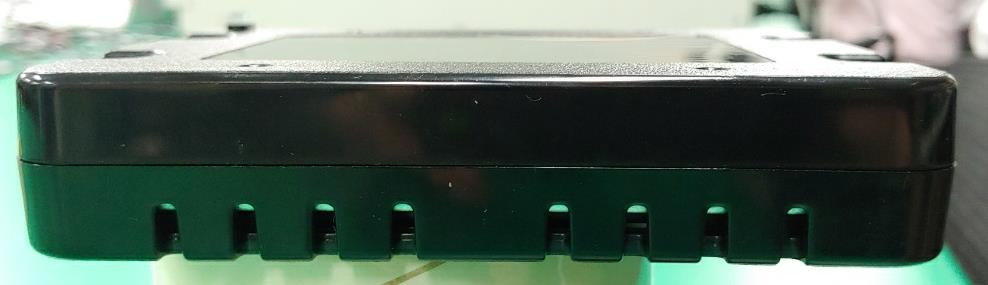

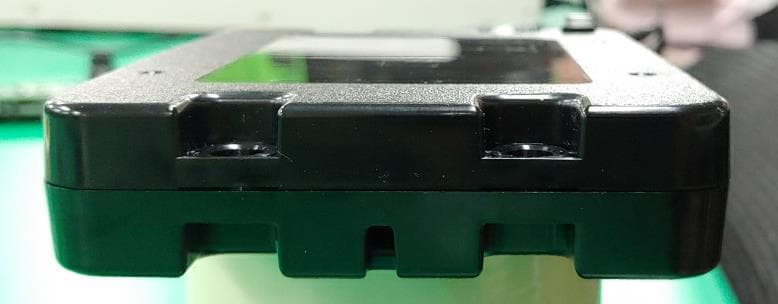

WCFCM00N105 External Photo 1 / 1 TOP BOTTOM SIDE1 SIDE2 SIDE3 SIDE4 FCC ID : BEJWCFCM00N105

FCC ID Location (Top case) The FCC ID shown in FCC ID label will be visible at the time of purchase. The label is permanently attached using a permanent adhesive material and not easily removed from the device. FCC ID on the label will be printed using permanent black ink. Model: WCFCM00N105 FCC ID : BEJWCFCM00N105 FCC ID Location

LG Electronics Inc. FCC ID: BEJWCFCM00N105 Model: WCFCM00N105 Internal Photos EUT Type: Vehicle Installed Wireless Charging System Page 1 of 3 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics Inc. FCC ID: BEJWCFCM00N105 Model: WCFCM00N105 Internal Photos EUT Type: Vehicle Installed Wireless Charging System Page 2 of 3 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics Inc. FCC ID: BEJWCFCM00N105 Model: WCFCM00N105 Internal Photos EUT Type: Vehicle Installed Wireless Charging System Page 3 of 3 © 2020 PCTEST V 9.0 02/01/2019

FCC ID: BEJWCFCM00N105 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 6 1M2004300079-02.BEJ 5/3 – 5/30/2020 Vehicle Installed Wireless Charging System © 2020 PCTEST V 8.0 04/05/2018 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: LG Electronics Inc. 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea 07796 Date of Testing: 5/3 – 5/30/2020 Test Site/Location: PCTEST Lab. Columbia, MD, USA Test Report Serial No.: 1M2004300079-02.BEJ FCC ID: BEJWCFCM00N105 APPLICANT: LG Electronics Inc. Application Type: Certification Model: WCFCM00N105 Operating Frequency: 145kHz EUT Type: Vehicle Installed Wireless Charging System FCC Classification: Part 15 Low Power Transmitter Below 1705 kHz (DCD) FCC Rule Part: FCC Part 1 (§1.1310) and Part 2 (§2.1091) Test Procedure(s): KDB 680106 D01 v03 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in KDB 680106 D01 v03. These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctest.com RF EXPOSURE EVALUATION Maximum Permissible Exposure [MPE] FCC ID: BEJWCFCM00N105 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 6 1M2004300079-02.BEJ 5/3 – 5/30/2020 Vehicle Installed Wireless Charging System © 2020 PCTEST V 8.0 04/05/2018 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................ 3 1.1 Introduction ............................................................................................................................................ 3 1.2 EUT Description ..................................................................................................................................... 3 1.3 Test Equipment ...................................................................................................................................... 4 1.4 Test Setup ............................................................................................................................................. 4 1.5 Summary ............................................................................................................................................... 4 1.6 Test Results ........................................................................................................................................... 5 2.0 CONCLUSION ................................................................................................................................. 6 FCC ID: BEJWCFCM00N105 MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 6 1M2004300079-02.BEJ 5/3 – 5/30/2020 Vehicle Installed Wireless Charging System © 2020 PCTEST V 8.0 04/05/2018 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure Per FCC (MPE) Per the guidance of KDB 680106, the E-field and H-field limits shown in the table above are extended down to 100kHz…
