BEJWCP310Wireless Charger

LG Electronics, Inc Wireless Charging Pad WCP-310 User Manual Rev 1.0 US All rights reserved. LG Electronics Inc., 2014 Note: For optimal performance and to prevent any damage to, or misuse of the WCP-310, please read all of the information carefully before using the WCP-310. Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.. - Do not drop the Wireless Charging Pad from high places. - Do not modify, repair, or take the Wireless Charging Pad apart. - Do not clean with water alcohol or benzene. - Keep the Wireless Charging Pad away from humidity and dust. - Do not place heavy objects on the Wireless Charging Pad. - Do not place sharp objects near or on the Wireless Charging Pad. - Keep Wireless Charging Pad away from any liquids, moisture or creams. - Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Charging IndicatorIncluded in the Package Description of Parts FCC NOTICE TO USERS: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user's authority to operate the equipment. FCC ID: BEJWCP310 - When disconnecting the power adapter, always remove with the plug, do not pull the wire by itself. - Never handle the power adapter with wet hands, as this could cause fire or electric shock. - Refer servicing to qualified personnel only. - Do not open the housing - Do not twist or pinch the USB cable while connected to the power adapter. If the USB cable or power adapter need to be replaced, ensure that they comply with the manufacturer’s recommendation. - Unplug the device during lighting storms and when unused for extended periods of time. When using an electrical device, especially when children are present, basic safety precautions should always be followed, including the following: DANGER to reduce the risk of electric shock - Always unplug the device from the electrical outlet before cleaning. - Do not reach for a device that has fallen into water. Unplug it immediately. - Do not place or store device where it can fall or be pulled into a tub or sink. - Do not place in or drop into water or other liquid. WARNING to reduce the risk of burns, fire, electric shock or injury to persons - Do not use with extension cord. - Children should be closely supervised to ensure that they do not play with the device. - Use this device only for its intended use as described in this manual. Do not use with unauthorized accessories of devices. - Never operate this device if it has a damaged cord, plug, cable or housing. If it is not working properly, if it has been dropped or damaged, return it to the LG Service Center for examination and repair. - Keep cord away from heated surfaces. - This device is designed for indoor use only. Do not use outdoors. - Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents. - Please do not put any metal substance like coin when charging. It can cause product damage and serious burns. Declaration of ConfirmationSafety InstructionsHow to Use Setup Charging ItemDescription Input / OutputDC 5V, 1800mA / DC 5V, 1000mA Charging time< 4 hours (Based on 2150mAh Battery) Operation temperature-10°C ~ 60°C Dimension75.5 mm(L) X 75.5mm(W) X 11.9mm(H) / 60g FunctionWCP-310 StatusLED color Operating Power supply disconnectedOff Power supply connectedSolid Amber Charging ChargingFlickering Green Charging completeSolid Green ErrorCharging stopSolid Red Precautions 1. Make sure the USB cable and power adapter are connected and plugged into a electrical socket. 2. Place the device on the wireless charging pad. NOTE: Make sure that the battery compartment (below rear keys) is directly on the wireless charging pad. Otherwise, the device will not charge. - Connect the USB cable to the power adapter and plug it into an electrical socket. Charging Area Charging Status Indicator USB cable port WCP-310 (Wireless Charging Pad) Warranty CardPower Adapter USB Cable User Manual LG Electronics, Inc Base de carga inalámbrica WCP-310 Guía del usuario Rev. 1.0 US Todos los derechos reservados. LG Electronics Inc., 2014 Nota: Para lograr un rendimiento óptimo y evitar cualquier daño o uso incorrecto de la base de carga inalámbrica WCP-310, lea toda la información cuidadosamente antes de utilizar el producto. Todo cambio o modificación que se aplique a este guía debido a errores tipográficos o imprecisiones en la información estipulada, será tarea exclusiva de LG Electronics Inc. - No deje ca…

Text truncated - open the document above for the full version.

LG Electronics USA. 1000 Sylvan Avenue Englewood Ciliffs, New Jersey, United States Date: Jun 18, 2014 Letter of declaration a) Power transfer frequency is less than 1MHz  The power transfer frequency of DUT(Device Under Test) is between 110KHz and 205KHz. b) Output power from each primary coil is less than 5 watts  Output power from each coils are Max. 5 watts. c) The transfer system includes only single primary and second coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils  The DUT are consist of one charging coil using A11 coil as below, so the DUT can detect and allow coupling only between TX and RX Coil.(A11 coil is only single coil.) d) Client device is inserted in or placed directly in contact with transmitter  When the client device is placed directly in contact with transmitter, then charging is able to start. e) The maximum coupling surface area of the transmit (charging) device is between 60Cm 2 and 400 Cm 2  The Maximum coupling surface area of the charging transmit is 57Cm 2 . Maximum coupling surface area(7.55 Cm X 7.55 Cm) f) Aggregate leakage fields at 10㎠ surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30% of the MPE limit.  The highest leakage filed is less than 30 % of the MPE limit. Sincerely, Jacob Cho Director, Standards & Compliance

LG Electronics USA. 1000 Sylvan Avenue Englewood Ciliffs, New Jersey, United States Date: June 23, 2014 Letter of Authorization We, the undersigned, hereby authorize Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: BEJWCP310 including signing of all documents relating to these matters. Any and all acts carried out by Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jacob Cho Director, Standards & Compliance

Digital EMC Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: June 23,2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: June 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJWCP310 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. Hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. Temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jacob Cho Director, Standards & Compliance

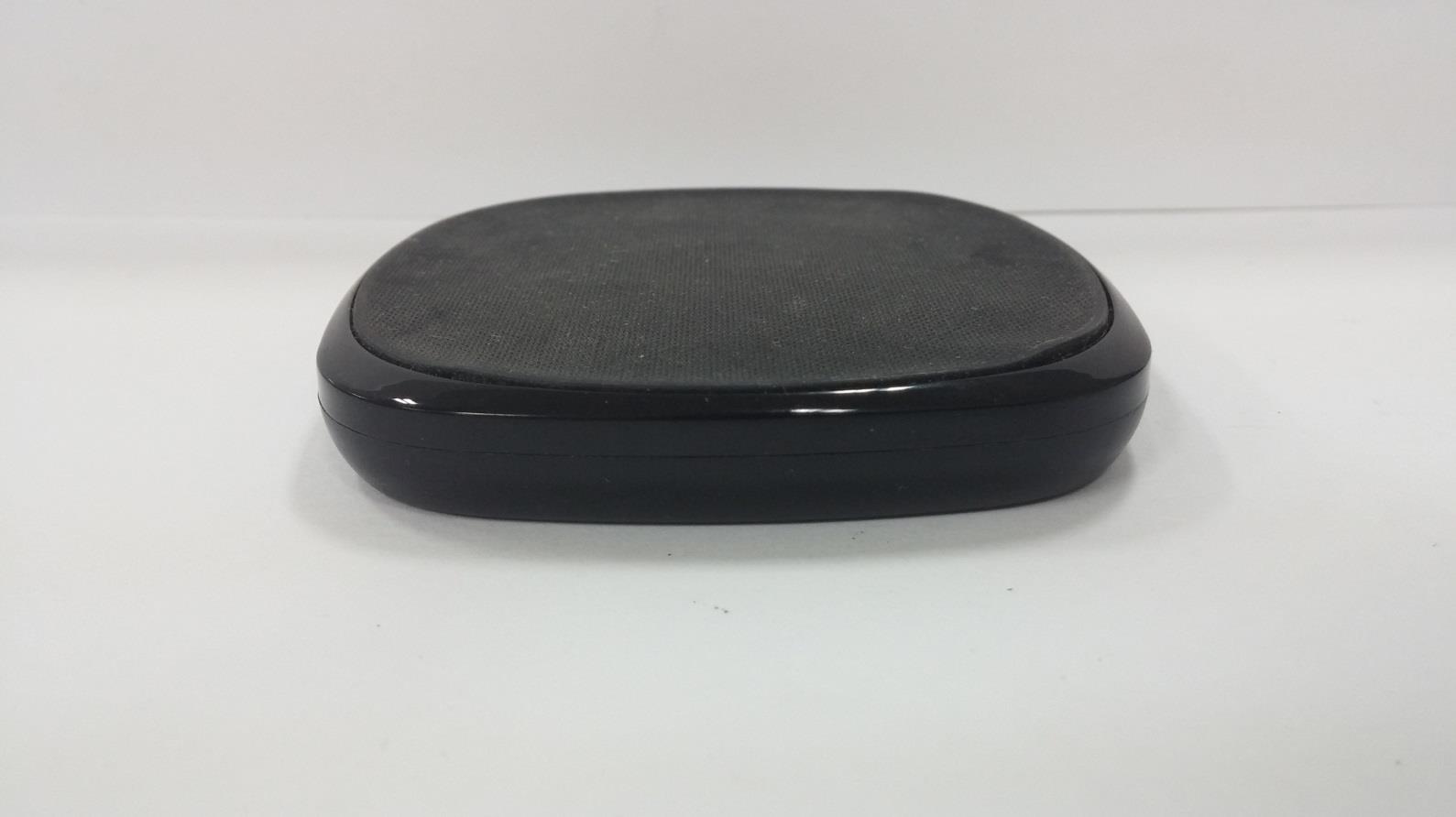

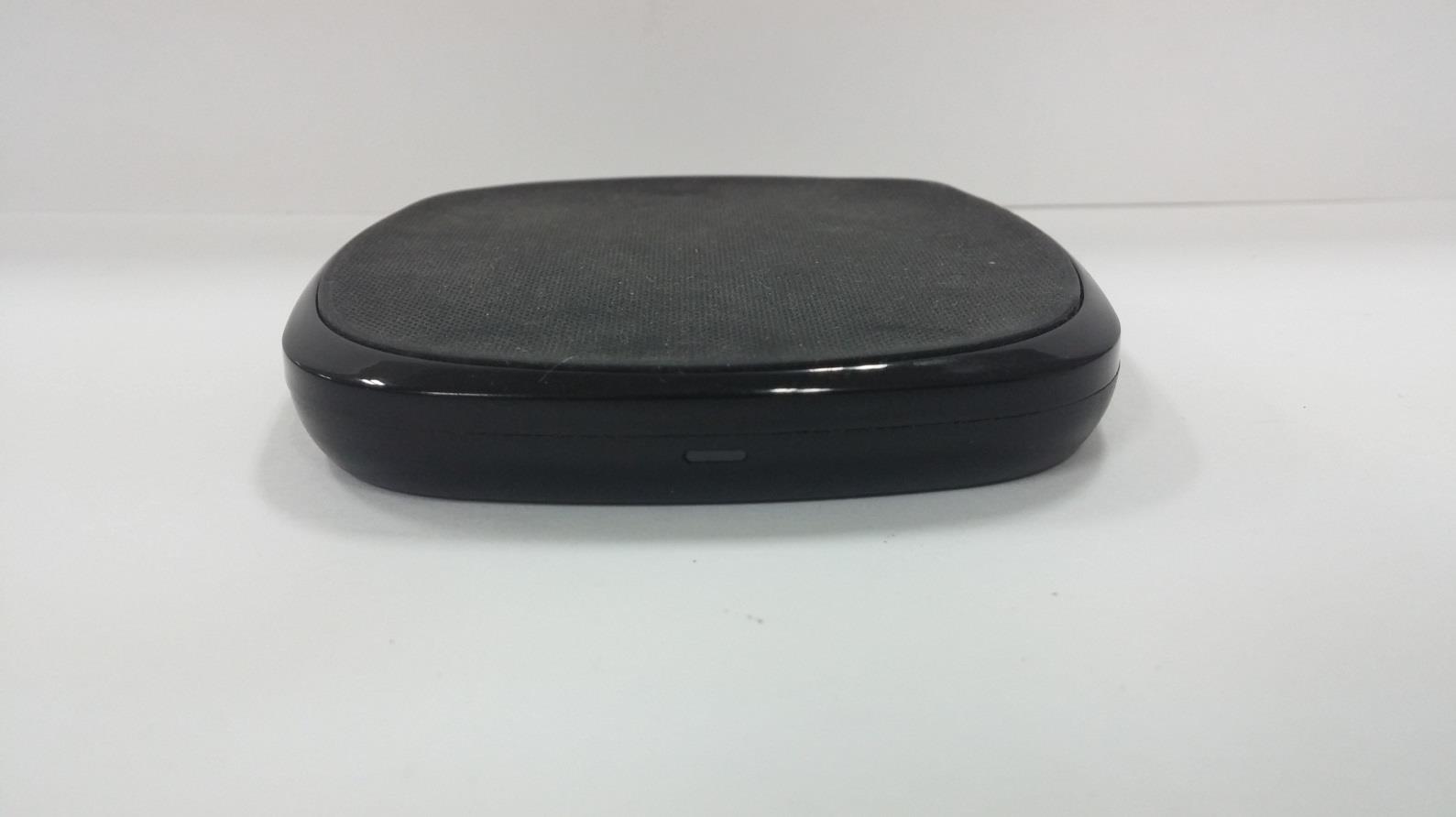

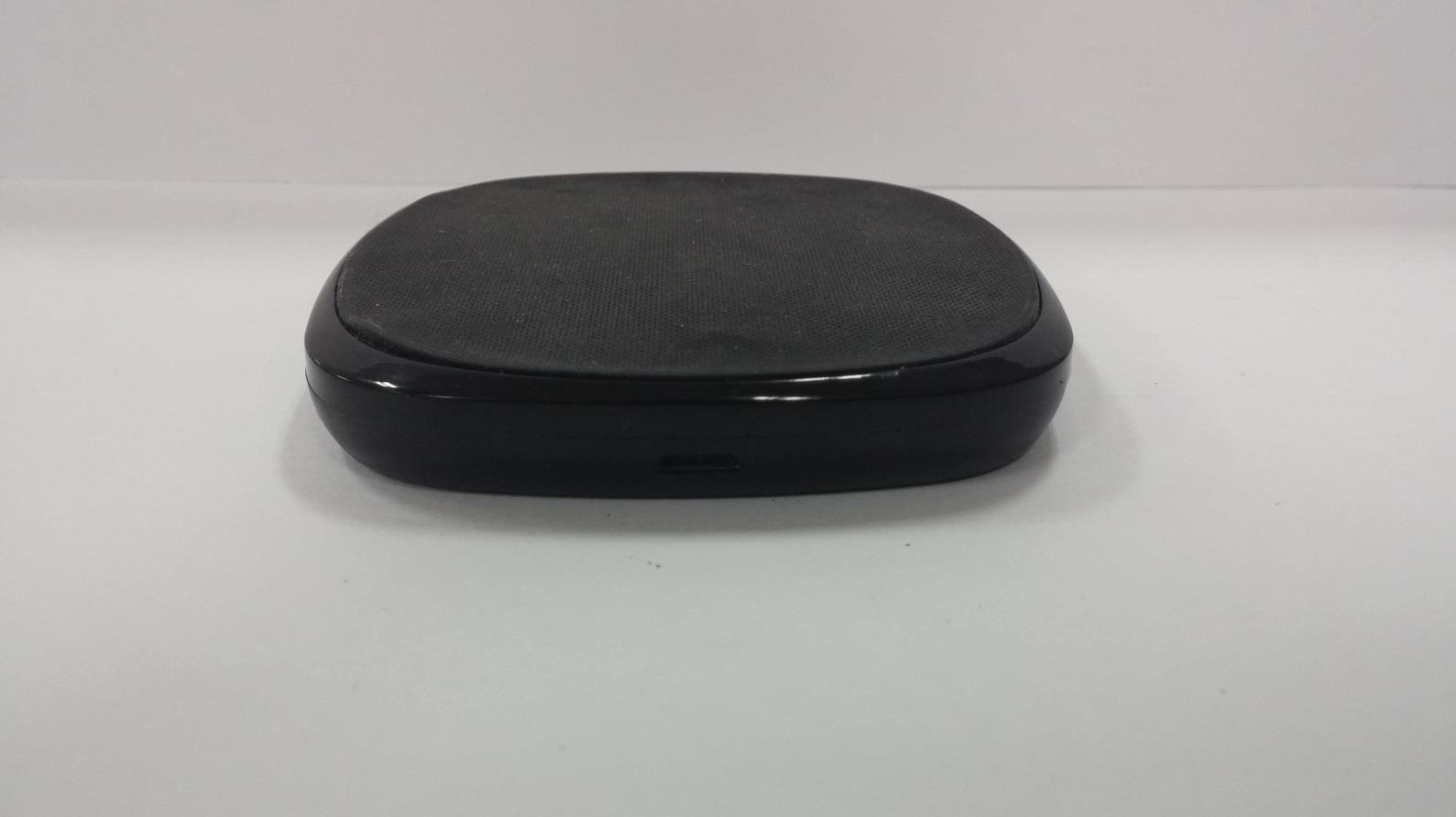

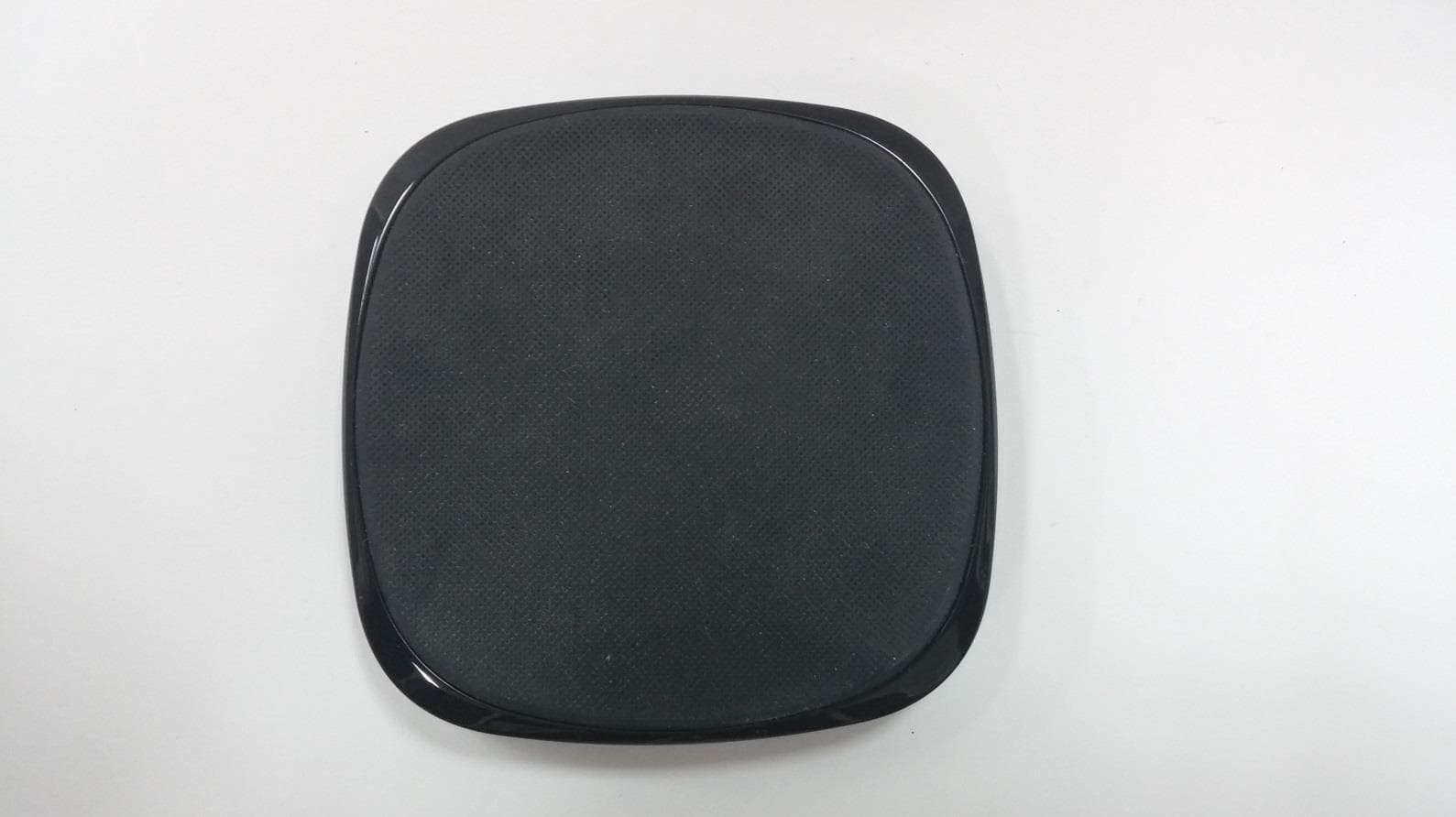

FCCID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 1 / 3 View 1 FCCID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 2 / 3 View 2 FCCID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 3 / 3 View 3

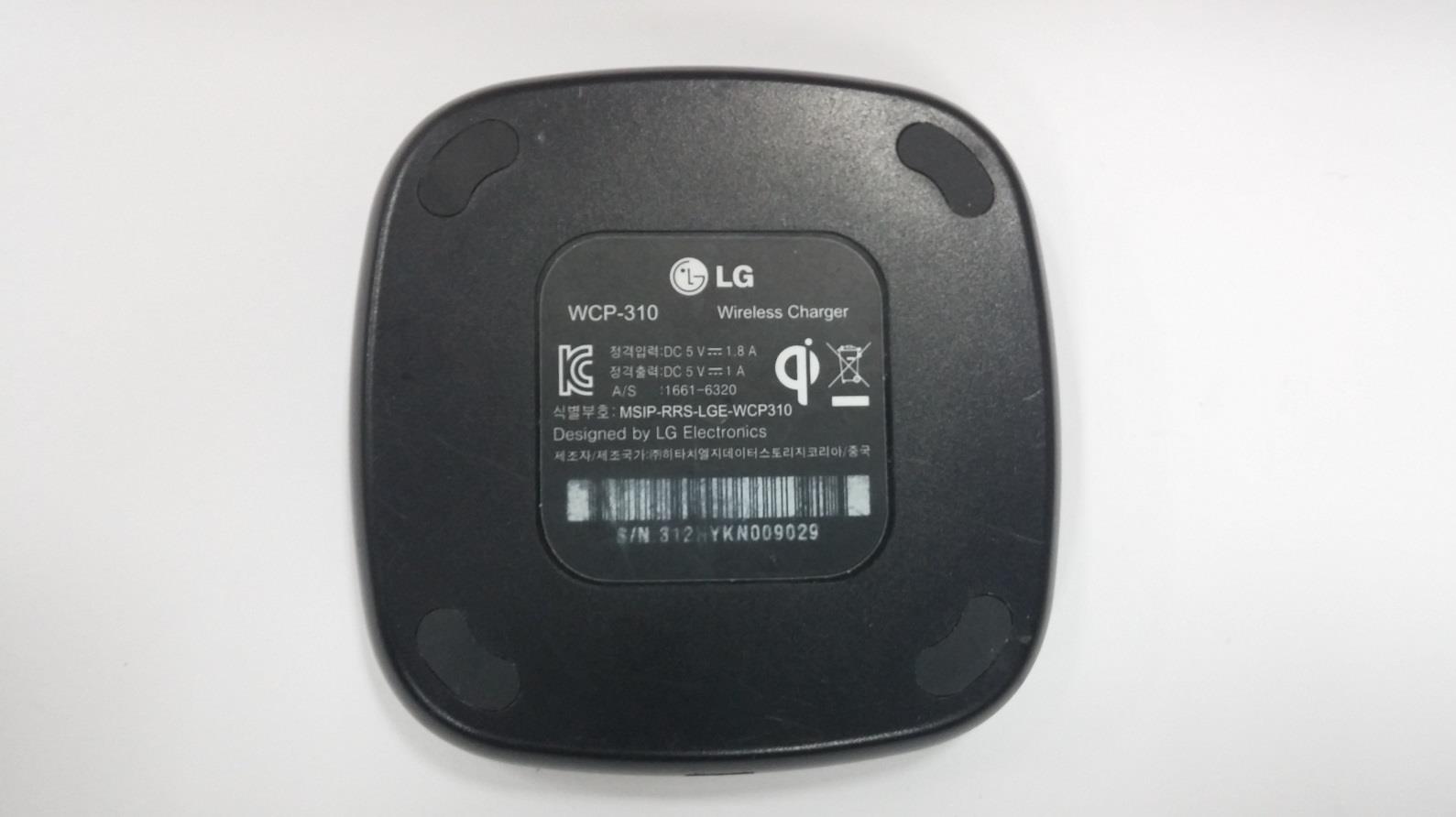

FCC ID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 1 / 3 View 1 FCCID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 2 / 3 View 2 FCCID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 3 / 3 View 4

FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 2 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1406-0804 Jun. 18, 2014 Initial issue FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 3 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. CONTENTS 1. Equipment information .............................................................. 4 1.1 Equipment description ............................................................. 4 1.2 Support equipments ................................................................ 4 2. Information about test items ..................................................... 5 2.1 Test mode ................................................................................ 5 2.2 Tested environment ................................................................. 5 2.3 EMI Suppression Device(s)/Modifications ............................... 5 3. FACILITIES AND ACCREDITATIONS ........................................ 6 3.1 FACILITIES ............................................................................. 6 3.2 EQUIPMENT ........................................................................... 6 4. Test Report ................................................................................. 7 4.1 Summary of tests .................................................................... 7 4.2 Transmitter requirements ........................................................ 8 4.2.1 20dB Bandwidth .................................................................. 8 4.2.2 Radiated Emissions ............................................................ 9 4.2.3 AC Line Conducted Emissions .......................................... 12 APPENDIX I................................................................................... 23 FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 4 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. 1. Equipment information 1.1 Equipment description FCC Equipment Class Part 15 Low Power Transmitter Below 1705 kHz (DCD) Equipment type Wireless Charger Equipment model name WCP-310 Equipment add model name N/A Equipment serial no. Identical prototype Frequency band 110 ~ 205kHz Output power Max : 5 W Power AC 120V 60Hz DC 12 V Antenna type Coil Antenna(single coil) 1.2 Support equipments Equipment Model No. Serial No. Manufacturer Note Wireless Charging Cover N/A N/A LG - Mobile Phone LG-VS980 N/A LG FCC ID : ZNFVS980 Travel Adapter MCS-04KT TA3Z0400165 Tan Pao Electronics Co., Ltd. - Cigarette Lighter Adapter CLA-400 BB4CP001573 LG - Note: The above equipments were supported by manufacturer. FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 5 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. 2. Information about test items 2.1 Test mode This device has been tested with the below test modes and charging current conditions: Charging Current Support Equipment 300mA Wireless Charging Cover 600mA 1000mA(Max) @ < 1% battery status Mobile Phone(M/N: LG-VS980) @ 50% battery status 2.2 Tested environment Temperature : 21 ~ 23 o C Relative humidity content :35 ~ 40 % R.H. Details of power supply : AC 120V 60Hz DC 12V 2.3 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing → None FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 6 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. 3. FACILITIES AND ACCREDITATIONS 3.1 FACILITIES The semi anechoic chamber and conducted measurement facility used to collect the radiated and conducted test data are located at the 38, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935. The site is constructed in conformance with the requirements. - Semi anechoic chamber registration Number: 678747 3.2 EQUIPMENT Radiated emissions are measured with one or more of the following types of antennas: loop, tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide horn. Spectrum analyzers with pre-selectors and peak, quasi-peak detectors are used to perform radiated measurements. Conducted emissions are measured with Line Impedance Stabilization Networks and EMI Test Receivers. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 7 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. 4. Test Report 4.1 Summary of tests FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 Test Items 2.1049 N/A 20 dB Bandwidth N/A Radiated C 15.209 RSS-Gen [7.2.5] Radiated Emission FCC 15.209 limits C Note2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions FCC 15.207 limits AC Line Conducted C Note3 Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. Note 3: The supply power of Cigarette Lighter Adapter is DC 12V from a Car Battery. Thus Travel Adapter has been used in the test. The sample was tested according to the following specification: ANSI C-63.4 2009 FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 8 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. 4.2 Transmitter requirements 4.2.1 20dB Bandwidth - Procedure: The 20 dB bandwidth is measured with a spectrum analyzer connected via a receiving antenna placed near the EUT while the EUT is operating. - Measurement Data: Charging Current 1000 mA FCC ID : BEJWCP310 DEMC1402-00367 Report No.: DRTFCC1406-0804 TRF-RF-204(01)110221 Page 9 / 24 Copyright ○ C 2014, Digital EMC Co., Ltd. 4.2.2 Radiated Emissions - Limit: FCC Part 15.209(a) & RSS-GEN, section 7.2.5 Freq…

Text truncated - open the document above for the full version.

FCC ID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Support equipment: Wireless Charging Cover(M/N: N/A) FCC ID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Support equipment: Mobile Phone (M/N: LG-VS980) FCC ID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup Photo for Radiated Emissions FCC ID: BEJWCP310 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Test Setup Photo for AC Conducted Emissions
