BEJWN8522D1Wi-Fi module

LG Electronics USA, Inc.
Wi-Fi module - FCC ID BEJWN8522D1 - LG Electronics USA, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 02, 2010
Application Purpose
Original Equipment
Date of Application
Nov 02, 2010
Equipment Note
Wi-Fi module
Frequency Range
5755.00000000 - 5795.00000000
Company
LG Electronics USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

IEEE 802.11a/b/g/n Wireless Dual-Band Network Adapter October 2010 Model # WN8522D1 Trademarks: Other product and company names are trademarks or registered trademarks of their respective holders. Table of Contents Table of Contents Wireless Dual-band Network Adapter1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Federal Communication Commission Interference Statement . . . . . . . . . . . . . . . . . . . . .6 CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 i Wireless Dual-band Network Adapter Introduction The Wireless Dual-band Network Adapter (WN8522D 1-LF-19) is another cutting edge introduction in both 5GHz and 2.4GHz wireless communication for desktop and notebook computers. Designed for both your home and office, this wireless network adapter provides the speed, coverage and security expected by today’s wireless users. WN8522D1 is IEEE 802.11n compliant while maintaining full backwards compatibility with the 802.11a, 802.11b and 802.11g standards. It utilizes advanced MIMO (Multiple-In, Multiple-Out) technology to deliver incredible speed and range. The Wireless Dual- band Network Adapter provides better performance than existing 802.11g technology. Upgrading to wireless 11n network provides an excellent solution for sharing an Internet connection and files such as video, music, photos, and documents. Introduction 1 Wireless Dual-band Network Adapter Features and Benefits •IEEE802.11n,g,b compliant •IEEE802.11a compliant •Wireless speeds up to 300 Mbps •Increased speed and coverage - up to 5 times the speed of IEEE 802.11g •Fully backwards compatible with 802.11b/g wireless networks •Replaces wired LANs at dramatically lower cost than wired alternatives •Orthogonal Frequency Division Multiplexing (OFDM) and advanced MIMO (Multiple-In, Multiple-Out) technology provides high speed connection Hardware Description The WN8522D1 adapter provides 300 Mbps connections. It is fully compliant with the specification of the IEEE 802.11a/b/g/n standards. Refer to the user’s manual of your TV for configuration details. Hardware Description 2 Product Specifications Wireless Network IEEE802.11a: up to 54 Mbps IEEE802.11b: up to 11 Mbps IEEE 802.11g: up to 54 Mbps IEEE802.11n: up to 300 Mbps Operating Range Outdoor: Up to 300 m (984 ft) Indoor: Up to 100 m (328 ft) Radio Signal Signal Type Direct Sequence Spread-Spectrum (DSSS) Modulation: CCK, OFDM, MIMO Operating Frequency USA (FCC) and Canada (IC): 2.412 ~ 2.462 GHz Europe (ETSI): 2.412 ~ 2.472 GHz Spain: 2.457 ~ 2.462 GHz France: 2.457 ~ 2.472 GHz Japan (STD-T66/STD-33): 2.412 ~ 2.484 GHz Operating Channels USA (FCC) and Canada (IC): 11 channels Europe (ETSI): 13 channels Spain: 2 channels Japan (STD-T66/STD-33): 14 channels Product Specifications 3 Product Specifications Sensitivity 68 dBm (typical) RF Output Power 802.11a: 14 dBm 802.11b: 17 dBm 802.11g: 14 dBm 802.11a/802.11n: 13 dBm 802.11b/802.11n: 13 dBm Physical Characteristics Dimensions 88(L)x18(W)x1.0(H)mm Weight 8.41 g (0.0185 lb) Antenna PIFA antenna LED Indicators Network Link Power Voltage DC5V +/- 5% Power Consumption Full load: 430 mA Standards Conformance Wireless Standard IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Product Specifications 4 Product Specifications Environmental Temperature Operating: 0 to 60 °C (32 to 140 °F) Storage: -20 to 60 °C (-4 to 140 °F) Humidity: under 85% (non-condensing) Certification CE FCC Software Drivers Windows 2000 Windows XP Windows Vista Product Specifications 5 Module User Requirements When the module be installed into new host and a separation distance of more than 20cm from the human body. However if the module is placed into the host that is RF category portable, the FCC RF exposure requirements of the portable host must be properly \addressed. The label shall include following message: Contains FCC ID: BEJWN8522D1 Compliance IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.4GHz operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. CE This device can be operated in the EU without restrictions indoor. However, operated outdoors in France is restricted to 2400 ~ 2454 MHz (Channel 1 ~ 7). Compliance 7

Cover Letter(s)

Authorization Letter Date: October. 25, 2010 Authorization Letter for FCC ID: BEJWN8522D1 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize AUDIX Technology Corporation, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by AUDIX Technology Corporation on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing AUDIX Technology Corporation as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, _______________________________________ Jae Cheon Lee / General Manager LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 United States

Cover Letter(s)

Request for Confidentiality Date: Oct. 14, 2010 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: BEJWN8522D1 Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Operational Description (theory of operation) ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________________________ Jae Cheon Lee / General Manager LG Electronics USA

Cover Letter(s)

Date: 2010/10/15 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Modular Approval Request Letter Audixtech Corp. Oct. 15, 2010 Dear Application Examiner, The Wi-Fi module, modem name is WN8522D1, FCC ID: BEJWN8522D1 , would like to have your authorization as a modular approval specific to the mobile device such as digital device emissions, The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Yes, the radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” Yes, the EUT has buffered data inputs. 3. “The modular transmitter must have its own power supply regulation.” Yes, the EUT has its’ own power supply regulation. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” Yes, the EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” Yes, the EUT was tested in a stand-alone configuration via an RS-232 cable. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, this module has been labeled with its’ own FCC ID number. Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, the EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes, the EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Applicant : LG Electronics USA Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 United States Signature : _________________________________ Name and Job Title. : Jae Cheon Lee / General Manager E-mail : [email protected] Tel. : 201-266-2420

External Photos

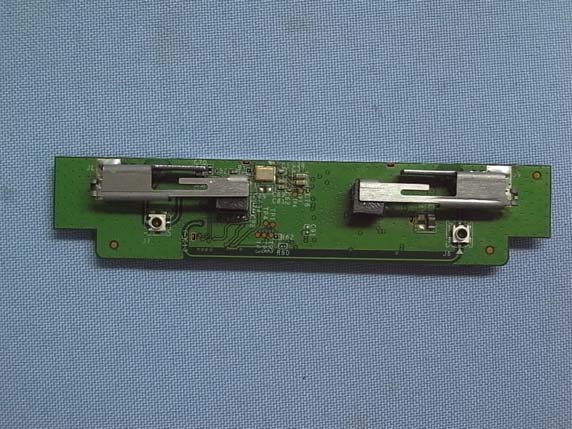

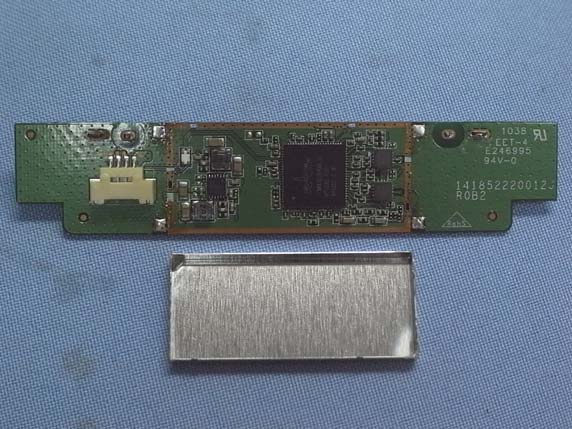

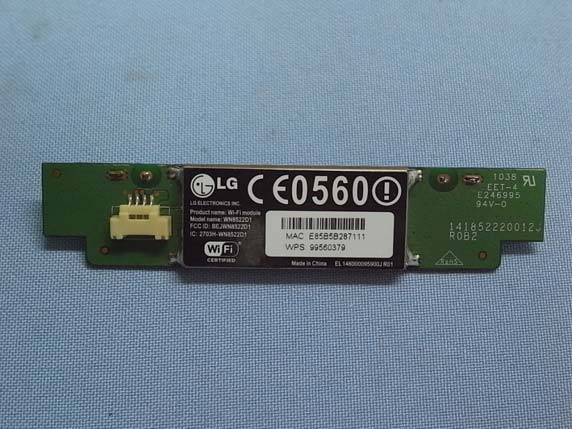

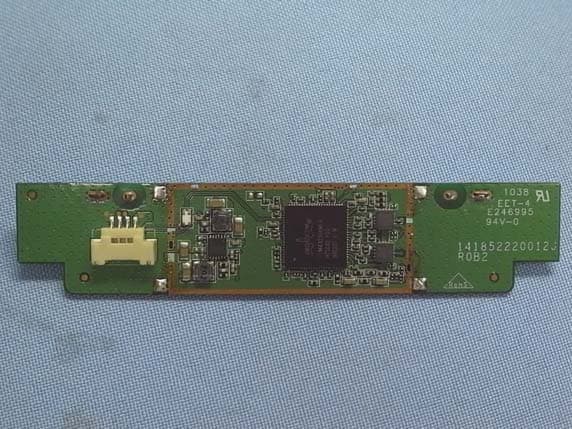

LG Electronics Inc. Wi-Fi module FCC ID. : BEJWN8522D1 EUT External Photos Figure 1 Wi-Fi Module (Front View) Figure 2 Wi-Fi Module (Open Metal Cover) LG Electronics Inc. Wi-Fi module FCC ID. : BEJWN8522D1 Figure 3 Wi-Fi Module (Front View) Figure 4 Wi-Fi Module (Back View)

ID Label/Location Info

LG Electronics Inc. Wi-Fi module FCC ID. : BEJWN8522D1 FCC ID Label Location z Label Placement Location z FCC Label Format FCC Label Placement Location

Internal Photos

LG Electronics Inc. Wi-Fi module FCC ID. : BEJWN8522D1 EUT External Photos Figure 1 Wi-Fi Module (Front View) Figure 2 Wi-Fi Module (Open Metal Cover) LG Electronics Inc. Wi-Fi module FCC ID. : BEJWN8522D1 Figure 3 Wi-Fi Module (Front View) Figure 4 Wi-Fi Module (Back View)

RF Exposure Info

Declaration of Compliance FCC ID: BEJWN8522D1 Product Name: Wi-Fi module Model No: WN8522D1 Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain for 2400 to 2483.5MHz is 1.39dBi= 1.377 5150 to 5850MHz is 4.67dBi= 2.931 5725 to 5850MHz is 3.3dBi = 2.138 The maximum power in 2400 to 2483.5MHz is 26.64dBm= 461.318mW RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) S = 461.318*1.377 / 4*π* 20^2 = 0.126mW/cm^2 The maximum power in 5150 to 5250MHz is 14.33dBm= 27.102mW RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) S = 27.102*2.931 / 4*π* 20^2 = 0.0158mW/cm^2 The maximum power in 5725 to 5850MHz is 24.66dBm= 292.415mW RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) S = 292.415*2.138 / 4*π* 20^2 = 0.124mW/cm^2 Sincerely Yours, ____________________________________ Jae Cheon Lee / General Manager LG Electronics USA

Test Report

FCC ID. BEJWN8522D1 Page 1 of 154 AUDIX Technology Corporation Report No. EM-F991000 APPLICATION FOR CERTIFICATION On Behalf of LG Electronics Inc. Wi-Fi module Model No. : WN8522D1 FCC ID : BEJWN8522D1 Brand : LG Prepared for : LG Electronics Inc. 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei Hsien, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number : C1M1010009 Report Number : EM-F991000 Date of Test : Oct. 06 ~ Nov. 03, 2010 Date of Report : Nov. 03, 2010 FCC ID. BEJWN8522D1 Page 2 of 154 AUDIX Technology Corporation Report No. EM-F991000 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT)........................................................................................................... 5 1.2. Data Rate Relative to Output Power................................................................................................ 6 1.3. Test Configuration for Each Test Item ............................................................................................ 7 1.4. Tested Supporting System Details ................................................................................................... 7 1.5. Description of Test Facility ............................................................................................................. 8 1.6. Measurement Uncertainty................................................................................................................ 8 2. CONDUCTED EMISSION MEASUREMET........................................................................ 9 2.1. Test Equipment ................................................................................................................................ 9 2.2. Block Diagram of Test Setup........................................................................................................... 9 2.3. Powerline Conducted Emission Limit (§15.207, Class B) .............................................................. 9 2.4. Operating Condition of EUT ......................................................................................................... 10 2.5. Test Procedure ............................................................................................................................... 10 2.6. Conducted Emission Measurement Results................................................................................... 10 3. RADIATED EMISSION MEASUREMENT ....................................................................... 13 3.1. Test Equipment .............................................................................................................................. 13 3.2. Test Setup ...................................................................................................................................... 13 3.3. Radiated Emission Limits (§15.209) .............................................................................................15 3.4. Operating Condition of EUT ......................................................................................................... 15 3.5. Test Procedure ............................................................................................................................... 16 3.6. Test Results.................................................................................................................................... 17 4. 6dB BANDWIDTH MEASUREMENT .............................................................................. 103 4.1. Test Equipment ............................................................................................................................ 103 4.2. Block Diagram of Test Setup....................................................................................................... 103 4.3. Specification Limits (§15.247(a)(2)) ...........................................................................................103 4.4. Operating Condition of EUT ....................................................................................................... 103 4.5. Test Procedure ............................................................................................................................. 103 4.6. Test Results.................................................................................................................................. 104 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................ 115 5.1. Test Equipment ............................................................................................................................ 115 5.2. Block Diagram of Test Setup....................................................................................................... 115 5.3. Specification Limits (§15.247(b)-(3))..........................................................................................115 5.4. Operating Condition of EUT ....................................................................................................... 116 5.5. Test Procedure ............................................................................................................................. 116 5.6. Test Results.................................................................................................................................. 116 6. BAND EDGES MEASUREMENT...................................................................................... 123 6.1. Test Equipment ............................................................................................................................ 123 6.2. Block Diagram of Test…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID. BEJWN8522D1 Page 151 of 154 AUDIX Technology Corporation Report No. EM-F991000 9. PHOTOGRAPHS 9.1. Photos of Conducted Disturbance Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID. BEJWN8522D1 Page 152 of 154 AUDIX Technology Corporation Report No. EM-F991000 9.2. Photos of Radiated Measurement at Semi-Anechoic Chamber 9.2.1. Frequency Below 1GHz SIDE VIEW OF RADIATED MEASUREMENT FCC ID. BEJWN8522D1 Page 153 of 154 AUDIX Technology Corporation Report No. EM-F991000 9.2.2. Frequency Above 1GHz FRONT VIEW OF RADIATED MEASUREMENT SIDE VIEW OF RADIATED MEASUREMENT FCC ID. BEJWN8522D1 Page 154 of 154 AUDIX Technology Corporation Report No. EM-F991000 9.3. Photo of Section RF Conducted Measurement

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)
[email protected]201-470-2696Fax: 201-816-2003

Technical Contact

AUDIX Technology CorporationBen Cheng
[email protected]886-2-26092133

No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, · Taipei · Taiwan

Test Firm

Audix Technology CorporationLeon Liu
[email protected]886-2-26092133Fax: 886-2-26099303

Technical Specifications

#Rule PartsFrequency RangePower Output
615C5.75 GHz - 5.79 GHz244.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular approval. Power listed is the maximum combined conducted output power. Device is a draft 802.11n RF module operating in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
