BEJWR23GASimple Remote

Simple Remote User Information Model Name : WR23GA Table of Contents 1. Overview and specification of the remote control (1) Overview (2) Specification 2. Precautions 3. Customer Support English 1.Overview and Specifications for the Remote Control (1)Overview - Instructions for using the Simple Remote control are in the TV manual. this remote uses RF(Radio Frequency) instead of IR (InfaRed light). this remote will operate within 10m of the tv and does not require it be pointed at the tv.(voice recognition support) (2)Specifications "This device can be operated in at least one Member State without infringin g applicable requirements on the use of radio spectrum" CategoriesDetails Model No.WR23GA Range of frequency2.400 GHz ~ 2.4835 GHz Output Power(Max.) 4dBm (EIRP) Channel40 channels Power source AAA 1.5 V, 2 alkaline batteries are used Operational temperature range 0 °C~ 40 °C 2. Precautions (1) After replacement of the battery, use the remote control following pairing in accordance with user manual. (2) If the unit does not operate after replacement of battery, reattempt pairing in accordance with the user manual. (3) If the remote controller is not being used for prolonged period of time, it is recommended you remove the battery from the unit. (4) Do not dismantle or exert heat to the battery. (5) Do not drop battery or exert extreme impact that may even cause the case to be damaged. (6) Do not immerse the battery in water. (7) There is danger of explosion if a the battery is inserted reversely. (8) Properly dispose of used batteries. (9) Open the battery cover to find the label. 3. Customer Support Refer to the contact number for services provided in the TV Manual. Federal Communications Commission(FCC) Statement Federal Communications Commission(FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment and For indoor use only, use outdoors or in other modes not covered by this manual may violate the FCC regulation and violate the user authority to use the product. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End users must follow the specific operating instructions for satisfying RF exposure compliance. Industry Canada Statement [English] Industry Canada Statement (For Canada) This device complies with Industry Canada’s licence-exempt RSS Stadard(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Avis d'industriecanada Cet appareilest conformeaux normesCNR d’IndustrieCanada applicables aux dispositifs exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC Radiation Exposure Statement (For Canada) This equipment complies with IC radiation exposure limits set forth for an Uncontrolled environment. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. [French] Avis d'Industrie Canada (Pour le Canada) Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Avis d’Industrie Canada sur l’exposition aux rayonnements Avis d'industrie canada (Pour le Canada) Cet appareil est conforme aux limites d’exposition aux rayonnements d’Industrie Canada pour un environnement non contrôlé. REMARQUE : LE FABRICANT N’EST PAS RESPONSABLE DES INTERFÉRENCES RADIOÉ…

Text truncated - open the document above for the full version.

LG Electronics USA Attestation Letter (Section 2.911 (d)(5)(i)(ii) and 2.911(d)(7)) Date: 13-02-2023 FCC ID: BEJWR23GA To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA We, LG Electronics USA, as requested by FCC, are declaring that both requirements of Section 2.911 (d)(5)(i)(ii) and 2.911(d)(7) are being satisfied likes below to the FCC requirements to protect the nation`s networks and supply chains from equipment (“covered” equipment) according to FCC 22-84 and KDB 986446 D01. 1.Secti on 2.911 (d)(5)(i)(ii)) 2.911 (d)(5)(i) We certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.911 (d)(5)(ii) And, we certifies that one of following, ☒ 1.We are not identified on the Covered List and are not an affiliate or subsidiary of an entity identified on the Covered List. ☐ 2.We are identified on the Covered List as an entity producing “covered” equipment. But, we can be authorized since the reason as explained below. ☐ 3.We are an affiliate or subsidiary of an entity identified on the Covered List. But, we can be authorized since the reason as explained below. *Only one of paragraphs 1, 2 or 3 should be checked, if checked on paragraphs 2 or 3, the reason why it does not include the “covered” equipment. 2.Section 2.911(d)(7) We, as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. We will maintain the agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. And we have t he responsibility to inform the FCC whenever the agent information changes. -. US Contact Name: Heejae Cho -. US Address: LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States -. Email: [email protected] Since rely yours, Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs Company Name: LG Electronics USA * FRN: 0023476120

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM LG Electronics USA HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : February 13, 2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : BEJWR23GA We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: (Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM LG Electronics USA HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : 2/13/2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID: BEJWR23GA We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Si gned by: (Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

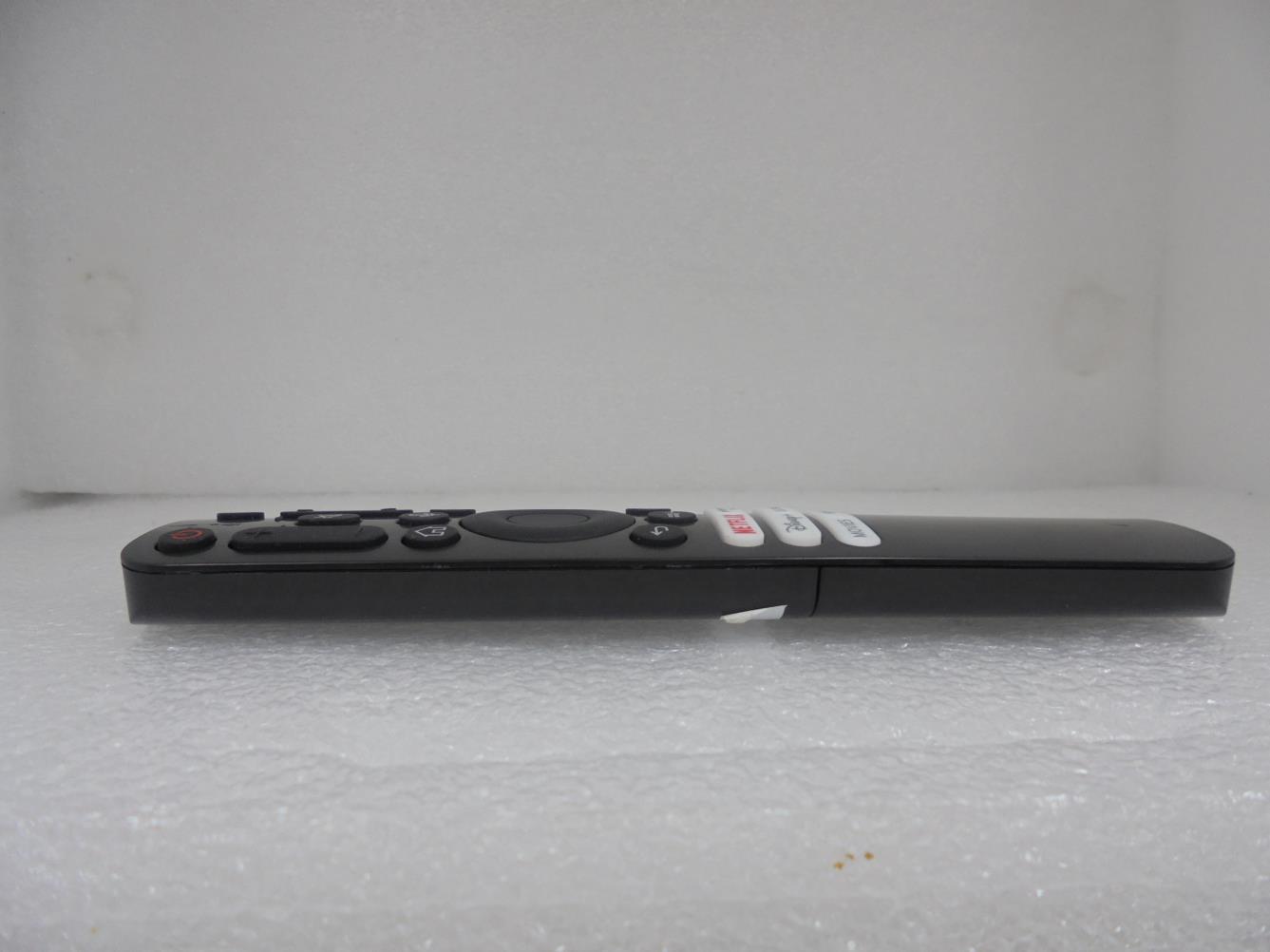

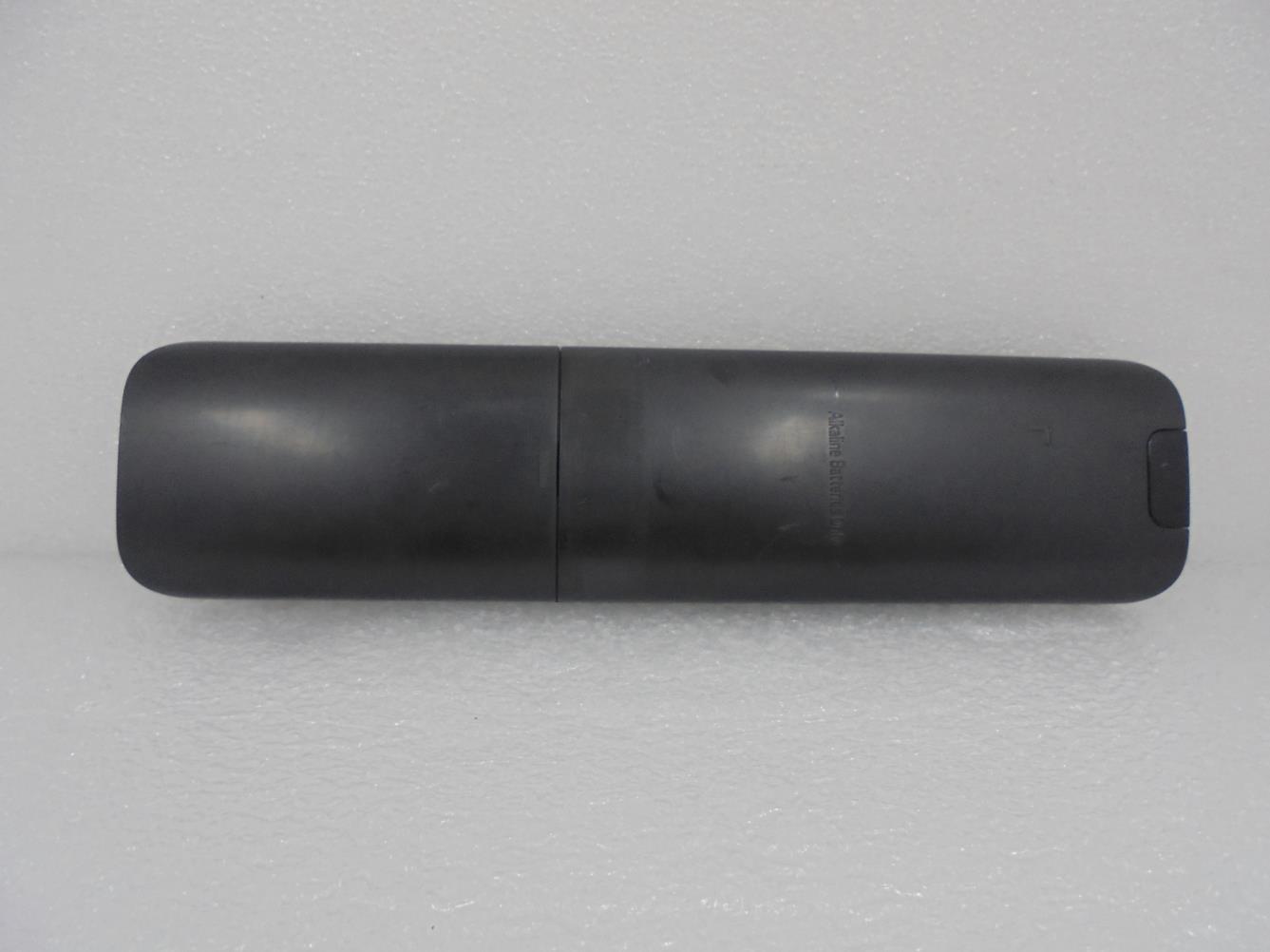

FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

WR23GA Label size, position WR23GA Label size SIZE : 15.5 X 30.5 WR23GA Label position Label position IC : 2703H-WR23GA FCC ID : BEJWR23GA

FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 5 INTERNAL PHOTOGRAPHS FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 5 ■ INTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 5 ■ INTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 5 ■ INTERNAL PHOTO FCC ID: BEJWR23GA, IC: 2703H-WR23GA HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 5 ■ INTERNAL PHOTO(ANT)

On your side HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 F ax. +82 31 645 6401 F-TP22-03 (Rev. 04) The report shall not be reproduced except in full(only partly) without approval of the laboratory. Page 1 of 7 . TEST REPORT FCC / ISED SAR Exclusion Report for WR23GA Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-SR-2302-FI001-R1 DATE OF ISSUE March 09, 2023 Technical Manager Yun Jeang Heo (signature) Accredited by KOLAS, Republic of KOREA F-TP22-03 (Rev. 04) Page 2 of 7 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TE S T R E P O R T FC C / I S E D B T L E T e s t f o r W R 2 3 G A REPORT NO. HCT-SR-2302-FI001-R1 DATE OF ISSUE March 09, 2023 Applicant LG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea EUT Type Model Name Simple Remote WR23GA FCC ID ISED ID BEJWR23GA 2703H-WR23GA Max. RF Output Power 4 dBm (EIRP) Modulation type GFSK FCC Classification Digital Transmission System(DTS) FCC Rule Part(s) 47CFR §2.1093 ISED Rule Part(s) RSS-102 Issue 5; Health Canada Safety Code 6 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-SR-2302-FI001-R1 F-TP22-03 (Rev. 04) Page 3 of 7 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 February 14, 2023 Initial Release 1 March 09, 2023 Revised Manufacturer Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. This laboratory is not accredited for the test results marked *. The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 AND KOLAS (Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (HCT Accreditation No.: KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-SR-2302-FI001-R1 F-TP22-03 (Rev. 04) Page 4 of 7 CONTENTS 1. EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 2.1 FCC 6 2.2 ISED 7 Report No. HCT-SR-2302-FI001-R1 F-TP22-03 (Rev. 04)Page 5 of 7 1. EUT DESCRIPTION Model Name WR23GA EUT Type Simple Remote Power Supply DC 3.0 V Frequency Range 2 402 ㎒ – 2 480 ㎒ Max. RF Output Power (EIRP) 4 dBm Modulation Type GFSK Bluetooth Version 4.2 Number of Channels 40 Channels Antenna Specification Antenna type: PCB Antenna Peak Gain : 2.72 dBi PMN (Product Marketing Number) Simple Remote HVIN (Hardware Version Identification Number) WR23GA FVIN (Firmware Version Identification Number) 1.0.552.8 HMN (Host Marketing Name) N/A EUT serial numbers Radiated: #1-3 Conducted: #1-4 Manufacturer 1. Hansung Electronics CO.,LTD. ·49-29, Cheomdangieop 4-ro, Sandong-myeon, Gumi-si, Gyeongsangbuk-do, Korea ·Jl. Rotan 1 Blok F27 No.37 A Kawasan Industri Lippo Cikarang, Desa Cicau, Kec. Cikarang Pusat, Bekasi, Jawa Barat, Indonesia 17530 2. OHSUNG Electronics CO.,LTD. ·No.188 Tunpu South Road, Qiushe Economic Development Zone, Tongli Town, Wujiang City, Jiangsu Province ·JI. Selayar Blok D7 Kawasan Industri MM 2100, Mekarwangi, Cikarang Barat 17845 Jawa Barat, Indonesia Report No. HCT-SR-2302-FI001-R1 F-TP22-03 (Rev. 04) Page 6 of 7 2. TEST METHODOLOGY 2.1 FCC Limb SAR and Face SAR Test Exclusions Applied _Bluetooth 4.2 LE Since this product is a remote control product, it is used by most users in the hand, so Limb SAR standard is applied. In addition, since this product is capable of voice recognition by the user, an exception evaluation is applied at a distance of 10 mm from the face SAR (head SAR). According to the FCC KDB 447498 D01 v06 section 4.3.1, for 100 ㎒ to 6 ㎓ and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: a) For 100 ㎒ to 6 ㎓ and test separation distances ≤ 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] · [√f(㎓)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where : 푀푎푥 푃표푤푒푟 표푓 퐶ℎ푎푛푛푒푙 ( 푚푊 ) 푇푒푠푡 푆푒푝푎푟푎푡푖표푛 퐷푖푠푡푎푛푐푒 ( 푚푚 ) ∗ √ 퐹푟푒푞푢푒푛푐푦 ( 퐺퐻푧 ) ≤ 3.0 For 1g SAR,7.5.for 10g SAR where - f(㎓) is the RF channel transmit frequency in ㎓ - Power and distance are rounded to the nearest ㎽ and ㎜ before calculation - The result is rounded to one decimal place for comparison Calculation Result: Tx frequency range: 2 402 ㎒ ~ 2 480 ㎒ Limb SAR Consideration Min. test separation distance: 5 ㎜ Face SAR Consideration Min. test separation distance: 10 ㎜ Maximum Output Power: 3 ㎽ The Highest RF channel frequency: 2 480 ㎒ For Face SAR Exclusion Mode Frequency Maximum Allowed Power Separation Distance ≤ 3.0 for 1 g SAR [㎒] [㎽] [㎜] Bluetooth 4.2 LE 2 480 3.0 10 0.5 For Limb SAR exclusion Mode Frequency Maximum Allowed Power Separation Distance ≤ 7.5 for 10 g SAR [㎒] [㎽] [㎜] Bluetooth 4.2 LE 2 480 3.0 5 0.9 Based on the maximum output power of Bluetooth 4.2 LE and antenna to use separation distance, Bluetooth 4.2 LE Limb SAR and Face SAR were not required. *Note: “SAR Exemption threshold was calculated with worst case EIRP which is more conservative than conducted power.” Report No. HCT-SR-2302-FI001-R1 F-TP22-03 (Rev. 04) Page 7 of 7 2.2 ISED SAR Test Exclusions Applied _Bluetooth 4.2 LE Per RSS102 Issue 5, 2.5.1 Exemption Limits for Routine Evaluation . For Limb-worn SAR Exclusion: 4…

Text truncated - open the document above for the full version.

WR23-GA ANT Review Report Rev01 PCB상태 2022.12.20 GradiANT (Pattern Antenna ) MODEL NAME WR23-GA VSWR S11 Rev01 PCB antenna performance review(GradiANT) MODEL NAME WR23-GA REV. 01 Page 1 Passive Data Peak [dBi] Average [dBi] Efficiency [%] 2400MHz -1.37-5.6427.3 2425MHz 0.62 -4.3236.9 2445MHz 1.84 -3.6643.0 2465MHz 2.42 -3.4645.1 2485MHz 1.90 -4.1838.2 2475MHz Max peak gain(dBi) 2.72 1.1 Test Result for WR23-GA PCBA WR23_GA #01 C46 : 2.2pF C47 : 1.2pF C48 : 0.75pF C49 : 7.5pF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Frequency(MHz) 2400 2405 2410 2415 2420 2425 2430 2435 2440 2445 2450 2455 2460 2465 2470 2475 2480 2485 Efficiency(dB) -5.64 -5.49 -5.37 -5.00 -4.85 -4.32 -3.99 -3.79 -3.95 -3.66 -3.62 -3.39 -3.49 -3.46 -3.32 -3.37 -3.55 -4.18 Efficiency(%) 27.3 28.3 29.1 31.6 32.7 36.9 39.9 41.8 40.3 43.0 43.4 45.8 44.8 45.1 46.6 46.0 44.1 38.2 TRG θ [dB] -6.46 -6.29 -6.18 -5.83 -5.73 -5.23 -4.89 -4.70 -4.93 -4.66 -4.64 -4.46 -4.64 -4.66 -4.59 -4.65 -4.88 -5.59 Gain θ Peak [dB] -1.42 -1.27 -0.80 -0.45 -0.15 0.44 0.96 1.34 1.24 1.78 1.62 2.10 2.26 2.25 2.45 2.40 2.34 1.83 Gain θ Min [dB] -49.02 -40.95 -35.40 -30.68 -34.70 -32.06 -38.40 -33.05 -55.20 -28.15 -26.40 -34.99 -24.99 -31.83 -31.38 -29.39 -50.24 -32.74 TRG φ [dB] -13.31 -13.19 -13.04 -12.59 -12.24 -11.59 -11.26 -11.00 -10.91 -10.52 -10.40 -9.99 -9.81 -9.65 -9.28 -9.31 -9.35 -9.75 Gain φ Peak [dB] -6.42 -6.42 -6.32 -5.92 -6.07 -5.54 -5.14 -4.83 -4.54 -4.19 -3.83 -3.32 -3.17 -2.74 -2.25 -2.41 -2.23 -2.41 Gain φ Min [dB] -40.45 -39.05 -39.47 -38.63 -42.07 -46.97 -30.17 -33.50 -34.94 -31.87 -36.37 -30.32 -32.79 -33.94 -41.11 -34.61 -32.46 -44.62 Peak Gain [dB] -1.37 -1.04 -0.76 -0.28 0.06 0.62 1.14 1.47 1.38 1.84 1.81 2.40 2.29 2.42 2.55 2.72 2.49 1.90 Directivity [dB] 4.27 4.45 4.60 4.72 4.91 4.95 5.13 5.25 5.33 5.50 5.43 5.79 5.78 5.88 5.87 6.09 6.04 6.07 Minimum Gain [dB] -33.97 -33.66 -33.96 -26.49 -27.88 -29.57 -23.75 -24.62 -24.47 -23.34 -25.11 -23.43 -22.17 -29.75 -26.43 -24.64 -24.30 -23.90 Average Efficiency -4.15 dB, 38.49 % Peak Gain 2.72 dBi 2485 MHz 2445 MHz 2400 MHz Coordinate Rev01 PCB antenna performance review(GradiANT) MODEL NAME WR23-GA REV. 01 Page 2 ● y z x 1.1 Radiation Pattern for WR23-GJ PCBA WR23_GA #01

TEST REPORT FCC/ISED BT LE Test for WR23GA Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2302-FI004-R1 DATE OF ISSUE March 9, 2023 Tested by Kyung Jun Woo Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 57 The report shall not be reproduced except in full(only partly) without approval of the laboratory. F-TP22-03 (Rev. 04) Page 2 of 57 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC/ISED BT LE Test for WR23GA REPORT NO. HCT-RF-2302-FI004-R1 DATE OF ISSUE March 09, 2023 Additional Model - ApplicantLG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Korea Eut Type Model Name Simple Remote WR23GA FCC ID IC BEJWR23GA 2703H-WR23GA Max. RF Output Power-0.402 dBm (0.91 mW) Modulation typeGFSK FCC ClassificationDigital Transmission System(DTS) FCC Rule Part(s) Part 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5_Amendment 2 (February 2021) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2302-FI004-R1 F-TP22-03 (Rev. 04) Page 3 of 57 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 February 10, 2023 Initial Release 1 March 09, 2023 Revised the Factory address. Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2302-FI004-R1 F-TP22-03 (Rev. 04) Page 4 of 57 CONTENTS 1. EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 EUT CONFIGURATION 6 EUT EXERCISE 6 GENERAL TEST PROCEDURES 6 DESCRIPTION OF TEST MODES 7 3. INSTRUMENT CALIBRATION 7 4. FACILITIES AND ACCREDITATIONS 7 FACILITIES 7 EQUIPMENT 7 5. ANTENNA REQUIREMENTS 8 6. MEASUREMENT UNCERTAINTY 9 7. DESCRIPTION OF TESTS 10 8. SUMMARY TEST OF RESULTS 28 9. TEST RESULT 30 9.1 DUTY CYCLE 30 9.2 6dB BANDWIDTH & 99 % BANDWIDTH 31 9.3 OUTPUT POWER 35 9.4 POWER SPECTRAL DENSITY 36 9.5 BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS 38 9.6 RADIATED SPURIOUS EMISSIONS 46 9.7 RADIATED RESTRICTED BAND EDGES 50 9.8 RECEIVER SPURIOUS EMISSIONS 52 10. LIST OF TEST EQUIPMENT 55 11. ANNEX A_ TEST SETUP PHOTO 57 Report No. HCT-RF-2302-FI004-R1 F-TP22-03 (Rev. 04) Page 5 of 57 1. EUT DESCRIPTION Model WR23GA Additional Model - EUT Type Simple Remote Power Supply DC 3.00 V Frequency Range 2 402 MHz ˊ 2 480 MHz Max. RF Output Power Peak 1M Bit/s : -0.402 dBm (0.91 mW) Average 1M Bit/s : -0.53 dBm (0.89 mW) Modulation Type GFSK Bluetooth Version 4.2 Number of Channels 40 Channels Antenna Specification Antenna type: PCB Antenna Peak Gain : 2.72 dBi Date(s) of Tests January 26, 2023 ~ February 10, 2023 PMN (Product Marketing Number) Simple Remote HVIN (Hardware Version Identification Number) WR23GA FVIN (Firmware Version Identification Number) 1.0.552.8 HMN (Host Marketing Name) N/A EUT serial numbers Radiated : #1-3 Conducted : #1-4 Factory 1. Hansung Electronics CO.,LTD. ·49-29, Cheomdangieop 4-ro, Sandong-myeon, Gumi-si, Gyeongsangbuk-do, Korea ·Jl. Rotan 1 Blok F27 No.37 A Kawasan Industri Lippo Cikarang, Desa Cicau, Kec. Cikarang Pusat, Bekasi, Jawa Barat, Indonesia 17530 2. OHSUNG Electronics CO.,LTD. ·No.188 Tunpu South Road, Qiushe Economic Development Zone, Tongli Town, Wujiang City, Jiangsu Province ·JI. Selayar Blok D7 Kawasan Industri MM 2100, Mekarwangi, Cikaran g Barat 17845 Jawa Barat, Indonesia Report No. HCT-RF-2302-FI004-R1 F-TP22-03 (Rev. 04) Page 6 of 57 2. TEST METHODOLOGY FCC KDB 558074 D01 15.247 Meas Guidance v05r02 dated April 02, 2019 entitled ˑguidance for compliance measurements on digital transmission system, frequency hopping spread spectrum system, and hybrid system devices and the measurement procedure described in ANSI C63.10(Version : 2013) ˎthe American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devicesˏ. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its speci…

Text truncated - open the document above for the full version.
