BEJX1241XGAMicrowave Oven

Advantium ™ Oven 3828W5A3556 164D3370P293 49-40363 06-03 JR SCB2000 SCB2001 Owner’s Manual www.GEAppliances.com http://geadvantium.com Advantium Advantium Quick Start . . . . . . . . .10 Cooking controls . . . . . . . . . . . . . .13 Customer information . . . . . . . . . . .8 Oven features . . . . . . . . . . . . . . . .12 What is Advantium? . . . . . . . . . . .9 Safety . . . . . . . . . . . . . . . . . . . .2–7 Speedcooking Cooking tips . . . . . . . . . . . . . . . .15 Custom speedcook recipes . . . . .18, 19 Custom speedcook recipe log . . . . . .20 Manual speedcook . . . . . . . . . . . .17 Power level . . . . . . . . . . . . . . . . . .16 Repeat last . . . . . . . . . . . . . . . . .15 Resume feature . . . . . . . . . . . . . . .15 Speedcook cookware . . . . . . . . . . . .17 Speedcook menu guide . . . . . . . . . .11 Speedcook-safe cookware . . . . . . . . . .5 Things that are normal . . . . . . . . .21 Using a pre-set speedcook menu . . . .14 Microwaving Cooking tips . . . . . . . . . . . . . . . .23 Custom microwave recipes . . . .24, 25 Custom microwave recipe log . . . . .24 Defrost (auto) . . . . . . . . . . . . . . . .26 Defrost (time) . . . . . . . . . . . . . . . .26 Defrosting tips . . . . . . . . . . . . . . .27 Micro Express . . . . . . . . . . . . .11, 23 Microwave power levels . . . . . . . . .23 Microwave-safe cookware . . . . . . . . .6 Precautions to avoid possible exposure to excessive microwave energy . . . . . . . . . . . . . .2 Sensor cooking . . . . . . . . . . . .28, 29 Things that are normal . . . . . . . . .30 Time cook . . . . . . . . . . . . . . . . . .23 Using pre-set microwave selections . .22 Other Features Automatic fan . . . . . . . . . . . . . . .34 Beeper volume . . . . . . . . . . . . . . .32 Child lockout . . . . . . . . . . . . . . . .34 Clock . . . . . . . . . . . . . . . . . . .10, 32 Display ON/OFF . . . . . . . . . . . . .32 Help . . . . . . . . . . . . . . . . . . . . . .33 Review . . . . . . . . . . . . . . . . . . . .32 Scroll speed . . . . . . . . . . . . . . . . .32 Timer . . . . . . . . . . . . . . . . . . . . .34 Care and Cleaning Cleaning the inside . . . . . . . . .35, 36 Cleaning the outside . . . . . . . . . . .37 Lamp covers . . . . . . . . . . . . . . . .36 Troubleshooting Problem Solver . . . . . . . . . . . .38, 39 Customer Service Customer information . . . . . . . . . . .8 Product Registration . . . . . . . .41, 42 Service phone numbers . . . .Back Cover Warranty . . . . . . . . . . . . . . . . . .43 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a)Do Not Attemptto operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b)Do Not Placeany object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c)Do Not Operatethe oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d)The Oven Should Notbe adjusted or repaired by anyone except properly qualified service personnel. Advantium Oven IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. When using electrical appliances, basic safety precautions should be followed, including the following: Read and follow the specific precautions in the PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYsection on page 2. Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the provided installation instructions. Install or locate this appliance only in accordance with the provided installation instructions. Some products such as whole eggs and sealed containers—for example, closed jars—are able to explode and should not be heated in this oven. Such use of the oven could result in injury. Do not mount this appliance over a sink. This oven is not approved or tested for marine use. This oven is UL listed for standard wall installation. Do not operate this appliance if it has been damaged or dropped. As with any appliance, close supervision is necessary when used by children. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use. This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment. Do not cover or block any openings on the appliance. Do not store this appliance outdoors. Do not use this product near water— for example, in a wet basement, near a swimming pool, near a sink or in similar locations. See door surface cleaning instructions in the Care and Cleaning of the Ovensection of this manual. To reduce the risk of fire in the oven cavity: —Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking. —Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven. —Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use. —If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. —Do not use the Sensor Features twice in succession on the same food portion. If food is undercooked after the first countdown, use TIME COOK for additional cooking time. 3 WARNING! SAFETY PRECAUTIONS To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: A…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M096 6660-B Dobbin Road Date: April 20, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJX1241XGA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJX1241XGA 2. Application Model no.: MZ-1246MG (RF Power Output – IEC705: 950 W) 3. Magnetron: 2M248J (Toshiba Hokuto Electronics Corp.) 4. Applied model is for household use. We have performed all tests using model MZ-1246MG with Magnetron (2M248J, Toshiba) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M096 Authorization and Standards Branch Date: April 20, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJX1241XGA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJX1241XGA 2. Application Model no.: MZ-1246MG (RF Power Output – IEC705: 950 W) 3. Magnetron: 2M248J (Toshiba Hokuto Electronics Corp.) 4. Applied model is for household use. We have performed all tests using model MZ-1246MG with Magnetron (2M248J, Toshiba) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 19 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120/240 V 27.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJX1241XGA MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MZ-1246MG CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 24 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 25 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA

Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 20 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA APPENDIX C. Block Diagram / Schematics Door Sensing Switch (Left) U.B.M T.C.O (MGT) PRIMARY INTERLOCK SWITCH UPPER HEATER -OUTER LOWER HEATER L.B.M F.M. H.V.D H.V.C MGT L1 L2 MONITOR SWITCH ● N Door is opened. U.B.M : Upper Blower Motor (for Upper Heater) L.B.M : Lower Blower Motor (for Lower Heater) O.L.R : Oven Lamp Right O.L.L : Oven Lamp Left F.M : Fan Motor(for MGT) V.C.T: Voltage Compensation Transformer RY10 RY21 RY17 RY2 LOWER HEATER T.C.O O.L.L GND ● ● RY22 TRIAC3 ● POWER TRANS ● RY16 ● RY19 UPPER HEATER -CENTER TRIAC 2 TRIAC 1 H.V.T E.M : Exhaust Motor T.T.M : Turn Table Motor D.M : Damper Motor T.C.O : Thermal Cut Off MGT : Magnetron H.V.T : High Voltage Transformer H.V.D : High Voltage Diode H.V.C : High Voltage Capacitor ● RY20 ● Micro Computer VCT D.M ● ● RY6 ● Damper Sensing Switch THERMAL FUSE 10A O.L.R Door Sensing Switch (Right) RY18 134 RY12 ● E.M RY13 (COM) LOW HIGH T.T.M RY1 ● ● T.C.O (OVEN) Thermistor RsRc Humidity Sensor RY23 ● ● T . C . O UPPER HEATER -OUTER T . C . O UPPER HEATER -CENTER ● L FUSE 20A N ● ● ● ● ●● <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 20, 2005 Test Report No: 05-LAE-M096 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M248J (Toshiba Hokuto Electronics Corp.) Brand Name(s): LG or GE Model No.: MZ-1246MG FCC ID: BEJX1241XGA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 1 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MZ-1246MG FCC ID: BEJX1241XGA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: April 19, 2005 – April 19, 2005 Date of Issue: April 20, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 2 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT ACCORDING TO MP5. .......................................................................... 10 7.3 RF P OWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705.................................................................. 11 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 12 7.5 P OWER D ENSITY S AFETY C HECK .................................................................................................................. 13 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGAR…

Text truncated - open the document above for the full version.

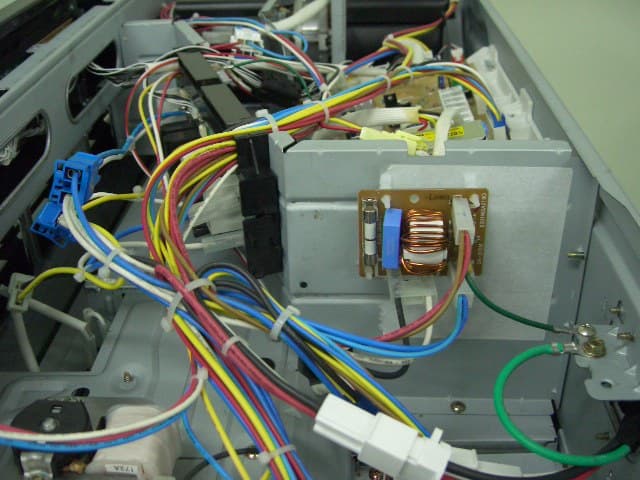

Test Report No.: 05-LAE-M096 FCC Part 18 (ISM) Test Date: April 20, 2005 Certification 21 / 26 LG Electronics Inc. FCC ID: BEJX1241XGA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
