LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 10-EMUS-0060 6660-B Dobbin Road Date: March 29, 2010 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJX178NSB Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJX178NSB 2. Application Model no.: MX1788VSDL (RF Power Output – IEC705: 900 W) 3. Magnetron: 2M246 (LG) 4. Applied model is for household use. We have performed all tests using model MX1788VSDL with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Joon-Ho, Park at LG Electronics Q&R Center or Mr. JC Lee at LG Electronics New Jersey office. Best regards, Kim Dae Woong, Chief Research Engineer Joon-Ho, Park, General Manager Home Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-02-526-4157 LG Electronics Inc.

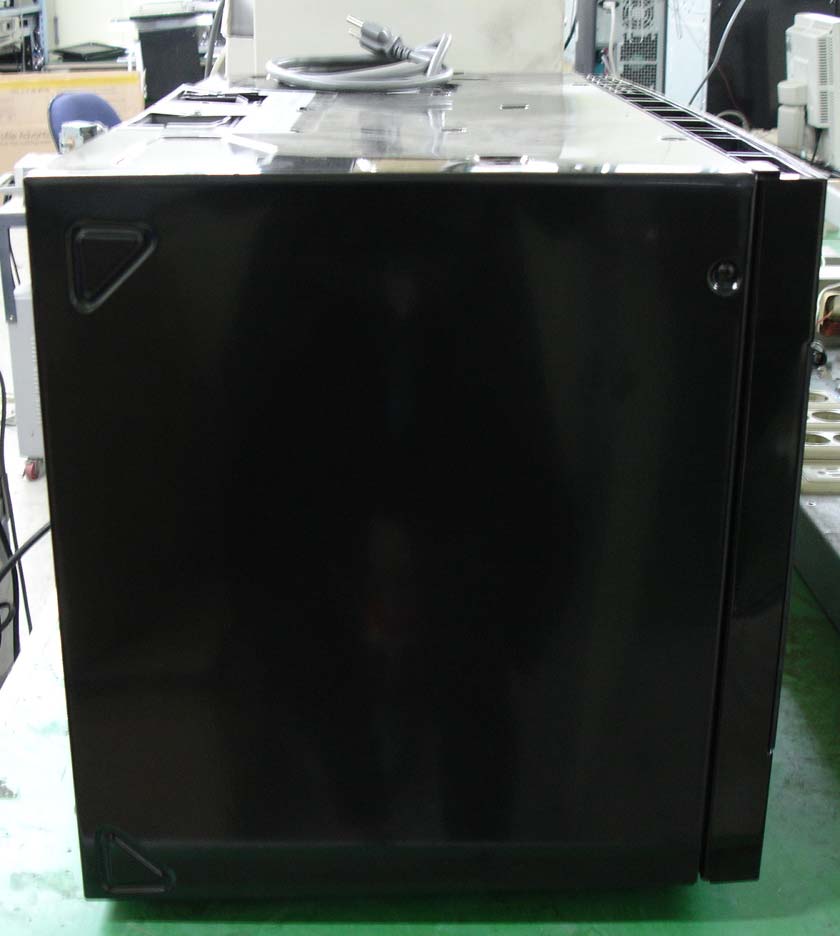

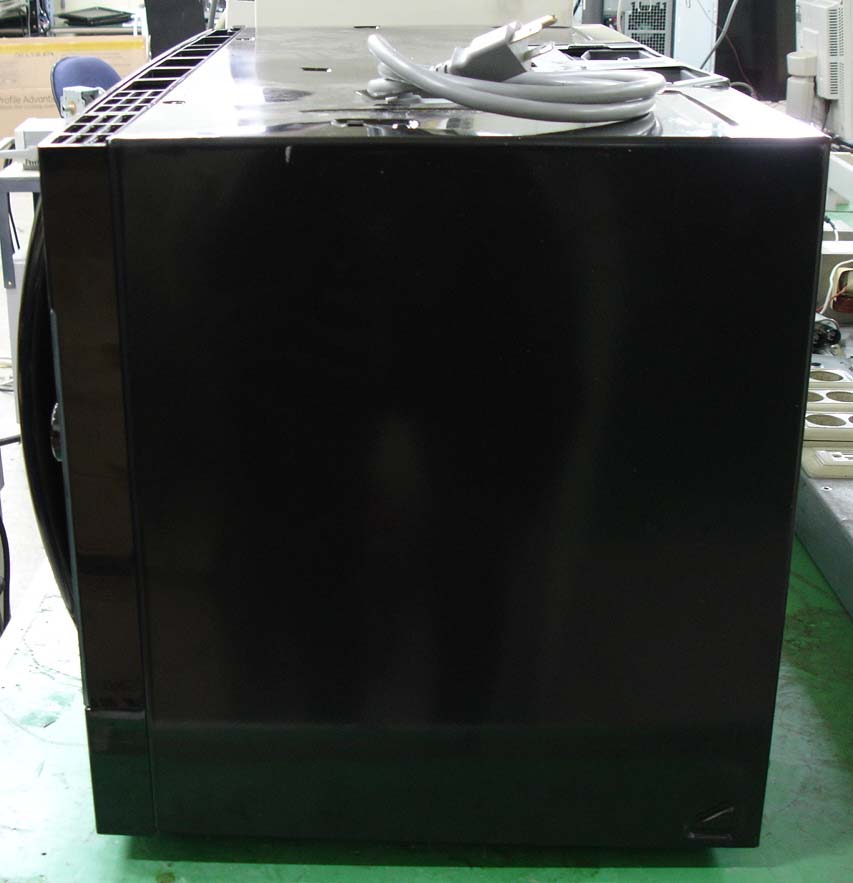

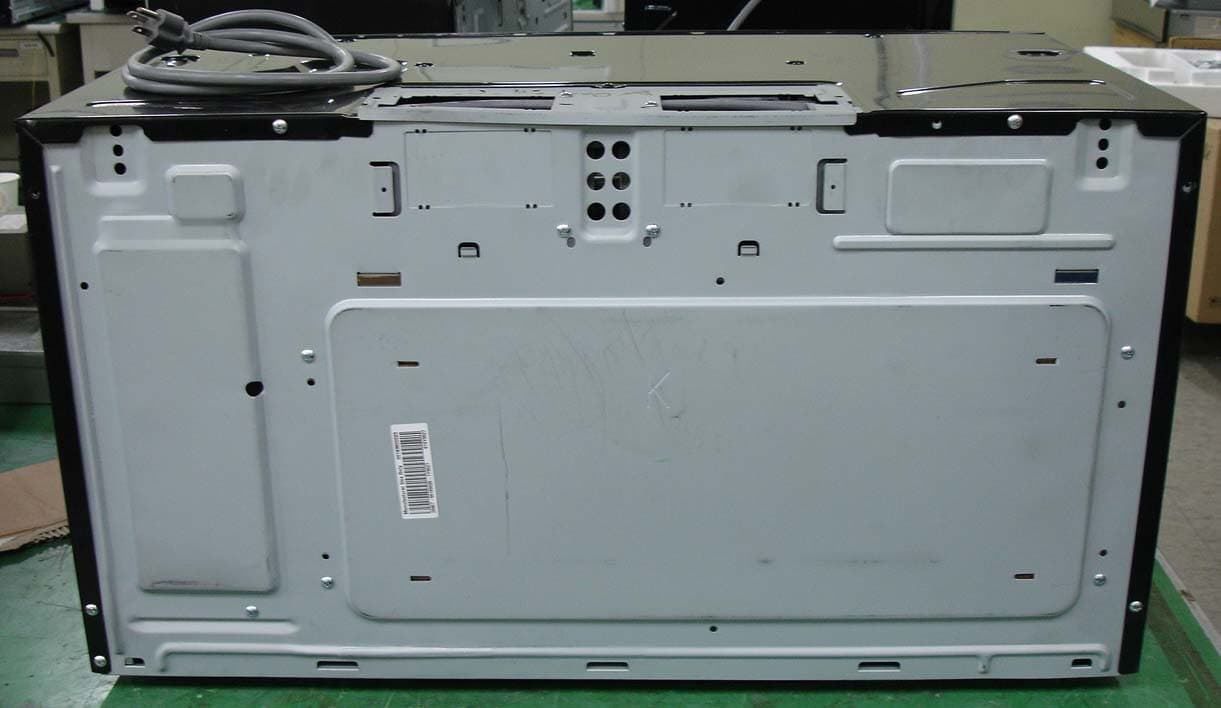

Front View Rear View Top View Bottom View Right Side View Left Side View

Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 19 / 27 LG Electronics Inc. FCC ID: BEJX178NSB APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. MX1788VSDL BEJX178NSB MX1788VSDL BEJX178NSB <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 24 / 27 LG Electronics Inc. FCC ID: BEJX178NSB Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 25 / 27 LG Electronics Inc. FCC ID: BEJX178NSB Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 26 / 27 LG Electronics Inc. FCC ID: BEJX178NSB

Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 3 / 27 LG Electronics Inc. FCC ID: BEJX178NSB 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Cooking Appliances Division (Manufacturer) 391-2, Ga Eum Jeong - Dong, Changwon City, Gyeong Nam, 641-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact:Jan g Sup Lee Telephone: +82-551-260-3463 Fax: +82-551-260-3223 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: MX1788VSDL Brand name: LG or GE Serial number: N/A Magnetron: 2M246 by LG RF Frequency: 2,450 ± 50 MHz RF Power Output (IEC 705): 900 W Power Consumption Microwave Mode: 1650 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 13.9 A Cavity Volume: 1.7 Cu.ft Oven Type: Countertop / Household Mode Stirrer: Turntable and Stirrer Power Cord: Shielded Outer Dimensions (inch) 29.9 (W) * 16.9 (H) * 15.7 (D) EMI suppression device(s) installed in production: See schematics (Appendix C) EMI suppression device(s) added and/or modified during test: None

Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 20 / 27 LG Electronics Inc. FCC ID: BEJX178NSB APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Home Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: March 29, 2010 Test Report No: 10-EMUS-0060 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246 (LG) Brand Name(s): LG or GE Model No.: MX1788VSDL FCC ID: BEJX178NSB This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kim Dae Woong/ Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 1 / 27 LG Electronics Inc. FCC ID: BEJX178NSB REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MX1788VSDL FCC ID: BEJX178NSB Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: March 18, 2010 – March 24, 2010 Date of Issue: March 29, 2010 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibilities to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kim Tae Yul / Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Son Kwang Mu / Senior Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 2 / 27 LG Electronics Inc. FCC ID: BEJX178NSB CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS..................................................................................... 4 5.2 RADIATED EMISSIONS MEASUREMENT............................................................................................................. 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 INPUT POWER................................................................................................................................................ 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5........................................................................... 10 7.3 RF POWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705. ................................................................. 11 7.4 FREQUENCY MEASUREMENTS........................................................................................................................ 12 7.5 POWER DENSITY SAFETY CHECK.................................................................................................................. 13 7.6 CONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 RADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION .............................…

Text truncated - open the document above for the full version.

Test Report No.: 10-EMUS-0060 FCC Part 18 (ISM) Test Date: March 18, 2010 Certification 21 / 27 LG Electronics Inc. FCC ID: BEJX178NSB APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
