BOU-HTL5110SOUNDBAR SPEAKER

www.philips.com/welcome User manual Always there to help you Register your product and get support at Question? Contact Philips 1EN Contents 1 Important 2 Help and support 2 Important safety instructions 2 Care for your product 4 Care of the environment 4 2 Your SoundBar 5 Main unit 5 Remote control 5 Connectors 7 3 Connect and set up 8 Subwoofer 8 Connect audio from TV and other devices 9 4 Use your SoundBar 10 Adjust the volume 10 Choose your sound 10 MP3 player 11 USB storage devices 11 Play audio through Bluetooth 11 Auto standby 12 Apply factory settings 12 5 Wall mount 13 6 Product specifications 14 7 Troubleshooting 15 8 Notice 16 Notice of compliance 16 Trademarks 16 23ENEN • Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries (old and new or carbon and alkaline, etc.). • Remove batteries when the unit is not used for a long time. • The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. • Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate. • The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion. • If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. • When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery. • If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. •Apparatus shall not be exposed to dripping or splashing. •Do not place any sources of danger on the apparatus (for example. liquid filled objects, lighted candles). •This apparatus may contain lead and mercury. Dispose according to local, State or Federal laws. For disposal or recycling information, please contact your local authorities. For additional assistance on recycling options, please contact www. mygreenelectronics.com or www.eiae.org or www.recycle.philips.com. •Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. •Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death. • This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches (20cm) or more around this apparatus. Class II equipment symbol This symbol indicates that the unit has a double insulation system. This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. 1 Important Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply. Help and support Philips provides extensive online support. Visit our website at www.philips.com/support to: • download the user manual and the quick start guide • watch video tutorials (available only for selected models) • find answers to frequently answered questions (FAQs) • email us a question • chat with our support representative. Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Philips Consumer Care in your country. Before you contact Philips, note down the model number and serial number of your product. You can find this information on the back or bottom of your product. Important safety instructions •Read these instructions. •Keep these instructions. •Heed all warnings. •Follow all instructions. •Do not use this apparatus near water. •Clean only with dry cloth. •Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. •Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. •Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. •Only use attachments/accessories specified by the manufacturer. •Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. •Unplug this apparatus during lightning storm or when unused for long periods of time. •Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the appar…

Text truncated - open the document above for the full version.

SOUNDBAR SPEAKER

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Philips Consumer Lifestyle 2013/03/26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Philips Consumer Lifestyle hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Equipment: SOUNDBAR SPEAKER Model No.: HTL5110/F7 (with Subwoofer, model: SW5110/F7) FCC ID: BOU- HTL5110 We affirm that between SIEMIC and Philips Consumer Lifestyle, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Maria Lei / Quality Account Lead Philips Consumer Lifestyle / 5/F, Philips Electronics Building, 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong

Attestation for FCC Declaration of Conformity FCC ID: BOU-HTL5110 Date: Mar 26, 2013 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFV1302096. Testing in regards to this report was done by Cerpass technology Coporation, located at No.68-1, Shihbachongsi, Shihding Township, Taipei City 223, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Maria Lei / Quality Account Lead Philips Consumer Lifestyle / 5/F, Philips Electronics Building, 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Philips Consumer Lifestyle 2013/03/26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: BOU-HTL5110 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Maria Lei / Quality Account Lead Philips Consumer Lifestyle / 5/F, Philips Electronics Building, 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong

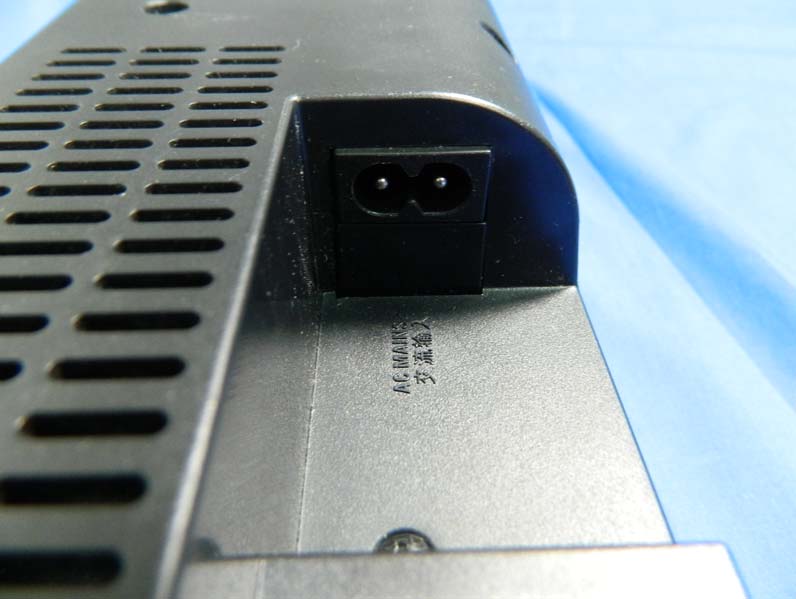

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo 6) EUT Photo

AC MAINS ~ Recess engraving 67 09585 23092 87±1mm 1

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 9 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 9 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 9 5) EUT Photo 6) EUT Photo(module) Antenna CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 9 7) EUT Photo 8) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 9 9) EUT Photo 10) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 6 of 9 11) EUT Photo 12) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 7 of 9 13) EUT Photo 14) EUT Photo 15) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 8 of 9 16) 17) 18) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 9 of 9

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT SOUNDBAR SPEAKER Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power GFSK:-0.33dBm(0.927mW) 8DPSK:-0.45dBm(0.902mW) Antenna gain (Max) 1.13 dBi (Numeric gain:1.297 ) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is -0.33 dBm (0.927mW) at 2441 MHz (withnumeric 1.297 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096-A Cerpass Technology Corp. Issued date : Mar 25,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) GFSK 2402-2480 -0.33 1.13 20 0.0002 1 8DPSK 2402-2480 -0.45 1.13 20 0.0002 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFI1302096-A Cerpass Technology (Suzhou) Co., Ltd Issued Date : Mar 25, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 49 FCC ID : BOU-HTL5110 FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : EASTECH ELECTRONICS (HK) LTD Address : UNIT 1703-7 17/F HEWLETT CENTRE 54 HOI YUEN ROAD KOWLOON, HONG KONG Equipment : SOUNDBAR SPEAKER Model No. : HTL5110/F7 Trade Name : PHILIPS FCC ID : BOU-HTL5110 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology (Suzhou) Co.,Ltd. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Rules and Regulations Part 15. The test report has been issued separately. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFI1302096-A Cerpass Technology (Suzhou) Co., Ltd Issued Date : Mar 25, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 49 FCC ID : BOU-HTL5110 Contents 1. Report of Measurements and Examinations ................................................................................... 6 1.1 List of Measurements and Examinations .................................................................................. 6 2. Test Configuration of Equipment under Test .................................................................................. 7 2.1 Feature of Equipment under Test .............................................................................................. 7 2.2 Carrier Frequency of Channels ................................................................................................. 7 2.3 Test Mode & Test Software ........................................................................................................ 8 2.4 Description of Test System ........................................................................................................ 8 2.5 General Information of Test ....................................................................................................... 9 2.6 Measurement Uncertainty .........................................................................................................9 3. Antenna Requirements .................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................ 10 4. Test of Conducted Emission ............................................................................................................11 4.1 Test Limit...................................................................................................................................11 4.2 Test Procedures........................................................................................................................11 4.3 Typical Test Setup.................................................................................................................... 12 4.4 Measurement equipment......................................................................................................... 12 4.5 Test Result and Data ............................................................................................................... 13 5. Test of Radiated Emission............................................................................................................... 15 5.1 Test Limit.................................................................................................................................. 15 5.2 Test Procedures ...................................................................................................................... 16 5.3 Typical Test Setup ................................................................................................................... 16 5.4 Measurement equipment......................................................................................................... 17 5.5 Test Result and Data ............................................................................................................... 18 6. 20dB Bandwidth Measurement Data .............................................................................................. 25 6.1 Test Limit.................................................................................................................................. 25 6.2 Test Procedures....................................................................................................................... 25 6.3 Test Setup Layout .................................................................................................................... 25 6.4 Measurement equipment......................................................................................................... 25 6.5 Test Result and Data ............................................................................................................... 25 7. Frequencies Separation................................................................................................................... 29 7.1 Test Limit.................................................................................................................................. 29 7.2 Test Procedures....................................................................................................................... 29 7.3 Test Setup Layout ..................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096 Cerpass Technology Corp. Issued date : Mar 22,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096 Cerpass Technology Corp. Issued date : Mar 22,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1302096 Cerpass Technology Corp. Issued date : Mar 22,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
