BOUAJT600Alarm clock with Bluethooth

www.philips.com/welcome User manual Always there to help you Register your product and get support at AJT600/37 Question? Contact Philips 1EN Contents 1 Important 2 2 Your Bluetooth speaker 3 What's in the box 3 Overview of the main unit 4 3 Get started 6 Connect power 6 Set time 6 Turn on 7 4 Play from Bluetooth device 8 Bluetooth reset 8 5 Play audio from an external device 9 6 Other features 10 Set alarm timer 10 Set sleep timer 10 Adjust display brightness 11 7 Product information 12 Specifications 12 8 Troubleshooting 13 9 Notice 14 2EN 1 Important safety instruction a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. i Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. j Only use attachments/accessories specified by the manufacturer. k Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. l Unplug this apparatus during lightning storms or when unused for long periods of time. m Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. n Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: • Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries (old and new or carbon and alkaline, etc.). • Remove batteries when the unit is not used for a long time. • The battery (battery or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. o Apparatus shall not be exposed to dripping or splashing. p Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). q This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. r Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the disconnect device shall remain readily operable. 3EN Warning •Never remove the casing of this Bluetooth speaker. •Never place this Bluetooth speaker on other electrical equipment. •Keep this Bluetooth speaker away from direct sunlight, naked flames or heat. •To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. •Ensure that you always have easy access to the power cord, plug or adapter to disconnect this Bluetooth speaker from the power. 2 Your Bluetooth speaker Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. What's in the box AJW600 Short User Manual www.philips.com/welcome Always there to help you Register your product and get support at Question? Contact Philips 4EN Overview of the main unit a SOURCE (Bluetooth/ AUDIO IN) • Select a source. • Press repeatedly to switch to standby mode. b SLEEP • Set sleep timer. c SNOOZE/BRIGHTNESS • Snooze alarm. • Adjust display brightness. d Display panel • Show current information. e AL1/AL2 • Activate or deactivate alarm timer. f VOLUME +/- a b c d j e f g h i k l m N I O I D U A • Adjust volume. g First Knob (HOUR) • Adjust hour. h Second Knob (MINUTE) • Adjust minute. i Third Knob (CLOCK/SET TIME/SET AL1/ SET AL2) • Set clock. • Set alarm. j BUZZ/SOUND 1/SOUND 2 • Select an alarm source for Alarm 1 and Alarm 2. k 5EN • Charge your devices through USB cable (not included). l AUDIO IN • Connect an external audio device. 3 Get started Always follow the instructions in this chapter in sequence. Connect power The unit can only be powered by supplied AC power. Batteries are only used for time and alarm backup if not connected with AC power. Option 1: AC power Warning •Risk of product damage! Make sure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit. •Risk of electric shock! When you disconnect the AC power, always pull the plug from the socket. Never pull the cord. Connect the AC power cord to the wall socket. Tip •To save energy, turn the unit off after use. 6EN Option 2: Battery power Caution •Batteries contain chemical substances, so they should be disposed of properly. Note •Batteries are not supplied with the accessories. •bAt shows on the display when the battery level is low. 1 Open the battery compartment. 2 Insert 2 batteries (type: 1.5V LR6/AA) with correct polarity (+/-) as indicated. 3 Close the battery compartment. Set time 1 Rotate the Third Knob to "SET TIME" to activate clock setting mode. »Hour and minute digits blinks. 2 Rotate the First Knob to adjust the hour. 3 Rotate the Second Knob to adjust the minute. 4 Press OK on the First Knob to confirm. »The setting time is displayed. 5 Rotate the Third Knob to CLOCK after setting. »The hour and minute digits stops blinking. Turn on The Bluetooth speaker turns on automatically once your plugged in. 7EN 4 Play from Bluetooth device Note •The effective operation range between the Bluetooth speaker and the paired device is approximately 10 meters (30 feet). •Keep this Bluetooth speaker away from other electronic devices t…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: _2013-6- 20_ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___19 August, 2013_____ By: ______________________________ _ Benson Lai___ (Signature 1 ) (Print name) Tit le: Lead Engineer, Safety & Compliance On behalf of: __ Philips Consumer Lifestyle _ (Company Name) Telephone: ___852-2489-4406____ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Request for Confidentiality Date: _2013-06-20 _ Subject: Confidentiality Request for: ____ FCC ID: B OUAJT600_____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Philips Consumer Lifestyle_ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __180_ _ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _______________________________ __Benson Lai_ (Signature) (Print name) Title: Lead Engineer, Safety & compliance 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-B ut-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

To : SGS-CSTC Standards Technical Services Co., Ltd. Model Confirmation Letter We , (Philips Consumer Lifestyle) certify the product: Alarm clock with Bluetooth and item No.: AJT600x/zz ("x" can be A-Z or blank, stands for different cabinet colour; "/zz" can be /00 to /99, stands for different country), Their electrical circuit design, layout, components used and internal wiring are identical, Only the Item number and cabinet colour is different for trading purpose. Agency Agreement Expiration Date: __ 19 August, 2013_____ By: ________________________________ ___ Benson Lai ___ (Signature) (Print name) Title: Lead Engineer, Safety & Compliance On behalf of: Philips Consumer Lifestyle (Company Name) Telephone: ____852-2489 4406_____________

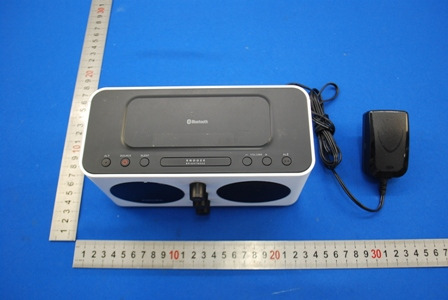

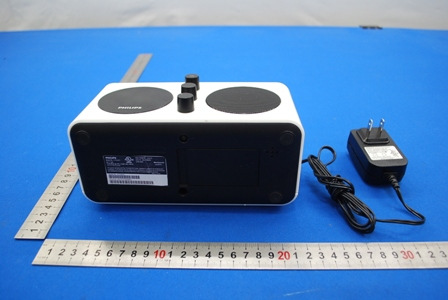

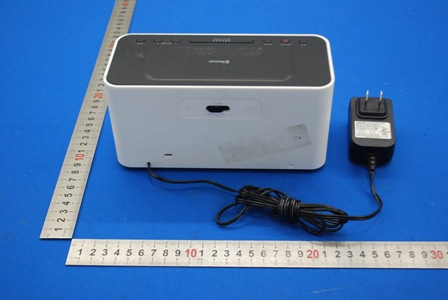

1 Photographs - EUT Constructional Details (Test Model No.: AJT600/37) Adapter

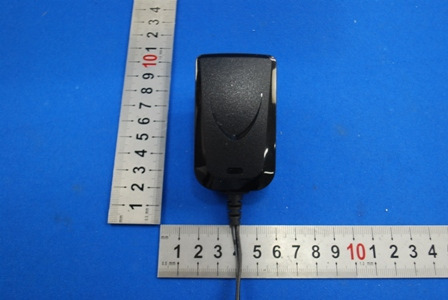

1 Photographs - EUT Constructional Details (Test Model No.: AJT600/37) Adapter

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130600312602 Page: 1 of 6 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page RF Exposure Evaluation Report Application No: SZEM1306003126AV Applicant: Philips Consumer Lifestyle Manufacturer: Philips Electronics Hong Kong Limited Factory: Dongguan Homania Electronic Products Co., Ltd. Product Name: Alarm clock with Bluetooth Model No.(EUT): AJT600/37 Add Model No.: AJT600x/zz ("x" can be A-Z or blank, stands for different cabinet colour, "zz" can be 00 to 99, stands for different country) except of AJT600/37 FCC ID: BOUAJT600 Standards: 47 CFR Part 1.1307(2012) 47 CFR Part 1.1310(2012) Date of Receipt: 2013-06-18 Date of Test: 2013-06-24 to2013-07-01 Date of Issue: 2013-07-10 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130600312602 Page: 2 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE ..................................................................................................................................................... 1 2 CONTENTS ......................................................................................................................................................... 2 3 GENERAL INFORMATION ................................................................................................................................ 3 3.1 CLIENT INFORMATION ......................................................................................................................................... 3 3.2 GENERAL DESCRIPTION OF EUT .......................................................................................................................... 3 3.3 TEST LOCATION .................................................................................................................................................. 4 3.4 TEST FACILITY.................................................................................................................................................... 4 3.5 DEVIATION FROM STANDARDS ............................................................................................................................. 4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................... 4 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER .................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130600312601 Page : 1 of 74 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1306003126AV Applicant: Philips Consumer Lifestyle Manufacturer: Philips Electronics Hong Kong Limited Factory: Dongguan Homania Electronic Products Co., Ltd. Product Name: Alarm clock with Bluetooth Model No.(EUT): AJT600/37 Add Model No.: AJT600x/zz ("x" can be A-Z or blank, stands for different cabinet colour, "zz" can be 00 to 99, stands for different country) except of AJT600/37 FCC ID: BOUAJT600 Standards: 47 CFR Part 15, Subpart C (2012) Date of Receipt: 2013-06-18 Date of Test: 2013-06-24 to2013-07-01 Date of Issue: 2013-07-10 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130600312601 Page : 2 of 74 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: AJT600x/zz ("x" can be A-Z or blank, stands for different cabinet colour, "zz" can be 00 to 99, stands for different country) Only the model AJT600/37 was tested, since the electrical circuit design, layout, components used and internal wiring were identical for all abov…

Text truncated - open the document above for the full version.

1 Photographs- EUT Test Setup (Test Model No.: AJT600/37) 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
