BOUB120NWireless HD Baby Monitor

Warning •Strangulation Hazard - Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft.(0.9 m) away). Do not remove this tag. Compliance FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set for th for an uncontrolled en vironment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. IEEE 802.11b, 802.11g or 802.11n operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Warning: 1) Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. 2) The manufacturer is not responsible for any r adio or TV interference caused by unauthoriz ed modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Model number: B120/37 Trade Name: Philips Responsible Par ty: Philips, P .O . Box 10313 Stamford, CT 06904 Notice for the USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Howev er , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The set complies with the FCC-Rules, P ar t-15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. Notice for Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est confor me aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Note •The type plate is located on the bottom of the product. In the product, the Wi-Fi connectivity can be interrupted by electromagnetic or other interferences. In this case, the Wi- Fi connectivity resumes three minutes after the interferences disappear, and the system returns to normal. Care of the envir onment Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buff er) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, and old equipment. Recycling the product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inf or m yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional infor mation on a recycling center in your area. Notice Disclaimer • If you are on a remote Wi-Fi network or 3G connection, 10 seconds to 15 seconds delay in video and audio streaming to your smartphone can occur. Your use of Philips In.Sight, which is provided by Yoics Inc., is at your sole risk. Koninklijke Philips Electronics N.V. and its subsidiary companies (individually and collectively “Philips”) are not responsible for the operation of such Philips In.Sight or your use thereof and Philips shall have no liability to you related thereto. Written Offer Philips Electronics Hong Kong Ltd. hereby offer s to deliver , upon request, a copy of the complete corresponding source code for the copyr ighted open source software packages used in this product for which such offer is requested by the respective licenses. This offer is valid up to three years after product purchase to an yone in receipt of this infor mation. To obtain source code, please contact [email protected]. If you prefer not to use email or if you do not receive confirmation receipt within a week after mailing to this email address, please write to "Open Source Team, Philips Intellectual Property & Standards, P .O . Box 220, 5600 AE Eindhoven, The Netherlands." If you do not receive timely confirmation of your letter, please email to the email address above. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips …

Text truncated - open the document above for the full version.

B120 Wireless HD Baby Monitor Switch to the list of monitors Accès à la liste des écoute-bébés Cambia a la lista de monitores Appuyez deux fois sur pour effectuer un zoom avant ou arrière. Tóquelo dos veces para acercar o alejar la imagen. Faites glisser votre doigt sur l'écran pour vous déplacer dans l'image. Arrástrelo para desplazarse por el vídeo. Appuyez pour afficher la barre d'options. Tóquelo para mostrar la barra de opciones. Appuyez sur On (Marche) pour activer le mode de vision nocturne. Toque On (Encendido) para activar la visión nocturna. Le mode de vision nocturne se désactive automatiquement 10 minutes après avoir été activé. La visión nocturna se apagará automáticamente después de 10 minutos EN Go to the list of monitors. Tap Add. Follow the onscreen instructions to complete the first-time setup. | FR Accédez à la liste des écoute-bébés. Appuyez sur Add (Ajouter). Suivez les instructions à l'écran pour terminer la configuration initiale. | ES Acceda a la lista de monitores. Toque Add (Añadir). Siga las instrucciones que aparecen en la pantalla para finalizar la configuración inicial. EN 1 . On your iPhone or iPad, download the Philips In.Sight application from AppStore. 2. Create and log in to your account. | FR 1.Sur votre iPhone, téléchargez l'application Philips In.Sight depuis l'AppStore. 2 . Créez un compte et connectez-vous à votre compte. | ES 1.En el teléfono iPhone, descargue la aplicación Philips In.Sight de App Store. 2 . Cree una cuenta e inicie sesión. EN Connect the B120 monitor to the same Wi-Fi network as your phone by following the onscreen instructions. | FR Connectez l'écoute-bébé B120 au même réseau Wi-Fi que votre téléphone en suivant les instructions à l'écran. | ES Conecte el monitor B120 a la misma red Wi-Fi que el teléfono siguiendo las instrucciones en pantalla. EN As instructed on the screen, put the QR code image in front of the lens of the monitor. Follow the onscreen instructions to complete the setup. The green light is always on when the connection is complete. | FR Comme indiqué à l'écran, placez l'image du code QR devant l'objectif de l'écoute-bébé. Suivez les instructions à l'écran pour terminer la configuration. Le voyant vert est toujours allumé une fois la connexion établie. | ES Como se indica en la pantalla, coloque la imagen del código QR frente a la lente del monitor. Para finalizar la configuración, siga las instrucciones que aparecen en la pantalla. El piloto verde permanece encendido cuando se completa la conexión. EN Connect the B120 monitor to power. Wait until the amber light flashes. | FR Branchez l'écoute-bébé B120 sur le secteur. Attendez que le voyant orange clignote. | ES Conecte el monitor B120 a la aliment- ación. Espere a que el piloto parpadee en ámbar. + In.Sight Talk backFonction de réponse à bébéCómo hablar Add more monitors Ajout d'écoute-bébés supplémentairesAdición de más monitores Night visionVision nocturneVisión nocturna Tap to show the options bar. Tap On to switch the night vision on. After the night vision is on for 10 minutes, it switches off automatically. Watch the videoVoir la vidéoVer el vídeo Double tap to zoom in or out.Drag to pan through the video. Voyant indiquant la puissance du signal Vert : fort Jaune : faible Rouge : déconnecté Indicator of connectivity strength Green: Strong Yellow: Weak Red: Disconnected Indicador de intensidad de la conexión Verde: intensa Amarillo: débil Rojo: desconectado Take photosPrise de photosTomar fotos Enregistrement de vidéos Record videos Grabar vídeos Appuyez sur ce bouton pour parler du côté du B120. Appuyez à nouveau pour quitter. Tap to talk to the side of B120 monitor. Tap again to exit. Tóquelo para hablar en el lateral del monitor B120. Tóquelo de nuevo para salir. Activation ou désactivation du mode de vision nocturne Switch the night vision on or off Activa o desactiva la visión nocturna Switch the speaker on or off when your mobile phone goes to the standby mode Activation ou désactivation du haut-parleur lorsque votre téléphone portable passe en mode veille Activa o desactiva el altavoz cuando el teléfono móvil está en modo de espera Température et humidité actuelles Current temperature and humidity Temperatura y humedad actuales EN Mount on the stand FR Montage sur le support ES Montaje en el soporteMount on walls Montage au mur Montaje en la pared Light sensorSensor de luz Capteur de luminosité IR image sensor/ Night vision Sensor de imagen de infrarrojos Capteur d'image infrarouge LensObjectifLente MicrophoneMicrophoneMicrófono Status LEDVoyant d'étatIndicador LED de estado Temperature and humidity sensor Capteur de température et d'humidité Sensor de humedad y temperatura USB connector for USB power adapter Connecteur USB pour adaptateur USB Conector USB para adaptador de alimentación USB Next Auto On Add 3G4G Watch or listen to your baby First-time setup Configuration initialeConfiguración inicial www.philips.com/welcome Always there to help you Register your product and get support at Reset ENUser Manual Mode d'emploi FR ESManual del usuario EN FR ES EN FR ES EN FR ES EN FR ES EN FR ES EN FR ES EN FR EN FR ES ES EN FR ES EN FR ES EN FR ES EN EN FR FR ES ES EN FR ES www. philips.com/insightwebview EN Through the Philips In.Sight application, you can watch or listen to your baby on an iPhone or iPad. Make sure that you have connected your iPhone or iPad to Wi-Fi or 3G/ 4G mobile network. With 3G/ 4G usage, data charge from the operator can occur. To watch or listen to your baby through web browser, go to www. philips.com/insightwebview. L'application Philips In.Sight vous permet de regarder ou d'écouter votre bébé depuis un iPhone ou un iPad. Vérifiez que votre iPhone ou votre iPad est connecté au réseau Wi-Fi ou au réseau mobile 3G/4G. Si vous utilisez un réseau 3G/4G, des frais de transfert de données sont susceptibles d'être facturés par votre opérateur. Pour regarder ou écouter votre bébé via un navigateur Web, rendez-vous à l'adresse www. p…

Text truncated - open the document above for the full version.

Date (2013-09-29) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: BOUB120N Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Philips Electronics Hong Kong Limited / 5/F., Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operate Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Benson Lai Telephone Number: +852 2489-4406 Email: [email protected]

Agents letter (for TCB – TCB approval): Date (2013-09-29) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, Philips Consumer Lifestyle / 5/F, Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong, hereby authorize John Zhi (TUV SUD China Shenzhen Branch, Address: 4th Floor, E Hall,Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048 P.R. China), to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (2013-11-03) Sincerely, Company Officer: Benson.Lai Telephone Number: +852 2489-4406 Email: [email protected]

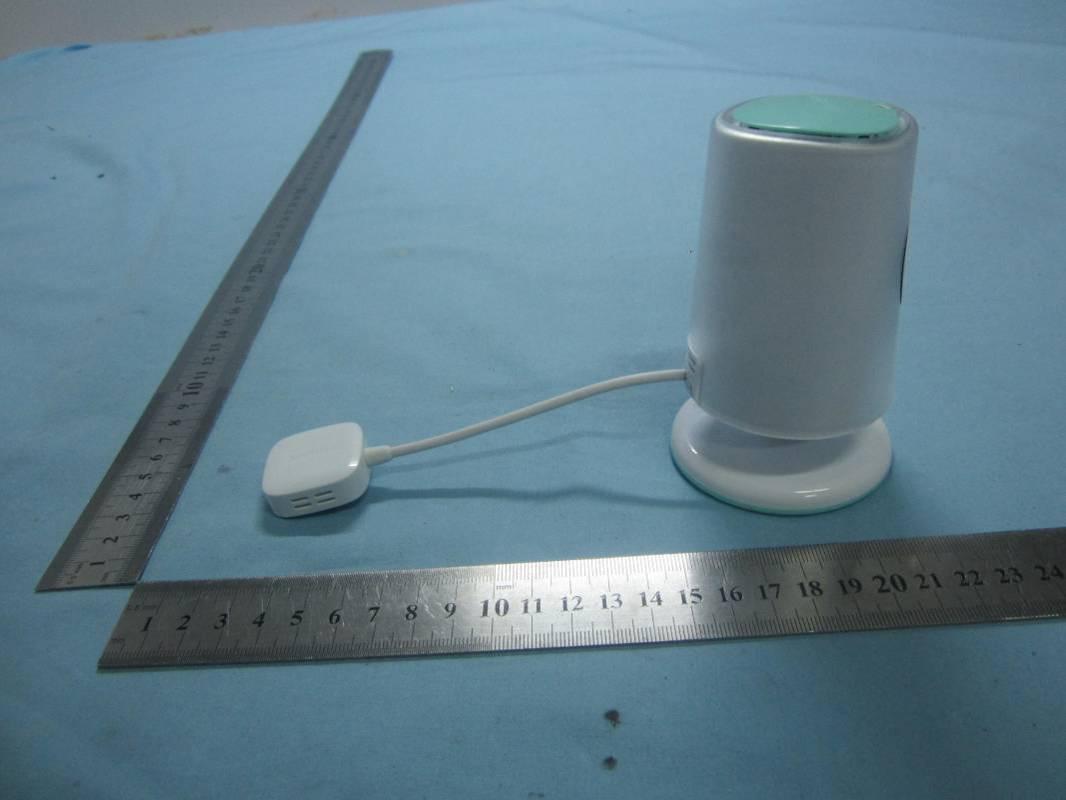

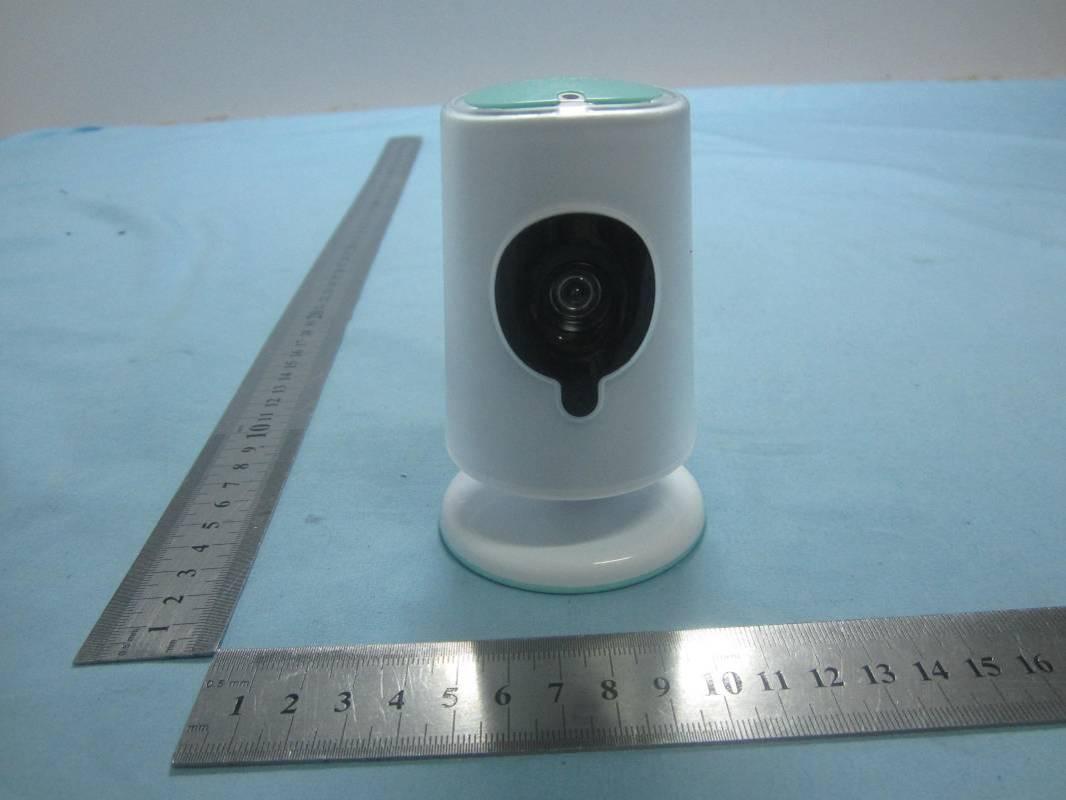

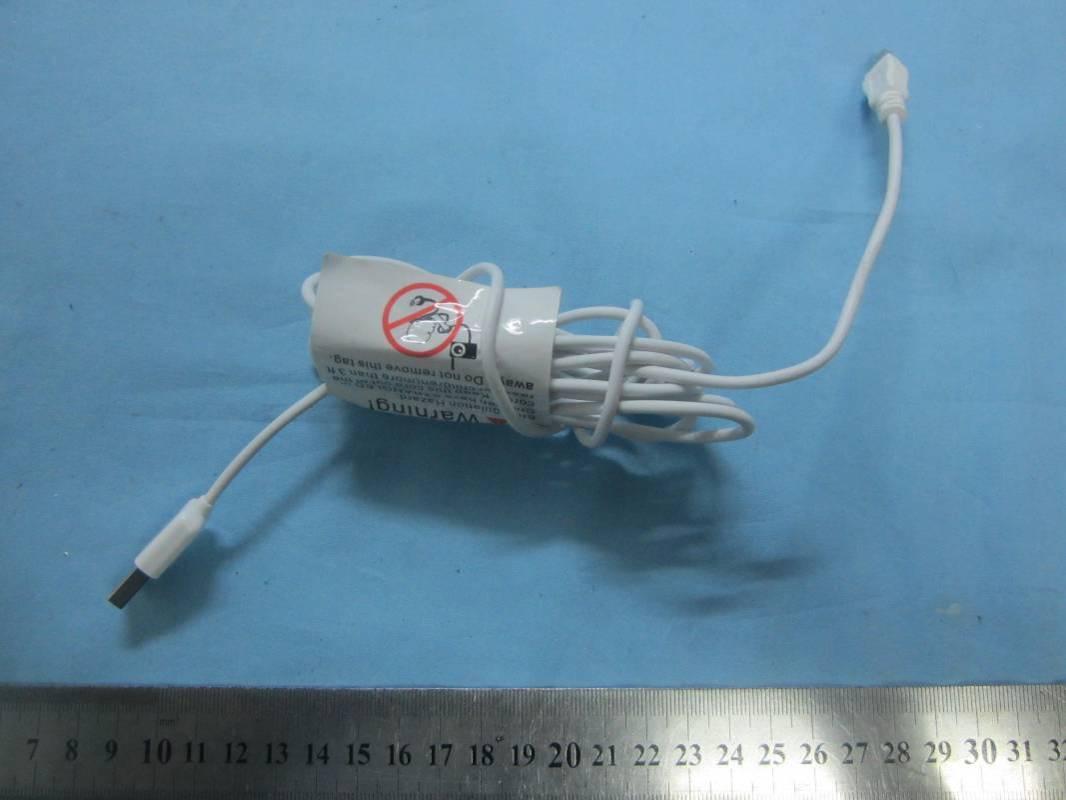

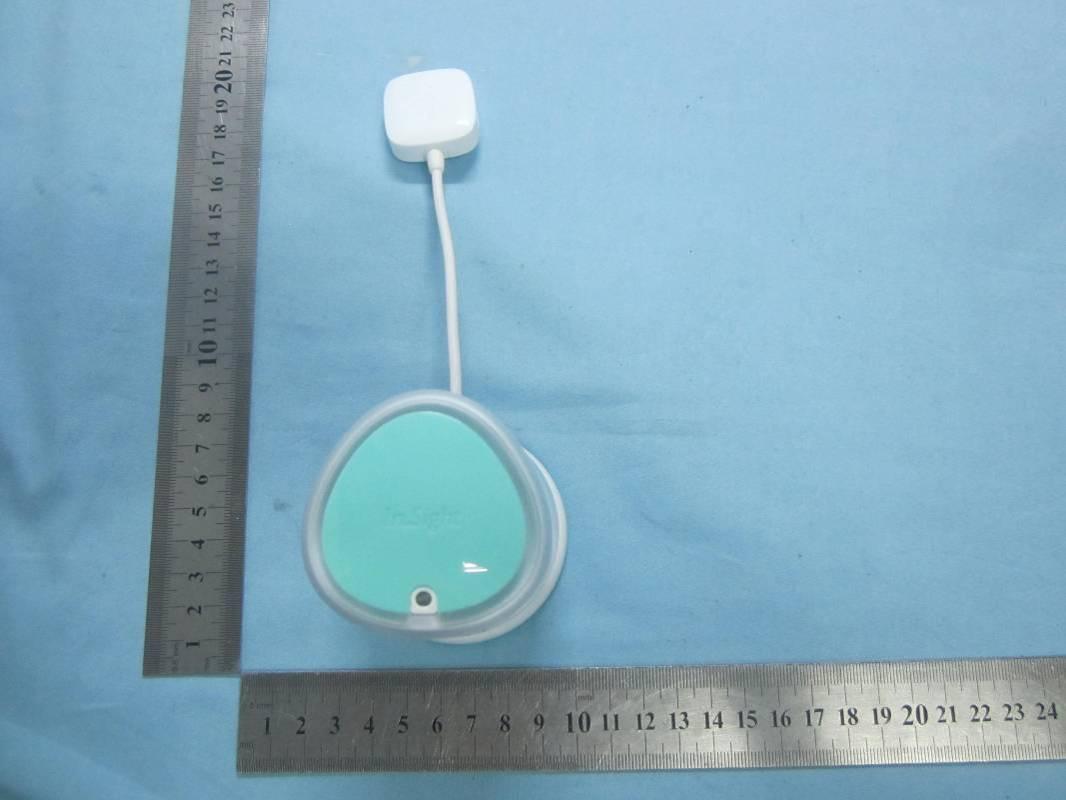

Report No.:68.870.13.037.01F APPENDIX B – External of EUT Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX B – External of EUT Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX B – External of EUT Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX B – External of EUT Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX B – External of EUT Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

P&F USA Inc . : B 1 o 2 n 0 l N e d / 3 o 7 m 4 5 6 7 3 8 2 9 1 0 0 1 : 2 n / 3 s re d t u : 0 c 6 a f / 2 u 0 n 1 a 3 M B120N /37 /10 Home Monitor 27.06.2013

Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 1 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 2 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 3 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 4 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 5 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 6 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 7 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.13.037.01F APPENDIX C – Internal of EUT Page 8 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

Report No.:68.870.13.037.01F Page 43 of 44 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2.412GHz ~2.462GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max Transmit Power59.29mW Antenna Gain2.0dBi ( Numeric gain:1.58) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The maximum radiated power (EIRP) = the maximum output power+ antenna gain = 17.73dBm+2.0dBi =19.73dBm =93.97mW The power density at 20cm from the antenna: = EIRP / 4ʌ R² = 0.019mW / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2013-07-26 Report No.: 68.870.13.037.01F Page 1 of 44 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant:Philips Consumer Lifestyle 5/F., Philips Electronics Building, 5Science Park East Avenue, Hong Kong Science Park, Shatin N.T., Hong Kong. Description of Samples:Model name: Wireless HD Baby Monitor Brand name: PHILIPS Model no.: B120#/** ("#" can be A-Z consist or blank denoting the various accessories or different style packaging used,"/**" can be "/07,/17,/37" denoting for different shipment country) FCCID:BOUB120N Date Samples Received:2013-05-09 Date Tested:2013-05-10 to 2013-05-16 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Jim HuangJohn Zhi Project EngineerProject Manager Wireless & Telecom departmentWireless & Telecom department Report No.:68.870.13.037.01F Page 2 of 44 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 44 Content Page 2-3 of 44 1.0General Details 1.1Test Laboratory Page 4 of 44 1.2Applicant Details Page 4 of 44 1.3Equipment Under Test [EUT] Page 5 of 44 1.4 Related Submittal(s) Grants Page 5 of 44 2.0Technical Details 2.1Investigations Requested Page 6 of 44 2.2Test Standards and Results Summary Page 6 of 44 3.0Test Methodology 3.1Radiated Emission Page 7 of 44 3.2Field Strength Calculation Page 7 of 44 3.3Conducted Emission Page 7 of 44 4.0Test Results 4.1 6dB Bandwidth MeasurementPage 8-14 of 44 4.2 Power Spectral Density Page 15-21 of 44 4.3 Band Edge MeasurementPage 22-25 of 44 4.4 Maximum Output Power Page 26-33 of 44 4.5 Out of Band Emissions and Emissions in Restricted BandsPage 34-39 of 44 4.6 Conducted Emission on AC MainsPage 40-42 of 44 Report No.:68.870.13.037.01F Page 3 of 44 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 43 of 44 6.0List of Measurement Equipments Page 44 of 44 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.:68.870.13.037.01F Page 4 of 44 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory SEM.Test Compliance Services Co., Ltd. EMC Laboratory registered by FCC with FCC Registration Number: 994117 Test By˖ Susan Su 1.2Applicant Details Applicant Philips Consumer Lifestyle 5/F., Philips Electronics Building, 5Science Park East Avenue, Hong Kong Science Park, Shatin N.T., Hong Kong Manufacturers Philips Consumer Lifestyle 5/F., Philips Electronics Building, 5Science Park East Avenue, Hong Kong Science Park, Shatin N.T., Hong Kong Factory (1)Action Asia (Shenzhen) Co. Ltd. (2)Action Industries (Malaysia) Sdn. Bhd. (1)Dede Industrial Park Jianan Rd,FuyongHI-Tech Park ,Shenzhen, China (2)2480, TINGKAT PERUSAHAAN ENAM, PRAI FREE TRADE ZONE,13600 PERAI, PENANG, MALAYSIA. Report No.:68.870.13.037.01F Page 5 of 44 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Wireless HD Baby Monitor Model No.:B120#/** ("#" can be A-Z consist or blank denoting the various accessories or different style packaging used,"/**" can be "/07,/17,/37" denoting for different shipment country) Brand Name: PHILIPS FCCID: BOUB120N Rating:DC5V, 1.5A powered by AC/DC adapter Model: HNx050150a("x" can be "B" or "D" to indicate different output wire type(USB or DC jack), "a" can be "A", "B", "C", "E", "J", "K", "U", "X" to indicate different countries fixed plug portion or exchangeable plug and all plastic painting color as non-conductive type) Operated Frequency:2412 -2462 MHz No. of Operated Channel:11 (802.11b/g/nHT20) Data Rate:802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0-7, up to 150Mbps Modulation:BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) Accessories and Auxiliary Equipments: AC/DC power adaptor. Manufacture of Antenna:N/A Antenna Gain:2.0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a Wireless HD Baby Monitor System operated at 2.4GHz. This includes of an 802.11b/g/n module (transceiver). As our client’ declaration, B120#/** Utilize the identical circuit design, PCB layout, shielding and interface with (B120/37), differences are as below: "#" can be A-Z consist or blank denoting the various accessories or different style packaging used, "/**" can be "/07,/17,/37" denoting for different shipment country. The tested model is B120/37. Description of Test Modes The EUT has been tested under operating condition. Software used to control the EUT for staying in continuous transmitting and receiving mode is programmed. IEEE802.11b: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with 1Mbps data rate (worst case) are chosen for the final testing. IEEE802.11g: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with 6Mbps data rate (the worst case) are chosen for the final testing. IEEE802.11nHT20: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with MCS0 data rate (worst case) are chosen for the final testing. 1.4Related Submittal(s) Grants This is a signal application subject to Certificate Authorization. Report No.:68.870.13.037.01F Page 6 of 44 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Tes…

Text truncated - open the document above for the full version.

Report No.:68.870.13.037.01F APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Conducted Emission Radiated Emission Report No.:68.870.13.037.01F APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Above 1GHz Emission
