BOUCED370CAR AUDIO / VIDEO SYSTEM

CED370 Register your product and get support at www.philips.com/welcome EN User manual 3 ES Manual del usuario 41 ZH-TWԚ͂ʹ˫87 EN.indd 18/9/2010 10:57:39 AM EN.indd 28/9/2010 10:57:40 AM 3 English EN Contents 1 Important 4 Safety 4 Notice 4 2 Your car audio system 7 Introduction 7 What’s in the box 7 Overview of the main unit 8 Overview of the remote control 9 3 Get started 11 Install the unit 11 Install remote control battery 18 Turn on 18 Select display language 18 Set clock 19 Use map 19 4 Listen to radio 20 Tune to a radio station 20 Tune to a preset station 24 5 Play 24 Load discs 24 Insert USB device 25 Insert SDHC card 25 Play/Pause 26 Search for a folder 26 Search within a track 26 Direct search 26 Repeat 27 Random play 27 Select audio language 27 Select subtitle language 27 Change view angle 27 Rotate pictures 27 Zoom 28 Select slide show duration 28 6 Play with Bluetooth device 28 Pair the Bluetooth-enabled devices 28 Make a call 29 Receive call 29 Switch phone call to the mobile 30 Listen to music from Bluetooth device 30 Adjust Bluetooth settings 30 7 Adjust sound 31 Adjust volume 31 Mute 31 Select preset equalizer 31 Adjut fader/balance 31 Set Dynamic Bass Boost (DBB) 32 8 Adjust settings 32 Adjust general system settings 32 Adjust sound settings 33 Adjust video settings 33 Adjust Bluetooth settings 34 Adjust language settings 35 Adjust DVD rating 35 9 Others 36 Listen to other devices 36 Reset 36 Remove the unit 36 Replace fuse 37 10 Product information 37 11 Troubleshooting 39 About Bluetooth device 39 12 Glossary 40 EN.indd 38/9/2010 10:57:40 AM 4EN Notice The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes. Rovi copy right protection statement This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. Offical DivX® Certified product. Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. DivX® , DivX Certified® and associated logos are registered trademarks of DivX, Inc. and are used under license. 1 Important Safety Read and understand all instructions • before you use the apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. Use of controls or adjustments or • performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. This unit is designed for negative ground • (earth) 12 V DC operation only. To reduce the risk of traffic accident, do • no watch video during driving. To ensure safe driving, adjust the volume • to a safe and comfortable level. Improper fuses can cause damage or • fire. When you need to change the fuse, consult a professional. Use only the supplied mounting hardware • for a safe and secure installation. To avoid short circuit, do not expose the • apparatus, remote control or remote control batteries to rain or water. Never insert objects into the ventilation • slots or other openings on the apparatus. Never place any objects other than discs • into the disc tray/slot. Visible and invisible laser radiation when • open. Avoid exposure to beam. Risk of damage to the screen! Never • touch, push, rub or strike the screen with any object. Never use solvents such as benzene, • thinner, cleaners available commercially, or anti-static sprays intended for discs. Clean the apparatus with soft, damp • cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus. EN.indd 48/9/2010 10:57:45 AM 5 English EN Recycling Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health. Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. 2010 © Koninklijke Philips Electronics N.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. DivX Certified® to play DivX® video, including premium content Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Other trademarks and trade names are those of their respective owners. This apparatus includes this label: This product complies with the radio interference requirements of the European Community. Any changes or modifications m…

Text truncated - open the document above for the full version.

Page 1 of 2 DECLARATION OF IDENTITY Hereby we: Philips Electronics Hong Kong Ltd. (Name of Applicant) Basic Model Number: CED370/37 Brand Name PHILIPS Product Name: CAR AUDIO / VIDEO SYSTEM Test Report Number: Declare the Circuit, PCB Layout, Electrical Parts and Outlook of the following product(s) are identical to the basic model: New / Additional Model Number(s):CED370/xx series The Car Audio / Video System with model CED370/xx consitst of the versions which are identical/similar in electrical, mechanical and physical construction except with different brand name, packaging used, colour of cosmetic, exported countries, difference accessories and various safeties marking. Stroke number is selling country differences as /xx /00 denote sales for world-wide and the packaging in D-box type. /07 denote sales for Canada only and and the packaging in D-box type. /17 denote sales for U.S.A only and the packaging in D-box type. /37 denote sales for Canada & U.S.A and the packaging in D-box type Remarks: All series model will be by-backed with remote and the in-car system does not have any conductive painting Signature with Company Chop : Printed Name : Benson Lai DATE: 2010-06-17 Page 2 of 2 TO WHOM IT MAY CONCERN DECLARATION OF IDENTITY Model Number: CED370/37 Brand Name: PHILIPS Product Name: CAR AUDIO / VIDEO SYSTEM Test Report Number: Name of Factory 1) : Arts Electronics Co., Ltd. Address : No. 1, ShangXing Lu, ShangJiao Community, Changan Town, DongGuan City, GuangDong Province, China Signature with Company Chop : Printed Name : Benson Lai DATE: 2010-06-17

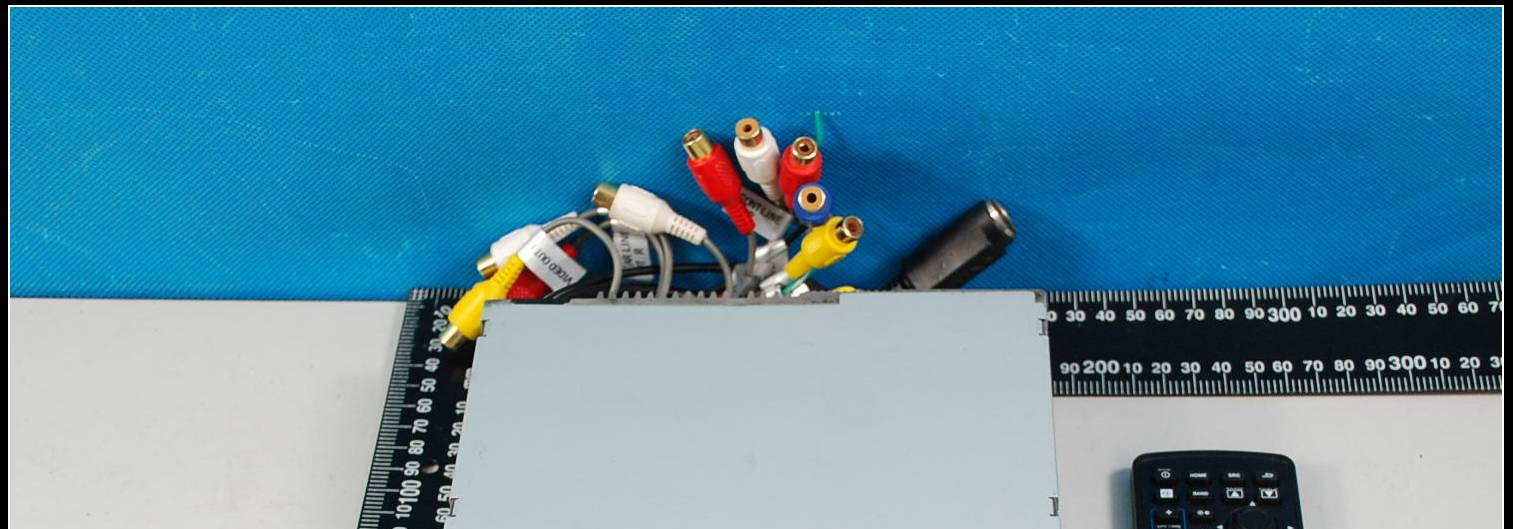

Eternal photos

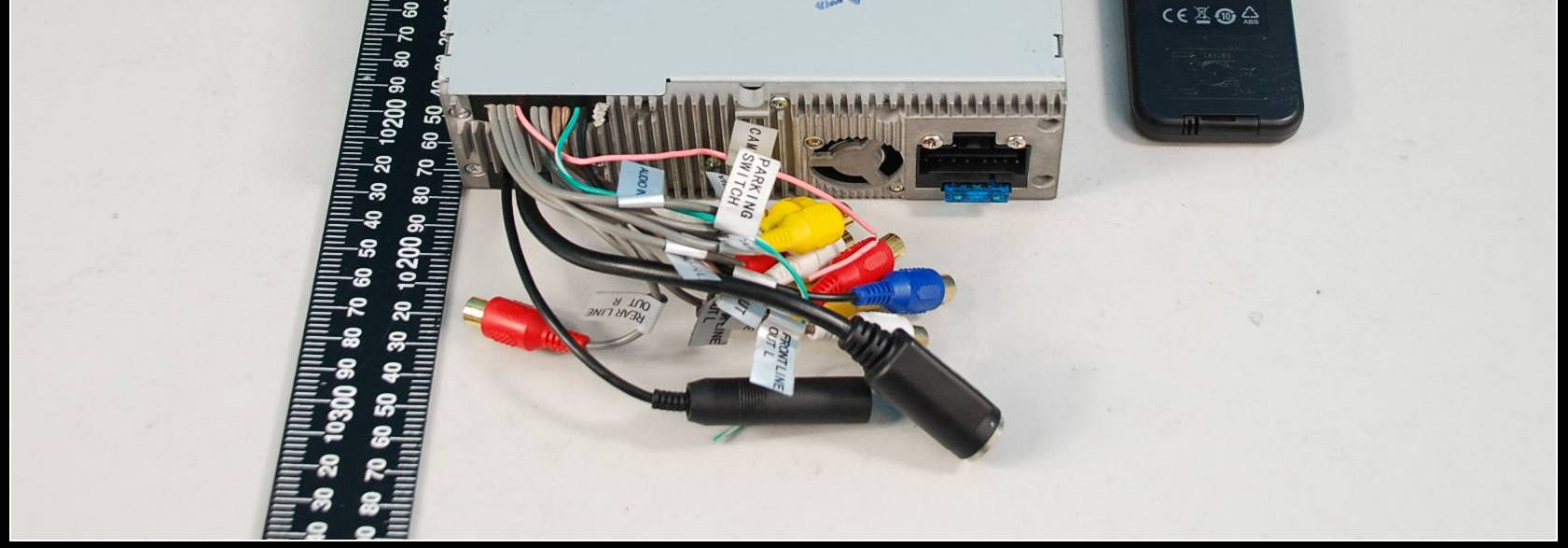

Internal photos Module:
