BOUCED380Car radio

www.philips.com/welcome User manual Always there to help you Register your product and get support at CED380 Question? Contact Philips 1EN Contents 1 Safety 2 2 Your car entertainment system 3 Introduction 3 What's in the box 4 Overview of the main unit 5 Overview of the remote control 6 3 Install the car entertainment system 8 Connect wires 8 Mount into the dashboard 11 Attach the front panel 12 4 Get started 14 Prepare the remote control 14 Turn on 14 Use the home menu 14 Adjust system settings 15 Adjust the screen brightness 15 5 Listen to radio 16 Switch to radio mode 16 Access the control interface 16 Use the control interface 16 6 Play from hard media 18 Load a disc 18 Connect a USB storage device 18 Insert an SD/SDHC card 19 Control play 19 7 Use Bluetooth devices 21 Pair a device 21 Play audio from a connected device 22 Make a call 23 8 Adjust sound 25 Adjust the volume level 25 Mute sound 25 Select a preset sound equalizer 25 Set the sub-woofer 25 Enable the maximum sound 25 Enable the DBB sound effect 25 Adjust the fader/balance/bass/treble level 25 9 Others 27 Play external audio/video input 27 Reset the system 27 Calibrate the screen 27 Replace the fuse 27      10 Product information 29 11 Troubleshooting 30 General 30 About the Bluetooth device 30 12 Notice 32 Compliance 32 Care of the environment 32 Trademark notice 32 Copyright 33 2EN 1 Safety Read and understand all instructions before you use the device. If damage is caused by failure to follow instructions, the warranty does not apply.  Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.  The device is designed for negative ground (earth) 12 V DC operation only.            not watch video when driving.  To ensure safe driving, adjust the volume to a safe and comfortable level.  Improper fuses can cause damage or           consult a professional.  Use only the supplied mounting hardware for a safe and secure installation.  To avoid short circuits, do not expose the device, remote control or remote control batteries to rain or water.  The device shall not be exposed to dripping or splashing.  Do not place any sources of danger on   ! "# "" $%  "  candles).  Never insert objects into the ventilation slots or other openings on the device.  Never place any objects other than discs into the disc tray/slot.  To avoid exposure to laser radiation, do not disassemble the device.  Risk of damage to the screen! Never push, rub, or strike the screen with any object.  Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.  Clean the device with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the device.  Risk of swallowing coin battery!  The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.  If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention.  When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.  If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. 3EN 2 Your car entertainment system Congratulations on your purchase, and "   * "+  "" $   support that Philips offers, register your product at www.philips.com/welcome. Introduction With the car entertainment system, you can  listen to music,  watch videos,  view pictures,  listen to FM and AM/MW radio,  make phone calls via Bluetooth, and  navigate your road trip. Playable media  Disc  DVD, Video CD, SVCD, Audio CD, JPEG Picture CD, MP3-CD, WMA-CD  DVD-R, DVD-RW, DVD+R, DVD+RW, CD-R, CD-RW  USB storage device  Compatibility: USB 2.0, USB 1.1  Class support: MSC (Mass Storage Class)  Maximum capacity: 32 GB  SD/SDHC card  Maximum capacity: 32 GB  Files  File system: FAT16, FAT32  Maximum number of folders: 99  <=   $  > "? @@@  Maximum level of directory: 8  Video formats: MPEG1, MPEG2  Picture format: .jpeg   Q " Sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz Bitrates: 8-320 kbps and variable bitrates    " Versions: V4, V7, V8, V9 (L1 and L2) Sampling frequencies: 44.1 kHz, 48 kHz Bitrates: 64-192 kbps and variable bitrates  ID3 tag V2.0 or later     XXY XZ  *Y< " [\<    <X " !  ] .m4p, .mp4, and .aac) <X "  ""   4EN What's in the box Check and identify the contents of the package: 1Main unit (with a sleeve) 2Carrying case (with the front panel included) 3Trim plate4ISO male connector X 2 5Disassembly tool X 2 6Screw X 4 (M5x8mm) 7Hexagon head screw 8Rubber cushion 9User manual10Remote control a b cd ef g h ij 5EN Overview of the main unit a  View the time and date. b  Release the front panel. c  Return to the previous menu or mode. d Volume ring  Rotate to increase or decrease the volume. DIM SUB-W EQ ae c bf g hk j ilm n pqo d e  Send a call.  Press to answer an incoming call.  Press twice to redial the last called number.  During a call, press and hold to mute the speakers and then take the mobile phone for conversation. f  Return to the home menu. g  Connect to a USB storage device. 6EN h  Press and hold to enable or disable the audio output to the sub-woofer.  Press to access the menu for selecting a preset sound equalizer. i /  Tune to a radio station.  Press to skip to the previous/next     "   "  Press and …

Text truncated - open the document above for the full version.

5/F., Philips Electronics Building,5 Science Park East Avenue,Hong Kong Science Park,Shatin N.T.,Hong Kong 022311 – 6 Authority to Act as Agent Date: _Dec 19, 2012_ ___ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: __ GUANGZHOU GRG METROLOGY&TEST CO.,LTD. __ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____9 Months___ By: ____Mr Lynn Butler____ __ _ ____ (Signature 1 ) (Print name) Title: ___Director, Global Quality___ On behalf of: ___ ____ (Company Name) Telephone: _______ ______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Philips Consumer Lifestyle Philips Consumer Lifestyle

Philips Electronics Hong Kong Ltd. 5/F., Philips Electronics Building,5 Science Park East Avenue,Hong Kong Science Park,Shatin N.T.,Hong Kong 022311 – 6 Request for Confidentiality Date: _ Nov 29, 2012____ Subject: Confidentiality Request for: __ __BOUCED380_ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term √ Permanent Block Diagrams Short Term Permanent External Photos Short Term Permanent* 2 Internal Photos Short Term √ Permanent Operation Description/Theory of Operation Short Term √ Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term √ Permanent Schematics Short Term Permanent Test Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ __ Harman International Industries, Inc.__ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __0_ _ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Mr Lynn Butler (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate

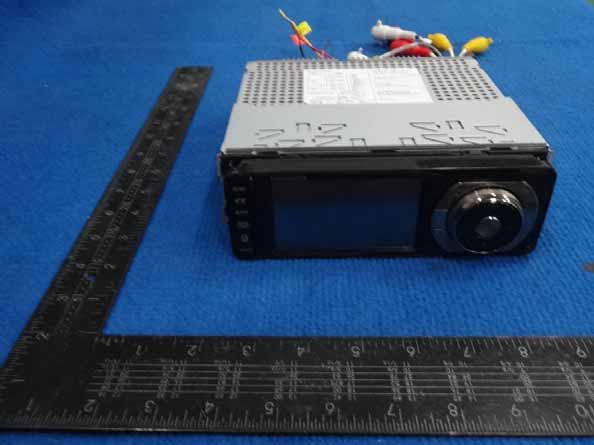

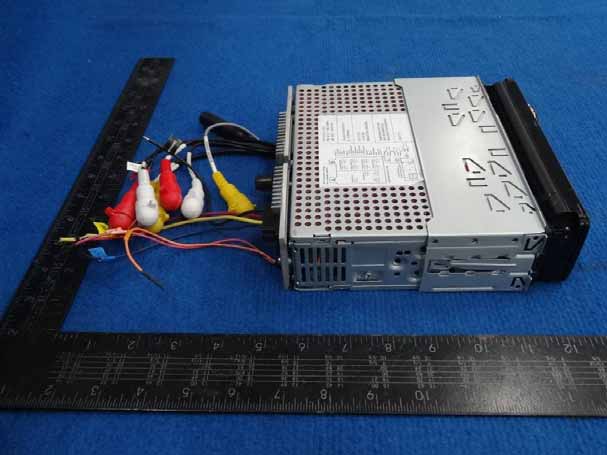

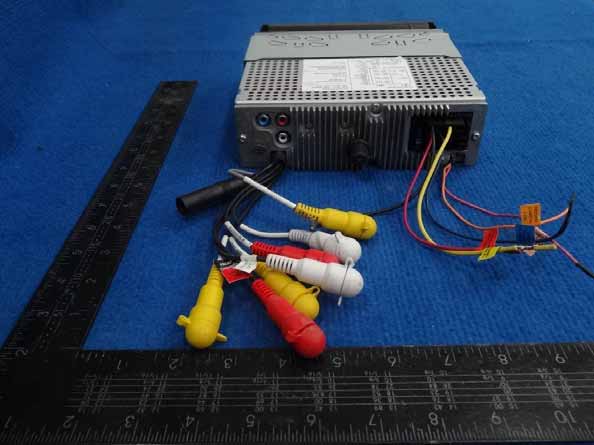

EXTERNAL PHOTOS

LABEL LOCATION Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Compliance Requirement 1. Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. TCB Exclusion List (7 July 2002) Exposure category low threshold high threshold general population (60/fGHz) mW. d < 2.5 cm (120/fGHz) mW. d ≥ 2.5 cm (900/fGHz) mW. d < 20 cm occupational (375/fGHz) mW. d < 2.5 cm (900/fGHz) mW. d ≥ 2.5 cm (2250/fGHz) mW. d < 20 cm 2. EUT RF Exposure The Max Conducted Peak Output Power is 6.51 dBm (4.48mW) in channel 0; The best case gain of the antenna is 4dBi.. 4.0dB logarithmic terms convert to numeric result is nearly 2.5 According to the formula. calculate the EIRP test result: EIRP= P x G = 4.48mW x 2.5 = 11.2 mW SAR requirement: S= 60 / f(GHz) = 60/2.4 = 25 mW EIRP < S So the SAR report is not required.

TEST REPORT Report No.: EM201200739-1 Application No.: ZJ00023119 Client: Address: 5/F., Philips Electronics Building,5 Science Park East Avenue,Hong Kong Science Park,Shatin N.T.,Hong Kong Sample Description: Car radio Model: CED380 Test Location: Guangzhou GRG Metrology and Test Co., Ltd. Test Specification: FCC Part 15,Subpart C:2010 Test Date: 2012-11-20 to 2012-12-13 Issue Date: 2012-12-13 Test Result: Pass. Prepared By: Reviewed By: Approved By: David Li / Test Engineer Jane Cao / Test Engineer Gavin Wu / Manager Date:2012-12-25 Date:2012-12-25 Date:2012-12-25 Other Aspects: / Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0 / 01.Jan.2012 Philips Consumer Lifestyle Report No.: EM201200739-1 Application No.: ZJ00023119 Page 2 of 75 FCC ID: BOUCED380 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: EM201200739-1 Application No.: ZJ00023119 Page 3 of 75 FCC ID: BOUCED380 Table of Contents 1. TEST RESULT SUMMARY ............................................................................................................................................... 5 2. GENERAL DESCRIPTION OF EUT................................................................................................................................. 6 2.1 APPLICANT .................................................................................................................................................................... 6 2.2 MANUFACTURER ......................................................................................................................................................... 6 2.3 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ............................................................................................. 6 2.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................... 6 3. LABORATORY AND ACCREDITATIONS ..................................................................................................................... 7 3.1 LABORATORY ............................................................................................................................................................... 7 3.2 ACCREDITATIONS ....................................................................................................................................................... 7 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................................... 7 3.4 LIST OF USED TEST EQUIPMENT AT GRGT ............................................................................................................. 8 4. TEST RESULTS ................................................................................................................................................................... 9 4.1 E.U.T. TEST CONDITIONS ............................................................................................................................................ 9 4.2 ANTENNA REQUIREMENT ....................................................................................................................................... 11 4.3 OCCUPIED BANDWIDTH ........................................................................................................................................... 12 4.3.1 LIMITS .................................................................................................................................................................... 12 4.3.2 TEST PROCEDURES ............................................................................................................................................. 12 4.3.3 TEST SETUP .......................................................................................................................................................... 12 4.3.4 TEST RESULTS ...................................................................................................................................................... 12 4.4 CARRIER FREQUENCIES SEPARATED ................................................................................................................... 16 4.4.1 LIMITS .................................................................................................................................................................... 16 4.4.2 TEST PROCEDURES ............................................................................................................................................. 16 4.4.3 TEST SETUP .......................................................................................................................................................... 16 4.4.4 TEST RESULTS ...................................................................................................................................................... 16 4.5 HOPPING CHANNEL NUMBER ................................................................................................................................. 20 4.5.1 LIMITS .....................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS RADIATED SPURIOUS EMISSION TESTBelow 1GHz RADIATED SPURIOUS EMISSION TESTAbove 1GHz CE
