BOUHMP2000HD Media Player

www.philips.com/welcome User manual Register your product and get support at EN Please refer to the safety information before using the product. ZH-CN 使用产品之前，请参阅安全信息。 Trademark notice HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ABOUT DIVX VIDEO: DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX ® , DivX Certified ® , DivX Plus™ HD and associated logos are registered trademarks of DivX, Inc. and are used under license. DivX Certified ® to play DivX ® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content Real RMVB logo is a trademark or a registered trademark of RealNetworks, Inc. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. Register your product and get support at www.philips.com/welcome HMP7000 HDMI IN SOURCE TV Private AP SettingPrivate AP Setting OK Wireless Network Info 2EN 1 Control and play Use the remote control FunctionButtons / Actions Switch the player on or to standby mode Navigate between screens or through options • Return to the Home screen • Navigate through options • Back one level • Confirm the option OK View options menu for media play or file navigation Control the play • Start, pause, or resume the play • Stop the play • Skip to the previous/ next media file / • Search backwards or forward within current file / • Rotate a photo / • Display the information about current file during play OK • Access online videos and TV episodes from Netflix Netflix Remove current connected device safelyPress and hold Manage files/ folders under [Folder] on or between connected storage devices EDIT *If there is no button press or media play on the playerfor 5 minutes, the device switches to standby mode automatically except that: • You enter text on the onscreen keyboard; 3EN • You select setup options under [Setup]. Text entry With the onscreen keyboard, use the remote control to enter text. 1 On the remote control, press to move to a key, press OK to select the letter or symbol. 2 Do the following to select input options: / : Move the cursor to the left or right. : Delete the entry before the cursor. 3 When the text entry is complete, select OK on the onscreen keyboard to exit. To select input mode, • Select / on the onscreen keyboard. »On the onscreen keyboard, current input mode is highlighted. : English input in upper case : English input in low case : symbols Select play options 1 During play, press on the remote control. 2 Press to select an option. Press OK to confirm. OK 4EN Video options [Subtitle]: Adjust subtitle settings. Press to select an item and to adjust values. Then press OK to confirm. [Audio]: Select an audio language. [GOTO]: Skip play to the specific time. Press to select an item and to adjust values. Then press OK to confirm. [Repeat Title]: Repeat the current title. [Repeat All]: Repeat the movie file. [Repeat Off]: Turn off a repeat mode. [Video Setting]: Adjust the video settings. Press to select an item and to adjust values. Then press OKto confirm. Audio option [Repeat Off]: Turn off a repeat mode. [Repeat One]: Repeat the current music file. [Repeat All]: Repeat all the music flies. [Shuffle Loop]: Play music files in a random loop. Photo options [Slide Timing]: Set a display interval for a slideshow. [Slide Transition]: Select a transition effect for a slideshow. [Repeat Off]: Turn off a repeat mode. [Repeat All]: Repeat all the photo flies. [Shuffle Loop]: Play photo files in a random loop. [Background Music]: Select and play a music file during slideshow. [Video Setting]: Adjust the video settings. 5EN 2 File browsing You can browse media files stored in a USB/SD storage device. 1 Press . 2 Select [USB]/ [Card] / [Esata]. 3 Select a mode to browse media files. • [Folder] • [Movies] • [Music] • [Photos] Browse all files a b c FolderMoviesMusicPhotos USBNETFLIX Setup Internet Service FolderMoviesMusicPhotos 6EN 1 Press to select [Folder] and press OK to confirm. 2 Select your USB/SD storage device and press OK. 3 Press in the file browser. 4 Press / to select a mode to view or arrange files. [Thumbnails]: Display thumbnails of files or folder. [List]: Display files or folder in a list. [Preview]: Display files or folders with a preview window. [All Media] Display all media files. [Movies]: Display movie files. [Photos]: Display photo files. [Music]: Display music files. Browse movie files 1 Press to select [Movies] and press OK to confirm. 2 Press in the file browser. 3 Press / to select a mode to view or arrange files. [Search]: Search movie files. Follow on screen instruction to type in key words in the mini keyboard and press to start search. [Thumbnails]: Display thumbnails of movie files. [List]: Display movie files in a list. [Preview]: Display files or folders with a preview window. [All Movies]: Display all movies files. [Show DVDs]: Display all ISO files. [Flash Animation]: Display all flash files. [Go to Folde…

Text truncated - open the document above for the full version.

© 2012 Koninklijke Philips Electronics N.V. All rights reserved. HMP2000_37_Safety sheet_V1.0 wk1228.5 Safety and Warranty Before using your set: Check out details inside this booklet English 1 Safety and notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 2 Safety This 'bolt of lightning' indicates uninsulated material within the device may cause an electrical shock. For the safety of ever yone in your household, please do not remove the cover ing. The 'exclamation mark' calls attention to features for which you should read the enclosed literature closely to prevent operating and mainte- nance problems. should not be placed on the device. CAUTION: To prevent electric shock, fully insert the plug. (For regions with polar- iz ed plugs: To prevent electric shock, match wide blade to wide slot.) Important Safety Instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufac- turer's instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or i Do not defeat the safety purpose of the polarized or grounding-type plug. A po- larized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong consult an electrician for replacement of the obsolete outlet. j Pr otect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. k l manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/a pparatus combination to avoid injury from tip-over. m Unplug this apparatus during lightning storms or when unused for long periods of time. n when the apparatus has been damaged in any way, such as power - supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. o Battery usage CAUTION – To prevent battery leakage which may r esult in bodily injury, property damage, or damage to the unit: • Install all batteries correctly, + and - as marked on the unit. • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni- mh, etc) batteries. • Remove batteries when the unit is not used for a long time. • The batteries shall not be exposed to excessive heat such as sunshine, • Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate. p Apparatus shall not be exposed to dripping or splashing. q lighted candles). r This product may contain lead and mercury. Disposal of these materials may be regulated due to envir onmental considerations. F or disposal or recycling infor- mation, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. 3 Compliance Philips HMP2000 Notice for the USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi- dential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Howev er , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between equipment and receiver . • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The set complies with the FCC-Rules, P ar t-15 and with 21 CFR 1040.10. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. Notice for Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. SAR statement This equipment complies with FCC radiation exposure limits set for th for an for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 0 cm spacing from the body and that compliance is achieved at that distance. Note • The type plate is located on the bottom of the product. - pr oved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 4 Care of the envir onment En vir onmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buff er) and polyethylene (bags, protective f oam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, and old equipment. Rec…

Text truncated - open the document above for the full version.

Agents letter (for TCB – TCB approval): Date (2012-07-04) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Philips Consumer Lifestyle / 1600 Summer Street Stamford, Connecticut,06905, United States, hereby authorize John Zhi (TUV SUD China Group-Shenzhen), to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (2012-10-03) Sincerely, Company Officer: Benson Lai Telephone Number: 852-2489-4406 Email: [email protected]

Page 1 of 2 DECLARATION OF IDENTITY Hereby we: Philips Electronics Hong Kong Ltd. (Name of Applicant) Basic Model Number: HMP2000/37 Brand Name PHILIPS Product Name: HD Media Player FCC Test Report Number: Declare the Circuit, PCB Layout, Electrical Parts and Outlook of the following product(s) are identical to the basic model: New / Additional Model Number(s):HMP200x#/zz series The HD media player with additional series model HMP200x#/zz HMP200x#/zz consitst of the versions which are identical in electrical, mechanical and physical construction except the following differences. “x” can be 0-9, denoting for any types of connection cable to be by-packed. “#” can be A-Z or blank, such “W” as white, “B” as black, “S” as Sliver etc, denoting for cabinet colour. zz” can be /07, /17, /37 or /F7 denoting exported country exported countries will have different plug type of adaptor for suitable using to the exported country and various safeties marking. Model Brand of portable DVD Brand of AC/DC adaptor Adaptor supplier PHILIPS HMP2000/zz, HMP200x#/zz PHILIPS ASUC12A 050150 Aquil Star Note: “^” can be “A” means Amerina plug used Signature with Company Chop : Printed Name : Benson Lai DATE: 2012-07-19 Page 2 of 2 DECLARATION OF IDENTITY Hereby we: Philips Electronics Hong Kong Ltd. (Name of Applicant) Basic Model Number: HMP2000/37 Brand Name PHILIPS Product Name: HD Media Player FCC Test Report Number: Stroke number, and adaptor plug portions are differences /zz /07 denote sales for Canada only and supplied an US type adaptor. /17 denote sales for USA and supplied an US type adaptor. /F7, /37 denote sales for USA & Canada and supplied US type adaptor. Remarks Name of Factory 1) : ACTION INDUSTRIES (MALAYSIA) SDN. BHD. Address : 2480, TINGKAT PERUSAHAAN ENAM, PRAI FREE TRADE ZONE,13600 PERAI, PENANG, MALAYSIA. Name of Factory 2) : Action Asia (Shenzhen) Co. Ltd. Address : Dede Industrial Park Jianan Rd,FuyongHI-Tech Park ,Shenzhen,China Signature with Company Chop : Printed Name : Benson Lai DATE: 2012-07-19

Date (07/24/2012) FCC ID: BOUHMP2000 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Philips Consumer Lifestyle 1600 Summer Street Stamford, Connecticut, 06905, United States hereby attest Product Name: HD Media Player, Model No.: HMP200X#/ZZ( X can be 0-9, # can be A-Z or blank, ZZ can be 07, 17, 37 or F7) that the USB Port of the device, as user manual to show, just for the USB storage device to play video, it is not intended to feed data into and/or receives data from the central processing unit of a digital device. Sincerely, Company Officer: Benson LAI Telephone Number: 852-2489-4406 Email: [email protected]

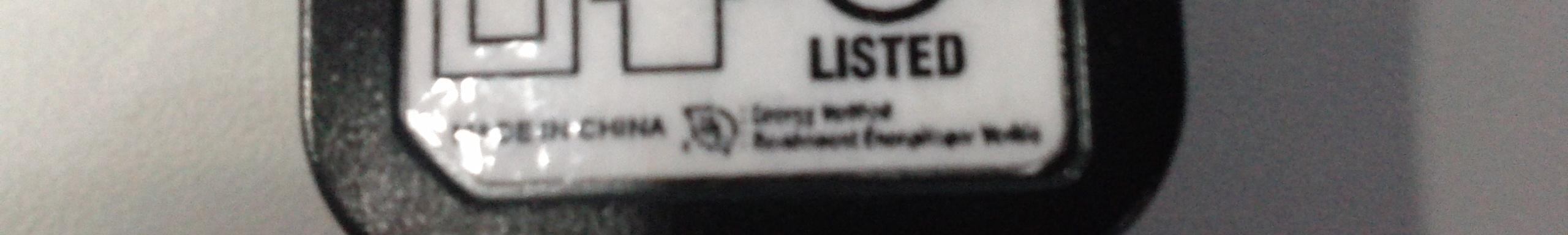

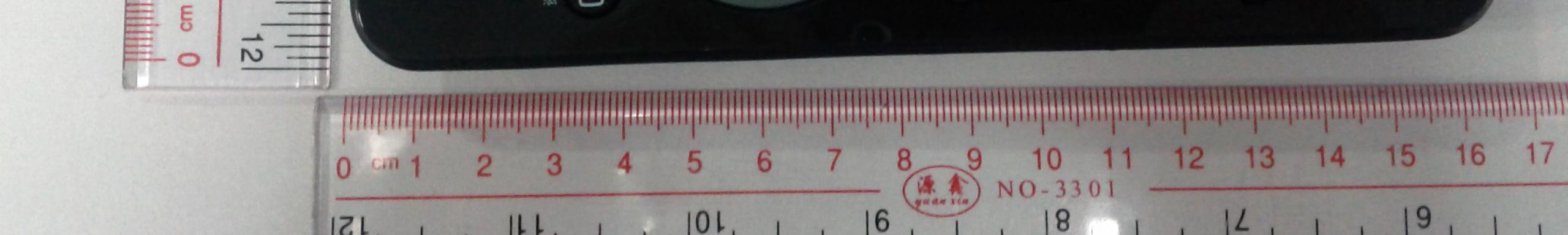

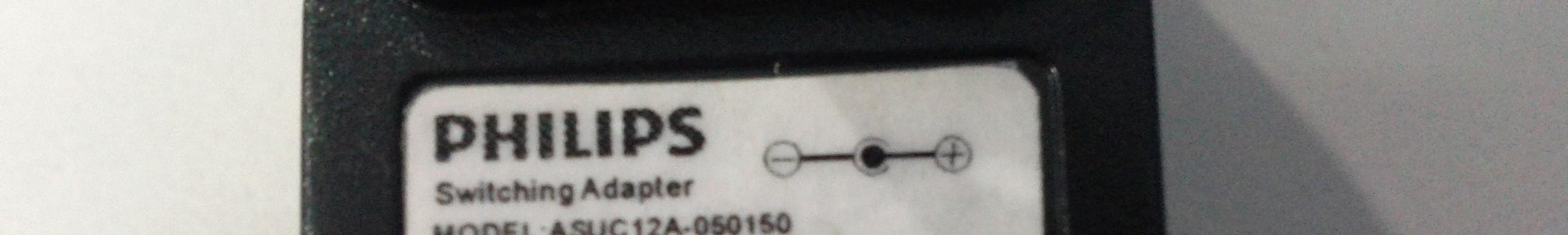

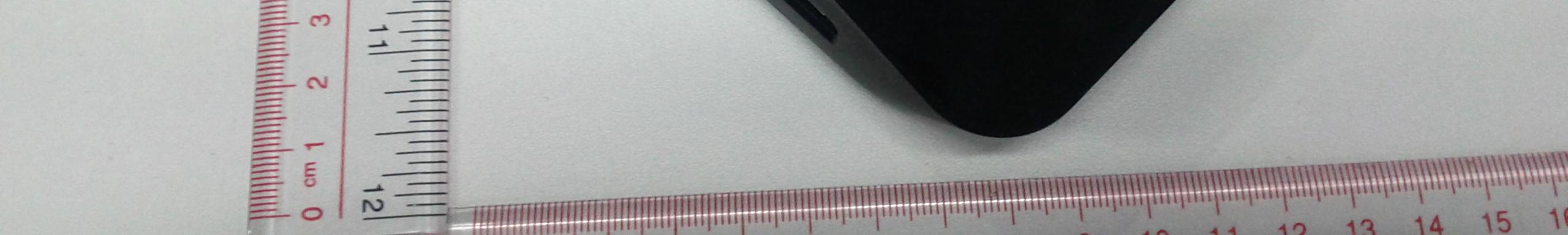

Report No.:68.870.12.039.01F APPENDIX B – External of EUT Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.12.039.01F APPENDIX B – External of EUT Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Remote Control Report No.:68.870.12.039.01F APPENDIX B – External of EUT Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Adapter

HMP2000/37 LABEL Model : HMP2000/37 8670 000 96219 HD media player 主机流水贴 SIZE:35*8MM SIZE:65*11MM BLACK NOIR interleave 2 of 5码 C O D E 3 9 码 CODE 39码 C O D E 3 9 码 CODE 39码 1 06 09585 22963 8 HD Media Player

Report No.:68.870.12.039.01F APPENDIX C – Internal of EUT Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.12.039.01F APPENDIX C – Internal of EUT Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.12.039.01F APPENDIX C – Internal of EUT Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Report No.:68.870.12.039.01F APPENDIX C – Internal of EUT Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.

TEST REPORT Date: 2012-07-12 Report No.: 68.870.12.039.01F Page 1 of 56 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant:Philips Consumer Lifestyle 1600 Summer Street Stamford, Connecticut, 06905, United States Description of Samples:Model name: HD Media Player Brand name: PHILIPS Model no.:HMP200X#/ZZ( X can be 0-9, # can be A-Z or blank, ZZ can be 07, 17, 37 or F7) FCCID:BOUHMP2000 Date Samples Received:2012-06-27 Date Tested:2012-06-28 to 2012-07-10 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by: Approved by:- John ZhiPrudence Poon Project EngineerTechnical Manager Wireless & Telecom departmentWireless & Telecom department Report No.:68.870.12.039.01F Page 2 of 56 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 56 Content Page 2-3 of 56 1.0General Details 1.1Test Laboratory Page 4 of 56 1.2Applicant Details Page 4 of 56 1.3Equipment Under Test [EUT] Page 5 of 56 1.4 Related Submittal(s) Grants Page 5 of 56 2.0Technical Details 2.1Investigations Requested Page 6 of 56 2.2Test Standards and Results Summary Page 6 of 56 3.0Test Methodology 3.1Radiated Emission Page 7 of 56 3.2Field Strength Calculation Page 7 of 56 3.3Conducted Emission Page 7 of 56 4.0Test Results 4.1 6dB Bandwidth Measurement Page 8-16 of 56 4.2 Power Spectral DensityPage 17-25 of 56 4.3 Band Edge Measurement Page 26-33 of 56 4.4 Maximum Output PowerPage 34-43 of 56 4.5 Out of Band Emissions and Emissions in Restricted BandsPage 44-51 of 56 4.6 Conducted Emission on AC MainsPage 52-54 of 56 5.0RF Exposure Compliance Requirement Page 55 of 56 6.0List of Measurement Equipments Page 56 of 56 Report No.:68.870.12.039.01F Page 3 of 56 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.:68.870.12.039.01F Page 4 of 56 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory SEM.Test Compliance Services Co., Ltd. EMC Laboratory registered by FCC with FCC Registration Number: 994117 Test By˖ Susan Su 1.2Applicant Details Applicant Philips Consumer Lifestyle 1600 Summer Street Stamford, Connecticut, 06905, United States Manufacturers (1)Action Asia (Shenzhen) Co. Ltd. (2)Action Industries (Malaysia) Sdn. Bhd. (1)Dede Industrial Park Jianan Rd,FuyongHI-Tech Park ,Shenzhen, China (2)2480, TINGKAT PERUSAHAAN ENAM, PRAI FREE TRADE ZONE,13600 PERAI, PENANG, MALAYSIA. Report No.:68.870.12.039.01F Page 5 of 56 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Product Description:HD Media Player Model No.:HMP200X#/ZZ( X can be 0-9, # can be A-Z or blank, ZZ can be 07, 17, 37 or F7.) Brand Name: PHILIPS FCCID: BOUHMP2000 Rating:DC5V, 1.5A powered by AC/DC adapter Model :ASUC12A-050150 Operated Frequency:2412 -2462 MHz No. of Operated Channel:11 (802.11b/g/nHT20) 7 (802.11nHT40) Data Rate:802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0-7, up to 150Mbps Modulation:BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) Accessories and Auxiliary Equipments:AC/DC power adaptor. Antenna Type:Compact PCB Antenna Manufacture of Antenna:SHENZHEN BENTLEY TECHNOLOGY CO., LTD Antenna Gain:2.3dBi Antenna Model:ANT2401A General Operation of EUT The EUT is the HD Media Player system operated at 2.4 GHz, which includes of a 802.11b/g/n module (transceiver). As per Client Declaration, The HD media player with additional series model HMP200x#/zz. HMP200x#/zz consitst of the versions which are identical in electrical, mechanical and physical construction except the following differences. “x” can be 0-9, denoting for any types of connection cable to be by-packed. “#” can be A-Z or blank, such “W” as white, “B” as black, “S” as Sliver etc, denoting for cabinet colour. “zz” can be /07, /17, /37 or /F7 denoting exported country exported countries will have different plug type of adaptor for suitable using to the exported country and various safeties marking. Therefore this application can be regarded as identical in performance to the submitted test sample HMP2000/37. Description of Test Modes The EUT has been tested under operating condition. Software used to control the EUT for staying in continuous transmitting and receiving mode is programmed. IEEE802.11b: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with 1Mbps data rate (worst case) are chosen for the final testing. IEEE802.11g: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with 6Mbps data rate (the worst case) are chosen for the final testing. IEEE802.11nHT20: Channel 1(2412MHz), Channel 6(2437MHz) and Channel 11(2462MHz) with MCS0 data rate (worst case) are chosen for the final testing. IEEE802.11nHT40: Channel 3(2422MHz), Channel 6(2437MHz) and Channel 9(2452MHz) with MCS0 data rate (the worst case) are chosen for the final testing. 1.4Related Submittal(s) Grants This is a signal application subject to Certificate Authorization. Report No.:68.870.12.039.01F Page 6 of 56 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.24…

Text truncated - open the document above for the full version.

Report No.:68.870.12.039.01F APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Conducted Emission Radiated Emission Above 1GHz Emission Report No.:68.870.12.039.01F APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong.
