BOUMCW770Home Audio System with integrated WLAN

MC W770 MC W770Wireless PC Link Micro Need help? Call us! Philips representatives are ready to help you with any questions about your new product. We can guide you through Connections, First-time Setup, or any of the Features. We want you to start enjoying your new product right away! CALL US BEFORE YOU CONSIDER RETURNING THE PRODUCT! 1-800-531-0039 or Visit us on the web at www.philips.com S E E W H Y I N S I D E I M P O R T A N T ! Return your Warranty Registration Card within 10 days • Once your Philips purchase is registered, you’re eligible to receive all the privileges of owning a Philips product. • So complete and return the Warranty Registration Card enclosed with your purchase at once, and take advantage of these important benefits. Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. Warranty Verification Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty. Owner Confirmation Your completed Warranty Registration Card serves as verification of owner- ship in the event of prod- uct theft or loss. Model Registration Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model. t This “bolt of lightning” indi- cates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTION:To prevent electric shock, match wide blade of plug to wide slot, and fully insert. For Customer Use Enter below the Serial No. which is locat- ed on the rear of the cabinet. Retain this information for future reference. Model No. _______________________ Serial No. ________________________ MAC5097 Know these ssaaffeettyysymbols CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Congratulations on your purchase, and welcome to the “family!” Dear Philips product owner: Thank you for your confidence in Philips.You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the Philips “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome – and thanks for investing in a Philips product. Sincerely, Lawrence J. Blanford President and Chief Executive Officer P.S. Remember, to get the most from your Philips product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now! R E G I S T R A T I O N N E E D E D W I T H I N 1 0 D A Y S Hurry! Visit our World Wide Web Site at http://www.philips.com 4 Canada English: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. Français: Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada. Index English Français Español English ___________________________________ 5 Français ________________________________ 42 Español _________________________________ 80 5 6 Class II equipment symbol This symbol indicates that the unit has a double insulation system. 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer ́s instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9.Do not defeat the safety purposeof the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cordfrom being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.Only use attachments/accessories specified by the manufacturer. 12 .Use only with the cart,stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 .Unplug this apparatusduring lightning storms or when unused for long periods of time. 14 .Refer all servicingto qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15.Battery usage CAUTION– To prevent battery leakage which …

Text truncated - open the document above for the full version.

CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. The unit complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and the receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. 4 English Canada English: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set outin the Radio Interference Regulations of the CanadianDepartment of Communications. Français: Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 37 (39) CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 32 (39) TEST SITE

IC 13 50 -W CM 10 01 Model: MCW770/37 120V ~ 60 Hz 55 W Manufactured Listed Audio Equipment Equipement Audio 22 F8 Complies with FCC part 15 Rules Complies with 21 CFR 1040.10 Model No.: MCW770/37 Prod.No.: KT ........................................ MADE IN CHINA Philips Consumer Electronics North America Knoxville, Tennessee 37914 - 1810, U.S.A. FCC ID : BOUMCW770 CAN IC : 135M-MCW770

CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 35 (39) PHOTOS OF THE EUT CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 36 (39) CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 37 (39)

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 39 PagesPage 1 (39) Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 4_1273-01-02/04 FCC Part 15.247 / CANADA RSS-210 MCW770/37 FCC ID: BOUMCW770 IC: 135M-MCW770 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 2 (39) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24;52- 64 Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 3 (39) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24;52- 64 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2004-06-16RSC8414Ames H. DateSectionNameSignature Technical Responsibility for Area of Testing: 2004-06-16RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 4 (39) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24;52- 64 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 081/94-D0 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : Philips Austria GmbH, Audio Video Innovation Centre Street : Gutheil-Schoder-Gasse 8 City : A-1102 Vienna Country : Austria Telephone : +43 1 60101 4333 Telefax : +43 1 60101 4981 Contact : Mr. Karl Roschanek Telephone : +49 (0) 2191 698 0 E-mail: [email protected] 1.4 Application Details Date of receipt of application : 2004-03-08 Date of receipt of test item : 2004-03-08 Date of test : 2004-03-10 to 2003-03-15 CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 5 (39) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24;52- 64 1.5 Test Item Type of equipment : Home Audio System with WLAN Type designation: MCW770/37 Manufacturer: See applicant Street: City: Country: Serial number: KT 000403000002 FCC – ID: BOUMCW770 IC : 135M-MCW770 Hardware: . - . Software : . - . Additional information : Frequency: 2412 – 2462 MHz Type of modulation: 15M1P7D (DSSS) Number of channels : 11 Antenna: Build-in antenna Power supply: AC 115 V Output power: EIRP: 34.6 mW (worst case); Field strength: max. 112.9 dBμV/m in 3m with a correction factor of 10 dB Occupied bandwidth: n.a. Transmitter spurious : 66.7 μV/m in 3m Receiver spurious. 51.3 μV/m in 3m Temperature range: -30°C - +70°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2004-03-15 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 (March 13. 2003) CANADA RSS-210 (Issue 5) CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 6 (39) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24;52- 64 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over vari…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO FCC ID. : I88B120 Report No.: EME-030138 Page 1 of 23 EMC TEST REPORT Report No. : EME-030138 Model No. : B-120 Issued Date : Feb. 13, 2003 Applicant : ZyXEL Communications Corporation No. 6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan This test report consists of 23 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Kaysi Chen Project Engineer Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : I88B120 Report No.: EME-030138 Page 2 of 23 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information ...................................................................................................... 4 1.1 Identification of the EUT ........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 4 1.3 Antenna description ................................................................................................ 5 1.4 Peripherals equipment............................................................................................. 5 2. Test specifications .........................................................................................................6 2.1 Test standard ........................................................................................................... 6 2.2 Operation mode....................................................................................................... 6 2.3 Test equipment ........................................................................................................ 7 3. Minimum 6dB Bandwidth test...................................................................................... 8 3.1 Operating environment ........................................................................................... 8 3.2 Test setup & procedure ........................................................................................... 8 3.3 Measured data of Minimum 6dB Bandwidth test results........................................ 8 4. Maximum Output Power test ........................................................................................ 9 4.1 Operating environment ........................................................................................... 9 4.2 Test setup & procedure ........................................................................................... 9 4.3 Measured data of Maximum Output Power test results.......................................... 9 5. Radiated Emission test................................................................................................ 10 5.1 Operating environment ......................................................................................... 10 5.2 Test setup & procedure ......................................................................................... 10 5.3 Emission limits...................................................................................................... 11 5.4 Radiated spurious emission test data .................................................................... 12 5.4.1 Measurement results: frequencies equal to or less than 1 GHz ......................... 12 5.4.2 Measurement results: frequency above 1GHz ................................................... 15 6. Power Spectrum Density test ...................................................................................... 18 6.1 Operating environment ......................................................................................... 18 6.2 Test setup & procedure ......................................................................................... 18 6.3 Measured data of Power Spectrum Density test results........................................ 18 7. Emission on the band edge §FCC 15.247(C) ............................................................. 19 8. Power Line Conducted Emission test §FCC 15.207................................................... 20 8.1 Operating environment ......................................................................................... 20 8.2 Test setup & procedure ......................................................................................... 20 8.3 Power Line Conducted Emission test data............................................................ 21 Intertek Testing Services ETL SEMKO FCC ID. : I88B120 Report No.: EME-030138 Page 3 of 23 Summary of Tests Wireless Lan PC Card-Model: B-120 FCC ID: I88B120 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies Intertek Testing Services ETL SEMKO FCC ID. : I88B120 Report No.: EME-030138 Page 4 of 23 1. General information 1.1 Identification of the EUT Applicant : ZyXEL Communications Corp. Product : Wireless Lan PC Card Model No. : B-120 FCC ID. : I88B120 Frequency Range : 2400MHz to 2483.5MHz Channel Number : 11 Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modulation : CCK (11Mps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) Power Supply : 5Vdc from Notebook Power Cord : N/A Sample Received : Jan. 29, 2003 Test Date(s) : Jan. 29, 2003 to Feb. 11, 2003 A FCC DoC report has been generated for the client. 1.2 Additional information about the EUT The Zy…

Text truncated - open the document above for the full version.

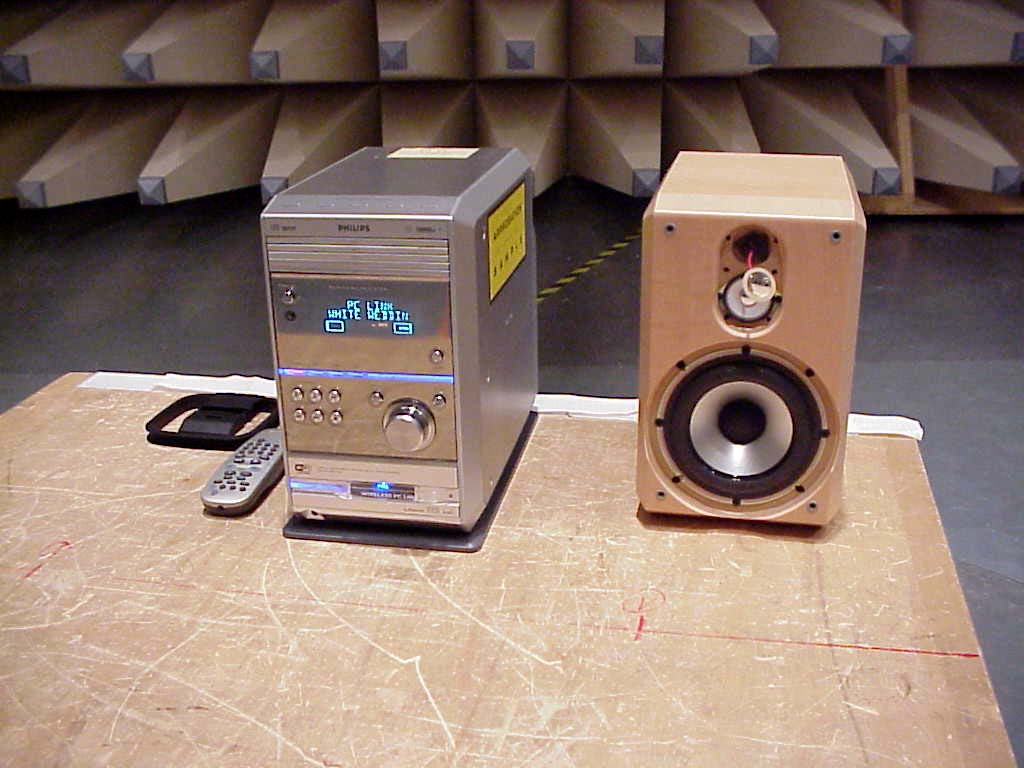

CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 32 (39) TEST SITE CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 33 (39) CETECOM ICT Services GmbH Test Report No.: 4_1273-01-02/04Issue Date: 2004-03-15Page 34 (39)
