BOUPHAEA2000BT Receiver

www.philips.com/welcome User manual Always there to help you Register your product and get support at Question? Contact Philips 1EN Contents 1 Important 2 Important Safety Instructions 2 Introduction 2 What's in the box 3 2 Get started 4 Connect audio cables 4 Connect power 4 Turn on 4 3 Play from Bluetooth-enabled devices 5 4 Product information 6 Specifications 6 5 Troubleshooting 7 About Bluetooth device 7 6 Notice 8 Disposal of your old product 8 2EN 1 Important Important Safety Instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean onl y with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. i Pr otect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. j Onl y use attachments/accessories specified by the manufacturer. k Use onl y with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. l Unplug this apparatus during lightning storms or when unused for long periods of time. m Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. n Apparatus shall not be exposed to dripping or splashing. o Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). p This pr oduct may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. q Wher e the plug of the Direct Plug-in Adapter is used as the disconnect device, the disconnect device shall remain readily operable. Warning • Never remove the casing of this apparatus. •Never place this apparatus on other electrical equipment. •Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the apparatus from the power. Introduction By connecting the Bluetooth adaptor to your Hi-Fi speaker system, you can enjoy audio 3EN from your Bluetooth-enabled device on your speakers through Bluetooth wireless connection. What's in the box Check and identify the contents of your package: • Main unit • AC power adaptor • RCA audio cable • User manual 4EN 2 Get started Always follow the instructions in this chapter in sequence. Connect audio cables There are two ways to connect the Bluetooth adaptor to your speakers. Select one fit for the speak ers. Option 1 Option 2 Connect power Caution • Risk of product damage! Make sure that the power supply voltage matches the voltage printed on the bottom of the unit. •Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord. Note • The type plate is located at the back of the Bluetooth adaptor. Connect the power adaptor to: • the DC IN socket at the back of the Bluetooth adaptor. • the wall outlet. Turn on Press . »The Bluetooth adaptor switches to Bluetooth pairing mode. »The LED indicator turns blue. 5EN 3 Play from Bluetooth- enabled devices Note • The effective operating range between the Bluetooth adaptor and the paired device is approximately 10 meters (30 feet). •Keep this docking speaker away from other electronic devices that may cause interference. •Make sure that the Bluetooth adaptor is connected to the powered speakers correctly. 1 Press on the top to activate the Bluetooth pairing mode. »The Bluetooth indicator b links. 2 On your Bluetooth device, turn on Bluetooth function and search for Bluetooth devices (refer to the device's user manual). 3 When [Philips BT adaptor] (Philips BT adaptor) is displayed on your device, select it to start connection. If necessary, enter the password "0000". »If connection is successful, you will hear double beep confirmation tone, and the Bluetooth indicator stays in blue steadily. 4 Play audio on your device. »Audio streams from y our device to your speakers. Note • If your Bluetooth device has been paired with AEA2000 before, you just need to find out [Philips BT adaptor] on your Bluetooth menu, then confirm the connection. To disconnect Bluetooth: • Press again; • Deactivate Bluetooth function on your device; or • Move the device beyond the communication range. 6EN 4 Product information Note • Product information is subject to change without prior notice. Specifications Amplifier Total Output Power1000 mV RMS Signal to Noise Ratio> 62 dBA Total Harmonic Distortion< 2 % Bluetooth StandardBluetooth Standard Version 2.1+EDR Frequency Band 2.402~2.480 GHz Range10m (Free space) General information AC PowerModel: AS030-090-EE033 (Philips); Input: 100-240 V ~, 50/60 Hz, 0.15 A; Output: 9 V 0.33 A Operation Power Consumption 3 W Dimensions - Main Unit (W x H x D) 74 x 28 x 72 mm Weight - Main Unit 0.04 kg 7EN 5 Troubleshooting Warning • Never remove the casing of this device. To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www. philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available. No power •Mak e sure that the AC power adapter is connected properly. •Make sure that there is power at the …

Text truncated - open the document above for the full version.

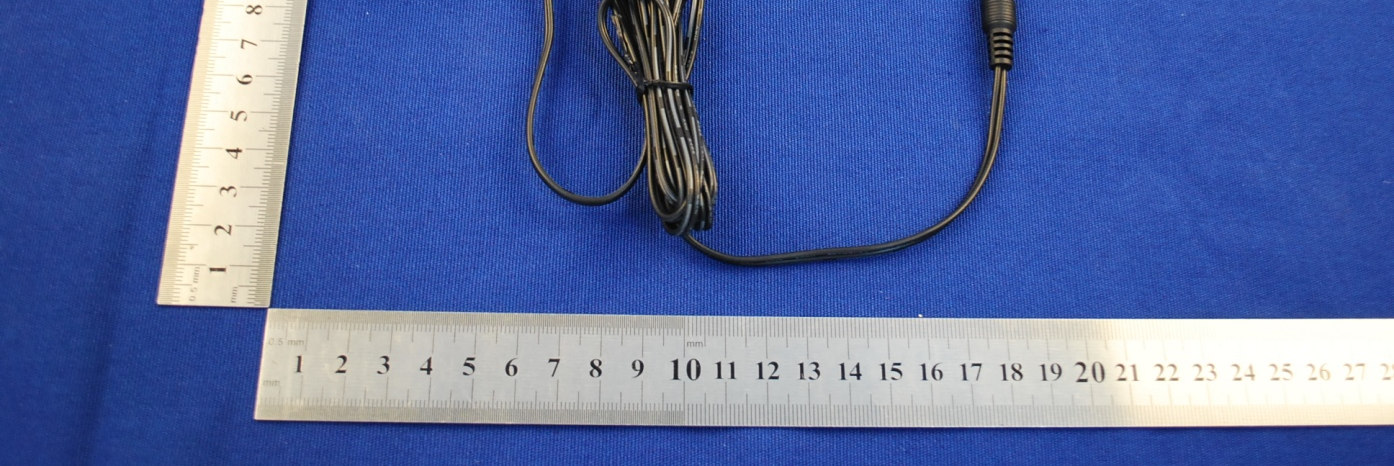

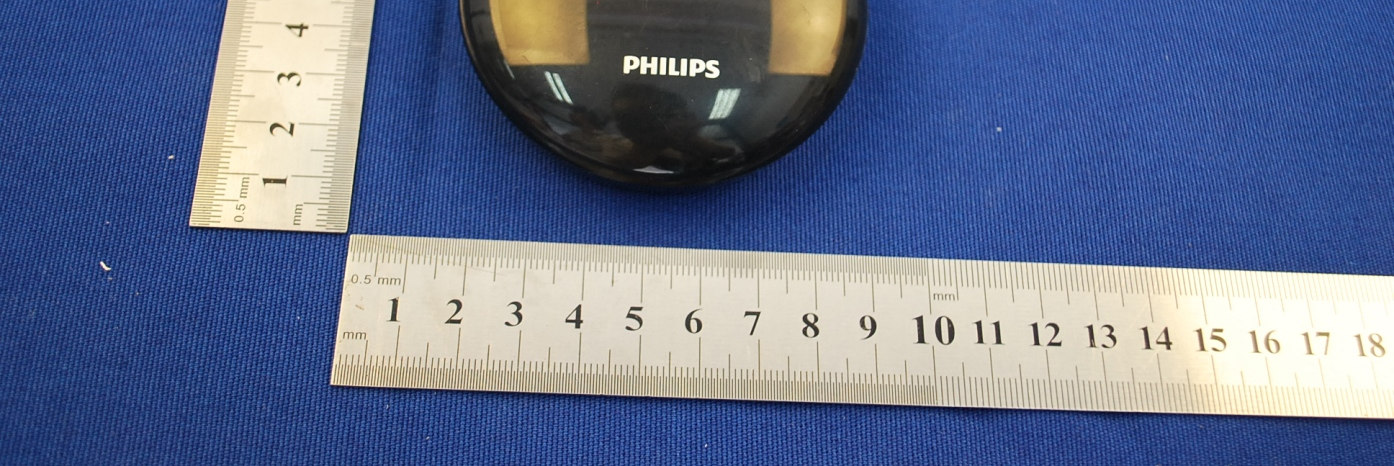

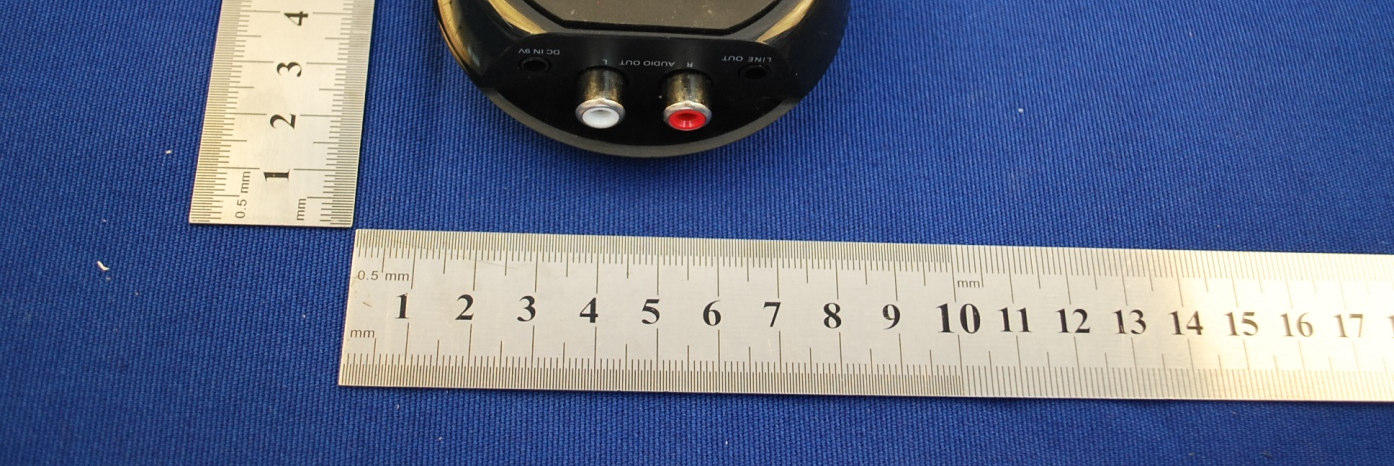

1 Photographs - EUT Constructional Details Test Model No.: AEA2000/37 Adapter

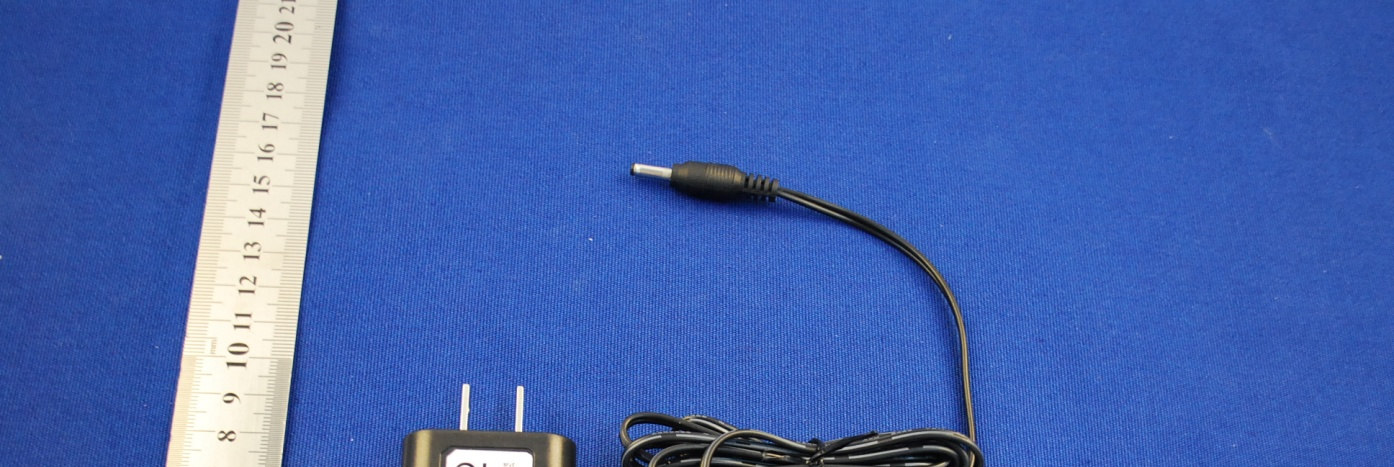

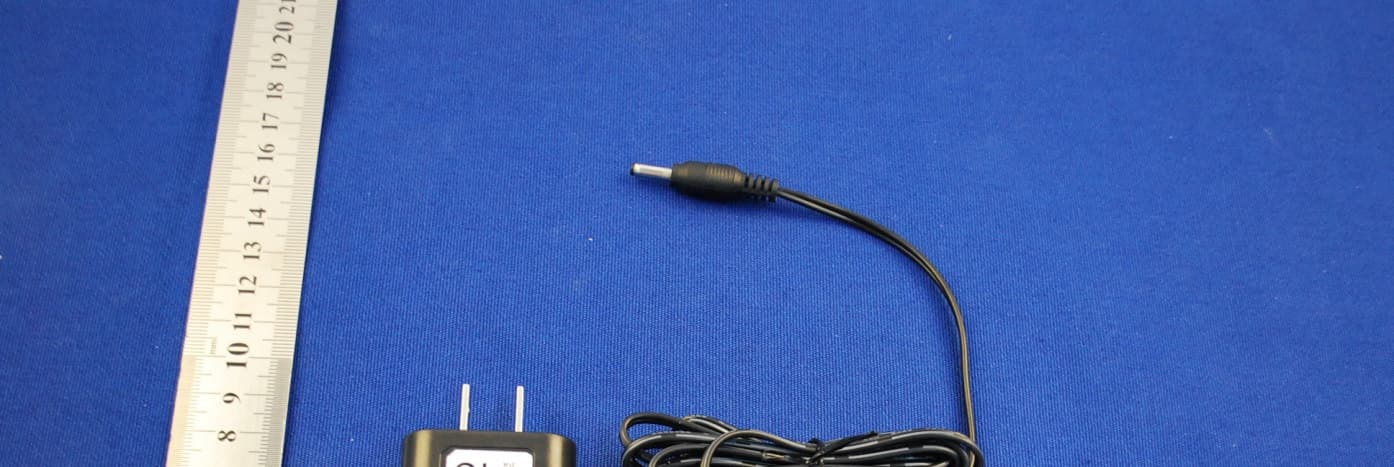

1 Photographs - EUT Constructional Details Test Model No.: AEA2000/37 Adapter
