BOUPHAS140DOCKING SYSTEM FOR ANDROID

AS140 www.philips.com/welcome Done 4 5 Fidelio Install Open download Install Fidelio 1 3 2 To play/manage audio files with “Fidelio”, you need to scan the QR code or go to Android Market and search “Fidelio”. Then, download and install the software.* 4 Install Fidelio Install Songbird on Android phone * 6 Dock Android phone onto the device * 5 Safety sheet Quick Start Guide Before using your product, read all accompanying safety information. * 1 System requirementsFor Android system (version 2.1 or above) Bluetooth 2.1 or aboveMicro USB connector Note: If the micro USB connector is located at the top, screen auto-rotation is available for Android 2.3 or above. Visit www.philips.com/FlexiDock for more details. * 2 To get the detailed instructions for use, visit www.philips.com/welcome. * 3 Install free Songbird to your PC to synchronize music from PC to your Android phone.To download and install Songbird on your computer, visit www.philips.com/songbird. * 7 SOURCE 4 PHILIPS AS140 Install Songbird on computer Quick Start Guide

EN 1 Get started Caution Use of controls or adjustments or performance of procedures other than he rein may result in hazardous radiation exposure or other unsafe operation. Set clock1 In standby mode, press and hold SET TIME for two seconds to activate clock setting mode. » The hour and minute digits begin to blink. 2 Press / and / repeatedly to set the hour and minute. 3 Press SET TIME !"#!$#%&'() » [12H] or [24H] begins to blink. 4 Press / to select 12/24 hour format. 5 Press SET TIME !"#!$#%&'() » The set time is displayed. Note When an Android phone is connected, the docking system synchronizes tim e with the phone automatically. Connect power Caution Risk of product damage! Ensure that the power voltage corresponds to the vo ltage printed on the back or underside of the device. Risk of electric shock! When you unplug the power adapter, always pull the pl ug from the socket. Never pull the cord. Note The type plate is located on the bottom of the docking system. Connect the power adapter to: ! the DC IN socket of the docking system. ! the wall socket. Turn onPress . » The docking system switches to the last selected source. Switch to standby modePress again to switch the docking system to standby mode. » [OFF] appears for one second, then the clock (if set) is displayed. Select sourcePress SOURCE repeatedly to select a source: bluetooth, FM tuner, or MP3 link. Note When an android phone is docked, the system automatically switches to blu etooth mode. 2 Listen to FM radioTune to FM radio stations Tip Position the antenna as far as possible from TV, VCR, or other radiation sourc e. For better reception, fully extend and adjust the position of the antenna . 1 Press SOURCE repeatedly to select FM tuner source. 2 Press and hold / for two seconds. » The docking system tunes to a station with strong reception automatically. 3 Repeat step 2 to tune to more radio stations. To tune to a station manually: 1 Press / !'*+*,"*-./!0%"1.!/#0!&%-!#+"1(,.!'*$*+"1#%) Store FM radio stations automatically Note You can store a maximum of 20 FM radio stations. In tuner mode, press an hold PROG for two seconds. » 23*!-#$41%5!6/6"*(!6"#'*6!,..!"3*!,7,1.,8.*!9:!',-1#!6","1#%6!,%-!8'#,-$,6"6!"3*!&'6"!,7,1.,8.*!station automatically. Store FM radio stations manually1 Tune to an FM radio station. 2 Press PROG . » The preset number begins to blink. 3 Press / repeatedly to select a number. 4 Press PROG !,5,1%!"#!$#%&'() 5 Repeat steps 1 to 4 to store other stations. Note To remove a pre-stored station, store another station in its place. Select a preset radio stationIn tuner mode, press / repeatedly to select a preset number. 3 Other featuresSet alarm timerSet alarmIn standby mode, you can set two alarms to ring at different time. Note Make sure that you have set the clock correctly. 1 Press and hold AL1 / AL2 for two seconds to activate alarm setting mode. » The hour and minute digits begin to blink. 2 Press / and / repeatedly to set the hour and minute. 3 Press AL1 / AL2 !"#!$#%&'() Select alarm source Note For alarm sound, you can select buzzer, your last listened radio chanel, or t he latest played track in your Android phone. Adjust AL1/AL2 RADIO·BUZZ·DOCK control to select alarm source for both alarms. Tip If DOCK is selected as alarm source, while no Android phone is connected, the syste m switches to buzzer source instead. Activate/deactivate alarm timer1 Press AL1 / AL2 to view alarm settings. 2 Press AL1 / AL2 again to activate or deactivate the alarm timer. » The alarm icon appears if alarm timer is on and disappears if it is off. ! To stop the ringing alarm, press the corresponding AL1 / AL2 . ! The alarm repeats ringing for the next day. Snooze alarmWhen alarm sounds, press SNOOZE . » The alarm snoozes and repeats ringing nine minutes later. Set sleep timerThis docking system can switch to standby mode automatically after a preset period.Press SLEEP repeatedly to select the sleep timer period (in minutes). » When the sleep timer is activated, appears. To deactivate the sleep timer, press SLEEP repeatedly until [OFF] (off) appears. Play audio from an external deviceYou can listen to audio from an external device through this device.1 Connect the MP3 link cable to: ! the MP3 LINK socket. ! the headphone socket of an external device. 2 Press SOURCE repeatedly to select MP3 link source. » is displayed. 3 Play the audio in the external device (see the device’s user manual). Adjust display brightnessPress BRIGHTNESS repeatedly to select different brightness levels. 4 Product information Note Product information is subject to change without prior notice. !"#$%#&'$()*+,!-$%". Rated Output Power 2 X 5W RMS Tuner Tuning Range FM: 87.5 - 108 MHz Sensitivity - Mono, 26dB S/N Ratio FM: <22 dBf Search Selectivity FM: <28 dBf Total Harmonic Distor tion FM: <2% Signal to Noise Ratio FM: >55 dB General information AC Power Model: AS180-070-AA250; Input: 100-240 V ~, 50/60Hz, 0.7A; Output: 7V 2.5A Operation Power Consumption <35 W Standby Power Consumption <1 W Dimensions - Main Unit (W x H x D) 271 x 89 x 142 mm Weight - With Packing - Main Unit 2.0 kg1.4 kg ES *1 Antes de usar el producto, lee toda la información adjunta a la de seguridad. *2 Requisitos del sistema Sistema operativo Android (versión 2.1 o superior)Bluetooth 2.1 o superiorConector micro USB Nota: Si el conector micro USB está situado en la parte superior, la rotación automática de la pantalla está disponible para Android 2.3 o superior. Visite www.philips.com/FlexiDock para obtener más información. *3 Para obtener instrucciones detalladas para su uso, visite www.philips.com/welcome. *4 Instalación de Fidelio Para reproducir y administrar archivos de audio con “Fidelio”, debe escanear el código QR o visitar Android Market y buscar “Fidelio”. A continuación, descargue e instale el software. *5 Colocación del teléfono Android en el dispositivo *6 Instalación de Songbird en un teléfono Android *7 Instalación de Songbird en el ordenadorInstale Songbird d…

Text truncated - open the document above for the full version.

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully inser t. Important Safety Instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. i Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. j Only use attachments/accessories specified by the manufacturer. k Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. l Unplug this apparatus during lightning storms or when unused for long periods of time. m Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. n Apparatus shall not be exposed to dripping or splashing. o Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). p This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae. org. q Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the disconnect device shall remain readily operable. 2 Notice Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Disposal of your old product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Register online at www.philips.com/welcome today to get the very most from your purchase. Visit our World Wide Web Site at http://www.philips.com/welcome Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below,so don't miss out. Register online at www.philips.com/welcome to ensure: *Product Safety Notification*Additional Benefits By registering your product, you'll receive notification - directly from the manufacturer. Registering your product guarantees that you'll receive all of the privileges to which you’re entitled, including special money- saving offers. Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once,or register online at www.philips.com/welcome to ensure: Return your Product Registration Card or register online at www.philips.com/welcome today to get the very most from your purchase. Visit our World Wide Web Site at http://www.philips.com/welcome Congratulations on your purchase, and welcome to the “family!” Dear PHILIPS product owner: Thank you for your confidence in PHILIPS.You’ve selected one of the best-built,best-backed products available today. We’ll do every- thing in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guar- antees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. Most importantly, you can count on our uncompromising commit- ment to your total satisfaction. All of this is our way of saying welcome - and thanks for investing in a PHILIPS product. P.S.To get the most from your PHILIPS purchase,be sure to complete and return your Product Registration Card at once, or register online at: www.philips.com/welcome For Customer Use Enter below the Serial No.which is locat- ed on the rear of the cabinet.Retain this information for future reference. Model No.__________________________ Serial No.________________________ Know these safetysymbols This “bolt o…

Text truncated - open the document above for the full version.

JOBAS140/37 RATING LABEL SIZE: 69W x 34Hmm JOBAS140/37 CARTON LABEL SIZE: 90W x 110Hmm Docking system for Android 1X 2011-07-6 AS140/37 孙飞艳 Made in China 1.4 3.1 JOB: AS140/37 D-BOX LABEL SIZE:73(W) x 90(H) mm AS140/37 8670 000 81443 MADE IN CHINA FABRIQUE EN CHINE 68 0 9 5 8 5 2 1 9 6 1 Philips Consumer Lifestyle a division of Philips Electronics North America Corporation P.O. Box 10313 Stamford, CT 06904 Model No.: AS140/37 Serial No.: AQ1A1122000001 Model No.: AS140/37 Serial No.: AQ1A1122000001 Docking system for Android 2X Model No.: AS140/37 8670 000 81443 MADE IN CHINA FABRIQUE EN CHINE PHILIPS CONSUMER LIFESTYLE, A DIVISION OF PHILIPS ELECTRONICS NORTH AMERICA CORPORATION P.O. Box 10313 Stamford, CT 06904 CARTON PRINTED IN CHINA 10609585219615 Model No.: AS140/37 DC 7V 2.5A Manufactured: July / 2011 FCC ID:BOUPHAS140 IC:135M-PHAS140 Philips Consumer Lifestyle P.O. Box 10313 Stamford, CT 06904 JOB:AS140/37 FCC LABEL SIZE: 56(W) x22(H)mm JOB:AS140/37 ICES LABEL SIZE: 49(W) x14.5(H)mm

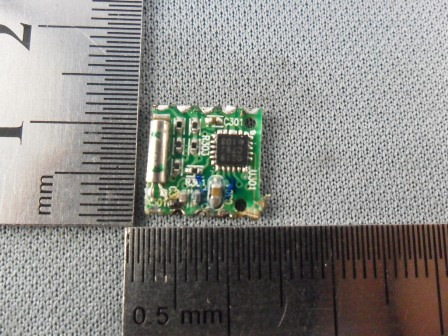

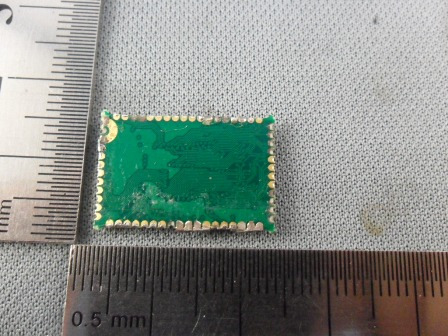

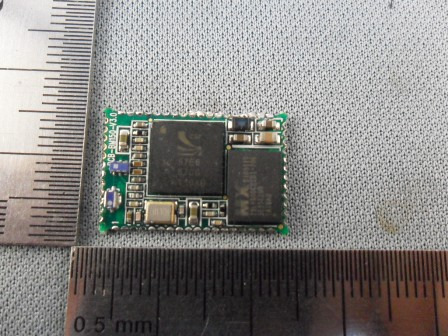

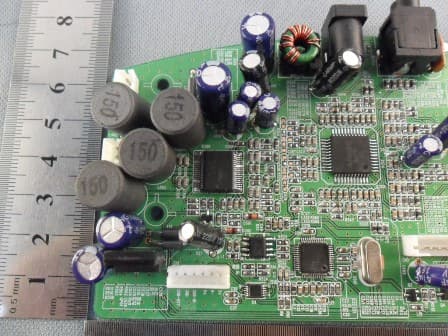

1 Photographs - EUT Constructional Details (Test Model No.: AS140/37)
