BOUSA3CNT08KGoGear Connect,WiFi MP3 Player

Safety and Warranty Before using your set: Check out details inside this booklet EN English This product complies with the radio interference requirements of the European Union. The model and production numbers can be found on the label close to the USB connector. Hearing Safety Listen at a moderate volume: Using headphones at a high volume can impair your hearing. This product can • produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sound can be deceiving. Over time your hearing ‘comfort level’ adapts to • higher volumes of sound. So after prolonged listening, what sounds ‘normal’ can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level: Set your volume control at a low setting.• Slowly increase the sound until you can hear it comfortably and clearly, without • distortion. Listen for reasonable periods of time: Prolonged exposure to sound, even at normally ‘safe’ levels, can also cause • hearing loss. Be sure to use your equipment reasonably and take appropriate breaks.• Be sure to observe the following guidelines when using your headphones. Listen at reasonable volumes for reasonable periods of time.• Be careful not to adjust the volume as your hearing adapts.• Do not turn up the volume so high that you can’t hear what’s around you.• You should use caution or temporarily discontinue use in potentially hazardous • situations. Do not use headphones while operating a motorized vehicle, cycling, • skateboarding, etc.; it may create a traffic hazard and is illegal in many areas. Canada English: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. Français: Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : – Relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. The set complies with the FCC-Rules, Part 15. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT Modifications not authorized by the manufacturer may void users authority to operate this device. Philips SA30 SA3 PHILIPS LIMITED WARRANTY ONE (1) YEAR WARRANTY COVERAGE: PHILIPS warranty obligation is limited to the terms set forth below. WHO IS COVERED: Philips warrants the product to the original purchaser or the per- son receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof. WHAT IS COVERED: The Philips warranty covers new products if a defect in material or workmanship occurs and a valid claim is received by Philips within the Warranty Period. At its option, Philips will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or ser- viceable used parts and is at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product. Philips warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Philips’ property. When a refund is given, your product becomes Philips’ property. Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty. Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay. WHAT IS NOT COVERED - EXCLUSIONS AND LIMI- TATIONS: This Limited Warranty applies only to the new products manu- factured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply to any non-Philips hardware product or any software, even if packaged or sold with the product. Non-Philips manufacturers, suppliers, or publishers may provide a separate warran…

Text truncated - open the document above for the full version.

SA3CNT08 SA3CNT16 Register your product and get support at www.philips.com/welcome EN User manual SA3CNT32 3EN       6 Search on the device 27             7 Music and videos 28   !   " #    "  # $%    #    & '  ( )* %%  )+     )+  (" !   ")    " ) $% ("  )  (" ) 8 Gallery 33 $%  ))  (" ))    ))   " ))   )) ' ),  % ), -  ), 9 Browser 35 ."")/ 10 Maps 36 4" ) !  ) - )   ) %) 5()#   %!" )# 79")# .""!" )# :  !!" )&  !" )& 11 Gmail 40 Contents 1 Important safety information 5 : / ; "" <  2 Your new device 9 => & ' !% """(& 4   """(& 3 Get started 10 '%+* %"(!!+*   $" +* % "++ %  "++ 4 Overview 12 ' + ? + 5(? +)  " <"%  +, % %"+,  %"+/ ' @? +/  + ; + 9B  + D+   !+  ."""+#  : +& F"+& 5 Get content on the device 20 :!G * 'G *  + G     +    " D !!' ) -""="% F  )    " ) 4 "(% 4"   ,EN $   // D/ 5  / "/ -  / HF'-9 ' / :<   / 9I /  %  % /   /    %"/#  "("  /# '"  /# .  /# %  /#   /# ; ( /& $ /& . I /& (/& /& 9I"/&   /&  "/& ."""/& I * .   * -I + .  +    + G! +    ;  "       "%"( ) 22 Technical data 64 '    / 23 Customer care information of service partners 66 12 Email 41  ,+ '   ,+ '" ,+ '  , ' "  , '"  , '    ,) J@   ,) 13 Bluetooth 44 ' %$ "( ,, "(  $ ,, 9   $  " ,/ 14 Calendar 46 .""(  ",   !" , % ", F"(, 15 FM radio 48 D"  ,#    ,# 16 Recordings 49 " ,& 4"",&  " ,& " ,& 17 Alarm clock 50 18 Calculator 51 19 Use the device in corporate networks 52 G   " /  !F/ .""5/) 20 Settings 54 . "/, =<4  /, 5%/, .""=<4%/, ."("  // Need help?   (  www.philips.com/welcome % !  !       K   !%" K" % !   "  L / Hearing Safety Listen at a moderate volume:  " (  LD "" "  "     !   K(!    LD"  !!" ! ( ""   L ""(LJ( M! ( >" (  ! "L ! "  K% "  M >  ""!  LD"  K  (  ! ( ! " " (L D    !(  ( O (   % L %   "  ! "  K%" L 9 !  " !O  "  "K(  M !> ( K    L $    "  L $  (! %"   % " L 9   (  !   " !L $! "P (   " L -(   >%> "L Q  "   "   @"   L - " %  @"( K K "KLR !@""     L 1 Important safety information General maintenance D ! " ! ! L G(!  % F  ( " "( K F  (   ( L Caution U D("" !O U- " ( " "  L U-"" %P !   L U- %" " %L- "  %K %…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: BOU Date: 2011-09-14 Please be notified that we, the undersigned, Philips Electronics Hong Kong Ltd. declare that the product bears the above FCC ID is EM-F1000790 also complying with the requirements of FCC DoC. The test report number for FCC DoC is , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Benson Lai Title of authorized signer: Lead Engineer, Safety and Compliance Company Name: Philips Electronics Hong Kong Ltd. Tel: 852 -2489-4406 Fax: 852 2401-1482 Web site: www.philip.com E-mail: [email protected]

TO WHOM IT MAY CONCERN DECLARATION OF IDENTITY Model Number: SA3CNT16K/37 Brand Name: PHILIPS Product Name: GoGear Connect, WiFi MP3 Player FCC / IC certificate: Declare the Circuit, PCB Layout, Electrical Parts and Outlook of the following product(s) are identical to all models: New / Additional Model Number(s): GoGear “Connect”, WiFi Mini Tablet with model SA3CNTxxyz/** consist of the various stroke versions which are identical in electrical, mechanical and physical construction. The last two charters ”y” and “z” representative of the following differences. The “y” denoted can be A-W consist of the different cabinet coulour only. The “z” denoted can be A-X or blank consist of the various accessories by-packed and/or packaging used. Stroke number representative of the country of destination are differences /** /07 denoted sales for Cabada only. Ordinary product packaging in D-box type. /17 denote sales for U.S.A only. Ordinary product packaging in D-box type. /37 denote sales for U.S.A and Canada. Ordinary product packaging in D-box type. Memory Size 8GB : SA3CNTxxyz/**, “xx” denoted the flash memory size as 8GB. Memory Size 16GB : SA3CNTxxyz/** “xx” denoted the flash memory size as 16GB. Memory Size 32GB : SA3CNTxxyz/** “xx” denoted the flash memory size as 32GB. Earphone model : Model: AY3840 Name of Factory 1) : Keen High Technologies Ltd. Address : Ze Da Li Industrial Zone, Jian-An 1 Road, New-High Technologies area, Tang Wei, Fuyong, Bao-An, Shenzhen Remarks: All series models do not by-backed any AC/DC adaptor And all models of plastic painting colour (non-conductive painting) Signature with Company Chop : Printed Name : Benson Lai DATE: 2011-08-29

Statement PHILIPS’s product : GoGear Connect，Wi-Fi MP3 player M/N : SA3CNT32K/37 SA3CNT32K/17 SA3CNT32K/07 SA3CNT32S/37 SA3CNT32S/17 SA3CNT32S/07 SA3CNT08K/37 SA3CNT08K/17 SA3CNT08K/07 SA3CNT08S/37 SA3CNT08S/17 SA3CNT08S/07 SA3CNT16K/37 SA3CNT16K/17 SA3CNT16K/07 SA3CNT16S/37 SA3CNT16S/17 SA3CNT16S/07 These model products will be sold in USA and Canada markets only and do not be sold to other non USA and Canada country markets. The Wi-Fi module of these models does not operate at channel 12, channel13 and channel 14 under 802.11b/g/n modes. Signature and company stamp: Benson LAI Title: Lead Engineer / Safety and Compliance – BG AVM Philips Electronics Hong Kong Ltd.

Date: 24 July 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: BOUSA3CNT08S, BOUSA3CNT16S, BOUSA3CNT32S, BOUSA3CNT08K, BOUSA3CNT16K, BOUSA3CNT32K Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Benson Lai Lead Safety Engineer Philips Electronics Hong Kong Ltd. Tel: 852-2489-4406 Fax:852-2401-1482 Web site: www.philips.com E-mail: [email protected]

AGENCY AUTHORIZATION LETTER FCC ID: BOUSA3CNT08S, BOUSA3CNT16S, BOUSA3CNT32S BOUSA3CNT08K, BOUSA3CNT16K, BOUSA3CNT32K Date: 24 July 2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd Audix of Shenzhen to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Benson Lai Lead Safety Engineer Philips Electronics Hong Kong Ltd. Tel: 852-2489-4406 Fax:852-2401-1482 Web site: www.philips.com E-mail: [email protected]

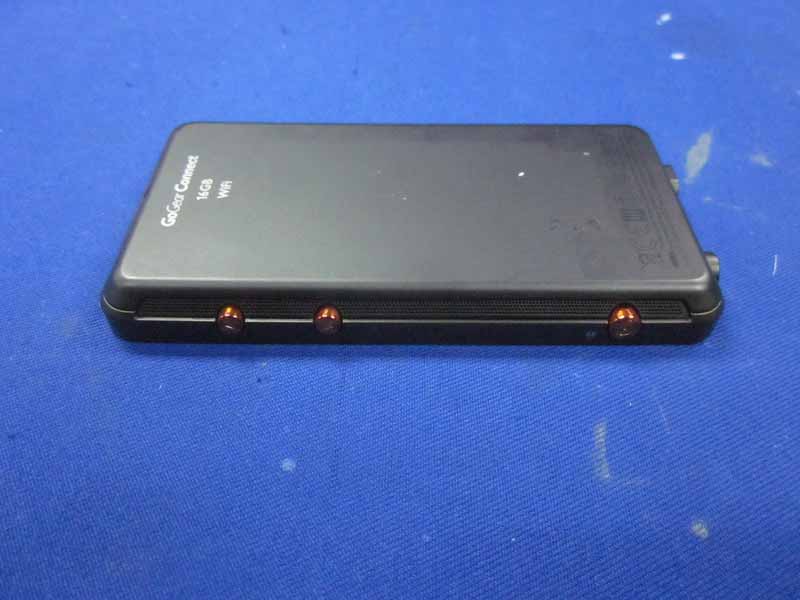

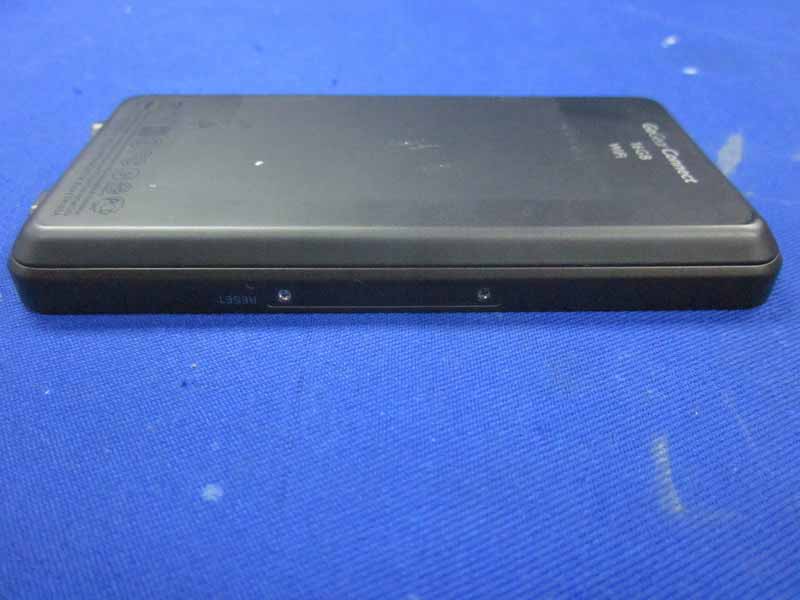

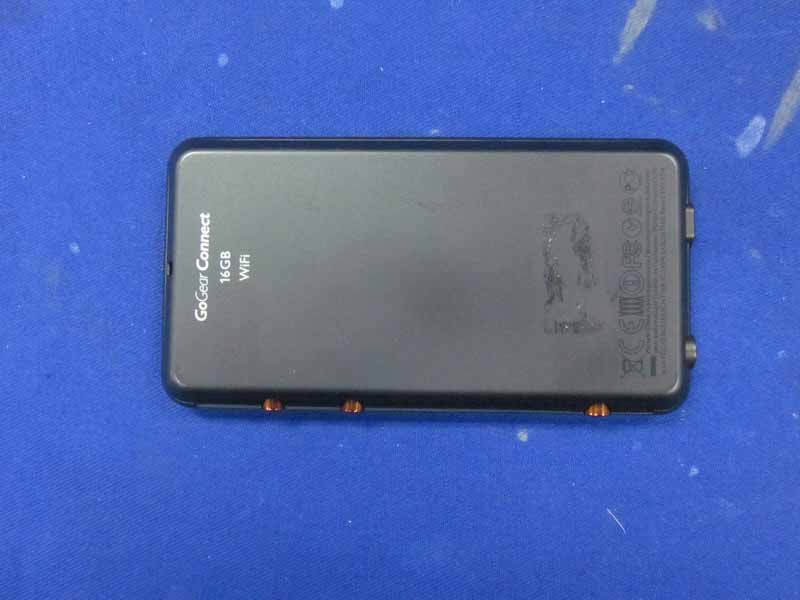

R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 51 of 63 9. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 52 of 63 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 53 of 63 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

SA3CNT08K FCC label: 33.0x3.6xR0.8x4mm 33.3x3.9xR1.0x4mm Model:SA3CNT08K/37 JF1A1137000001 8GB *33.0mm *3.6 mm 0.8mm Model:SA3CNT08K/37 JF1A1137000001 1.2mm *33.0mm *3.6 mm 0.8mm 1.2mm *33.0mm *3.6 mm 0.8mm 1.2mm *33.0mm *3.6 mm 0.8mm 1.2mm Model:SA3CNT08S/37 JF1A1137000001 Model:SA3CNT08K/17 JF1A1137000001 Model:SA3CNT08S/17 JF1A1137000001

R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 67 of 76 Figure 7 Inside of the EUT Figure 8 Inside of the EUT 0.5cm 3.5cm 2.2cm 10.0cm WiFi and BT Antenna R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 68 of 76 Figure 9 Inside of the EUT Figure 10 Inside of the EUT Figure 11 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 69 of 76 Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 70 of 76 Figure 13 Inside of the EUT Figure 14 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 71 of 76 Figure 15 Inside of the EUT Figure 16 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 72 of 76 Figure 17 Inside of the EUT Figure 18 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 73 of 76 Figure 19 Inside of the EUT Figure 20 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 74 of 76 Figure 21 Inside of the EUT Figure 22 Inside of the EUT Figure 23 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 75 of 76 Figure 24 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 76 of 76 Figure 25 USB Cable Figure 26 Earphone

R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 1 of 76 SAR TEST REPORT for Philips Electronics Hong Kong Ltd. GoGear Connect, WiFi MP3 Player Test Model: SA3CNT08K/37, SA3CNT08S/37 SA3CNT08K/17, SA3CNT08S/17 FCC ID: BOUSA3CNT08K Prepared for : Philips Electronics Hong Kong Ltd. 5/F.,Philips Electronics Building No.5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Fax: (0755) 26632877 Report Number ： ACS-SF11003 Date of Test ： Sep.16~26, 2011 Date of Report ： Sep.27, 2011 Model Number Brand Name SA3CNTxxyz/** PHILIPS R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 2 of 76 TABLE OF CONTENTS Description Page Test Report Verification...........................................................................6 1. SUMMARY OF RESULTS ......................................................................................................... 4 1.1. Test Results ....................................................................................................................................... 4 Test Information........................................................................................................................................... 5 2. GENERAL INFORMATION ...................................................................................................... 6 2.1. Description of Device (EUT) ............................................................................................................ 6 2.2. Block Diagram of connection between EUT and simulators ............................................................ 8 2.3. Test Equipment ................................................................................................................................. 8 2.4. Measurement Uncertainty ................................................................................................................. 8 2.5. Laboratory Environment ................................................................................................................... 8 3. MEASURE PROCEDURES ........................................................................................................ 9 3.1. General description of test procedures .............................................................................................. 9 3.2. Position of module in Portable devices ........................................................................................... 10 4. SAR MEASUREMENTS SYSTEM .......................................................................................... 11 4.1. SAR Measurement Set-up ............................................................................................................... 11 4.2. ELI4 Phantom ................................................................................................................................. 12 4.3. ES3DV3 Isotropic E-Field Probe for Dosimetric Measurements ................................................ 12 4.4. Laptop Extension Kit to Mounting Device ..................................................................................... 13 4.5. E-field Probe Calibration ................................................................................................................ 14 4.6. Scanning procedure ......................................................................................................................... 15 5. TISSUE SIMULATING LIQUIDS ........................................................................................... 17 6. DATA STORAGE AND EVALUATION ................................................................................. 18 6.1. Data Storage .................................................................................................................................... 18 6.2. Data Evaluation by SEMCAD ........................................................................................................ 18 7. SYSTEM CHECK ...................................................................................................................... 20 7.1. Table----System Check for Body Tissue simulating liquid ............................................................ 21 7.2. Dielectric Performance for Body Tissue simulating liquid ............................................................. 21 8. CONDUCTED POWER RESULTS ......................................................................................... 22 9. PHOTOGRAPHS OF TEST ..................................................................................................... 61 10. PHOTOS OF THE EUT ............................................................................................................ 64 R AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF11003 Page 4 of 76 1. SUMMARY OF RESULTS 1.1. Test Results Test Position Channel Results Power Drift (±0.2 dB) Limit 1g Average 10g Average 1g (1.6W/Kg ) 10g (2.0W/Kg) Back Side CH1 / / / / / CH6 0.640 0.251 0.13 PASS PASS CH11 / / / / / Right Side CH1 / / / / / CH6 0.046 0.025 0.17 PASS PASS CH11 / / / / / Left Side CH1 / / / / / CH6 0.117 0.051 0.18 PASS PASS CH11 / / / / / Top Side CH1 / / / / / CH6 0.563 0.241 0.15 PASS PASS CH11 / / / / / Front Side CH1 / / / / / CH4 0.267 0.141 0.12 PASS PASS CH7 / / / / / Note: 1. The SAR test shall be performed at the high, middle and low frequency channels of each operating mode. If the SAR measured at mid-band channel for each test configuration is at least 3.0 dB (<0.8 W/Kg) lower than the SAR limit, testing at the high and low channels is optional. 2. Upper and lower frequencies were measured at the worst case. 3. KDB 248227- SAR is not required…
