BOUSA5AZUGoGear Azure, MP4 Player with Bluetooth

www.philips.com/welcome User manual Always there to help you Register your product and get support at SA5AZU/37 Question? Contact Philips 1EN Contents 1 Important safety information 3 General maintenance 3 Recycling the product and the b uilt-in battery 5 2 Your new player 7 What's in the box 7 PC software f or the player 7 Files loaded on the player 7 Overview 7 Controls 7 Home screen 8 Lock/unlock the keys 8 Screen on/off 8 Sound settings 9 3 Get started 10 Charge power 10 Char ge through a USB AC/DC adapter 10 Switch the player on or off 10 Automatic standby and shut-down 10 4 Music 11 Transfer music to the player 11 Find m usic on the player 11 Find music by song information 11 Find music by playlist 11      Play music 12 Play from the same collection 12 Select play options 12 Select play options 12 Playlists 12 Add songs to a playlist-on-the-go 12 Remove songs from a playlist-on- the-go 13 Delete songs from the player 13 5 Bluetooth 14 Listen to music through Bluetooth 14 6 Videos 15 Transfer videos to the player 15 Install Philips Media Con verter 15 Use Philips Media Converter 15 Find videos on the player 15 Play videos 16 Delete videos from the player 16 7 Pictures 17 Add pictures to the player 17 Find pictures on the pla yer 17 View pictures 17 Start a slideshow 17 Select play options 17 Delete pictures from the player 17 8 FM radio 18 Tune in to radio stations 18 Store preset stations 18 Listen to the FM radio 18 9 Text reader 20            10 Recordings 21 Make recordings 21 Record audio/v oices 21 Listen to recordings 21 Delete recordings from the player 21 11 Audiobooks 22 Sync audio books to the player 22 Install AudibleManager on the PC 22 Download audiobooks to the PC 22 Sync to the player 22 Find audiobooks on the player 23 Play audiobooks 23 Use bookmarks 23 Delete audiobooks from the player 23 12 Folder view 24 2EN 13 Settings 25 Sleep timer 25 Displa y settings 25 Backlight timer 25 Screensaver 25 Language 25 Information 25 Format device 26         Philips Device Manager 27 15 Troubleshooting 29 16 Technical data 30 System requirements 30 Need help? Please visit www .philips.com/welcome where you can access a full set of supporting materials such as the user manual, the latest software updates, and answers to frequently asked questions. 3EN 1 Important safety information General maintenance The translation of this document is for reference only. In the event of any inconsistency between the English version and the translated version, the English version shall prevail. Caution  To avoid damage or malfunction: Do not expose the product to excessive heat caused by heating equipment or direct sunlight. Do not drop the product or allow objects to fall on your player. Do not allow the product to be submerged in water. Do not expose headphone socket or battery compartment to water, as water entering the set may cause major damage. Active mobile phones in the vicinity may cause interference.     !"  #   $% $ !&   responsible for any loss of data if the product becomes damaged or not readable / legible. (#) ** !+      % the supplied music software to avoid problems. Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as these may harm the product. Batteries (battery pack or batteries installed) shall not    $     *  the like. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. About operating and storage temperatures  Operate in a place where temperature is always between 0 and 40ºC (32 to 104ºF)  Store in a place where temperature is always between -20 and 45ºC (-4 to 113ºF).  Battery life may be shortened in low temperature conditions. Replacement parts/accessories: Visit www.philips.com/support to order replacement parts/accessories. Hearing Safety Listen at a moderate volume: Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sound can be deceiving. Over time your hearing 'comfort level' adapts to higher volumes of sound. So after prolonged listening, what sounds 'normal' can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level: Set your volume control at a low setting. Slowly increase the sound until you can hear it comfortably and clearly, without distortion. Listen for reasonable periods of time: Prolonged exposure to sound, even at normally 'safe' levels, can also cause hearing loss. Be sure to use your equipment reasonably and take appropriate breaks. Be sure to observe the following guidelines when using your headphones. Listen at reasonable volumes for reasonable periods of time. Be careful not to adjust the volume as your hearing adapts. Do not turn up the volume so high that you can’t hear what’s around you. You should use caution or temporarily discontinue use in potentially hazardous situations. 4EN Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it    > #  areas.    (  >  manufacturer may void user's authority to operate the product. Copyright information All other brands and product names are trademarks of their respective companies or organizations. Unauthorized duplication of any recordings whether downloaded from the Internet or made from audio CDs is a violation of copyright laws and international t…

Text truncated - open the document above for the full version.

022311–6 Power of Attorney Date:_2013-02-22__ To Whom It May Concern: Hellen Wang, whom from SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch is authorized to act on our behalf, until otherwise notified, for applications to PHOENIX TESTLAB GmbH. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b),to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date:___21April, 2013 ___ By:_________________________________Benson Lai_____________ (Signature 1 ) (Print name) Title:__Lead Engineer, Safety, Compliance and Regulatory On behalf of:__Philips Consumer Lifestyle__ (Company Name) Telephone:___852-2489-4406_____________ 1 -Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

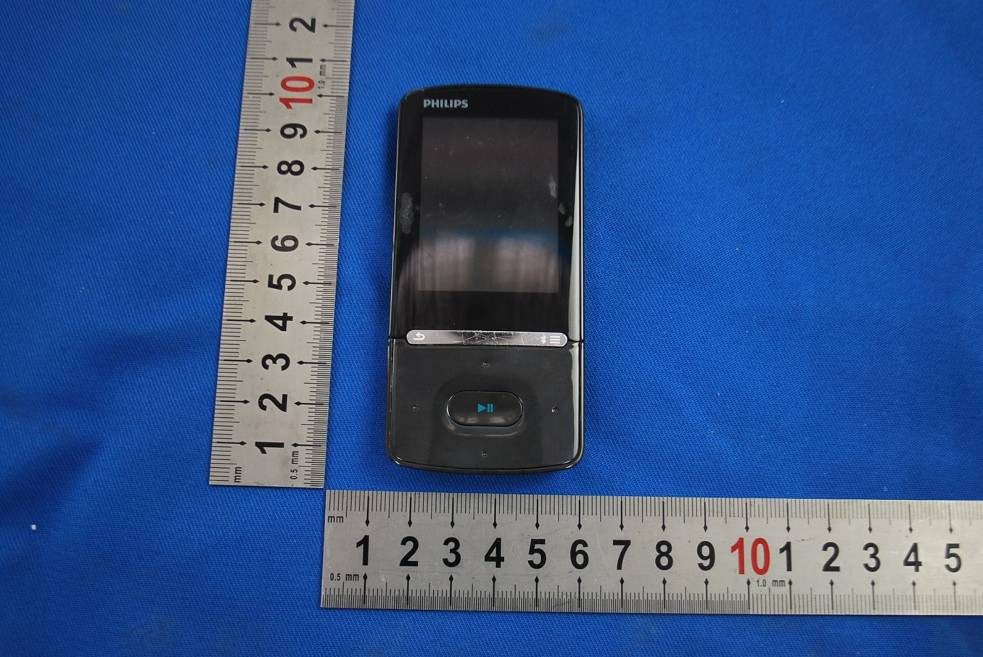

1 Photographs - EUT Constructional Details Test model No.: SA5AZU04KF/12

Tel:(0755) 26737391 Eail:[email protected] URL:www.perceptiondigital.com Fax:(0755) 26970966 Part No.: 0.0 2 2 Remarks: Rev. Page of Azure_37_bottom case-4G Housing_Top, Plastic in-mold (Color: PMS Process Black C), high gloss finish(过UV) Volume button, Plastic in-mold (Color: PMS Process Black C), fine matt finish Silkscreen color: PMS 7466C Teal Silkscreen color: PMS Cool grey 11C, matt finish Mic graphics, Recess engraving, 0.15, high gloss finish Housing_Bottom, Plastic in-mold (Color: PMS Process Black 7C), high gloss finish(过UV) Reset Key,Plastic in-mold (Color: PMS Process Black 7C), high gloss finish Tel:(0755) 26737391 Eail:[email protected] URL:www.perceptiondigital.com Fax:(0755) 26970966 Part No.: 0.0 1 1 Remarks: Rev. Page of 2.2mm 8.6mm Model:SA5AZU04KF/37 XXXXXXXXXXXXXX

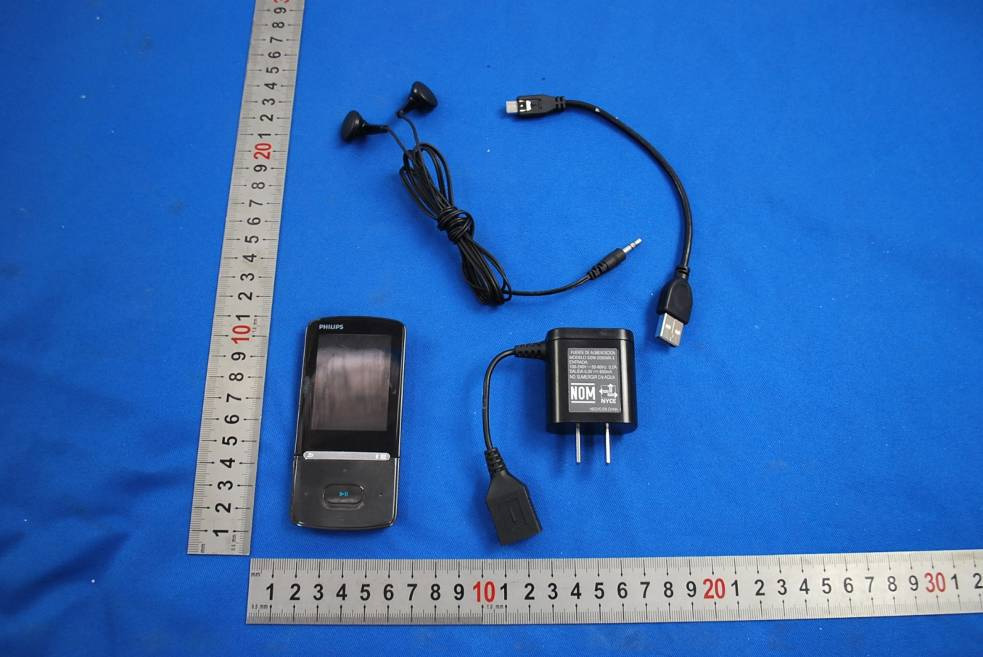

1 Photographs - EUT Constructional Details Test model No.: SA5AZU04KF/12

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130100020601 Page: 1 of 72 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1301000206RF Applicant: Philips Electronics Hong Kong Ltd. Manufacturer: Philips Electronics Hong Kong Ltd. Factory: Shenzhen Sea Star Technology Co., Ltd Product Name: GoGear Azure, MP4 Player with Bluetooth Model No.(EUT): SA5AZU04KF/12 Add Model No.: SA5AZUxxyz#/** FCC ID: BOUSA5AZU Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2013-01-30 Date of Test: 2013-02-03 to 2013-02-26 Date of Issue: 2013-03-01 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100020601 Page: 2 of 72 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130100020601 Page: 3 of 72 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to t…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup(Test Model No.: SA5AZU04KF/12) 1.1 Conducted Emission 1.2 Radiated Emission
