BOUSBT30V2Bluetooth Speaker

All registered and unregistered trademarks are property of their respective owners. © 2013 Koninklijke Philips Electronics N.V. All rights reserved. SBT30_17_UM_V4.0 SBT30/17 Register your product and get support at www.philips.com/welcome EN User manual CS Příručka pro uživatele FR Mode d’emploi EN 1 Important Safety Important Safety Instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. i Only use attachments/accessories specified by the manufacturer. j Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. k Apparatus shall not be exposed to dripping or splashing. l Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). Warning •Never remove the casing of this apparatus. •Never lubricate any part of this apparatus. •Never place this apparatus on other electrical equipment. Notice Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Notice for the USA and Canada This device complies with Part 15 of the FCC Rules and RSS standard of Industry Canada. Operation is subject to the following two conditions: 1 this device may not cause harmful interference, and 2 this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and ICES-003 of Industry Canada . These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF Radiation Exposure Statement: This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Installers must ensure that 20cm separation distance will be maintained between the device (excluding its handset) and users. Disposal of your old product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health. Your product contains batteries, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area. Always bring your product to a professional to remove the built-in battery. () Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes. Note •The type plate is located on the bottom of the apparatus. 2 Your Bluetooth Speaker Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this speaker, you can enjoy audio from the compatible Bluetooth device or your PC/ Mac. 3 Get started Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________ Power supply The speaker can operate on built-in rec…

Text truncated - open the document above for the full version.

PAGE 1 OF 3 Philips Consumer Lifestyle 5/F, Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Date: 2013-06-18 FCC ID: BOUSBT30V2 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “Philips Consumer Lifestyle” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Lead Engineer: Benson Lai, S&C,Safety & Compliance, BG Lifestyle Entertainment (LE) Philips Consumer Lifestyle Telephone Number: (852) 2489-4406 Fax. Number : (852) 2401-1482

Declaration on model difference 产品差异声明 Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance 、trade name and model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为外观、商标及型号不同，其它设计完全相同。  The above appearance is for color and silk-screen only. 上述所说外观仅指产品的颜色及丝印. Production name 产品名称 Trade name 商标 Model no. 型号 Portable speaker PHILIPS SBT30/17（Basic model） Portable speaker PHILIPS SBT30BLU/17 （Additional model） Portable speaker PHILIPS SBT30BLK/17（Additional model） Portable speaker PHILIPS SBT30ORG/17（Additional model） Portable speaker PHILIPS SBT30GRN/17（Additional model） Portable speaker PHILIPS SBT30PNK/17（Additional model）  Please provide at least 1 sample with difference except specified as above for further evaluation. 如有以下所述差异，需提供1个样板做进一步评估。 Production name 产品名称 Trade name 商标 Model no. 型号 Description 差异描述 Confirmed by Authorized Signature: 授权人签字 Company Stamp : Date: 18 June 2013 公司盖章 日期

PAGE 2 OF 3 Date : 2013-06-18 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for Philips Consumer Lifestyle. 5/F, Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of Philips Consumer Lifestyle. Product name : portable speaker Model : SBT30/17, SBT30BLU/17, SBT30BLK/17, SBT30ORG/17, SBT30GRN/17, SBT30PNK/17 This authorization will expire one year from the date of this letter. _________________________ Lead Engineer: Benson Lai, S&C, Safety & Compliance, BG Lifestyle Entertainment (LE) Philips Consumer Lifestyle Telephone Number: (852) 2489-4406 Fax. Number : (852) 2401-1482

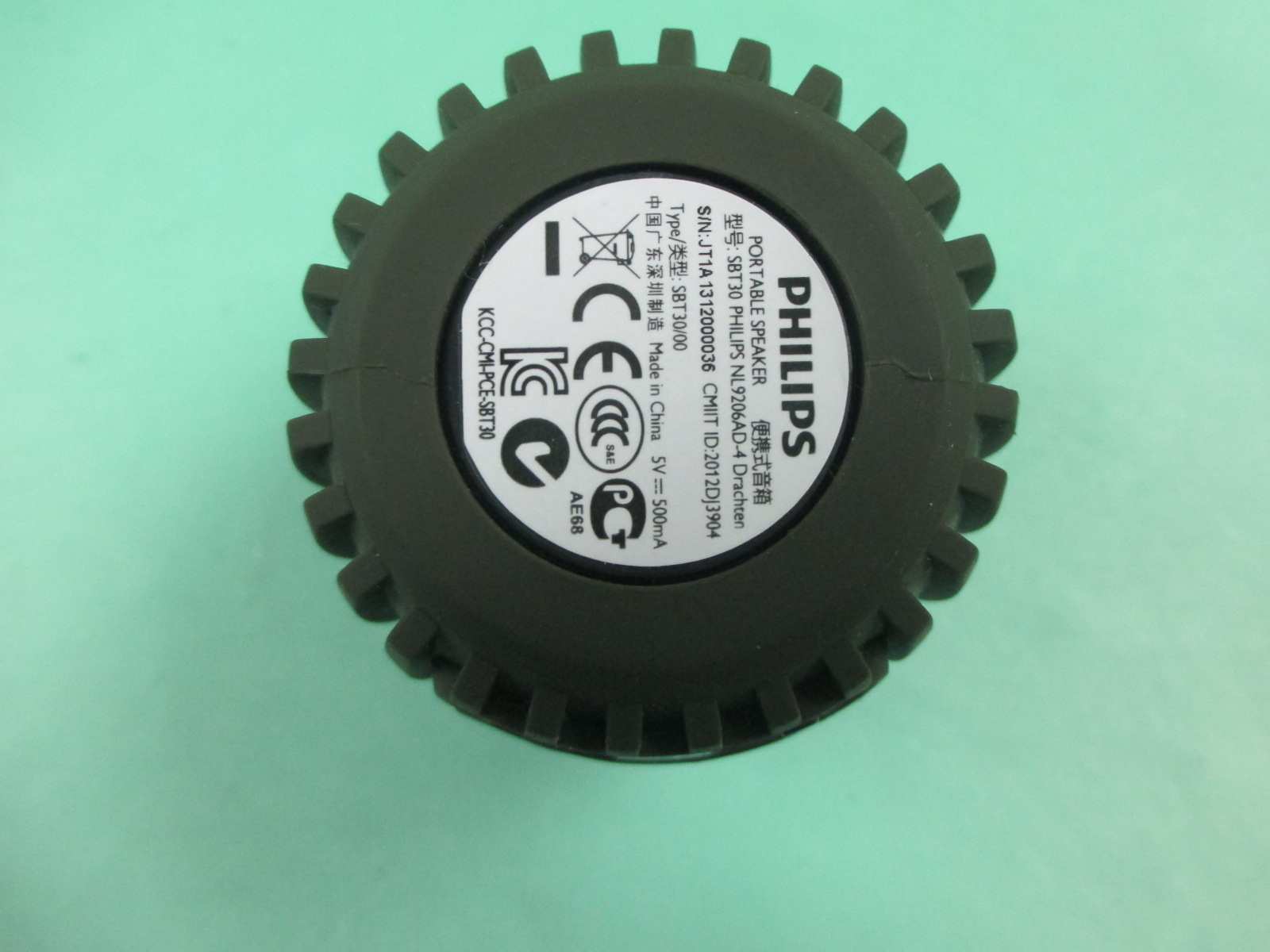

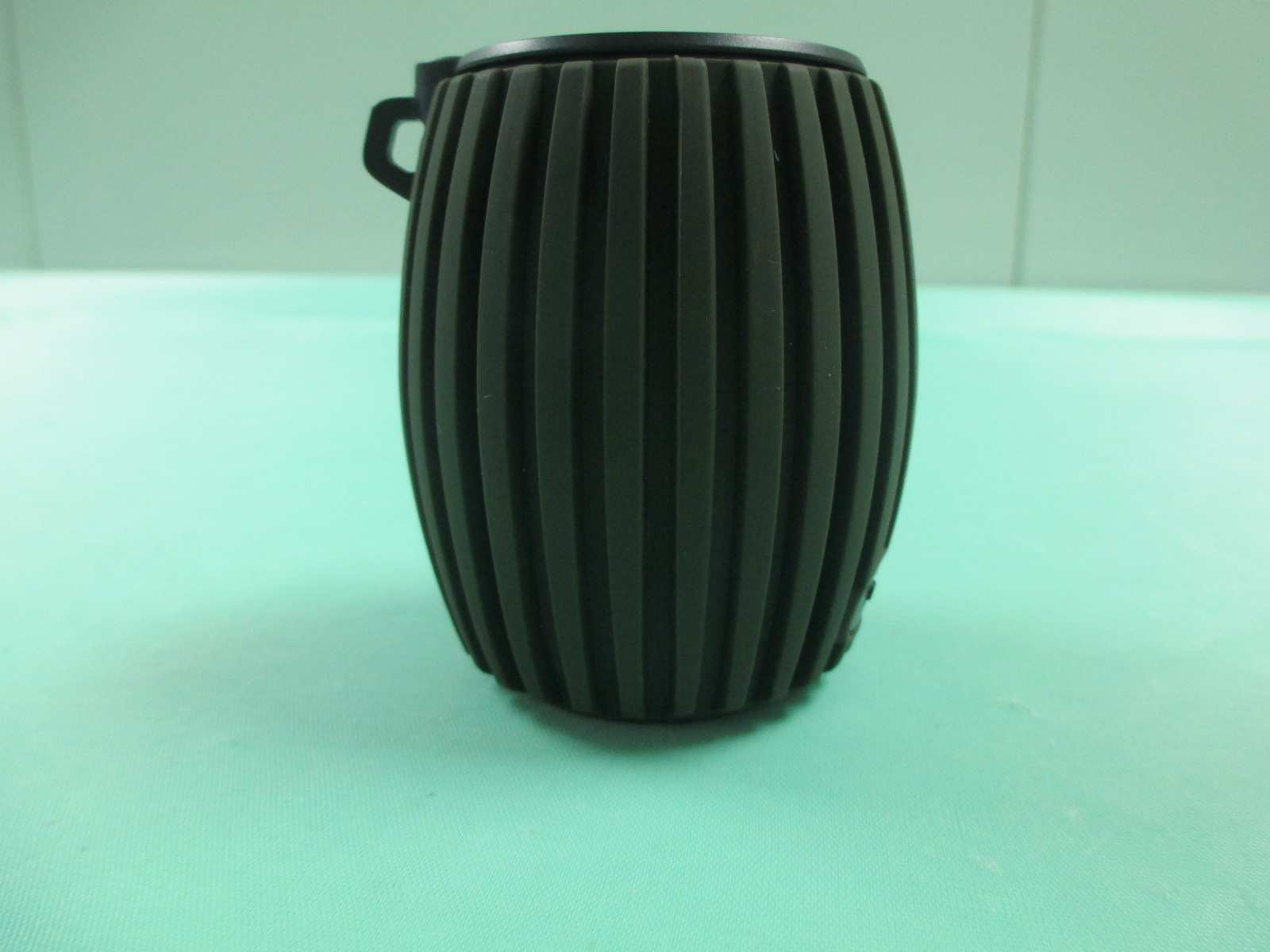

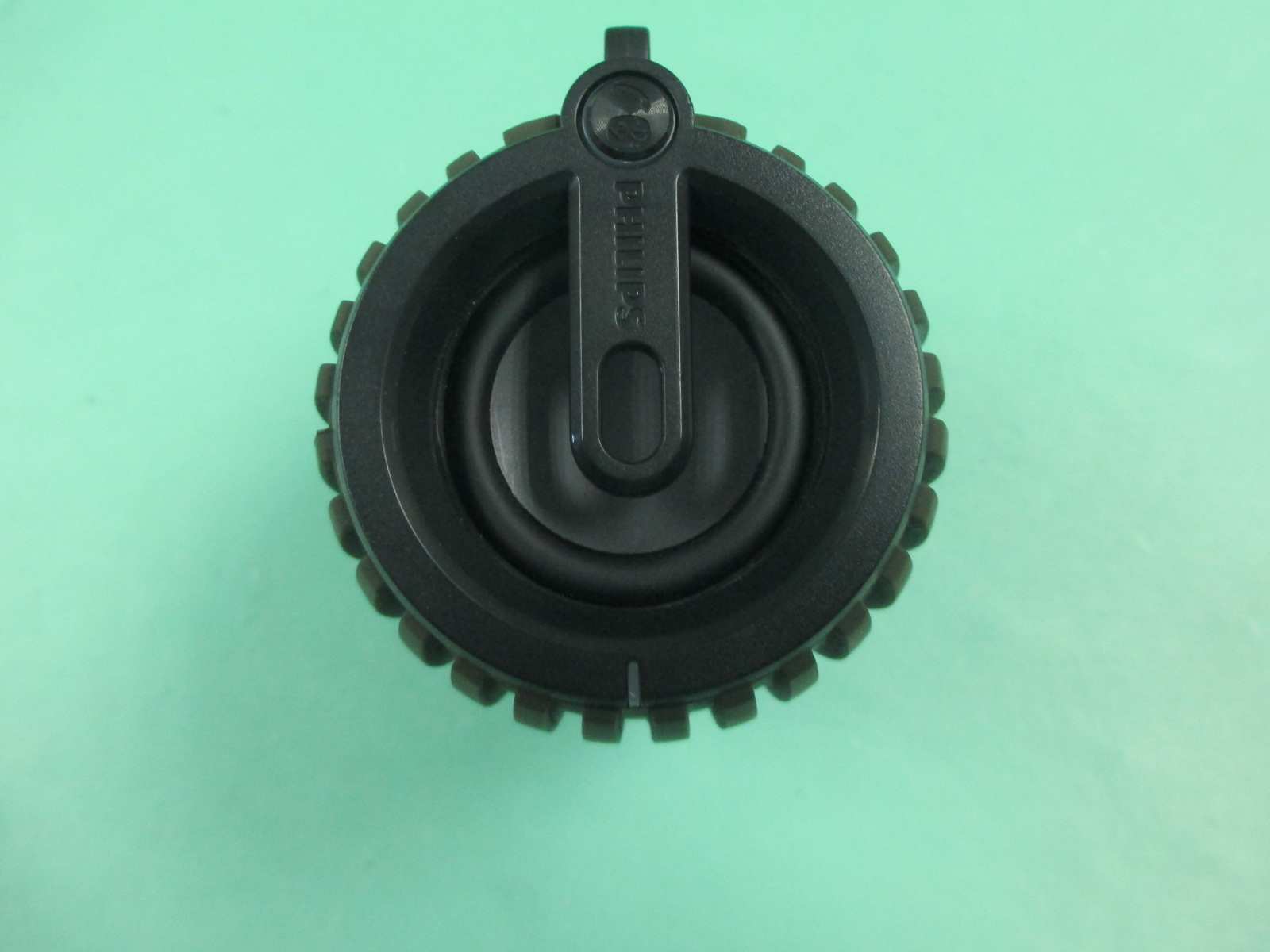

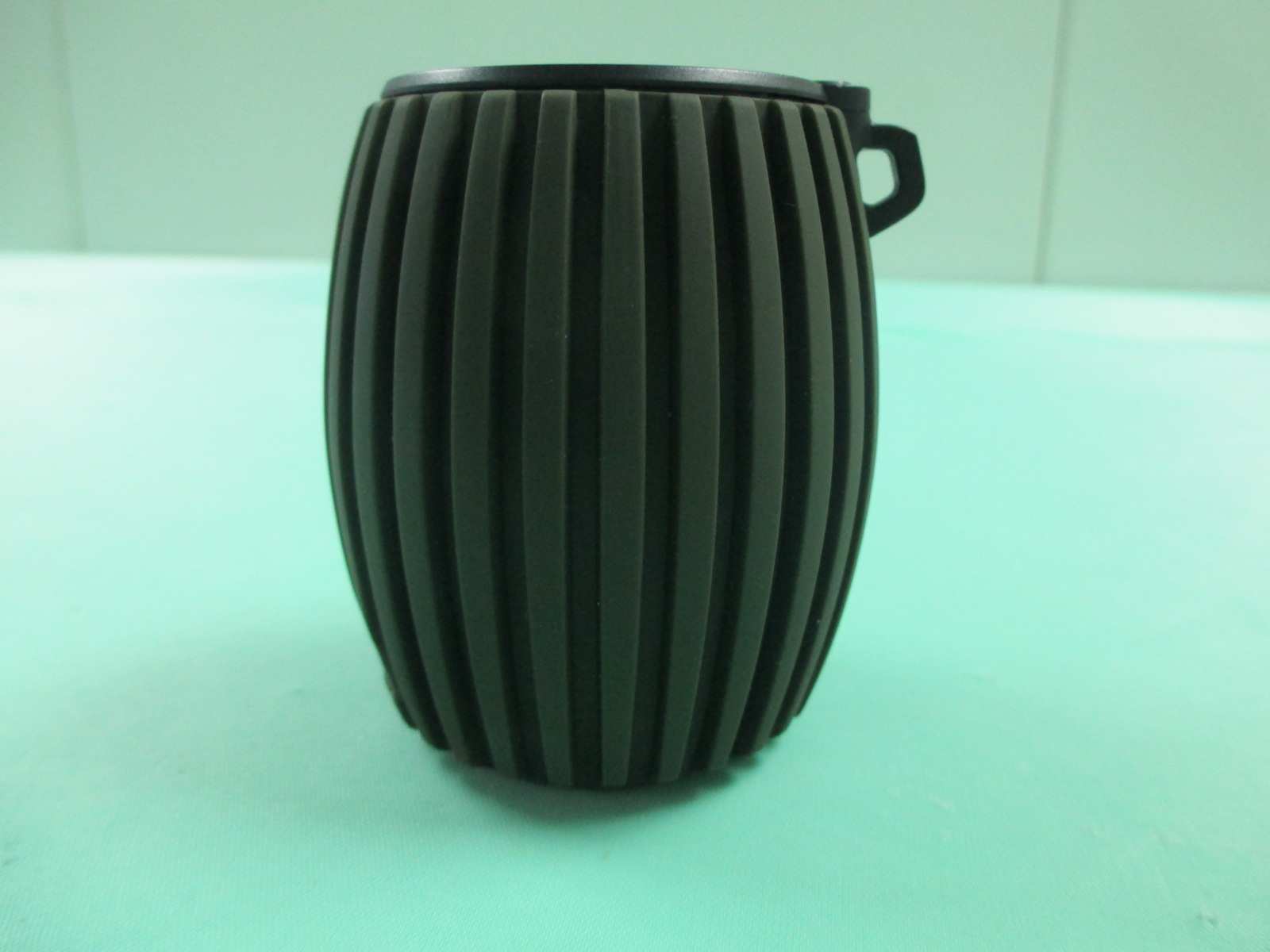

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date : 2013-05-28 Page 1 of 86 No. : DM111251 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SZN008): Philips Consumer Lifestyle 5/F, Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Manufacturer: Philips Consumer Lifestyle 5/F, Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Description of Sample(s): Product: Portable speaker Brand Name: PHILIPS Model Number: SBT30/17 FCC ID: BOUSBT30V2 Date Sample(s) Received: 2013-05-17 Date Tested: 2013-05-20 to 2013-05-28 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3 LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date : 2013-05-28 Page 2 of 86 No. : DM111251 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 86 Content Page 2 of 86 1.0 General Details 1.1 Test Laboratory Page 3 of 86 1.2 Equipment Under Test [EUT] Page 3 of 86 Description of EUT operation 1.3 Date of Order Page 3 of 86 1.4 Submitted Sample Page 3 of 86 1.5 Test Duration Page 4 of 86 1.6 Country of Origin Page 4 of 86 1.7 RF Module Details Page 4 of 86 1.8 Antenna Details Page 4 of 86 2.0 Technical Details 2.1 Investigations Requested Page 5 of 86 2.2 Test Standards and Results Summary Page 5 of 86 2.3 Table for Test Modes Page 6 of 86 3.0 Test Results 3.1 Emission Page 7 - 79 of 86 Appendix A List of Measurement Equipment Page 80 of 86 Appendix B Ancillary Equipment Page 81 of 86 Appendix C Photographs Page 82 - 86 of 86 STC Test Report Date : 2013-05-28 Page 3 of 86 No. : DM111251 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Portable speaker Manufacturer: Philips Consumer Lifestyle Brand Name: PHILIPS Model Number: SBT30/17 Additional Model Number(s): SBT30BLU/17, SBT30BLK/17, SBT30ORG/17, SBT30GRN/17, SBT30PNK/17 Input Voltage: 5Vd.c. (Powered by PC USB port) / 3.7Vd.c. (“Li-ion” built-in rechargeable battery x 1) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a portable Bluetooth 3.0 EDR speaker of Philips Consumer Lifestyle. The EUT receive digital modulated audio signal from a paired Bluetooth device, then the EUT will demodulate and amplified the audio signal and then transmit to the speaker unit. The signal modulation is achieved by the Bluetooth module, and modulation type is FHSS (Refer to Page 4 for details). Tests were conducted in different combination of operating frequencies, modulations and data rates (Refer to Page 6 for details). 1.3 Date of Order 2013-05-17 1.4 Submitted Sample(s): 1 Sample STC Test Report Date : 2013-05-28 Page 4 of 86 No. : DM111251 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.5 Test Duration 2013-05-20 to 2013-05-28 1.6 Country of Origin China 1.7 RF Module Details Module Model Number: BM350 Module FCC ID: N/A Module Transmission Type: Bluetooth V3.0+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB layout internal antenna Antenna Gain: 2.12dBi STC Test Report Date : 2013-05-28 Page 5 of 86 No. : DM111251 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testin…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
