BOUSCD5051.9GHz Baby Monitor

Register your product and get support at www.philips.com/AVENT EN User manual 3 ES Manual del usuario 15 FR-CA Manuel d’utilisation 29 SCD505 5%&A75A7/A8KPFD2/ 5%&A75A7/A8KPFD2/ 3 English EN Contents 1 Important safety instructions 4 Compliance information 6 2 Introduction 7 3 Overview 8 Parent unit 8 Baby unit 9 4 Get started 10 Connect the baby unit to power 10 Charge the parent unit 10 5 Use your baby monitor 11 Operating range 12 Change the microphone sensitivity 12 ECO mode 12 Reset the baby monitor 12 6 Warranty 13 7 Frequently asked questions 13 5%&A75A7/A8KPFD2/ 4 1 Important safety instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. g Where the power plug is used as the disconnect device, the disconnect device shall remain readily operable. h Protect the adapter cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. i Only use attachments/accessories specified by the manufacturer. j Use this apparatus only for its intended use as described in this manual. k Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. l Never push objects of any kind into this apparatus through casing slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. m The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Know these safetysymbols This “bolt of lightning” indicates unin- sulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The “exclamation point” calls atten- tion to features for which you should read the enclosed literature closely to pre- vent operating and maintenance problems. WARNING:To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. CAUTION:To prevent electric shock, match wide blade of plug to wide slot, fully insert. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. EN 5%&A75A7/A8KPFD2/ 5 remove batteries if you are not going • to use the product for more than 30 days, keep batteries (battery pack or • batteries installed) away from excessive heat such as sunshine, fire or the like, remove batteries as soon as they run • out of power. To prevent batteries from heating up or • releasing toxic materials, hydrogen, or oxygen, do not: overcharge,• short circuit,• reverse charge, or• mutilate batteries.• When you are handling batteries, take • care not to create a short circuit with the metal on your rings, bracelets, or keys. To handle damaged or leaked batteries, • wear protective gloves to protect your skin. Adult supervision This baby monitor is intended as an aid. • It is not a substitute for responsible and proper adult supervision and should not be used as such. Keep the baby unit and power cord at • least 3.5 feet/1 meter away from your baby. Never place the baby unit inside the baby bed or playpen. When your baby monitor uses a power • outlet, make sure that you can easily access the power outlet. To prevent strangulation with power • cord, never place the baby monitor within reach of child. Do not use with extension cords. For their safety, do not allow children to • play with the baby monitor. Cleaning and Maintenance Do not immerse the parent unit or baby • unit in water, and do not clean them under the tap. Do not use cleaning spray or liquid • cleaners. n Do not place any sources of danger on the apparatus (like liquid-filled objects, lighted candles etc.). o Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For assistance, visit our website www.philips.com/ AVENT or call 1-800-54-AVENT (1-800-542-8368). p This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. Risk of explosion, electric shock, short circuit, or leakage Use the type of adapters specified in this • user manual. For the baby unit, use the non-• rechargeable batteries specified in this user manual. For the parent unit, use only the • rechargeable battery pack supplied with the baby monitor. Charge the rechargeable battery pack as described in this user manual. To prevent battery explosion or leakage, • which can damage the baby monitor and cause burns and skin or eye irritation: do not mix batteries (old and new or • carbon and alkaline, etc.), do not recharge non-rechargeable • batteries, insert batteries in the right direction • (+/-), English EN 5%&A75A7/A8KPFD2/ 6 Compliance information Compliance information The term ‘IC’ before the certification number signifies that Industry Canada technical specifications were met.This certification means that the equipment meets certain radio communications and operational requirements. This device complies with Part 15 of the FCC Rules and…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES External Photos FCC ID: BOUSCD505 IC: 135M-SCD505external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: BOUSCD505 IC: 135M-SCD505external photos - 2 of 2

ASSEMBLY NO. SAMENSTELLING NO. a b c d e f abcde 123456781234 ©N.V. Philips' Gloeilampenfabrieken 19.. Alle rechten voorbehouden. Verveelvoudiging of openbaarmaking, geheel of gedeeltilijk, is niet toegestaan dan met schijftelijke toestem- ming van de auteursrechthebbende. ©N.V. Philips Gloeilampenfabrieken 19.. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. 2822 100 02244 UN-D 28 TOLERANCES UNLESS OTHERWISE STATED TOLERANTIES TENZIJ ANDERS VERMELD DIMENSIONMAAT ANGLEHOEK A A UN-D 603 ITEM STUK QUANT. AANTAL PATTERN NO. / MODEL NR. QUANT. AANTAL PATTERN NO. / MODEL NR. NAMENAAM CHECKCONTR. DAT. Property ofEigendom van N.V. PHILIPS' GLOEILAMPENFABRIEKEN EINDHOVEN - NEDERLAND CLASS.NO. GENERAL ROUGHNESS ALGEMENE RUWHEID UNIT EENH. mm PROJ. EUROP. SCALE SCHAAL AS UF 2003 POSITION GUIDE SHEET 12NC COLOUR KLEUR EXTRA INFO EXTRA INFO A4 PAGE IMPT NOTE: “FREE OF HAZOURDOUS SUBSTANCES ACCORDING TO ROYAL PHILIPS ELECTRONICS LIST OF BANNED SUBSTANCES.” 03/04 ASSEMBLY NO. SAMENSTELLING NO. a b c d e f abcde 123456781234 ©N.V. Philips' Gloeilampenfabrieken 19.. Alle rechten voorbehouden. Verveelvoudiging of openbaarmaking, geheel of gedeeltilijk, is niet toegestaan dan met schijftelijke toestem- ming van de auteursrechthebbende. ©N.V. Philips Gloeilampenfabrieken 19.. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. 2822 100 02244 UN-D 28 TOLERANCES UNLESS OTHERWISE STATED TOLERANTIES TENZIJ ANDERS VERMELD DIMENSIONMAAT ANGLEHOEK A A UN-D 603 ITEM STUK QUANT. AANTAL PATTERN NO. / MODEL NR. QUANT. AANTAL PATTERN NO. / MODEL NR. NAMENAAM CHECKCONTR. DAT. Property ofEigendom van N.V. PHILIPS' GLOEILAMPENFABRIEKEN EINDHOVEN - NEDERLAND CLASS.NO. GENERAL ROUGHNESS ALGEMENE RUWHEID UNIT EENH. mm PROJ. EUROP. SCALE SCHAAL AS UF 2003 POSITION GUIDE SHEET 12NC COLOUR KLEUR EXTRA INFO EXTRA INFO A4 PAGE IMPT NOTE: “FREE OF HAZOURDOUS SUBSTANCES ACCORDING TO ROYAL PHILIPS ELECTRONICS LIST OF BANNED SUBSTANCES.” 04/04

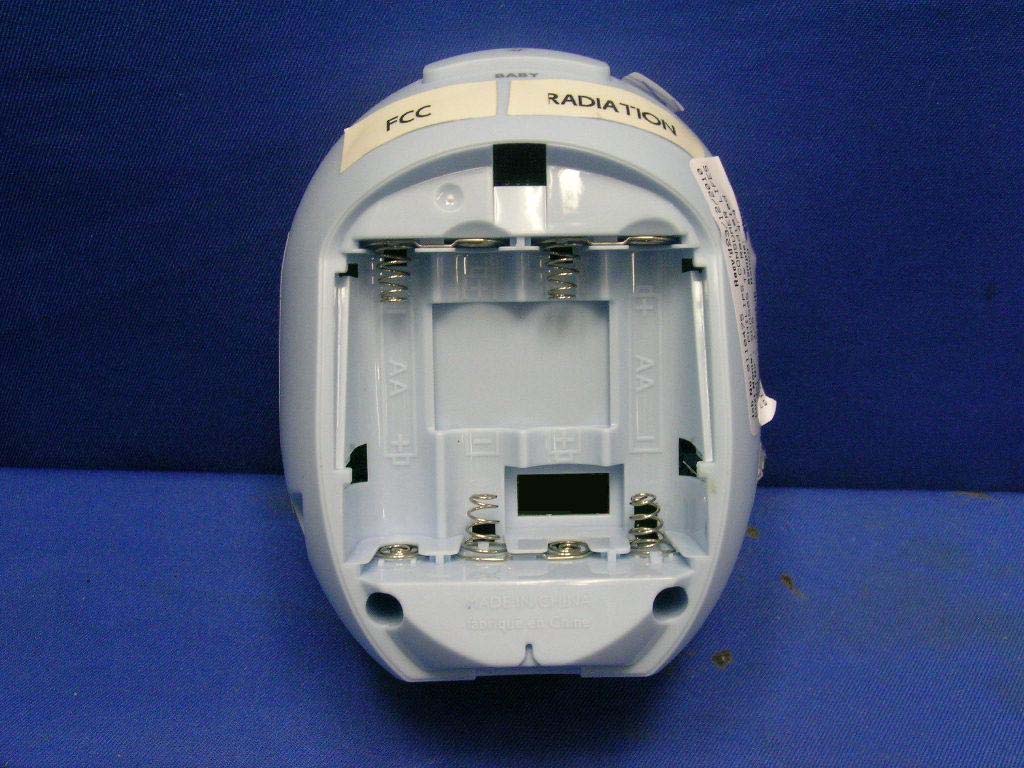

INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505 IC: 135M-SCD505 internal photos - 1 of 5 Baby Unit assembly Baby Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505 IC: 135M-SCD505 internal photos - 2 of 5 Baby Unit Main PCB solder side (View 1) Baby Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505 IC: 135M-SCD505 internal photos - 3 of 5 Baby Unit Nightlight Key front side Baby Unit Nightlight Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505 IC: 135M-SCD505 internal photos - 4 of 5 Baby Unit Keypad front side Baby Unit Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505 IC: 135M-SCD505 internal photos - 5 of 5 Baby Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: BOUSCD505 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the baby unit of tested model of SCD505, the maximum field strength measured (FS) was 114.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in one parent unit operation is 4.17%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 86.52 mW The radiated (EIRP) source-based time-averaging output power = (86.52 * 0.042) mW = 3.61 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0007 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: BOUSCD505 26bw - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: BOUSCD505 26bw - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

Report no.: HK10110475-1 Talk w/ light and music MODE AC Mains Ctrl No.: N/A 150 kHz30 MHz 6DB AC dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 4.JAN.2011 17:59:50 Report no.: HK10110475-1 Talk w/ light and music MODE AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 433.5 kHz 37.77 N -19.41 2 CISPR Average456 kHz 30.86 N -15.89 1 Quasi Peak 591 kHz 29.82 N -26.17 2 CISPR Average618 kHz 27.02 N -18.97 1 Quasi Peak 1.851 MHz 29.25 N -26.75 Date: 4.JAN.2011 17:59:31 Report no.: HK10110475-1 Receiving sound from parent unit AC Mains Ctrl No.: N/A 6 D B A C 1 5 0 k H z 3 0 M H z d B μ V d B μ V 1 P K C L R W R 2 A V C L R W R S G L T D S RBW 9 kHz MT 1 s PREAMPOFFA t t 1 0 d B AUTO 1 M H z 10 MHz 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0 C F 1 5 M A V C F 1 5 M Q P

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: BOUSCD505 inband - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: BOUSCD505 inband - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: BOUSCD505 IC: 135M-SCD505 peaktp - 1 of 3 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: BOUSCD505 IC: 135M-SCD505 peaktp - 2 of 3 A0 Baby unit, Highest channel, Traffic carrier Baby unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: BOUSCD505 IC: 135M-SCD505 peaktp - 3 of 3 A0 Baby unit, Middle channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: BOUSCD505 psd - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: BOUSCD505 psd - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Philips Consumer Lifestyle Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: BOUSCD505 Model: SCD505 IC: 135M-SCD505 Model: SCD505 Test Report Number: HK10110475-1 Issue Date: January 11, 2011 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10110475-1 Page 1 of 55 FCC ID: BOUSCD505 IC: 135M-SCD505 MEASUREMENT/TECHNICAL REPORT Philips Consumer Lifestyle - Model: SCD505 FCC ID: BOUSCD505 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10110475-1 Page 2 of 55 FCC ID: BOUSCD505 IC: 135M-SCD505 Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 17 4.5 Peak Transmit Power ............................................................................................ 18 4.6 Power Spectral Density ......................................................................................... 19 4.7 Automatic Discontinuation of Transmission............................................................ 20 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 21 4.9 Emissions Outside the Sub-Band .......................................................................... 22 4.9.1 Radiated Emissions Configuration Photographs ................................................. 23 4.9.2 Radiated Emissions Data ................................................................................... 23 4.9.3 Field Strength Calculation................................................................................... 27 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 28 4.10 Radiated Emissions from Receiver ...................................................................... 28 4.10.1 Radiated Emission Configuration Photographs .............................................…

Text truncated - open the document above for the full version.

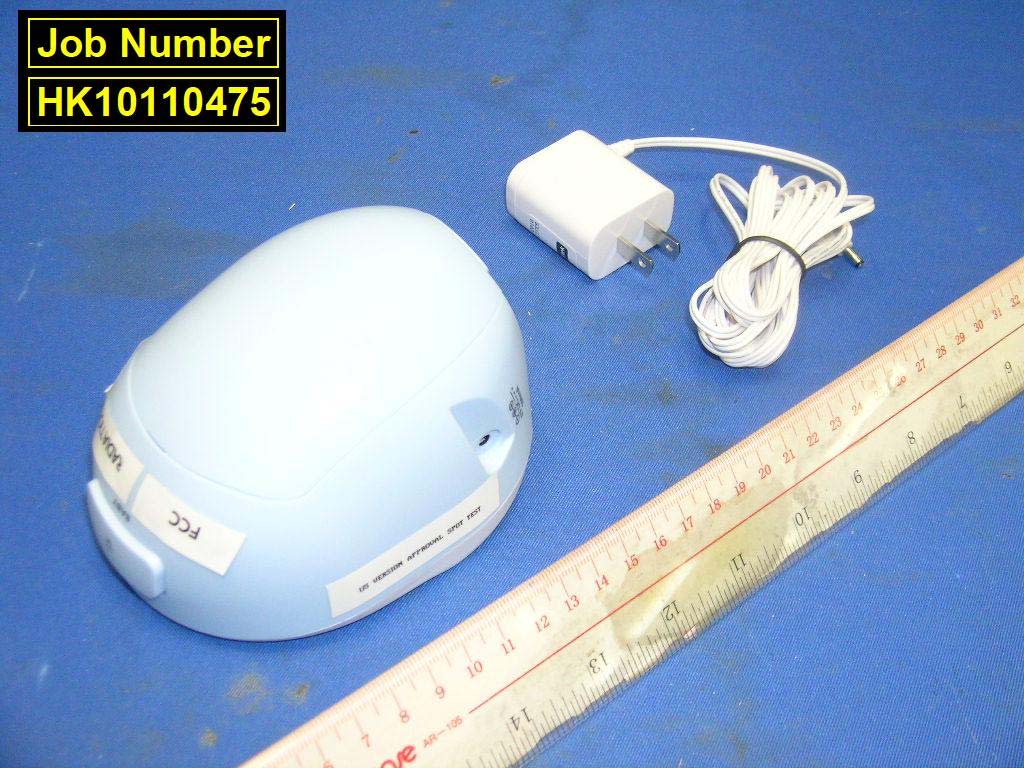

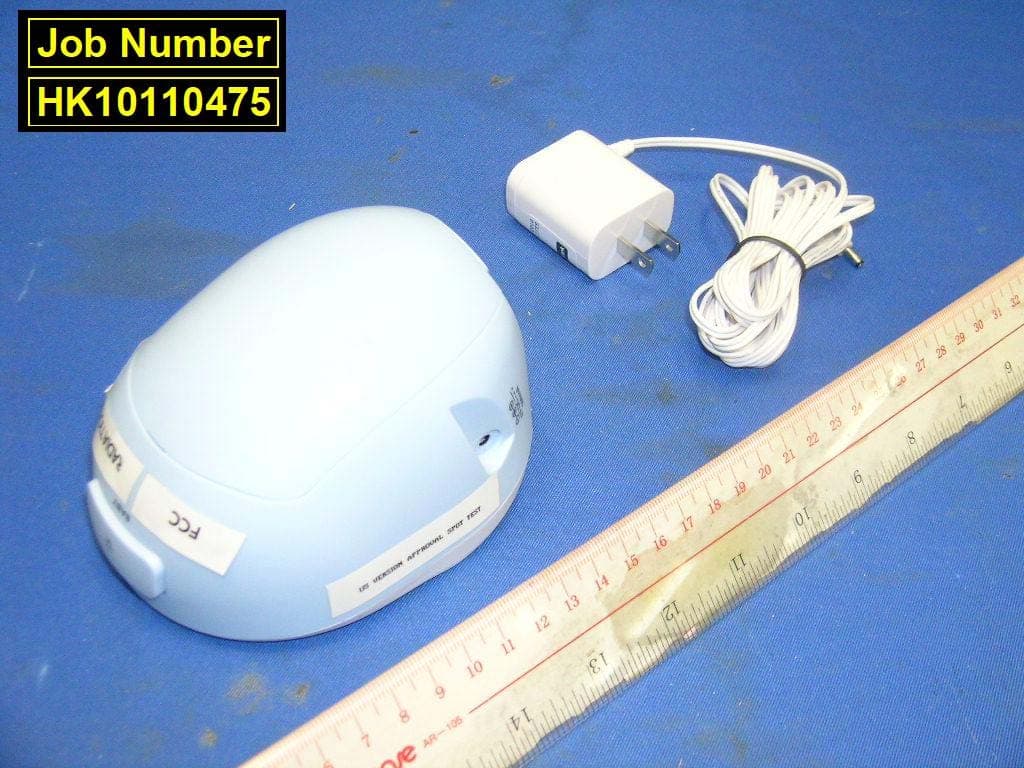

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: BOUSCD505 IC: 135M-SCD505 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Receiving IC: 135M-SCD505 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk w/ light & music on FCC ID: BOUSCD505 IC: 135M-SCD505 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk w/ light & music on FCC ID: BOUSCD505 IC: 135M-SCD505 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
