BOUSCD505H1.9GHz Baby Monitor

Register your product and get support at www.philips.com/AVENT EN User manual 3 ES Manual del usuario 15 FR-CA Manuel d’utilisation 29 SCD505 5%&A75A7/A8KPFD2/ 5%&A75A7/A8KPFD2/ 3 English EN Contents 1 Important safety instructions 4 Compliance information 6 2 Introduction 7 3 Overview 8 Parent unit 8 Baby unit 9 4 Get started 10 Connect the baby unit to power 10 Charge the parent unit 10 5 Use your baby monitor 11 Operating range 12 Change the microphone sensitivity 12 ECO mode 12 Reset the baby monitor 12 6 Warranty 13 7 Frequently asked questions 13 5%&A75A7/A8KPFD2/ 4 1 Important safety instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. g Where the power plug is used as the disconnect device, the disconnect device shall remain readily operable. h Protect the adapter cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. i Only use attachments/accessories specified by the manufacturer. j Use this apparatus only for its intended use as described in this manual. k Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. l Never push objects of any kind into this apparatus through casing slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. m The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Know these safetysymbols This “bolt of lightning” indicates unin- sulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The “exclamation point” calls atten- tion to features for which you should read the enclosed literature closely to pre- vent operating and maintenance problems. WARNING:To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. CAUTION:To prevent electric shock, match wide blade of plug to wide slot, fully insert. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. EN 5%&A75A7/A8KPFD2/ 5 remove batteries if you are not going • to use the product for more than 30 days, keep batteries (battery pack or • batteries installed) away from excessive heat such as sunshine, fire or the like, remove batteries as soon as they run • out of power. To prevent batteries from heating up or • releasing toxic materials, hydrogen, or oxygen, do not: overcharge,• short circuit,• reverse charge, or• mutilate batteries.• When you are handling batteries, take • care not to create a short circuit with the metal on your rings, bracelets, or keys. To handle damaged or leaked batteries, • wear protective gloves to protect your skin. Adult supervision This baby monitor is intended as an aid. • It is not a substitute for responsible and proper adult supervision and should not be used as such. Keep the baby unit and power cord at • least 3.5 feet/1 meter away from your baby. Never place the baby unit inside the baby bed or playpen. When your baby monitor uses a power • outlet, make sure that you can easily access the power outlet. To prevent strangulation with power • cord, never place the baby monitor within reach of child. Do not use with extension cords. For their safety, do not allow children to • play with the baby monitor. Cleaning and Maintenance Do not immerse the parent unit or baby • unit in water, and do not clean them under the tap. Do not use cleaning spray or liquid • cleaners. n Do not place any sources of danger on the apparatus (like liquid-filled objects, lighted candles etc.). o Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For assistance, visit our website www.philips.com/ AVENT or call 1-800-54-AVENT (1-800-542-8368). p This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. Risk of explosion, electric shock, short circuit, or leakage Use the type of adapters specified in this • user manual. For the baby unit, use the non-• rechargeable batteries specified in this user manual. For the parent unit, use only the • rechargeable battery pack supplied with the baby monitor. Charge the rechargeable battery pack as described in this user manual. To prevent battery explosion or leakage, • which can damage the baby monitor and cause burns and skin or eye irritation: do not mix batteries (old and new or • carbon and alkaline, etc.), do not recharge non-rechargeable • batteries, insert batteries in the right direction • (+/-), English EN 5%&A75A7/A8KPFD2/ 6 Compliance information Compliance information The term ‘IC’ before the certification number signifies that Industry Canada technical specifications were met.This certification means that the equipment meets certain radio communications and operational requirements. This device complies with Part 15 of the FCC Rules and…

Text truncated - open the document above for the full version.

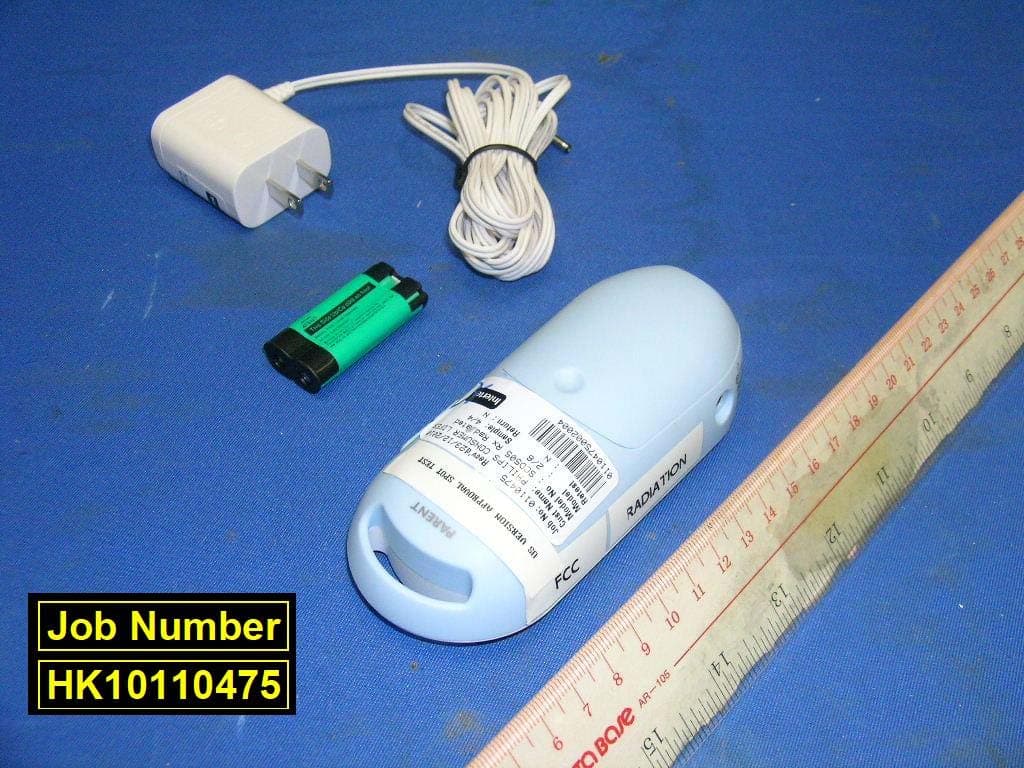

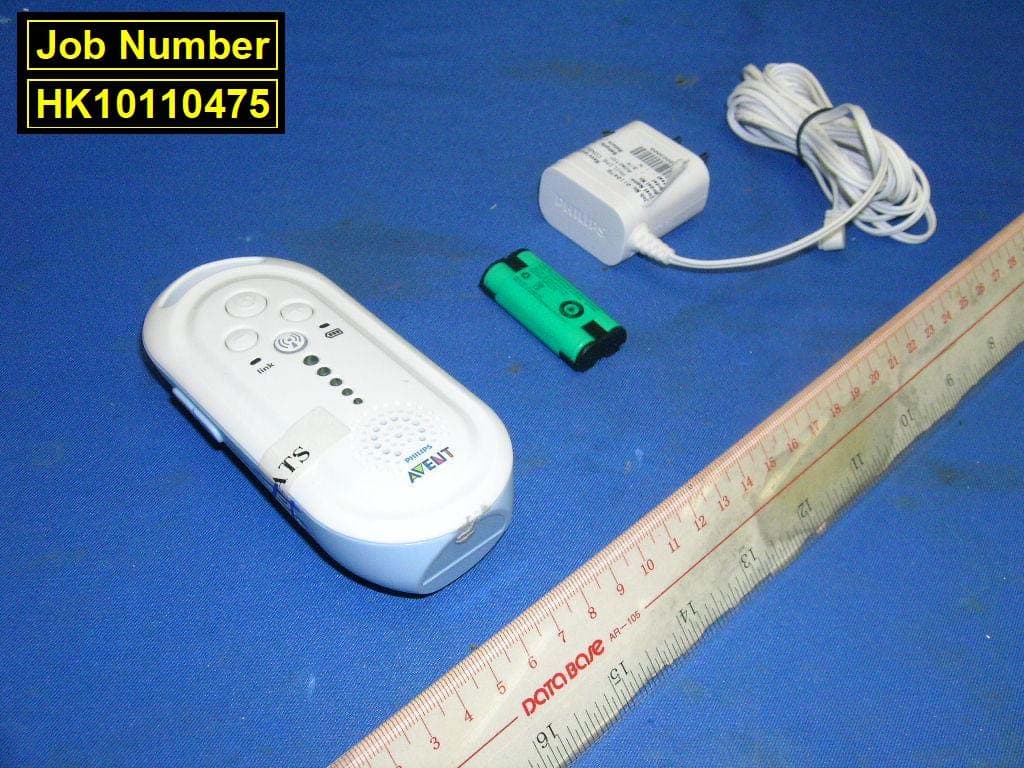

INTERTEK TESTING SERVICES External Photos FCC ID: BOUSCD505H IC: 135M-SCD505Hexternal photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: BOUSCD505H IC: 135M-SCD505Hexternal photos - 2 of 2

ASSEMBLY NO. SAMENSTELLING NO. a b c d e f abcde 123456781234 ©N.V. Philips' Gloeilampenfabrieken 19.. Alle rechten voorbehouden. Verveelvoudiging of openbaarmaking, geheel of gedeeltilijk, is niet toegestaan dan met schijftelijke toestem- ming van de auteursrechthebbende. ©N.V. Philips Gloeilampenfabrieken 19.. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. 2822 100 02244 UN-D 28 TOLERANCES UNLESS OTHERWISE STATED TOLERANTIES TENZIJ ANDERS VERMELD DIMENSIONMAAT ANGLEHOEK A A UN-D 603 ITEM STUK QUANT. AANTAL PATTERN NO. / MODEL NR. QUANT. AANTAL PATTERN NO. / MODEL NR. NAMENAAM CHECKCONTR. DAT. Property ofEigendom van N.V. PHILIPS' GLOEILAMPENFABRIEKEN EINDHOVEN - NEDERLAND CLASS.NO. GENERAL ROUGHNESS ALGEMENE RUWHEID UNIT EENH. mm PROJ. EUROP. SCALE SCHAAL AS UF 2003 POSITION GUIDE SHEET 12NC COLOUR KLEUR EXTRA INFO EXTRA INFO A4 PAGE IMPT NOTE: “FREE OF HAZOURDOUS SUBSTANCES ACCORDING TO ROYAL PHILIPS ELECTRONICS LIST OF BANNED SUBSTANCES.” 01/04 PARENT UNIT BACK SIDE PARENT UNIT SIDE ASSEMBLY NO. SAMENSTELLING NO. a b c d e f abcde 123456781234 ©N.V. Philips' Gloeilampenfabrieken 19.. Alle rechten voorbehouden. Verveelvoudiging of openbaarmaking, geheel of gedeeltilijk, is niet toegestaan dan met schijftelijke toestem- ming van de auteursrechthebbende. ©N.V. Philips Gloeilampenfabrieken 19.. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. 2822 100 02244 UN-D 28 TOLERANCES UNLESS OTHERWISE STATED TOLERANTIES TENZIJ ANDERS VERMELD DIMENSIONMAAT ANGLEHOEK A A UN-D 603 ITEM STUK QUANT. AANTAL PATTERN NO. / MODEL NR. QUANT. AANTAL PATTERN NO. / MODEL NR. NAMENAAM CHECKCONTR. DAT. Property ofEigendom van N.V. PHILIPS' GLOEILAMPENFABRIEKEN EINDHOVEN - NEDERLAND CLASS.NO. GENERAL ROUGHNESS ALGEMENE RUWHEID UNIT EENH. mm PROJ. EUROP. SCALE SCHAAL AS UF 2003 POSITION GUIDE SHEET 12NC COLOUR KLEUR EXTRA INFO EXTRA INFO A4 PAGE IMPT NOTE: “FREE OF HAZOURDOUS SUBSTANCES ACCORDING TO ROYAL PHILIPS ELECTRONICS LIST OF BANNED SUBSTANCES.” 02/04

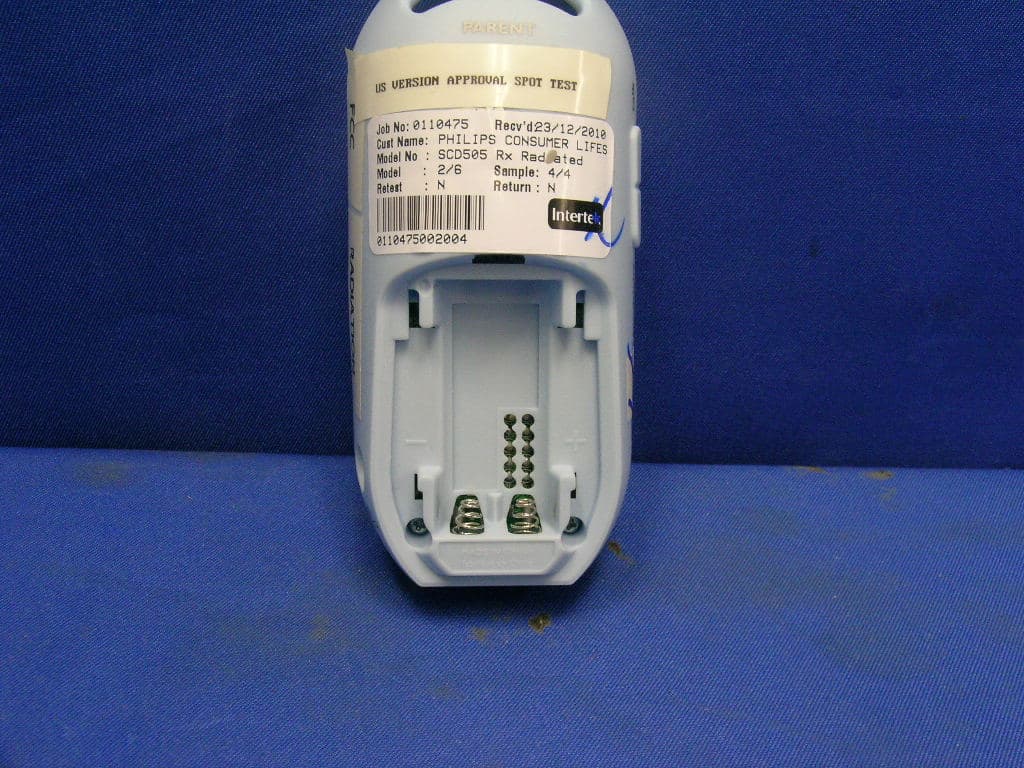

INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505H IC: 135M-SCD505H internal photos - 1 of 4 Parent Unit assembly Parent Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505H IC: 135M-SCD505H internal photos - 2 of 4 Parent Unit Antenna Parent Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505H IC: 135M-SCD505H internal photos - 3 of 4 Parent Unit Keypad front side Parent Unit Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD505H IC: 135M-SCD505H internal photos - 4 of 4 Parent Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: BOUSCD505H RF exposure - 1 of 1 According to the guidelines of FCC’s OET KDB 447498 D01, “Mobile and Portable Device - RF Exposure Procedures and Equipment Authorization Policies”, the hand SAR evaluation for hand-held and hand-operated device that operate closer than 5 cm from the antenna during normal use is exempted if the output power is not greater than 1000 x [f(GHz)] -0.5 mW. 1. Parent unit of tested model of SCD505-R is a hand-held device, and the operation frequency range is 1.921536 to 1.928448 GHz. Output power threshold =1000 x [f(GHz)] -0.5 mW =1000 x (1.924992) -0.5 mW =720.75 mW 2. The maximum field strength measured (FS) of shaker unit was 112.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor is 4.17%. The radiated power = (FS*D) 2 / 30 = 52.13 mW The radiated (EIRP) source-based time-averaging output power = (52.13 * 0.0417) mW = 2.17 mW 3. The conducted peak transmit power measured of shaker unit was 19.32 dBm. And the maximum source-based time-averaging duty factor is 4.17%. The conducted power =85.51 mW The conducted source-based time-averaging output power = (85.51 *0.0417) mW = 3.57 mW The maximum output power (higher value of conducted or radiated (EIRP) source- based time-averaging output power) is 3.57 mW and is not greater than the above output power threshold 720.75 mW, therefore the hand SAR evaluation is exempted.

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1101FS11 Applicant ： Philips Consumer Lifestyle EUT Type ： DECT Baby Monitor FCC ID ： BOUSCD505H Trade Name ： Philips Avent Model Number ： SCD505-R Dates of Test ： Jan. 05, 2011 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-2005 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.016 W/kg Body SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Sam Chuang 20110201 Alex Wu 20110201 Approve Signer Testing Engineer ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 1 of 58 Contents 1. Description of Equipment Under Test (EUT) ..........................................................................3 2. Introduction .......................................................................... ......................................... 4 3. SAR Definition .......................................................................... ..................................... 4 4. SAR Measurement Setup .......................................................................... .......................5 5. System Components .......................................................................... ..............................7 6. Test Equipment List .......................................................................... ...............................15 7. Tissue Simulating Liquids .......................................................................... .......................16 8. Measurement Process ......................................................................................................19 9. Measurement Uncertainty ................................................................................................ 24 10. SAR Test Results Summary .......................................................................... ..................27 11. Conclusion ...................................................................................................................29 12. References .......................................................................... ........................................29 Appendix A - System Performance Check ................................................................................30 Appendix B - SAR Measurement Data ....................................................................................31 Appendix C - Calibration ......................................................................................................32 ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 2 of 58 1. Description of Equipment Under Test (EUT) Applicant ： Philips Consumer Lifestyle Applicant Address ： 3029 Governor John Sevier Hwy Knoxville, TN 37914 Manufacturer ： Dongguan VTech Satellite Equipment Co. Ltd. Manufacturer Address ：Xia Ling Bei Management Zone Liaobu, Dongguan,Guangdong, China 511758 EUT Type ：DECT Baby Monitor FCC ID ：BOUSCD505H Trade Name ：Philips Avent Model Number ：SCD505-R Battery Type ： Ni-MH Battery (2.4V，850mAh ) Tx Frequency ：1921.536 -1928.448 MHz ( UPCS ) Max. RF Conducted Power：0.084 W (19.26dBm ) UPCS Max. SAR Measurement ：0.016 W/kg UPCS Body SAR HW Version ： NA SW Version ： NA Antenna Type ： Fixed Type Antenna Gain ： 0dBi Device Category ：Portable RF Exposure Environment：General Population / Uncontrolled Application Type ：Certification Adapter Information ：Model : 1920US-2 ：Input : 100-240V,50-60Hz,0.2A ：Output : 6.0V,500mA This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment / general population exposure limits specified in Standard C95.1-2005 and had been tested in accordance with the measurement procedures specified in IEEE Std. 1528-2003. ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 3 of 58 2. Introduction The A Test Lab Techno Corp. has performed measurements of the maximum potential exposure to the user of Philips Consumer Lifestyle Trade Name：Philips Avent Model(s)：SCD505-R. The test procedures, as described in American National Standards, Institute C95.1 - 2005［1］, FCC/OET Bulletin 65 Supplement C [July 2001] were employed and they specify the maximum exposure limit of 1.6mW/g as averaged over any 1 gram of tissue for portable devices being used within 20cm between user and EUT in the uncontrolled environment. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the equipment used are included within this test report. 3. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dw) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dv) of a given density ( ρ ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. SAR Mathematical Equation SAR = ⎟ ⎠ ⎞ ⎜ ⎝ ⎛ dm dw dt d = ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ dv dw dt d ρ SAR is expressed in units of Watts per kilogram (W/kg) SAR = ρ E 2 σ Where： σ = conductivity of the tissue (S/m) ρ = mass density of the tissue (kg/m 3 ) E = RMS electric field strength (V/m) ＊Not…

Text truncated - open the document above for the full version.

SAR EUT Photographs 1.) EUT Photo 2.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 1 of 3 3.) EUT Photo 4.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 2 of 3 5.) EUT Photo 6.) EUT Photo ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 3 of 3

SAR Test Setup Photographs Flat_DECT CH2_Parent unit_close body Figure 2. Body SAR Test Setup (Flat Section) EUT Front side ©2011 A Test Lab Techno Corp. Report Number: 1101FS11-01Page 1 of 1

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: BOUSCD505H 26bw - 1 of 1 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Highest channel, Traffic carrier

Report no.: HK10110475-2 Standby MODE AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 4.JAN.2011 18:19:06 Report no.: HK10110475-2 Standby MODE AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average451.5 kHz 35.90 N -10.94 1 Quasi Peak 451.5 kHz 44.64 N -12.19 1 Quasi Peak 11.076 MHz 18.83 L1 -41.16 1 Quasi Peak 12.651 MHz 27.67 N -32.32 1 Quasi Peak 15.7065 MHz 35.20 N -24.79 Date: 4.JAN.2011 18:18:56 Report no.: HK10110475-2 Talk MODE AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 4.JAN.2011 18:09:58 Report no.: HK10110475-2 Talk MODE AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average451.5 kHz 34.45 N -12.39 1 Quasi Peak 451.5 kHz 41.21 N -15.63 1 Quasi Peak 766.5 kHz 33.69 N -22.30 1 Quasi Peak 2.9085 MHz 36.12 N -19.87 Date: 4.JAN.2011 18:09:49

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: BOUSCD505H inband - 1 of 1 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: BOUSCD505H IC: 135M-SCD505H peaktp - 1 of 2 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: BOUSCD505H IC: 135M-SCD505H peaktp - 2 of 2 A0 Parent unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: BOUSCD505H psd - 1 of 1 A0 Parent unit, Lowest channel, Traffic carrier Parent unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Philips Consumer Lifestyle Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Parent Unit) FCC ID: BOUSCD505H Model: SCD505-R IC: 135M-SCD505H Model: SCD505-R Test Report Number: HK10110475-2 Issue Date: January 11, 2011 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10110475-2 Page 1 of 52 FCC ID: BOUSCD505-R IC: 135M-SCD505H MEASUREMENT/TECHNICAL REPORT Philips Consumer Lifestyle - Model: SCD505-R FCC ID: BOUSCD505H This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUT - Part 15 Unlicensed PCS Portable TX Worn on Body Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10110475-2 Page 2 of 52 FCC ID: BOUSCD505-R IC: 135M-SCD505H Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 17 4.5 Peak Transmit Power ............................................................................................ 18 4.6 Power Spectral Density ......................................................................................... 19 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 26 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 27 4.10 Radiated Emissions from Receiver ...................................................................... 27 4.10.1 Radiated Emission Configuration Photographs ................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: BOUSCD505H IC: 135M-SCD505H config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Receiving IC: 135M-SCD505H config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Standby FCC ID: BOUSCD505H IC: 135M-SCD505H config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Standby FCC ID: BOUSCD505H IC: 135M-SCD505H config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
