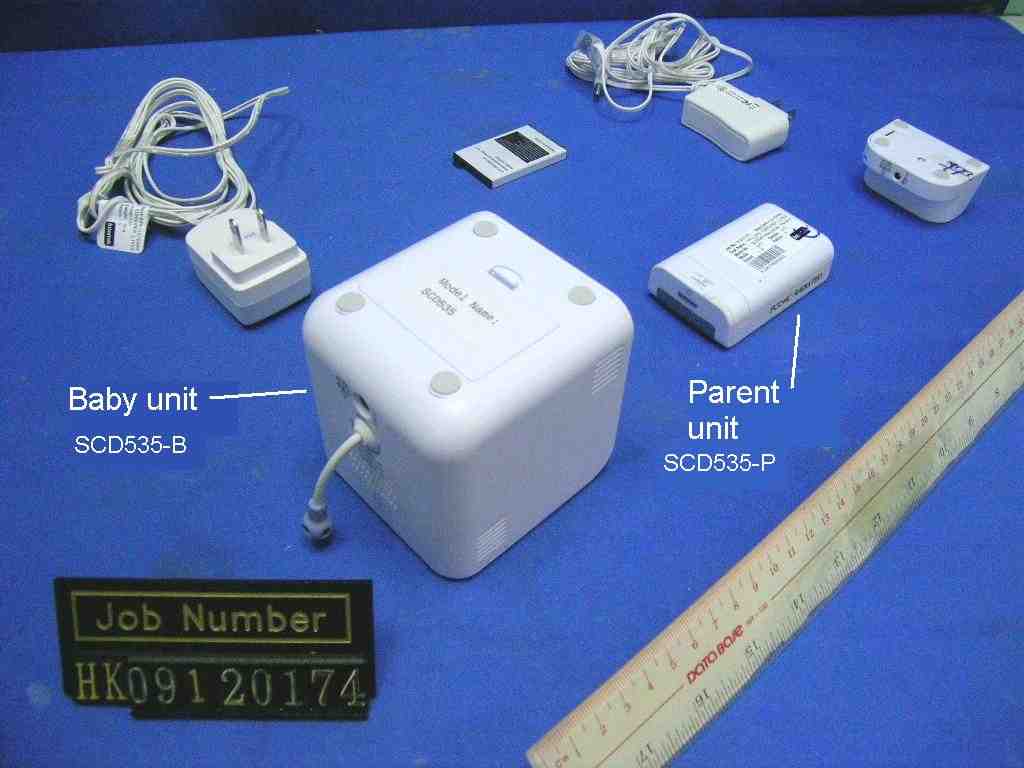

INTERTEK TESTING SERVICES External Photos FCC ID: BOUSCD535 IC: 135M-SCD535external photos - 1 of 1

SCD535US CSA LABEL(Updating:Jan 25,2010) HS CSA LABEL Size:19*8mm BS CSA LABEL Size:31.5*12.5mm CHG CSA LABEL Size:28*14mm SCD535-B/SCD535-P Label location Baby unit Parent unit

INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 1 of 11 Baby Unit assembly (View 1) Baby Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 2 of 11 Baby Unit assembly (View 3) Baby Unit assembly (View 4) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 3 of 11 Baby Unit Main PCB comp side (View 1) Baby Unit Main PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 4 of 11 Baby Unit Main PCB comp side (View 3) Baby Unit Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 5 of 11 Baby Unit Main PCB solder side (View 2) Baby Unit Main PCB solder side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 6 of 11 Baby Unit Main PCB solder side (View 4) Baby Unit Main PCB solder side (View 5) INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 7 of 11 LCD driver PCB solder side Baby Unit Power Supply PCB & Battery Contact PCB front side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 8 of 11 Baby Unit Power Supply PCB & Battery Contact PCB rear side Baby Unit Night Light PCB front side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 9 of 11 Baby Unit Night Light PCB rear side Baby Unit Antenna 0 INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 10 of 11 Baby Unit Antenna 1 Baby Unit DECT RF Module comp side INTERTEK TESTING SERVICES Internal photos FCC ID: BOUSCD535 IC: 135M-SCD535 internal photos - 11 of 11 Baby Unit DECT RF Module solder side

INTERTEK TESTING SERVICES FCC ID: BOUSCD535 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the baby unit of tested model of SCD535-B, the maximum field strength measured (FS) was 114.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time- averaging duty factor in talking with one parent unit is 8.33%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 80.75 mW The radiated (EIRP) source-based time-averaging output power = (80.75 * 0.083) mW = 6.73 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0013 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: BOUSCD535 26bw - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: BOUSCD535 26bw - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

Report no.: HK09120174-1 Model no.: SCD535-B(Baby Unit) Talk Mode w/adaptor, lamp & Lullaby Playback AC Mains “L” Ctrl No.: N/A PAGE 1 Report No.:HK09120174-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report no.: HK09120174-1 Model no.: SCD535-B(Baby Unit) Talk Mode w/adaptor, lamp & Lullaby Playback AC Mains “L” Ctrl No.: N/A Report No.:HK09120174-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit Delta MHz dBuV dBuV dB 1.65300 31.3 56.0 -24.7 Frequency AV Level AV Limit Delta MHz dBuV dBuV dB 0.31650 31.7 49.8 -18.1 * limit exceeded

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: BOUSCD535 inband - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: BOUSCD535 inband - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: BOUSCD535 IC: 135M-SCD535 peaktp - 1 of 3 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: BOUSCD535 IC: 135M-SCD535 peaktp - 2 of 3 A0 Baby unit, Highest channel, Traffic carrier Baby unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: BOUSCD535 IC: 135M-SCD535 peaktp - 3 of 3 A0 Baby unit, Middle channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: BOUSCD535 psd - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: BOUSCD535 psd - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Philips Consumer Lifestyle B.V. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: BOUSCD535 Model: SCD535-B IC: 135M-SCD535 Model: SCD535-B Test Report Number: HK09120174-1 Issue Date: March 23, 2010 KS/ cl INTERTEK TESTING SERVICES Test Report Number: HK09120174-1 Page 1 of 50 FCC ID: BOUSCD535 IC: 135M-SCD535 MEASUREMENT/TECHNICAL REPORT Philips Consumer Lifestyle B.V. - Model: SCD535-B FCC ID: BOUSCD535 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK09120174-1 Page 2 of 50 FCC ID: BOUSCD535 IC: 135M-SCD535 Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 13 3.7 Equipment Modification ......................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 17 4.5 Peak Transmit Power ............................................................................................ 18 4.6 Power Spectral Density ......................................................................................... 19 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 26 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 27 4.10 Radiated Emissions from Receiver .........................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: BOUSCD535 IC: 135M-SCD535 config photos (radiated emission – baby unit) - 1 of 1 Radiated Emission – Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID: BOUSCD535 IC: 135M-SCD535 config photos (conducted emission) - 1 of 2 Conducted Emission – Baby Unit Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Talk FCC ID: BOUSCD535 IC: 135M-SCD535 config photos (conducted emission) - 2 of 2 Conducted Emission – Baby Unit Left Side View
