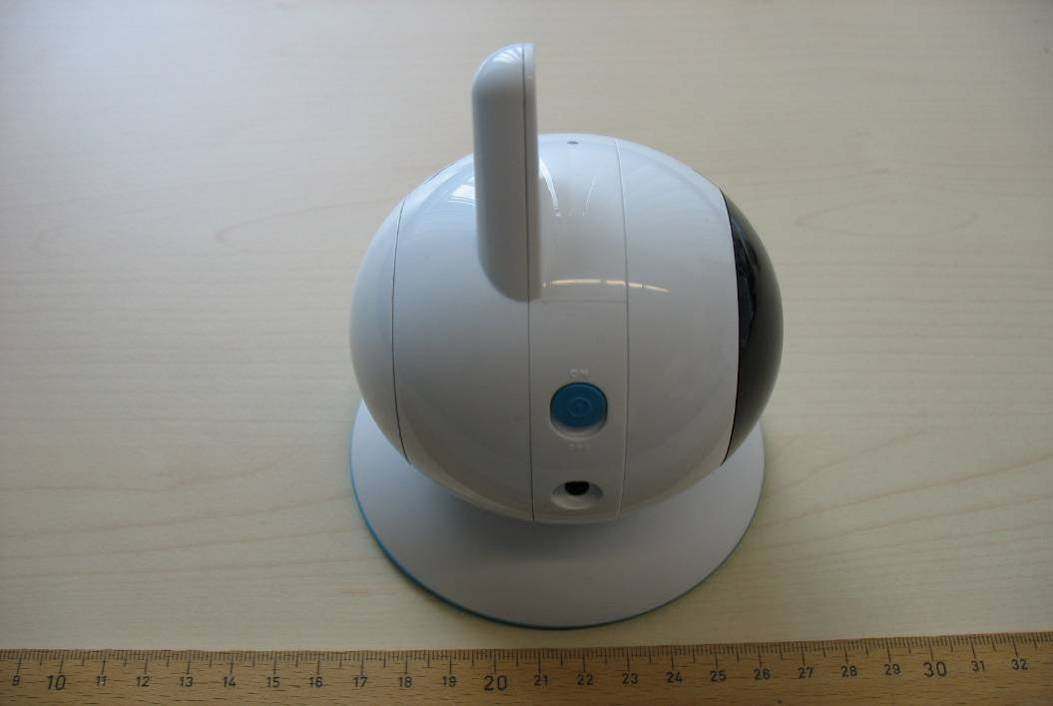

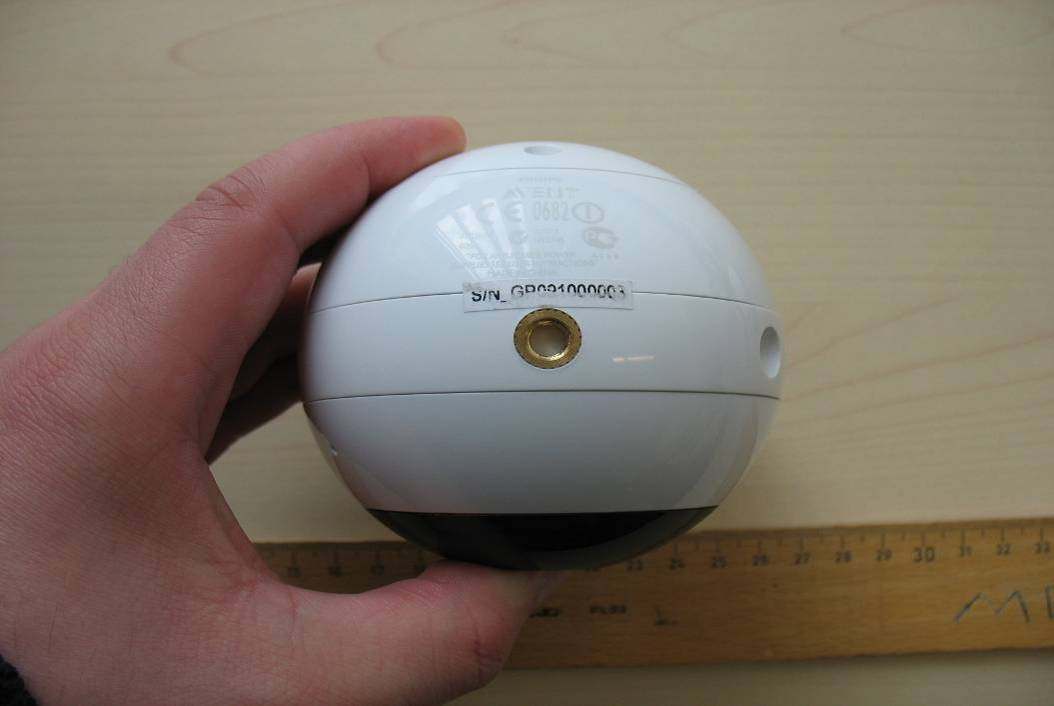

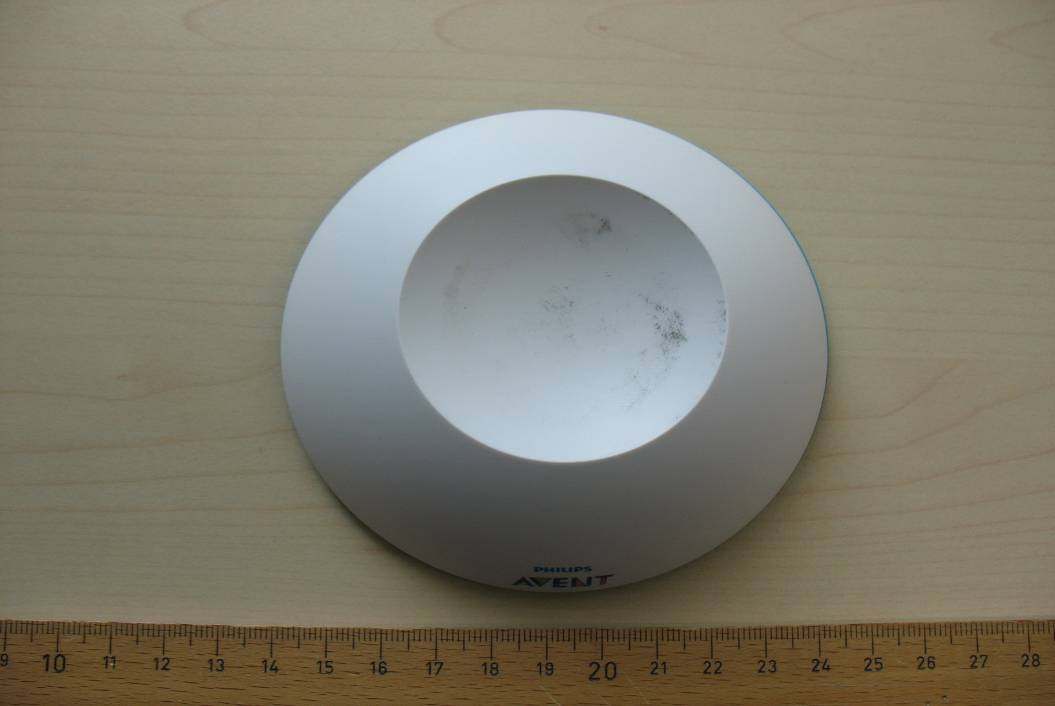

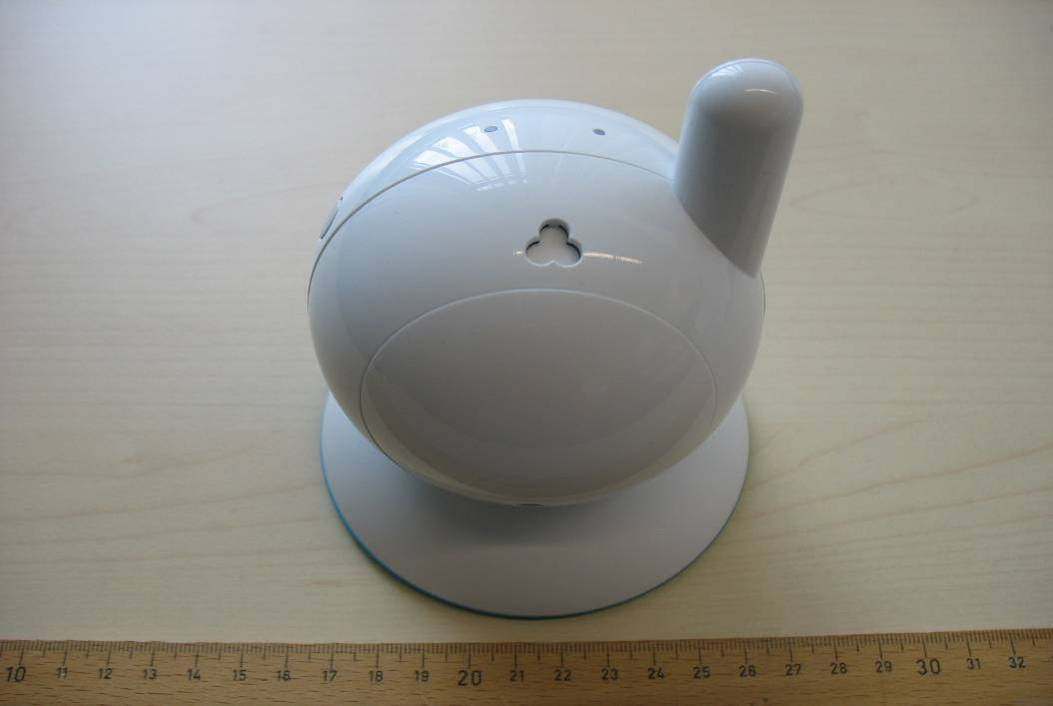

CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 50 of 59 8 Photographs of t he E UT Photo 1: Baby Unit Photo 2: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 51 of 59 Photo 3: Baby Unit Photo 4: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 52 of 59 Photo 5: Baby Unit Photo 6: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 53 of 59 Photo 7: Baby Unit Photo 8: Baby Unit

CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 54 of 59 Photo 9: Baby Unit Photo 10: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 55 of 59 Photo 11: Baby Unit Photo 12: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 56 of 59 Photo 13: Baby Unit Photo 14: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 57 of 59 Photo 15: Baby Unit Photo 16: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 58 of 59 Photo 17: Baby Unit Photo 18: Baby Unit CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 59 of 59 Photo 19: Baby Unit

CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 9 of 59 MPE calculation These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 where S = power density ( in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the centre of radiation of the antenna (appropriate units e.g. cm) Or S = EIRP/4πR 2 where EIRP = equivalent isotropically radiated power Calculation: (Calculated for max. EIRP) EIRP: 18.80 dBm (75.68 mW) calculated at distance of 20 cm: power density = 75.68/4π20 2 = 0.015 mW/ cm 2 Limit: 1mW/ cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

CETECOM ICT Services GmbH Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Phone: +49 (0) 681-598-0 Fax: -9075 RSC-Laboratory 2009-12-23 Page 1 of 59 Accredited testing-laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3462C-1 (IC) Certification ID: DE 0001 Accreditation ID: DE 0002 Accredited Bluetooth ® Test Facility (BQTF) The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license Test report no. : 1-0951-01-11/08-B Type identification : SCD600 Applicant : Philips Consumer Lifestyle B.V. FCC ID : BOUSCD600 IC Certification No : 135M-SCD600 Test standards : 47 CFR Part 15 RSS - 210 Issue 7 CETECOM ICT Services GmbH Test report no.: 1-0951-01-11/08-B 2009-12-23 Page 2 of 59 Table of contents 1 General information.................................................................................................. 3 1.1 Notes ...................................................................................................................................................................3 1.2 Testing laboratory ...............................................................................................................................................4 1.3 Details of applicant .............................................................................................................................................4 1.4 Application details ..............................................................................................................................................4 2 Test standard/s ......................................................................................................... 5 3 Technical tests.......................................................................................................... 6 3.1 Details of manufacturer.......................................................................................................................................6 3.1.1 Test item......................................................................................................................................................6 3.1.2 Additional EUT information For IC Canada (appendix 2)..........................................................................7 3.1.3 RF Technical Brief Cover Sheet acc. To RSS-102 .....................................................................................8 3.1.4 EUT operating modes................................................................................................................................10 3.1.5 Extreme conditions testing values .............................................................................................................10 4 Summary of Measurement Results and list of all performed test cases ....................... 11 5 RF measurement testing .......................................................................................... 12 5.1 Description of test set-up ..................................................................................................................................12 5.1.1 Radiated measurements.............................................................................................................................12 5.1.2 Conducted measurements..........................................................................................................................12 5.2 Referenced documents ......................................................................................................................................13 5.3 Additional comments ........................................................................................................................................14 5.4 Antenna gain .....................................................................................................................................................15 5.5 Carrier frequency separation §15.247(a)(1) ......................................................................................................16 5.6 Number of hopping channels §15.247(a)(1) .....................................................................................................17 5.7 Time of occupancy (dwell time) §15.247(a)(1)(iii) ..........................................................................................18 5.8 Power Spectral density (Hybrid system in Inquiry mode/Page scan) §15.247(e) .............................................20 5.9 Spectrum Bandwidth of a FHSS System / 20dB Bandwidth §15.247(a)(1)......................................................21 5.10 Maximum output power (conducted) § 15.247 (b)(1) ...................................................................................23 5.11 Max. peak output power (radiated) § 15.247 (b)(1) ......................................................................................25 5.12 Band-edge compliance of conducted emissions §15.247 (d) ........................................................................26 5.13 Band-edge compliance of radiated emissions §15.205 .................................................................................29 5.14 Spurious Emissions - conducted (Transmitter) § 15.247 (c)(1) ....................................................................30 5.15 Spurious Emissions > 30 MHz- radiated (Transmitter) § 15.247 (c)(1)........................................................32 5.16 Spurious Emissions - radiated (Receiver) § 15.109 ......................................................................................40 5.17 Spurious Emissions < 30 MHz - Transmitter radiated § 15.209 ...................................................................43 5.18 Conducted Emissions <30 MHz § 15.107/207.......…
