BOUUSR-5RFCustom Home Automation Device

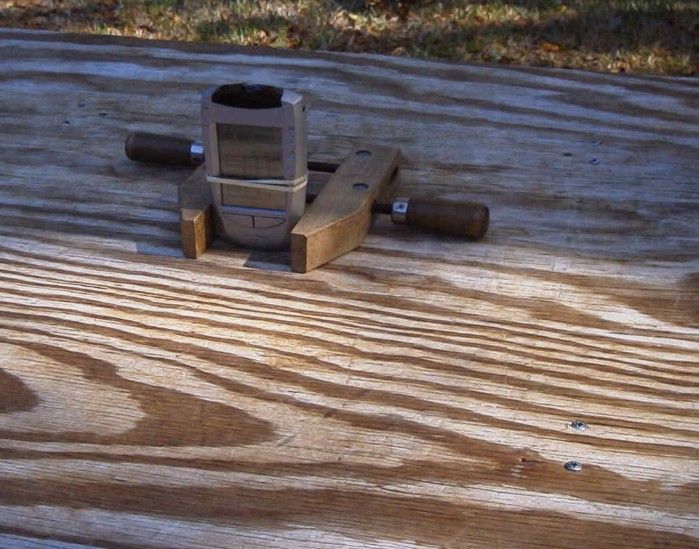

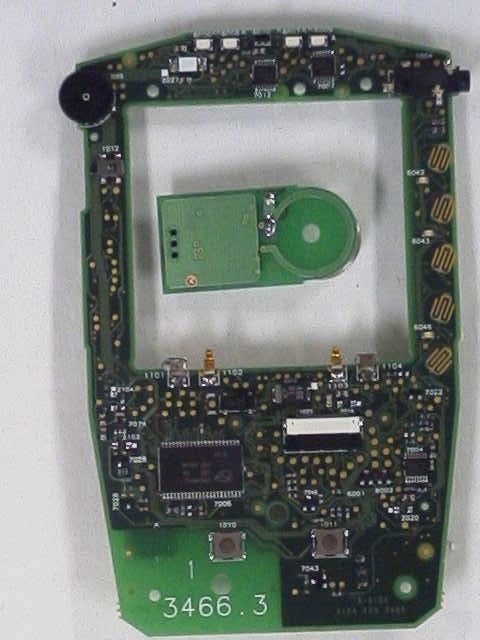

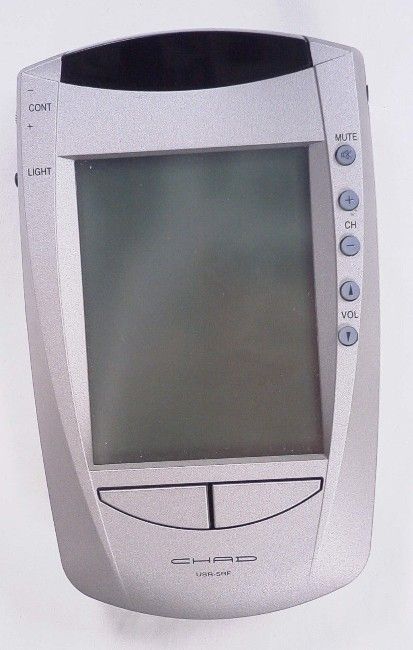

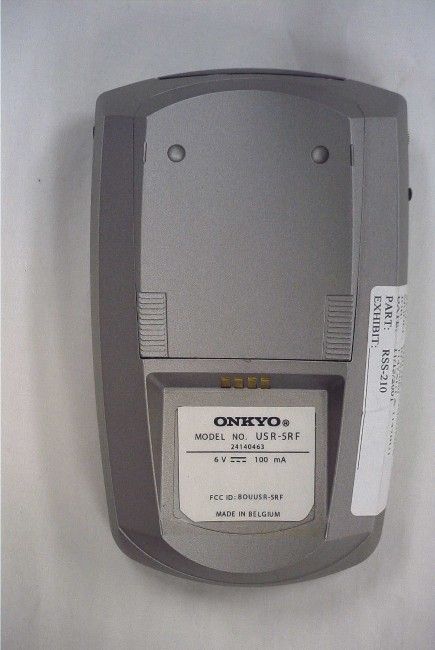

Applicant: Philips Consumer Electronics Company FCC ID: BOUUSR-5RF Report #: T\P\PCEC\1162U1\1162U1TestReport.doc Page #: Table of Contents TABLE OF CONTENTS APPLICANT: PHILIPS CONSUMER ELECTRONICS COMPANY FCC ID: BOUUSR-5RF TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST & TEST PROCEDURE PAGE 2.............TEST PROCEDURE CONTD. PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............CALCULATION OF DUTY CYCLE PAGE 5.............DUTY CYCLY PLOT – SMALL PULSES PAGE 6.............DUTY CYCLE PLOT – LARGE PULSES PAGE 7.............DUTY CYCLE PLOT PAGE 8.............OCCUPIED BANDWIDTH PAGE 9-10..........OCCUPIED BANDWIDTH PLOTS EXHIBIT ATTACHMENTS: EXHIBIT 1...........CONFIDENTIALTIY LETTER EXHIBIT 2...........FCC ID LABEL SAMPLE EXHIBIT 3...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4...........BLOCK DIAGRAM EXHIBIT 5A-4P.......SCHEMATICS EXHIBIT 6A-6RR......INSTRUCTION MANUAL EXHIBIT 7A-7E.......OPERATIONAL DESCRIPTION EXHIBIT 8...........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 9...........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 10..........INTERNAL COMPONENT VIEW PHOTOGRAPH EXHIBIT 11..........INTERNAL COPPER VIEW PHOTOGRAPH EXHIBIT 12..........TEST SET UP PHOTOGRAPH Applicant: Philips Consumer Electronics Company FCC ID: BOUUSR-5RF Report #: T\P\PCEC\1162U1\1162U1TestReport.doc Page #: 1 of 10 APPLICANT: PHILIPS CONSUMER ELECTRONICS COMPANY FCC ID: BOUUSR-5RF TEST EQUIPMENT LIST 1. X Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2. X Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3. Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4. X Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 3/15/00 Due 3/15/01 5. Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 3/15/00 Due 3/15/01 6. X Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 Due 4/27/00 7. 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 8. Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 9. Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 10. Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/27/01 Due 1/27/02 11. Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 11/20/00 Due 11/20/01 12. Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 13. X Open Area Test Site #1-3meters Cal. 12/22/99 14. Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 15. Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 6/10/00 Due 6/10/01 16. Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Char. 11/24/00 Due 11/24/01 17. AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 18. X Digital Multimeter: Fluke Model 77, S/N 43850817 Cal. 11/16/00 Due 11/16/01 19. Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 Applicant: Philips Consumer Electronics Company FCC ID: BOUUSR-5RF Report #: T\P\PCEC\1162U1\1162U1TestReport.doc Page #: 2 of 10 TEST PROCEDURE CONTINUED GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 69ºF with a humidity of 55%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiat- ed measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the high- est readings were converted to average readings based on the duration of "ON" time. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Applicant: Philips Consumer Electronics Company FCC ID: BOUUSR-5RF Report #: T\P\PCEC\1162U1\1162U1TestReport.doc Page #: 3 of 10 APPLICANT: PHILIPS CONSUMER ELECTRONICS COMPANY FCC ID: BOUUSR-5RF NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY= 80.28 dBuV/m dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS …

Text truncated - open the document above for the full version.
