BOUWUSN18MWUS-N18M USB Wi-Fi module

User manual For WUS-N18M USB Wi-Fi module Model Number: WUS-N18M Contents 1.0 SCOPE ............................................................................................................................................................................... 3 1.1 DOCUMENT ...................................................................................................................................................................... 3 1.2 PRODUCT FEATURES ........................................................................................................................................................ 3 INSTALLATION ................................................................................................................................................................... 4 1.0 Scope 1.1 Document This document is to specify the product requirements for WUS-N18M USB Wi-Fi module. This Card is based on Atheros chipset that complied with IEEE 802.11g, IEEE 802.11b, IEEE 802.11n standard from 2.4~2.5GHz, and it can be used to provide up to 54Mbps for 802.11g, 11Mbps for 802.11b and 150Mbps for 802.11n to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, WUS-N18M USB Wi-Fi module offers absolute interoperability with different vendors’ 802.11g, 802.11b and 802.11n Access Points through the wireless LAN. 1.2 Product Features y Compatible with IEEE 802.11n standard to provide wireless 150Mbps data rate. y Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate y Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate y Operation at 2.4 ~ 2.5GHz frequency band to meet worldwide regulations y Dynamic date rate scaling at 6, 9, 12, 18, 24, 36, 48, 54 for IEEE 802.11g. y Dynamic date rate scaling at 1, 2, 5.5, and 11Mbps for IEEE 802.11b y Maximum reliability, throughput and connectivity with automatic data rate switching y Support wireless data encryption with 64/128-bit WEP for security y Support infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication y Support WEP, 802.1x, WPA and WPA2 enhanced security y Drivers support Windows 2K, XP 32/64-bit, Vista 32/ 64-bit y RoHS compliant Installation ;**************************************************************************************** ; ; RT2870QA.inf ; ; This installation script supports Windows 98,Me,2000 & XP for the ; Ralink UsbDumpr_RT2870 series Wireless LAN Card. ; ; Copyright (c)2008, Ralink Technology Corp., All Rights Reserved ; All Rights Reserved. ; Developed by RaLink Technology, Corp. -- http://www.ralinktech.com ; ;**************************************************************************************** [Version] DriverVer=11/14/2008, 1.00.01.0000 Signature="$Chicago$" Compatible=1 Class=Net ClassGUID={4d36e972-e325-11ce-bfc1-08002be10318} Provider=%Provider% ;CatalogFile=UsbDumpr_RT2870.CAT ;;for WHQL certified [ControlFlags] ;***********Ralink 802.11b board *********** ExcludeFromSelect = USB\VID_148F&PID_2870 ExcludeFromSelect = USB\VID_18E8&PID_6196 [Manufacturer] %V_Provider%=Adapters [Adapters] ; DisplayName Section DeviceID ; ----------- ------- -------- %UsbDumpr_RT2870.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_2870 %UsbDumpr_RT2770.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_2770 %UsbDumpr_RT3070.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_3070 %UsbDumpr_RT3071.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_3071 %UsbDumpr_RT3072.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_3072 %UsbDumpr_RT2070.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_2070 %UsbDumpr_RT3572.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_3572 %UsbDumpr_RT3370.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_3370 %UsbDumpr_RT8070.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_148F&PID_8070 %UsbDumpr_RT8070.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_0471&PID_20DD %UsbDumpr_RT8070.DeviceDesc% =UsbDumpr_RT2870.ndi, USB\VID_2001&PID_3C17 ;******************************************************************************************* ; Windows 9X specific entries ;******************************************************************************************* [UsbDumpr_RT2870.ndi] AddReg=Common.reg, UsbDumpr_RT2870.ndi.reg CopyFiles=win9x.CopyFiles ;******************************************************************************************* ; NT specific entries ;******************************************************************************************* [UsbDumpr_RT2870.ndi.NT] AddReg=Common.reg, UsbDumpr_RT2870.ndi.NT.reg Characteristics=0x84 ; NCF_REMOVABLE | NCF_HAS_UI | NCF_PHYSICAL BusType=5 CopyFiles=NT.CopyFiles ; NT services sections [UsbDumpr_RT2870.ndi.NT.Services] AddService=UsbDumpr_RT2870, 2, UsbDumpr_RT2870.Service, common.EventLog [UsbDumpr_RT2870.ndi.reg] HKR, , NTMPDriver, 0, RT2870QA.sys HKR, Ndi, DeviceID, 0, "USB\VID_148F&PID_2870" HKR, , RunningWin9X, 0, "1" HKR, , DevLoader, 0, *ndis HKR, , DeviceVxDs, 0, RT2870QA.sys HKR, , EnumPropPages, 0, "netdi.dll,EnumPropPages" ; ; NDIS Info ; HKR, NDIS, LogDriverName, 0, "UsbDumpr_RT2870" HKR, NDIS, MajorNdisVersion,1, 03 HKR, NDIS, MinorNdisVersion,1, 0A HKR, , BusType, 0, 5 HKR, NDI, CardType, 0, "PCI" ; ; Interfaces ; HKR, Ndi\Interfaces, DefUpper, 0, "ndis3" HKR, Ndi\Interfaces, DefLower, 0, "ethernet" HKR, Ndi\Interfaces, UpperRange, 0, "ndis3" HKR, Ndi\Interfaces, LowerRange, 0, "ethernet" ; ; Install sections ;HKR,Ndi\Install,ndis3,,"UsbDumpr_RT2870.install" [win9x.CopyFiles] RT2870QA.sys ; Win9x Installation ;******************************************************************************************* ; common regs for NT and W9x ;******************************************************************************************* HKR,"Parameters","MaximumTransferSize",0x10001,4096 HKR,"Parameters","DebugLevel",0x10001,2 HKR,"Parameters","BulkUsbEnable",0x10001,1 ;*****************************************************************…

Text truncated - open the document above for the full version.

Grantee code: BOU

FCC ID: BOUWUSN18M Report No.: RF111222E12 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 22, 2012 Dear Application Examiner, Philips Consumer Lifestyle, It’s an USB Wi-Fi module, FCC ID: BOUWUSN18M would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3370. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RT3370. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender cable. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: BOUWUSN18M Report No.: RF111222E12 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

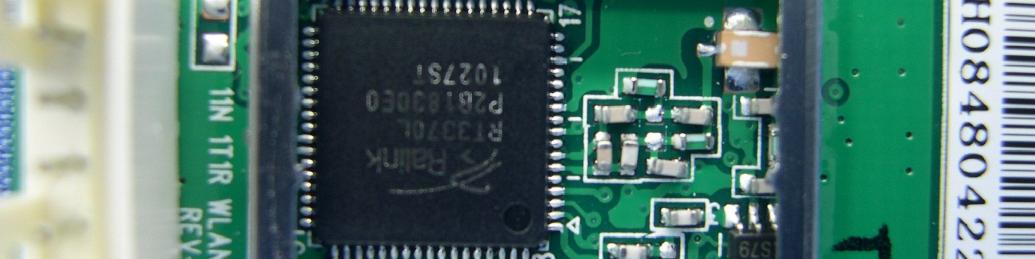

Report No.: 991004E05A Page 1 Reference No.: 111222E12 CONSTRUCTION PHOTOS OF EUT

Report No.: SA991004E05A R1 Report Format Version 4.0.0. Reference No.: 111222E12 Cancels and replaces the report No.: SA991004E05A dated Feb. 17, 2012 1 RF EXPOSURE REPORT REPORT NO.: SA991004E05A R1 MODEL NO.: WUS-N18M FCC ID: BOUWUSN18M RECEIVED: Dec. 22, 2011 TESTED: Feb. 01, 2012 ISSUED: Mar. 13, 2012 APPLICANT: Philips Consumer Lifestyle ADDRESS: 1600 Summer Street, Stamford, CT 06905 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA991004E05A R1 Report Format Version 4.0.0. Reference No.: 111222E12 Cancels and replaces the report No.: SA991004E05A dated Feb. 17, 2012 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION.....................................................................................................4 2. RF EXPOSURE LIMIT.............................................................................................5 3. MPE CALCULATION FORMULA............................................................................5 4. CLASSIFICATION...................................................................................................5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER..........................6 Report No.: SA991004E05A R1 Report Format Version 4.0.0. Reference No.: 111222E12 Cancels and replaces the report No.: SA991004E05A dated Feb. 17, 2012 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA991004E05A Original release Feb. 17, 2012 SA991004E05A R1 Modified the address of the applicant. Mar. 13, 2012 Report No.: SA991004E05A R1 Report Format Version 4.0.0. Reference No.: 111222E12 Cancels and replaces the report No.: SA991004E05A dated Feb. 17, 2012 4 1.CERTIFICATION PRODUCT: WUS-N18M USB Wi-Fi module BRAND NAME: Philips MODEL NO.: WUS-N18M TEST SAMPLE: MASS-PRODUCTION TESTED: Feb. 01, 2012 APPLICANT: Philips Consumer Lifestyle STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: WUS-N18M) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 13, 2012 ( Elsie Hsu, Specialist ) APPROVED BY : , DATE: Mar. 13, 2012 ( May Chen, Deputy Manager ) Report No.: SA991004E05A R1 Report Format Version 4.0.0. Reference No.: 111222E12 Cancels and replaces the report No.: SA991004E05A dated Feb. 17, 2012 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Antenna type Manufacture Model name Antenna Gain (dBi) (Included cable loss) Connector type Printed Antenna Alpha NA 0 NA Report No.: SA991004E05A R1 Report Format Version 4.0.0. Reference No.: 111222E12 Cancels and replaces the report No.: SA991004E05A dated Feb. 17, 2012 6 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 323.6 0 20 0.064 1.00 ---END---

Report No.: RF991004E05A R1 1 Report Format Version 4.1.0 Reference No.: 111222E12 Cancels and replaces the report No.: RF991004E05A dated Feb. 17, 2012 FCC TEST REPORT REPORT NO.: RF991004E05A R1 MODEL NO.: WUS-N18M FCC ID: BOUWUSN18M RECEIVED: Dec. 22, 2011 TESTED: Dec. 26, 2011 to Feb. 02, 2012 ISSUED: Mar. 13, 2012 APPLICANT: Philips Consumer Lifestyle ADDRESS: 1600 Summer Street, Stamford, CT 06905 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991004E05A R1 2 Report Format Version 4.1.0 Reference No.: 111222E12 Cancels and replaces the report No.: RF991004E05A dated Feb. 17, 2012 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3. GENERAL INFORMATION.....................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................7 3.2 DESCRIPTION OF TEST MODES.........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................12 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................13 4. TEST TYPES AND RESULTS..............................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................14 4.1.2 TEST INSTRUMENTS..........................................................................................14 4.1.3 TEST PROCEDURES..........................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.................................................................15 4.1.5 TEST SETUP.......................................................................................................16 4.1.6 EUT OPERATING CONDITIONS.........................................................................16 4.1.7 TEST RESULTS...................................................................................................17 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT................................19 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT..............19 4.2.2 TEST INSTRUMENTS..........................................................................................20 4.2.3 TEST PROCEDURES..........................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD.................................................................22 4.2.5 TEST SETUP.......................................................................................................23 4.2.6 EUT OPERATING CONDITIONS.........................................................................23 4.2.7 TEST RESULTS...................................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT....................................................................37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................37 4.3.2 TEST INSTRUMENTS..........................................................................................37 4.3.3 TEST PROCEDURE.............................................................................................37 4.3.4 DEVIATION FROM TEST STANDARD.................................................................37 4.3.5 TEST SETUP.......................................................................................................37 4.3.6 EUT OPERATING CONDITIONS.........................................................................37 4.3.7 TEST RESULTS...................................................................................................38 4.4 CONDUCTED OUTPUT POWER.........................................................................39 4.4.1 LIMITS OF CONDUCTED OUTPUT POWER MEASUREMENT..........................39 4.4.2 INSTRUMENTS....................................................................................................39 4.4.3 TEST PROCEDURES..........................................................................................39 Report No.: RF991004E05A R1 3 Report Format Version 4.1.0 Reference No.: 111222E12 Cancels and replaces the report No.: RF991004E05A dated Feb. 17, 2012 4.4.4 DEVIATION FROM TEST STANDARD.................................................................39 4.4.5 TEST SETUP.......................................................................................................39 4.4…

Text truncated - open the document above for the full version.

Report No.: 991004E05A Reference No.: 111222E12 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 991004E05A Reference No.: 111222E12 2 RADIATED EMISSION TEST Report No.: 991004E05A Reference No.: 111222E12 3
