BRCKW-PC7801QTablet PC

tablet pc Brand Name: Kinwei/Titan Model Name: KW-PC7801Q FCC ID: BRCKW-PC7801Q MID user manual Kintech Co., Ltd 2 PC7801Q User Manual MID user manual Kintech Co., Ltd 3 Content 1. Preface 2. Safety Notice 3. Ready to use 3.1 Packing List 3.2 Product Appearance 3.3 Instructions on Keys 3.4 Features Overview 4. Quick Guides 4.1 Switch On/Off 4.2 Battery Management and Charging 4.3 Operation of the Function Icons 5 Operation Details 5.1.1 Music 5.1.2 Video 5.1.3 Gallery 5.1.4 Sound Recorder 5.1.5 Explorer 5.1.6 Web Browser 5.1.7 E-Book Reader 5.1.8 Calculator 5.1.9 Clock 5.2.0 Camera 5.2.1 External Storage 5.2.2 APK Installer 5.2.3 External Keyboard & Mouse 5.2.4 HD Television 6. Settings 6.1.1 WIFI 6.1.2 Bluetooth 6.1.3 External 3G USB Dongle function 6.1.4 External RJ45 USB Dongle function 6.1.5 Sound 6.1.6 Display 6.1.7 Storage 6.1.8 Battery 6.1.9 APPS 6.2.0 Location & Security 6.2.1 Language Keyboard 6.2.2 Backup & reset 6.2.3 Date and time 6.2.4 Accessibility 6.2.5 Developer options MID user manual Kintech Co., Ltd 4 6.2.6About Tablet 6.3 Add, Move, or Delete Desktop Icon 7. Firmware Update 8. Troubleshooting and FAQ 1. Preface Dear Customers, Thanks very much for purchasing our product! This Tablet PC is a built-in high performance WIFI receiver module, supporting an external 3G USB-DONGLE wireless network card, using broadband wireless networks, breaking through the restraint of network cables; it will bring you into the portable media player world and fulfill your entertainment needs. It also supports picture browsing, e-book reading, games, online chat and other functions; various settings will fully show your individuality. To operate this player easily, first, please read this User Manual included with the player. Then you will have a better understanding of the operations. Before operating this player, please carefully read all data we provide about the player, so that you will have a better understanding of the product and its operations. The Company will not be responsible for any loss of personal data and damage caused by incorrect operation of the Software/Hardware, artificial damages, replacement of batteries or any other accident. To avoid loss of your data, please backup your data to your computer at all times. Also, since we can not control any dispute from users’ misunderstanding or incorrect operation against the manual, the Company will not take any relevant responsibility for any accidental loss potentially occurring in the process of using this manual. Due to constant product development, the information in this manual is subject to change without any prior notice. This manual is protected by copyright and no part is permitted to be copied or reproduced in any way without prior written permission of the Company. The Company reserves the final explanation right of this manual, warranty as well as its related information. (Note: When compiling this manual, we are very careful to provide you completely reliable information. However, there is inevitably some error and oversight, please understand, and we welcome your suggestions. If any problem occurs during your use of this product, please immediately contact your local seller) Thanks for your support and please pay attention to our other products. 2. Safety Notices 1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage to the product. 2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects during use, because this may cause surface scratches on the Tablet PC, battery damage, data loss or other damage to the hardware. 3) Never let this product be exposed to a humid environment or rain as the water leaking into the Tablet PC could disable it to the extent of being beyond repair. 4) Never clean the Tablet PC with any chemicals or detergent, these will damage the product surface and corrode the finish. 5) You are recommended not to use the headset with the volume at its highest settings, please adjust the volume to an appropriate safe level and limit the amount of time you spend using headphones to avoid possible damage to your hearing. Excessive volume will cause permanent hearing damage. 6) Please do not cut off the power abruptly during software updates or downloading, because this may cause data loss or system errors. 7) Over-voltage, power cable strain and bending or squeezing of the power cable by heavy objects must be avoided to prevent the possibility of overheating or fire. 8) In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands. 9) Some movies, music and pictures are under the protection of copyright, unauthorized usage is deemed as an infringement to the laws of copyright. 10) Please don’t turn on the Tablet PC on in locations where wireless equipment is forbidden or when the usage of the Tablet PC will cause interference and possible danger. 11) All the wireless equipment is subject to external interference and this can affect its performance. 12) Please comply with any related restrictions and rules, wireless equipment can influence the flight of the plane; please consult the relevant airline company if you intend to use the Tablet PC on a plane. 13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals. 14) Please comply with any related restrictions and rules; do not use the Tablet PC where blasting operations are in progress. 15) Only qualified maintenance personnel can install or repair the Tablet PC. Opening the Tablet PC in any way will invalidate the warranty. 16) Please use the original accessories and battery provided with the Tablet PC, do not use the incompatible products. 17) The Tablet PC is not waterproof, please keep it dry. 18) For the sake of data safety, please back up any important information on the Tablet PC, or keep a handwritten record. MID user manual Kintech Co., Ltd 5 19) When connecting with other devices please read the user manual for detailed s…

Text truncated - open the document above for the full version.

July 18, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: BRCKW-PC7801Q Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5: Turn Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kintech Co., Ltd Contact person: Zhi Quan Title: Manager

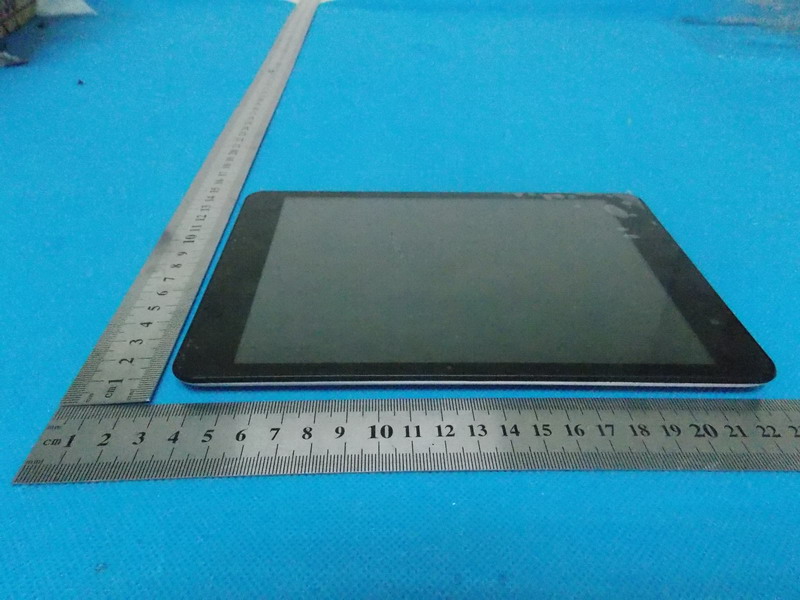

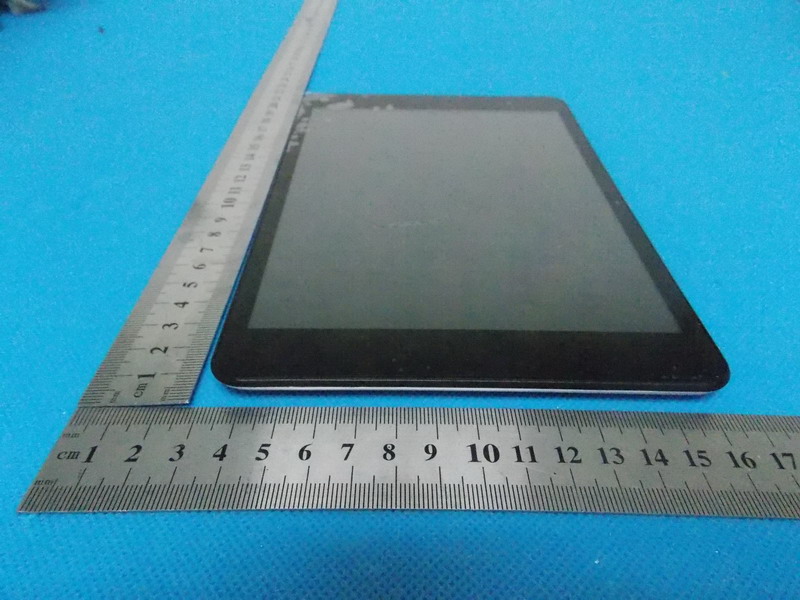

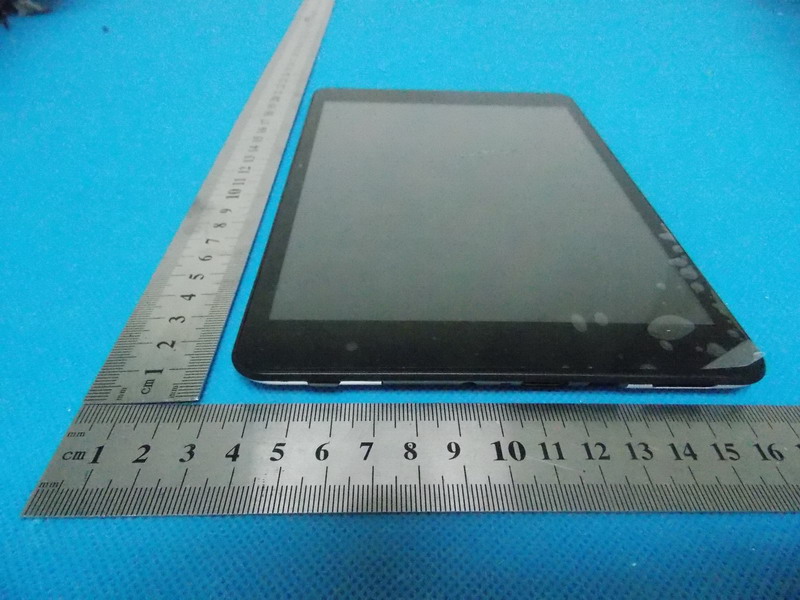

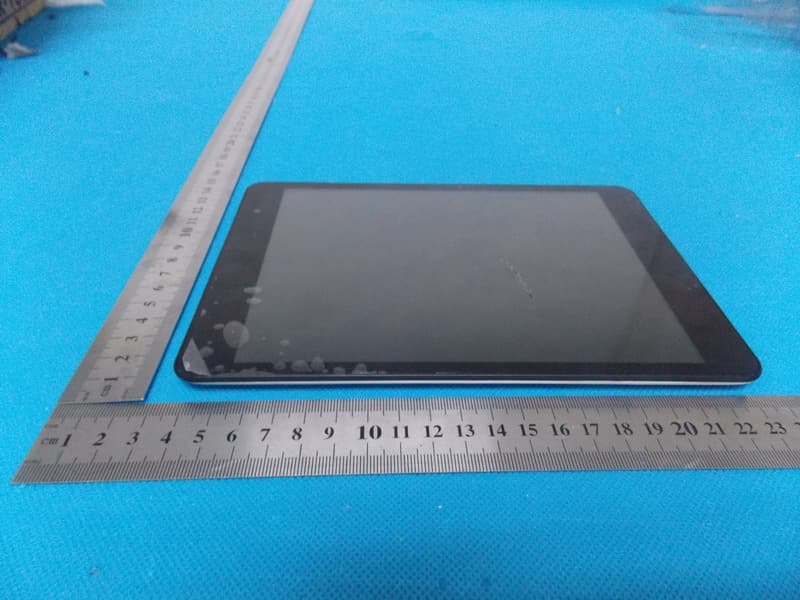

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location table pc Model: KW-PC7801Q Brand Name: Kinwei FCC ID: BRCKW-PC7801Q KW-PC78XXQ(XX represents 00~99),KW-PC7801,K W-PC78XX (XX represents 00~99),PC7801ME,PC 78XXME(XX represents 00~99), PC7801B,PC78XXB (XX represents 00~99), PC7801,PC78XX(XX represents 00~99) Titan

Internal Photos OPEN VIEW OF EU BT&WiFi Antenna INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

RF Exposure (FCC ID:BRCKW-PC7801) Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. KDB447498 D01 V05 was used as the guidance. For WiFi: Maximum measured transmitter Conducted Power: 802.11b Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 8.66 6.82 4.81 Maximum measured transmitter Conducted Power: 802.11g Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 10.86 8.97 7.89 Maximum measured transmitter Conducted Power: 802.11n HT20 Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 10.86 9.08 8.09 For BT: Maximum measured transmitter Conducted Power: GFSK MOUDULATION Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 4.75 2.87 1.94 Maximum measured transmitter Conducted Power: Π /4-DQPSK MODULATION Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 3.61 1.75 1.50 Maximum measured transmitter Conducted Power: 8-DPSK MODULATION Maximum Peak Conducted Power (dBm) Maximum Conducted Power （AV）(dBm) Maximum Conducted Power (mW) 3.56 1.72 1.49 Refer to 447498 25 D01 General RF Exposure Guidance v05 Appendix A, you see that for Maximum Conducted Output Power 8.09mW (<10mW), so no SAR is required. •

Report No.: AGC00119130702FE03 Page 1 of 52 FCC Test Report Report No.: AGC00119130702FE03 FCC ID : BRCKW-PC7801Q APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : tablet pc BRAND NAME : Kinwei/Titan MODEL NAME : See page 5. CLIENT : Kintech Co., Ltd DATE OF ISSUE : Jul.16, 2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00119130702FE03 Page 2 of 52 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul.16, 2013 Valid Original Report Report No.: AGC00119130702FE03 Page 3 of 52 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................... 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................. 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................. 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE .............................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................. 13 8. 20DB BANDWIDTH ............................................................................................................ 14 8.1. MEASUREMENT PROCEDURE .............................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 14 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 21 9.1. MEASUREMENT PROCEDURE .............................................................................................. 21 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 21 9.3. MEASUREMENT EQUIPMENT USED..................................................................................... 21 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................. 21 10. RADIATED EMISSION ..................................................................................................... 25 10.1. MEASUREMENT PROCEDURE ............................................................................................ 25 10.2. TEST SETUP ......................................................................................................................... 27 Report No.: AGC00119130702FE03 Page 4 of 52 10.3. TEST RESULT ....................................................................................................................... 28 11. BAND EDGE EMISSION .................................................................................................. 32 11.1. MEASUREMENT PROCEDURE ............................................................................................ 32 11.2. TEST SET-UP ........................................................................................................................ 32 11.3. TEST RESULT ....................................................................................................................... 33 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 37 12.1. MEASUREMENT PROCEDURE ............................................................................................ 37 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) .................................................... 37 12.…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
