BRCPC7088tablet pc

USER MANUAL FCC ID: BRCPC7088 Content 1 Preface............................................................................................................................................ 3 1.1 Acknowledgements ............................................................................................................. 3 1.2 Notes ................................................................................................................................... 3 1.3 Safety Notices ..................................................................................................................... 4 2 MID Introduction ........................................................................................................................... 5 2.1 Ready to use ........................................................................................................................ 5 3 Quick Guides ................................................................................................................................. 6 Note: 1. Device without RESET key. Please press “Power” key and hold for 10 seconds to restart the device if it crashed.................................................................................................... 7 2. Press “POWER”+“V—” at the same time for screen cut ..................................................... 7 3.4 Switch on/off ..................................................................................................................... 10 3.5 Power Saving Mode and Locked Mode: ........................................................................... 10 3.6 Operation of touch panel ................................................................................................... 11 3.7 Main Interface ................................................................................................................... 11 3.8 Apps .................................................................................................................................. 13 3.9 USB Connect..................................................................................................................... 13 3.10 Input Text ........................................................................................................................ 14 3.11 Use Skills ........................................................................................................................ 15 Widget interface ...................................................................................................................... 15 4 General Setup ............................................................................................................................... 15 4.1 SIM Card management, WIFI & Network ........................................................................ 15 4.2 Bluetooth ........................................................................................................................... 18 4.3 Data Usage ........................................................................................................................ 21 4.4 More... ............................................................................................................................... 21 4.5 Audio Profiles ................................................................................................................... 26 4.6 Display .............................................................................................................................. 28 4.7 Storage .............................................................................................................................. 31 4.8 Battery ............................................................................................................................... 33 4.9 Apps .................................................................................................................................. 33 4.10 Account ........................................................................................................................... 35 4.11 Location access ............................................................................................................... 36 4.12 Security ........................................................................................................................... 39 4.13 Language & input............................................................................................................ 41 4.14 Backup and reset ............................................................................................................. 42 4.15 Date and Time ................................................................................................................. 43 4.16 Scheduled power on off .................................................................................................. 44 4.17 Accessibility .................................................................................................................... 44 4.18 Developer options ........................................................................................................... 45 4.19 About MID ...................................................................................................................... 46 5. Multimedia .................................................................................................................................. 46 5.1 Music Player ..................................................................................................................... 46 5.2 Video ................................................................................................................................. 47 5.4 Camera .............................................................................................................................. 49 5.5 FM Radio ...................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Kintech Co., Ltd 2015.2.2 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Kintech Co., Ltd hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: tablet pc model name: PC7088, PC7088ME ,PC7088B, PC70XX(XX represents00~99),PC70XXME(XX represents00~99), PC70XXB(XX represents00~99),KW-PC7088J,KW-PC7088, KW-PC70XXJ(XX represents00~99),KW-PC70XX(XX represents00~99). FCC ID: BRCPC7088 Sincerely, Client’s signature : Zhi Quan Client’s name / title: manager Applicant company：Kintech Co., Ltd address： Bldg.22,Chentian Industrial Zone, Baomin 2nd Road, Xixiang,Bao’an District,Shenzhen,China.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Kintech Co., Ltd 2015.2.2 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: BRCPC7088 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up Procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Zhi Quan Client’s name / title : manager Applicant company：Kintech Co., Ltd address：Bldg.22,Chentian Industrial Zone, Baomin 2nd Road, Xixiang,Bao’an District,Shenzhen,Chia.

Kintech Co., Ltd. 1F-5F, Bldg 22, Chen Tian Industral Zone, Xi Xiang Bao An District, Shenzhen, Guang Dong, China Feb. 12, 2015 Federal Communication Commission Authorization and Evaluation Division Subject: Explanation of differences between product types FCC ID: BRCPC7088 Model Number: PC7088, PC7088ME ,PC7088B, PC70XX(XX represents00~99),PC70XXME(XX represents00~99), PC70XXB(XX represents00~99), KW-PC7088J,KW-PC7088, KW-PC70XXJ(XX represents00~99), KW-PC70XX(XX represents00~99). To Whom It May Concern: We, The Kintech Co., Ltd., hereby declare that the model : PC7088 is identical with the model : PC7088ME ,PC7088B, PC70XX(XX represents00~99), PC70XXME(XX represents00~99), PC70XXB(XX represents00~99), KW- PC7088J, KW-PC7088, KW-PC70XXJ(XX represents00~99), KW-PC70XX(XX represents00~99), except the model name. Except for the different above, no other modification is performed. Sincerely, Kintech Co., Ltd. Signature: Contact person: Zhi Quan Title: Manager

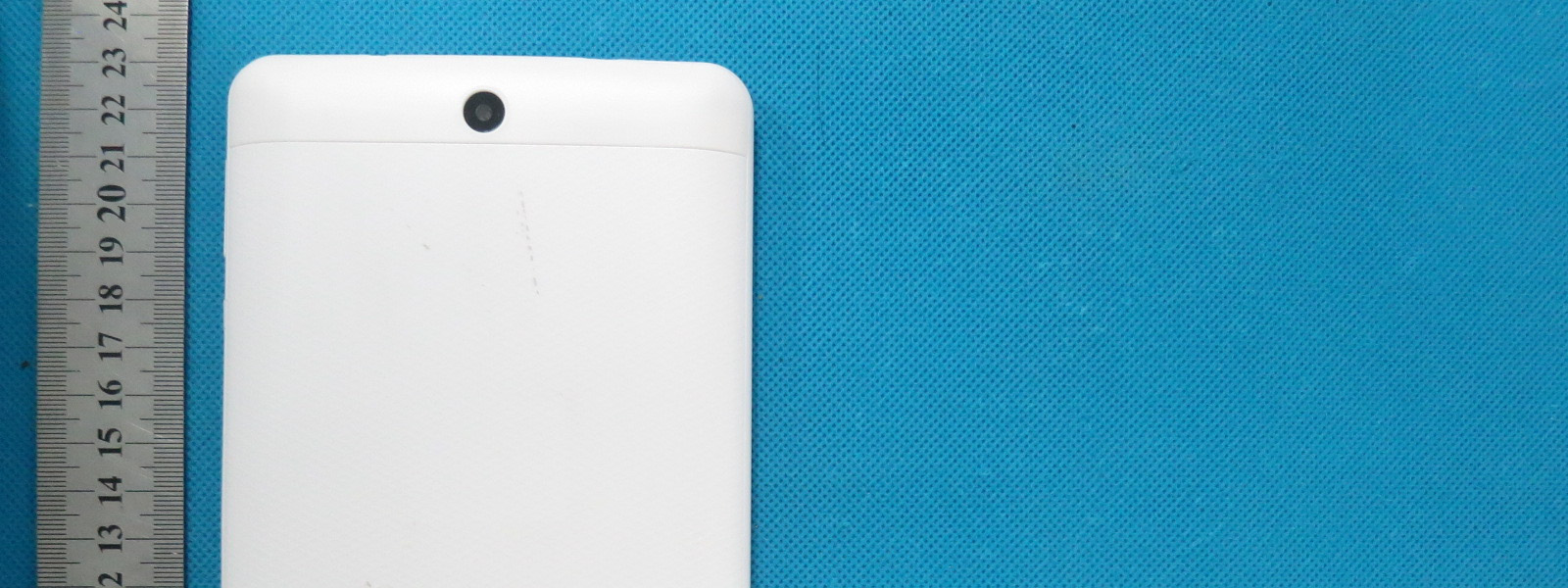

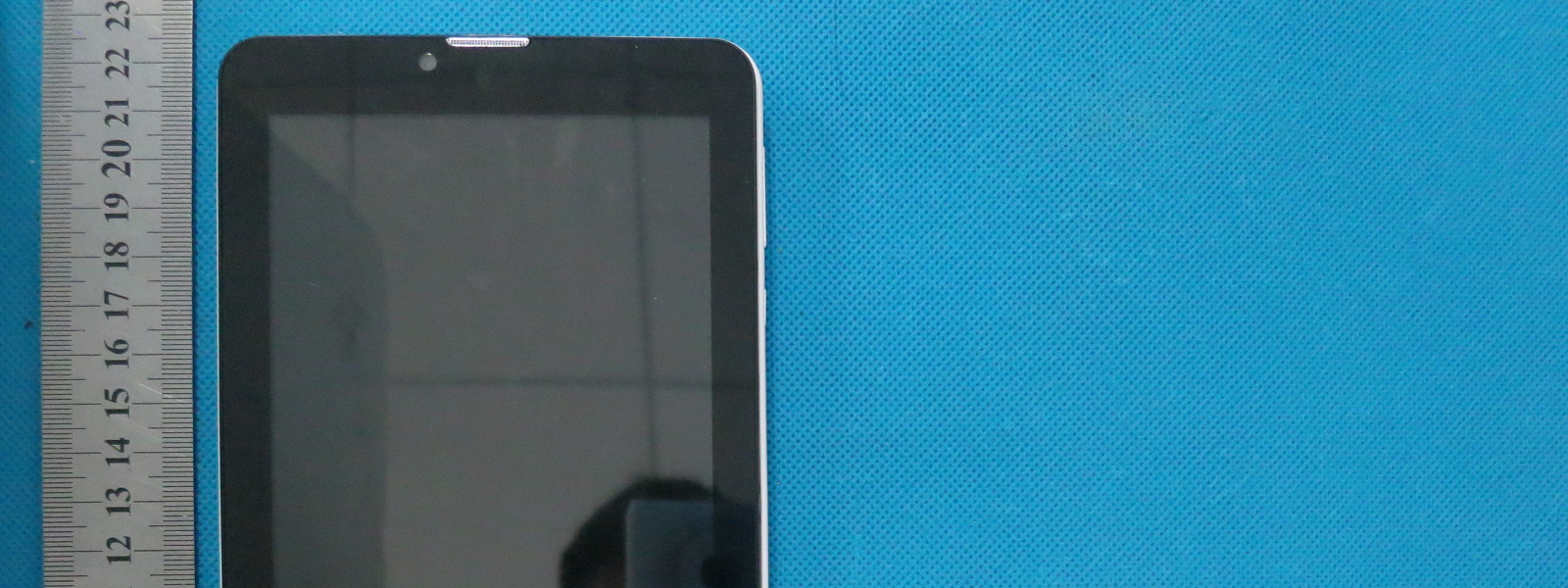

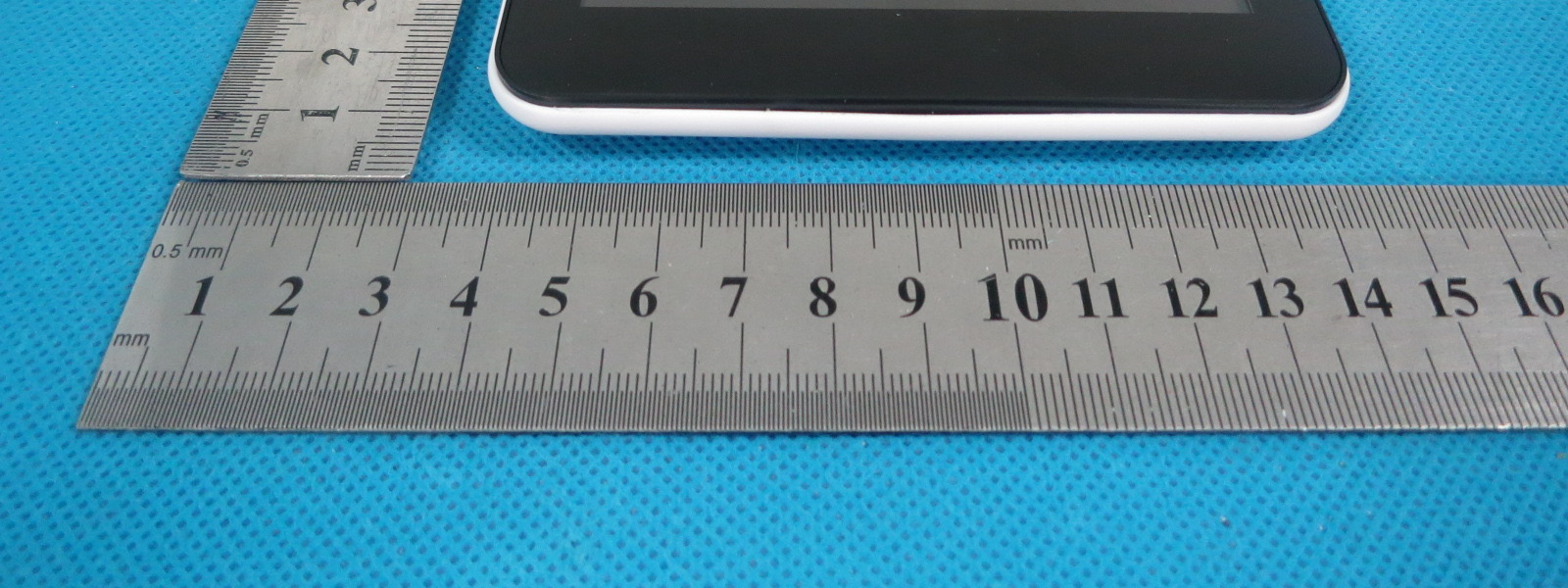

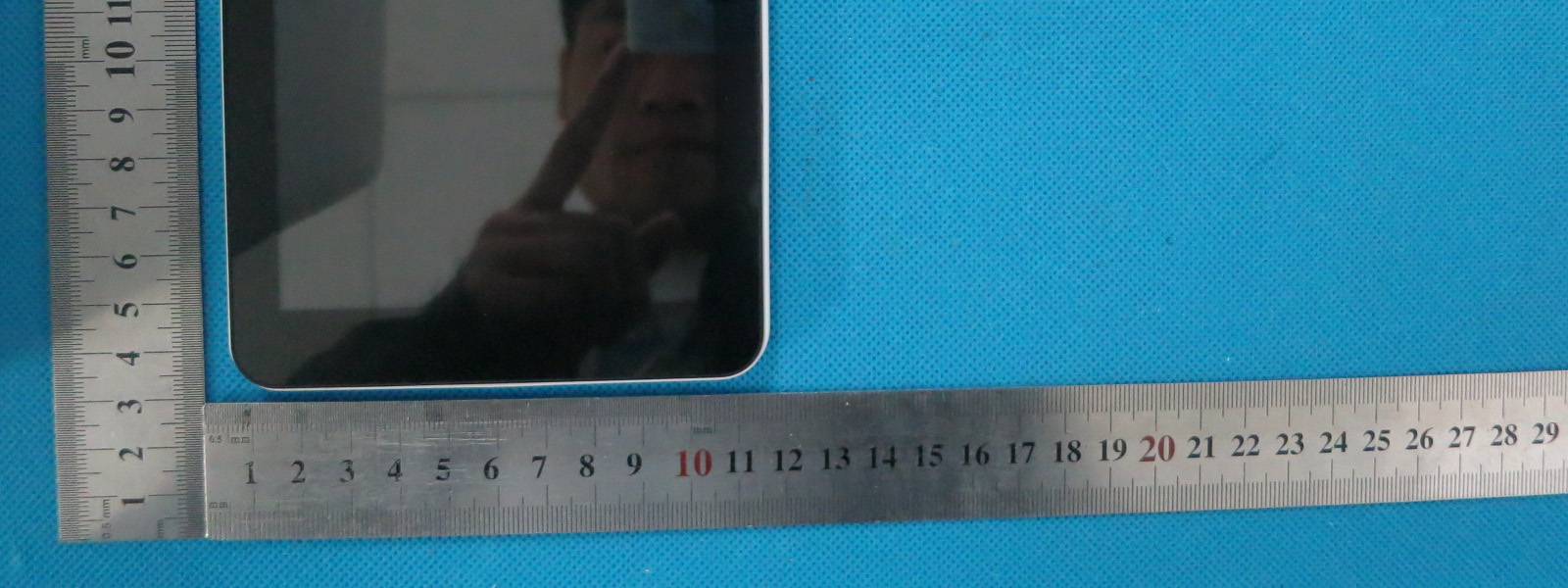

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

Label tablet pc Model name: PC7088 Brand name: Kinwei FCC ID: BRCPC7088 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label

Internal Photos OPEN VIEW OF EUT-1 BT&WIFI&GPS Antenna OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 GSM & WCDMA Antenna INTERNAL VIEW OF EUT-2

Page 1 of 236 SAR Test Report Report No.: STS1502008H01 FCC ID : BRCPC7088 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : tablet PC BRAND NAME : Kinwei, Titan MODEL NAME : PC7088, PC7088ME, PC7088B, PC70XX(XX represents00~99) PC70XXME(XX represents00~99), PC70XXB(XX represents00~99) KW‐PC7088J, KW‐PC7088, KW‐PC70XXJ(XX represents00~99) KW‐PC70XX(XX represents00~99) CLIENT : Kintech Co., Ltd. DATE OF ISSUE : Mar. 03,2015 STANDARD(S) : IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 REPORT VERSION : V1.0 Shenzhen STS Test Services Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: STS1502008H01 Page 2 of 236 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 03,2015 Valid Original Report The test plans were performed in accordance with IEEE Std. 1528:2003; 47CFR § 2.1093; IEEE/ANSI C95.1 and the following specific FCC Test Procedures: ·KDB 447498 D01 General RF Exposure Guidance v05r02 ·KDB 648474 D04 Handset SAR v01r02 ·KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 ·KDB 941225 D01 3G SAR Procedures v03 ·KDB 941225 D06 Hot Spot SAR v02 ·KDB 248227 D01 SAR meas for 802 11 a b g v01r02 ·KDB 616217 D04 SAR for laptop and tablets v01r01 Report No.: STS1502008H01 Page 3 of 236 Test Report Certification Applicant Name Kintech Co., Ltd. Applicant Address 1F-5F, Bldg 22, Chen Tian Industral Zone, Xi Xiang Bao An District, Shenzhen Guang Dong, China Manufacturer Name Kintech Co., Ltd. Manufacturer Address 1F-5F, Bldg 22, Chen Tian Industral Zone, Xi Xiang Bao An District, Shenzhen Guang Dong, China Product Designation tablet PC Brand Name Kinwei, Titan Model Name PC7088, PC7088ME, PC7088B, PC70XX(XX represents00~99), PC70XXME(XX represents00~99), PC70XXB(XX represents00~99), KW-PC7088J,KW-PC7088 KW-PC70XXJ(XX represents00~99), KW-PC70XX(XX represents00~99) Different Description All the same, except for the model name and brand name. The test model is PC7088. EUT Voltage DC3.7V by battery Applicable Standard IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 Test Date Dec. 20,2014 to Mar. 03,2015 Performed Location Shenzhen STS Test Services Co., Ltd. 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China Report Template STSRT-US-3G3/SAR (2014-12-01) Tested By Tony Liu Mar. 03,2015 Checked By Vita Li Mar. 03,2015 Authorized By Bovey Yang Mar. 03,2015 Report No.: STS1502008H01 Page 4 of 236 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ....................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. EUT DESCRIPTION ...................................................................................................................................... 6 2.2. TEST PROCEDURE ...................................................................................................................................... 8 2.3. TEST ENVIRONMENT .................................................................................................................................... 8 2.4. TEST CONFIGURATION AND SETTING ............................................................................................................. 9 3. SAR MEASUREMENT SYSTEM ................................................................................................................... 11 3.1. SPECIFIC ABSORPTION RAT E (SAR) ............................................................................................................ 11 3.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 12 3.3. COMOSAR SYSTEM DESCRIPTION ............................................................................................................ 13 3.4. COMOSAR E-FIELD PROBE ..................................................................................................................... 15 3.5. ISOTROPIC E-FIELD PROBE SPECIFICATION ................................................................................................. 15 3.6. ROBOT ..................................................................................................................................................... 15 3.7. VIDEO POSITIONING SYSTEM ..................................................................................................................... 16 3.8. DEVICE HOLDER ....................................................................................................................................... 16 3.9. SAM TWIN PHANTOM ................................................................................................................................ 17 4. TISSUE SIMULATING LIQUID ...................................................................................................................... 18 4.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 18 4.2. TISSUE CALIBRATION RESULT ..................................................................................................................... 19 4.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 21 5. SAR MEASUREMENT PROCEDURE ......................................................................................................... 22 5.1. SAR SYSTEM VALIDATION PROCEDURES .................................................................................................... 22 5.2. SAR SYSTEM VALIDATION .......................................................................................................................... 23 6. EUT TEST POSITIO…

Text truncated - open the document above for the full version.

Report No.: STS1502008H01 Page 106 of 236 PCS 1900 Mid-Touch- Left <SIM 1> Date: Mar. 03,2015 DUT: tablet PC; Type: PC7088 Communication System: Generic GSM; Communication System Band: PCS 1900; Duty Cycle: 1:8.3; Conv.F=4.71; Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ= 1.40 mho/m;εr =40.89; ρ= 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (°C):23.1, Liquid temperature (°C):22.9 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/PCS1900 Mid-Touch-Left/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/PCS1900 Mid-Touch-Left/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan sam_direct_droit2_surf8mm.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band PCS 1900 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-55.00, Y=-56.00 SAR 10g (W/Kg) 0.119897 SAR 1g (W/Kg) 0.205877 Report No.: STS1502008H01 Page 107 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.2179 0.1442 0.0911 0.0538 3D screen shot Hot spot position Report No.: STS1502008H01 Page 108 of 236 PCS 1900 Mid-Tilt-Left <SIM 1> Date: Mar. 03,2015 DUT: tablet PC; Type: PC7088 Communication System: Generic GSM; Communication System Band: PCS 1900; Duty Cycle: 1:8.3; Conv.F=4.71; Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ= 1.40 mho/m;εr =40.89; ρ= 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (°C):23.1, Liquid temperature (°C):22.9 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/PCS1900 Mid-Tilt-Left/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/PCS1900 Mid-Tilt-Left/Zoom Scan: Measurement grid: dx=8mm, dy=8mm,dz=5mm; Area Scan sam_direct_droit2_surf8mm.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Tilt Band PCS 1900 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=9.00, Y=8.00 SAR 10g (W/Kg) 0.023928 SAR 1g (W/Kg) 0.045731 Report No.: STS1502008H01 Page 109 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.0490 0.0262 0.0149 0.0099 3D screen shot Hot spot position Report No.: STS1502008H01 Page 110 of 236 PCS 1900 Mid-Touch-Right <SIM 1> Date: Mar. 03,2015 DUT: tablet PC; Type: PC7088 Communication System: Generic GSM; Communication System Band: PCS 1900; Duty Cycle: 1:8.3; Conv.F=4.71; Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ= 1.40 mho/m;εr =40.89; ρ= 1000 kg/m³ ; Phantom section: Right Section Ambient temperature (°C):23.1, Liquid temperature (°C):22.9 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/PCS1900 Mid-Touch-Right/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/PCS1900 Mid-Touch-Right/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan sam_direct_droit2_surf8mm.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Right head Device Position Cheek Band PCS 1900 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-64.00, Y=-58.00 SAR 10g (W/Kg) 0.072920 SAR 1g (W/Kg) 0.136014 Report No.: STS1502008H01 Page 111 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.1449 0.0808 0.0458 0.0278 3D screen shot Hot spot position Report No.: STS1502008H01 Page 112 of 236 PCS 1900 Mid-Tilt-Right <SIM 1> Date: Mar. 03,2015 DUT: tablet PC; Type: PC7088 Communication System: Generic GSM; Communication System Band: PCS 1900; Duty Cycle: 1:8.3; Conv.F=4.71; Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ= 1.40 mho/m;εr =40.89; ρ= 1000 kg/m³ ; Phantom section: Right Section Ambient temperature (°C):23.1, Liquid temperature (°C):22.9 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/PCS1900 Mid-Tilt-Right/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/PCS1900 Mid-Tilt-Right/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan sam_direct_droit2_surf8mm.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Right head Device Position Tilt Band PCS 1900 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-18.00, Y=24.00 SAR 10g (W/Kg) 0.034235 SAR 1g (W/Kg) 0.061008 Report No.: STS1502008H01 Page 113 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.0654 0.0399 0.0244 0.0153 3D screen shot Hot spot position Report No.: STS1502008H01 Page 114 of 236 PCS 1900 Mid-Touch- Left <SIM 2> Date: Mar. 03,2015 DUT: tablet PC; Type: PC7088 Communication System: Generic GSM; Communication System Band: PCS 1900; Duty Cycle: 1:8.3; Conv.F=4.71; Frequency: 1880 MHz; Medium parameters used: f = 1900 MHz; σ= 1.40 mho/m;εr =40.89; ρ= 1000 kg/m³ ; Phantom section: Left Section Ambient temperature (°C): 20.1, Liquid temperature (°C): 20 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/PCS1900 Mid-Touch-Left/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/PCS1900 Mid-Touch-Left/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan sam_direct_droit2_surf8mm.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band PCS 1900 Channels Middle Signal TDMA (Crest factor: 8.0) SURFACE SAR VOLUME SAR Maximum location: X=-51.00, Y=-55.00 SAR 10g (W/Kg) 0.114052 SAR 1g (W/Kg) 0.203355 R…

Text truncated - open the document above for the full version.

Report No.: STS1502008H01 Page 186 of 236 WCDMA Band V Mid- Body - Towards Phantom (RMC) Date: Dec. 20,2014 DUT: tablet PC; Type: PC7088 Communication System: UMTS; Communication System Band: BAND V UTRA/FDD ; Duty Cycle:1: 1; Conv.F=5.02 Frequency: 836.6 MHz; Medium parameters used: f = 835MHz;σ=0.95 mho/m; εr =55.78; ρ= 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.3, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/ WCDMA BandVMid-Body-Front/Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ WCDMA BandVMid-Body-Front/Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Front Band WCDMA Band V Channels Middle Signal CDMA (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=8.00, Y=8.00 SAR 10g (W/Kg) 0.311203 SAR 1g (W/Kg) 0.462034 Report No.: STS1502008H01 Page 187 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.4748 0.3452 0.2437 0.1745 3D screen shot Hot spot position Report No.: STS1502008H01 Page 188 of 236 WCDMA Band V Mid- Edge 1 (RMC) Date: Dec. 20,2014 DUT: tablet PC; Type: PC7088 Communication System: UMTS; Communication System Band: BAND V UTRA/FDD ; Duty Cycle:1: 1; Conv.F=5.02 Frequency: 836.6 MHz; Medium parameters used: f = 835MHz;σ=0.95 mho/m; εr =55.78; ρ= 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.3, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/ WCDMA BandVMid- Edge 1 /Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ WCDMA BandVMid- Edge 1 /Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge 1 Band WCDMA Band V Channels Middle Signal CDMA (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-34.00 SAR 10g (W/Kg) 0.009830 SAR 1g (W/Kg) 0.019694 Z (mm) 0.00 4.00 9.00 14.00 19.00 Report No.: STS1502008H01 Page 189 of 236 SAR (W/Kg) 0.0000 0.0209 0.0094 0.0038 0.0013 3D screen shot Hot spot position Report No.: STS1502008H01 Page 190 of 236 WCDMA Band V Mid- Edge 2 (RMC) Date: Dec. 20,2014 DUT: tablet PC; Type: PC7088 Communication System: UMTS; Communication System Band: BAND V UTRA/FDD ; Duty Cycle:1: 1; Conv.F=5.02 Frequency: 836.6 MHz; Medium parameters used: f = 835MHz;σ=0.95 mho/m; εr =55.78; ρ= 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.3, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/ WCDMA BandVMid- Edge 2 /Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ WCDMA BandVMid- Edge 2 /Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge 2 Band WCDMA Band V Channels Middle Signal CDMA (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=-14.00 SAR 10g (W/Kg) 0.160993 SAR 1g (W/Kg) 0.340758 Report No.: STS1502008H01 Page 191 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.3647 0.1795 0.0892 0.0489 3D screen shot Hot spot position Report No.: STS1502008H01 Page 192 of 236 WCDMA Band V Low- Edge 3 (RMC) Date: Dec. 20,2014 DUT: tablet PC; Type: PC7088 Communication System: UMTS; Communication System Band: BAND V UTRA/FDD ; Duty Cycle:1: 1; Conv.F=5.02 Frequency: 826.4 MHz; Medium parameters used: f = 835MHz;σ=0.95 mho/m; εr =55.78; ρ= 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.3, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/ WCDMA BandVLow - Edge 3 /Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ WCDMA BandVLow - Edge 3 /Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge 3 Band WCDMA Band V Channels Low Signal CDMA (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=16.00 SAR 10g (W/Kg) 0.353692 SAR 1g (W/Kg) 0.760869 Report No.: STS1502008H01 Page 193 of 236 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.0000 0.8032 0.3629 0.1629 0.0949 3D screen shot Hot spot position Report No.: STS1502008H01 Page 194 of 236 WCDMA Band V Mid- Edge 3 (RMC) Date: Dec. 20,2014 DUT: tablet PC; Type: PC7088 Communication System: UMTS; Communication System Band: BAND V UTRA/FDD ; Duty Cycle:1: 1; Conv.F=5.02 Frequency: 836.6 MHz; Medium parameters used: f = 835MHz;σ=0.95 mho/m; εr =55.78; ρ= 1000kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.3, Liquid temperature (°C): 21.3 SATIMO Configuration: • Probe: SSE5; Calibrated: 09/01/2014; Serial No.: SN 17/14 EP221 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Phantom: SAM Twin Phantom • Measurement SW: OpenSAR V4_02_01 Configuration/ WCDMA BandVMid- Edge 3 /Area Scan: Measurement grid: dx=8mm, dy=8mm Configuration/ WCDMA BandVMid- Edge 3 /Zoom Scan: Measurement grid: dx=8mm,dy=8mm, dz=5mm; Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge 3 Band WCDMA Band V Channels Middle Signal CDMA (Crest factor: 1.0) SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=16.00 SAR 10g (W/Kg) 0.358365 SAR 1g (W/Kg…

Text truncated - open the document above for the full version.

Report No.: STS1502008H01 Page 226 of 236 Body Back 0mm Body Front 0mm Report No.: STS1502008H01 Page 227 of 236 Edge 1(Top) Edge 2(Right) Report No.: STS1502008H01 Page 228 of 236 Edge 3(Bottom) Edge 4(Left) Report No.: STS1502008H01 Page 229 of 236 DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2003 850MHz head 850MHz body 1900MHz head 1900MHz body Report No.: STS1502008H01 Page 230 of 236 EUT PHOTOGRAPHS All VIEW OF EUT TOP VIEW OF EUT Report No.: STS1502008H01 Page 231 of 236 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: STS1502008H01 Page 232 of 236 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: STS1502008H01 Page 233 of 236 RIGHT VIEW OF EUT OPEN VIEW OF EUT-1 BT&WIFI Antenna Report No.: STS1502008H01 Page 234 of 236 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 GSM& WCDMA Antenna Report No.: STS1502008H01 Page 235 of 236 INTERNAL VIEW OF EUT-2 Report No.: STS1502008H01 Page 236 of 236 APPENDIX D. PROBE CALIBRATION DATA AND DIPOLE CALIBRATION DATA Refer the appendix Calibration Report.

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US…
