BRWDASRX20Low Power Device

X1ANT 2.4GHz DSMX Module User Manual. Horizon Hobby Inc., 4105 Fieldstone Rd Champaign, IL 61822 (408) 203 4408 1. Features  2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transceiver module.  Operates in the unlicensed worldwide ISM band (2.4 GHz to 2.483.5GHz) band  Fully integrated power regulation with a wide input unregulated operating range 2.7V to 3.6V.  Fully integrated local oscillator and 12MHz 20ppm reference crystal  50mA operating current  Transmit power 1mW EIRP  Receive sensitivity up to -95dBm  DSSS data rates up to 250kbps  1 mile operating range  Full packet assembling and disassembling  Auto transaction sequencer  Fully buffered digital interface with high voltage tolerant inputs 2. Pin description Pin Number Name Description J1 P1.4 Wireless Trainer RX J3 XOUT Clock Output J4 P1.4 Wireless Trainer RX J5 P1.1 Wireless Trainer SCLK J6 XRES Radio reset input J7 P1.0 Wireless Trainer SDATA J8 VDD Module DC incoming power J9 GND Module DC GND J11 VDD Module DC incoming power J12 GND Module DC GND 3. Specifications Parameter Value Units Storage Temp -65 to 105 Degrees Celsius VDD 2.7 to 3.6 Volts Receive Sensitivity -95 dBm Transmit power (radiated) 0 dBm MAX Idle current 1 mA Receive current 22 mA Transmit current 50 mA 4. Block Diagram 5. Module User Requirements 5.1 This module must be integrated into a device where the user cannot access the antenna connector. 5.2 Only a 1.5dBi antenna can be used with this module. The antenna must meet and not exceed the gain and pattern of the supplied folded dipole antenna. 5.3 The device must contain the following permanent labeling on the exterior of the device as follows: Contains FCC ID: BRWDASRX20 5.4 The user manual of the device must contain the following paragraph: FCC Information This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment. IC Information This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Remarque: Toute modification de ce produit annule l'autorité de l'utilisateur à utiliser cet équipement. CE Information This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400 GHz to 2.4835 GHz frequency range. The following countries associated regulatory agencies recognizing the noted certifications for this product as authorized for sale and use are: UK DE DK NO SE FI EE LV LT PL CZ SK HU RO SI AT IT ES PT IE NL LU MT CY GR Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

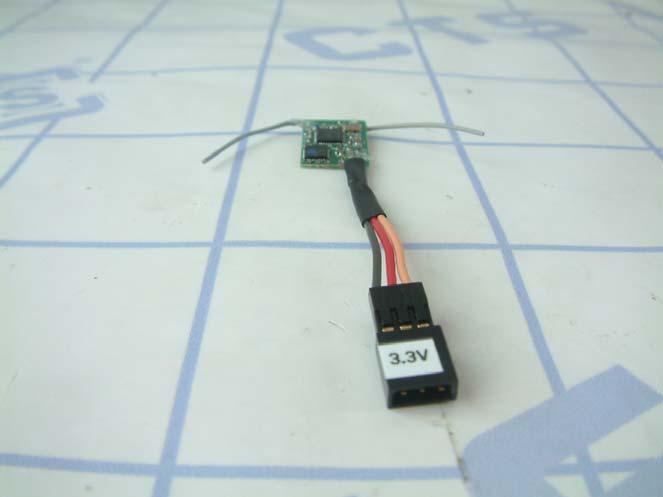

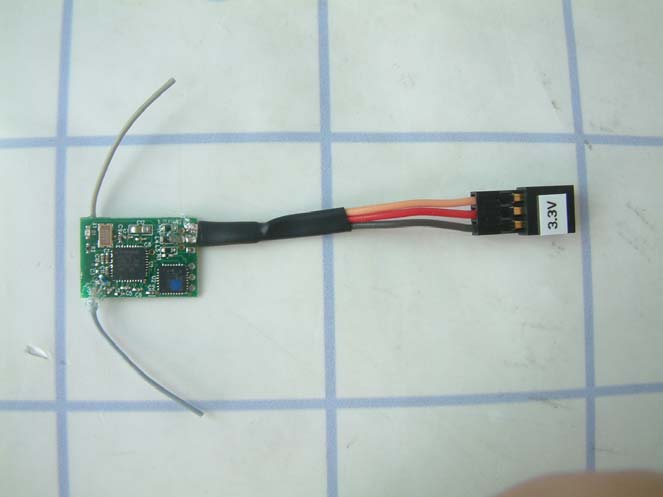

FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 1 of 2 1.External Photos of the EUT External view-1 External view-2 FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 2 of 2 External view-3

FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 1 of 1 LABEL PHOTOGRAPHS Label Location 15mm 8mm

FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 1 of 2 1. Internal Photos of the EUT PCB view-1 PCB view-2 FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 2 of 2 Oscillator view

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID/IC TEST REPORT TEST REPORT NUMBER : CGZ3140417-00372-EFI CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China. FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 1 of 35 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2013 RSS-210 Issue 8 Report Reference No. .................... CGZ3140417-00372-EFI Date of issue..................................... 29 October 2014 Testing Laboratory Name .............. CENTRE OF TESTING SERVICE CO., LTD. Address............................................. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................Horizon Hobby,LLC Address............................................. 4105 Fieldstone Road, Champaign, IL 61822, USA Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2013, RSS-210 Issue 8, RSS-Gen Issue 3 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD. Master TRF .......................................Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD. is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................:RF MODULE Trade Mark....................................... / Manufacturer.................................... Horizon Hobby,LLC Model/Type reference...................... X1ANT Ratings............................................. DC 3.3V by battery Operating Frequency........................ 2402MHz ~2478MHz Result ............................................... PASSED Compiled by: Supervised by: Approved by: Kate zhang / Fileadministrators Duke yang / Technique principal Vincent yao / Manager FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 2 of 35 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3140417-00372-EFI 29 October 2014 Date of issue Type / Model............................ X1ANT EUT.......................................... RF MODULE Applicant........................... Horizon Hobby,LLC Address.................................... 4105 Fieldstone Road, Champaign, IL 61822, USA Telephone................................ +1-2174033542 Fax........................................... / Contact..................................... Erin Hassan Manufacturer...................... Horizon Hobby,LLC Address.................................... 4105 Fieldstone Road, Champaign, IL 61822, USA Telephone................................ +1-2174033542 Fax........................................... / Contact..................................... Erin Hassan Test report holder................ Horizon Hobby,LLC Address.................................... 4105 Fieldstone Road, Champaign, IL 61822, USA Telephone................................ +1-2174033542 Fax........................................... / Contact..................................... Erin Hassan The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 3 of 35 TABLE OF CONTENTS Description Page 1.TEST STANDARDS........................................................................................................................................5 2.SUMMARY......................................................................................................................................................5 2.1 GENERAL REMARKS .......................................................................................................................................5 2.2 FINAL ASSESSMENT........................................................................................................................................5 3.EQUIPMENT UNDER TEST ...........................................................................................................................5 3.1 POWER SUPPLY SYSTEM UTILISED..…

Text truncated - open the document above for the full version.

FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 1 of 2 TEST PHOTOGRAPHS 1. Photos of TX Radiated Emission Test (In Anechoic Chamber) RE BELOW 30MHz RE BELOW 1GHz FCC ID:BRWDASRX20 IC:6157A-AMRX20 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101, No.65, Zhuji Highway,Tianhe District, Guangzhou, Guangdong, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140417-00372-EFI Page 2 of 2 RE ABOVE 1GHz 2. Photos of Band edge Test (In Anechoic Chamber)
