BRWDSTX1Surface Radio

1 SPEKTRUM DX2E USER GUIDE EN NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury. WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury. INSTALLING ThE TRANSMITTER BATTERIES BATTERy LED MONITOR Solid Green Battery is good (Above 4V) Flashing Green Battery voltage is critically low. Replace batteries (below 4V) ® POWER ST. TRIM TH. TRIM ST. RATE WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. WARNING AGAINST COUNTERFEIT PRODUCTS: Thank you for purchasing a genuine Spektrum product. Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum. Age Recommendation: Not for Children under 14 years. This is not a toy. NOTICE: This product is only intended for use with unmanned, hobby-grade, remote-controlled vehicles and aircraft. Horizon Hobby disclaims all liability outside of the intended purpose and will not provide warranty service related thereto. FRANCE RF SETTING: The DX2E has a France RF setting that complies with French regulations. When in France, always use the France power setting when operating the transmitter outdoors. WARRANTy REGISTRATION Visit www.spektrumrc.com/registration today to register your product. 2SPEKTRUM DX2E USER GUIDE EN RECEIvER COMPATIBILITy The DX2E is compatible with all Spektrum ™ DSM ® , DSM2 ™ and Marine surface receivers. RECEIvER CONNECTION AND INSTALLATION Antenna LED Throttle Port Steering Port Bind/Battery Port Bind Plug Typical Electric Installation Battery To Motor Electronic Speed Control Receiver Steering Servo SR200 THR STR BIND 2.4Ghz DSM SPORT SURFACE RECEIVER Typical Gas Installation Receiver Steering Servo Throttle Servo SR200 THR STR BIND 2.4Ghz DSM SPORT SURFACE RECEIVER Battery Install the Receiver in your vehicle using double-sided foam servo tape. Foam servo tape will hold the receiver in place and help isolate it from vibrations. Mount the antenna up and away from the vehicle in an antenna tube. The higher up the antenna is, the better signal it will receive. NOTICE: Do not cut the antenna. BINDING A RECEIvER Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. When a receiver is bound to a transmitter, the receiver will only respond to that specific transmitter. The DX2E and SR200 are bound at the factory, but if you need to rebind for any reason, please follow these steps: 1. With the receiver off, insert the bind plug into the BIND port on the receiver. 2. Power the receiver through any other port. The green LED will flash continuously, indicating the receiver is in bind mode. 3. With the steering wheel and throttle trigger in the desired preset failsafe positions (see the Failsafe section on this page for more information), press and hold the bind button and turn on the transmitter. The green LED on the front of the transmitter will flash within three seconds, indicating the transmitter is in bind mode. Release the bind button when the green LED flashes. Continue to hold the failsafe positions until the binding process is complete. Bind Button BINDTHST N RN R 4. The LED on the receiver will glow solid when the transmitter and receiver are bound. 5. Remove the bind plug and store it in a convenient place. You must rebind when: • Different failsafe positions are desired e.g., when throttle or steering reversing has been changed. • Changing receiver types e.g., changing from a DSM receiver to a DSM2 or Marine receiver. • Binding the receiver to a different transmitter. Some Spektrum receivers, like the SR3001, use a bind button rather than a bind plug. The binding process is the same with this receiver; however, instead of inserting the plug before powering up the receiver, press and hold the bind button while powering up the receiver to enter bind mode. FAILSAFE Failsafe positions are also set during binding. In the unlikely event that the radio link is lost during use, the receiver will drive the servos to their preprogrammed failsafe positions (normally full brakes and straight steering). If the receiver is turned on prior t…

Text truncated - open the document above for the full version.

Horizon Hobby Inc. Date: November 26, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID: BRWDSTX1 ATTESTATION FCC ID: BRWDSTX1 Product: Surface Radio Model: DX2E We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Steven Hall/Executive vice president and Chief Operating Officer Horizon Hobby Inc.

RF_160, Issue 02 Horizon Hobby Inc. Declaration of Authorization We Name: Horizon Hobby Inc. Address: 4105 Fieldstone Road City: Champaign Country: United States Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Surface Radio Type designation: DX2E Trademark: Spektrum on our behalf. Date: 2012/11/26 City: Champaign Name: Steven Hall (2) Function: Executive vice president and Chief Operating Officer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

1. EUT Photograph (1) EUT Photo (2) EUT Photo Report No: 128S067R-RF-US-P05V01 Page: 2 of 3 (3) EUT Photo (4) EUT Photo Report No: 128S067R-RF-US-P05V01 Page: 3 of 3 (5) EUT Photo (6) EUT Photo

Location of the FCC label on bottom face of the top portion of the radio case. FCC ID: BRWDSTX1 DX2E Radio Horizon Hobby Inc., 4105 Fieldstone Rd Champaign, IL 61822 DX2E Label Drawing 0.67" 1.25" Attached by permenant adhesive DX2E Radio FCC ID: BRWDSTX1 IC: 6157A-STX1 Horizon Hobby Inc Model DX2E

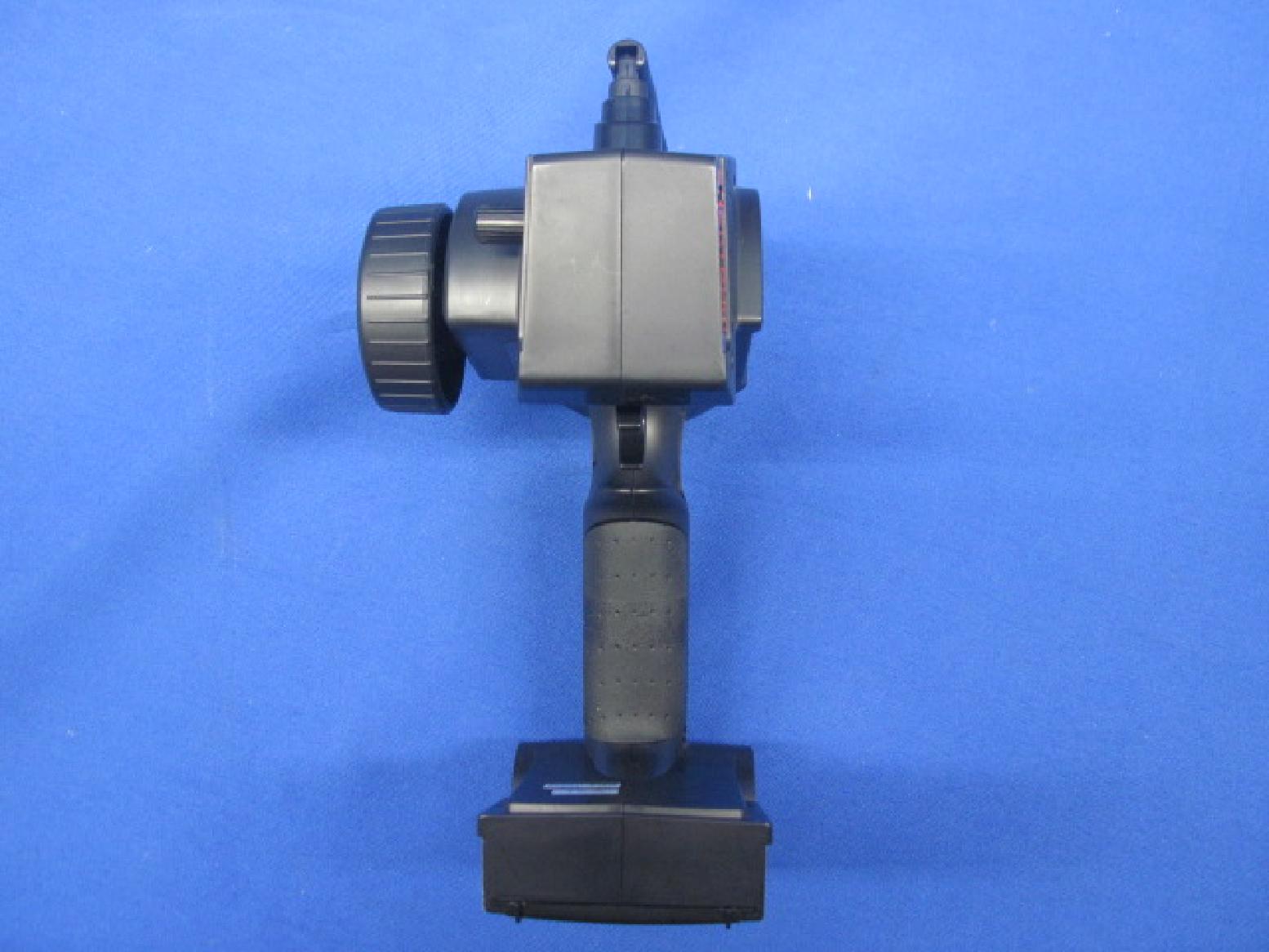

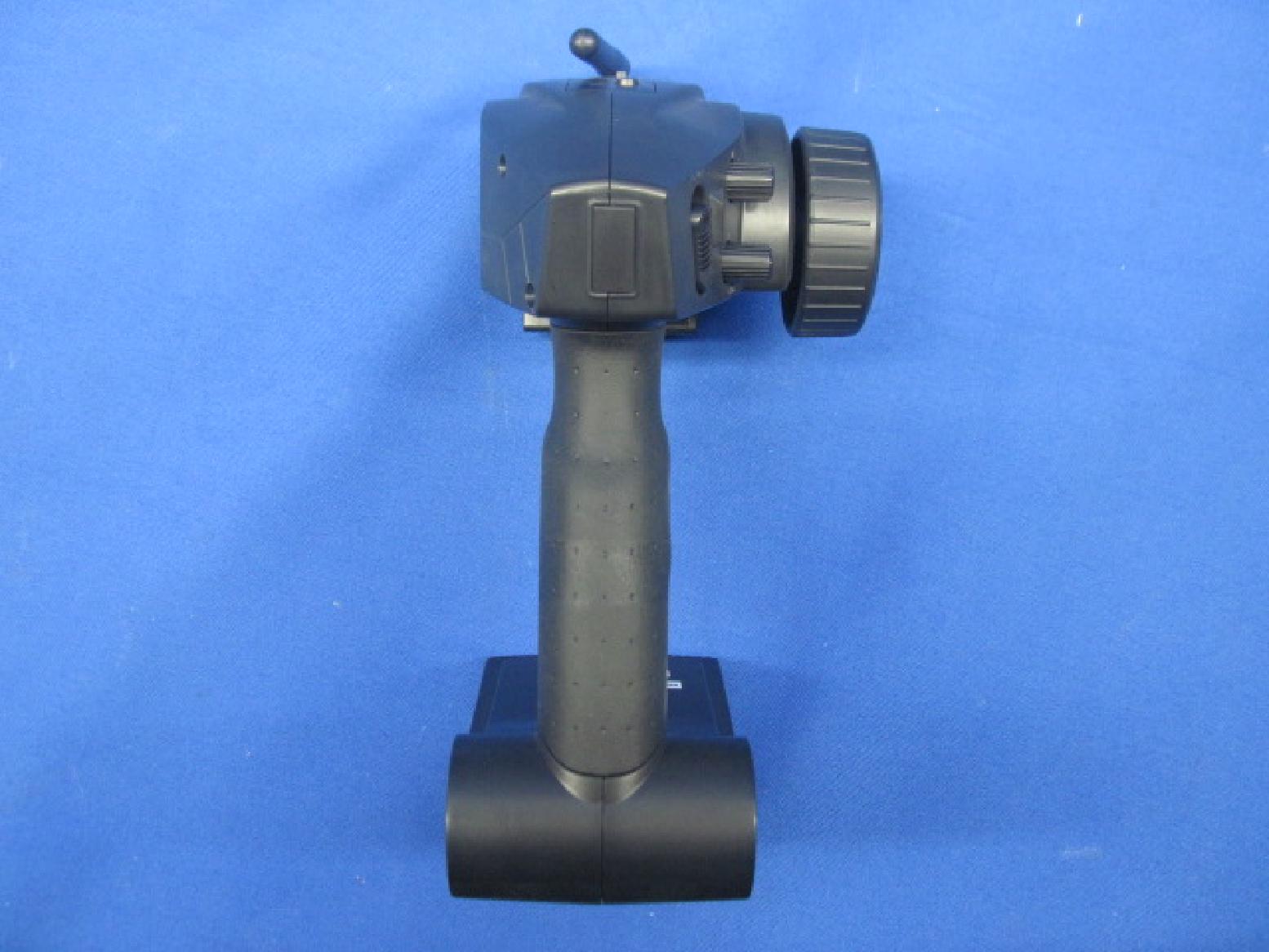

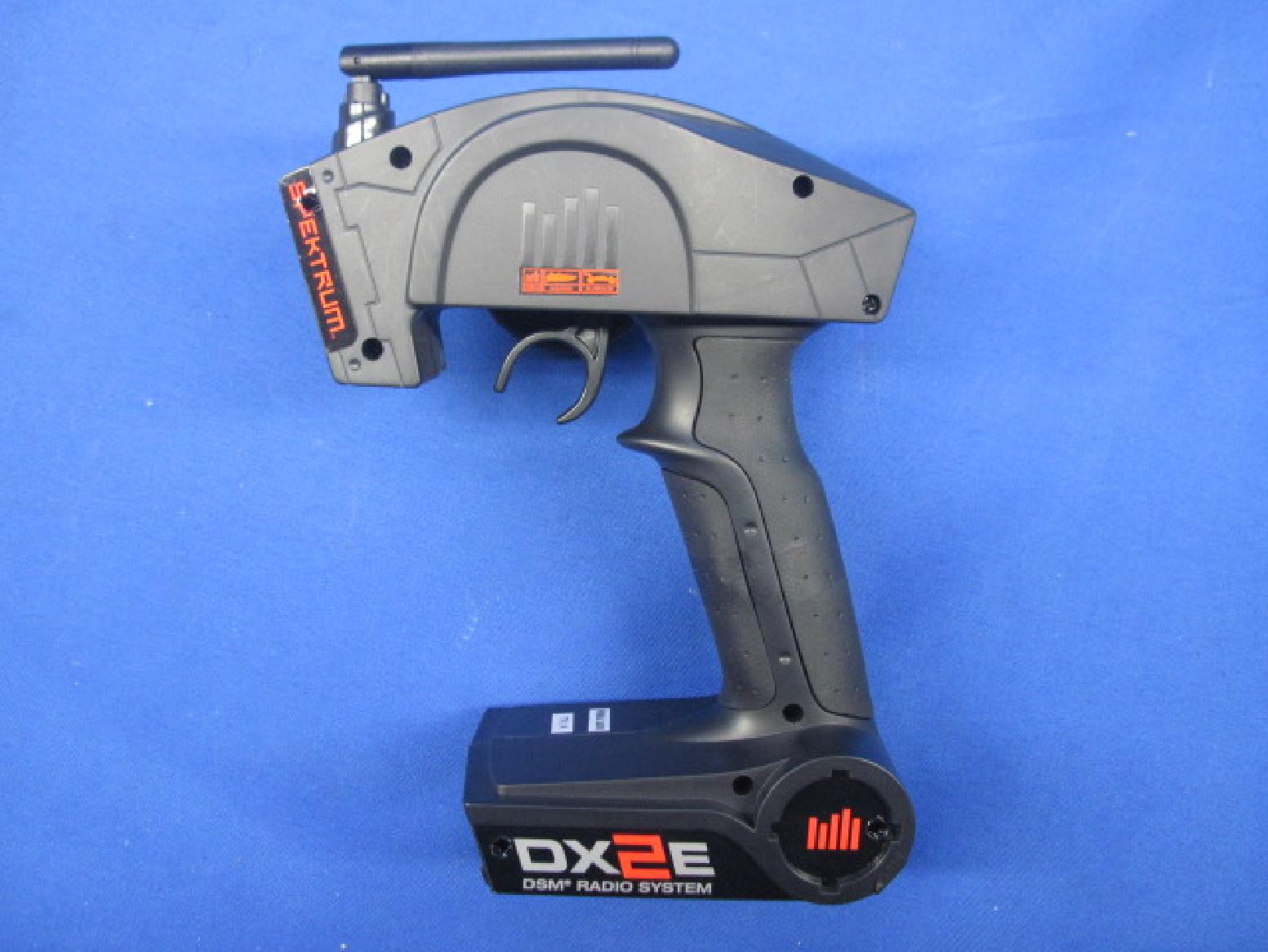

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

RF Exposure Evaluation Declaration Product Name : Surface Radio Model No. : DX2E FCC ID : BRWDSTX1 IC : 6157A-STX1 Applicant : Horizon Hobby, Inc. Address : 4105 Fieldstone Rd.Champaign, IL 61822 Date of Receipt : 28/08/2012 Issued Date : 23/11/2012 Report No. : 128S067R-RF-US-P20V01 Report Version : V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 128S067R-RF-US-P20V01 Page: 2 of 5 Te s t R e p o r t C e r t i f i c a t i o n Issued Date : 23/11/2012 Report No. : 128S067R-RF-US-P20V01 Product Name : Surface Radio Applicant : Horizon Hobby, Inc. Address : 4105 Fieldstone Rd.Champaign, IL 61822 Manufacturer : Horizon Hobby, Inc. Address : 4105 Fieldstone Rd.Champaign, IL 61822 Model No. : DX2E FCC ID : BRWDSTX1 IC : 6157A-STX1 EUT Voltage : 6V Brand Name : Spektrum Applicable Standard : FCC OET 65 RSS-102: Issue 4, March, 2010 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 128S067R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation , are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI China : CNAS Report No: 128S067R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 128S067R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Surface Radio Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 2418~2460MHz 73.6207 0.023213 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Test Report Industry Canada RSS-Gen Issue 3/RSS-210 Issue 8 FCC Part15 Subpart C Product Name : Surface Radio Model No. : DX2E FCC ID : BRWDSTX1 IC : 6157A-STX1 Applicant : Horizon Hobby,Inc. Address : 4105 Fieldstone Rd.Champaign, IL 61822 Date of Receipt : 28/08/2012 Test Date : 28/08/2012~21/11/2012 Issued Date : 23/11/2012 Report No. : 128S067R-RF-US-P05V01 Report Version : V2.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 128S067R-RF-US-P05V01 Page: 2 of 57 Test Report Certification Issued Date : 23/11/2012 Report No. : 128S067R-RF-US-P05V01 Product Name : Surface Radio Applicant : Horizon Hobby, Inc. Address : 4105 Fieldstone Rd.Champaign, IL 61822 Manufacturer : Horizon Hobby, Inc. Address : 4105 Fieldstone Rd.Champaign, IL 61822 Model No. : DX2E FCC ID : BRWDSTX1 IC : 6157A-STX1 EUT Voltage : 6V Brand Name : Spektrum Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009; ANSI C63.10: 2009 Industry Canada RSS-Gen Issue 3/RSS-210 Issue 8 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 128S067R-RF-US-P05V01 Page: 3 of 57 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 128S067R-RF-US-P05V01 Page: 4 of 57 TABLE OF CONTENTS Description Page 1. General Information ....................................................................................................... 6 1.1. EUT Description ......................................................................................................... 6 1.2. Mode of Operation ..................................................................................................... 8 1.3. Tested System Details ................................................................................................ 9 1.4. Configuration of Tested System ............................................................................... 10 1.5. EUT Exercise Software ............................................................................................ 11 2. Technical Test .............................................................................................................. 12 2.1. Summary of Test Result ........................................................................................... 12 2.2. Test Environment ..................................................................................................... 14 3. Conducted Emission .................................................................................................... 15 3.1. Test Equipment ........................................................................................................ 15 3.2. Test Setup ................................................................................................................ 15 3.3. Limit .......................................................................................................................... 16 3.4. Test Procedure ......................................................................................................... 16 3.5. Uncertainty ............................................................................................................... 16 3.6. Test Result ............................................................................................................... 17 4. Radiated Emission ....................................................................................................... 18 4.1. Test Equipment ........................................................................................................ 18 4.2. Test Setup ................................................................................................................ 19 4.3. Limit .......................................................................................................................... 20 4.4. Test Procedure ...........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photograph Test Mode: Transmitting Description: Radiated Emission Test Setup for Below 30MHz Test Mode: Transmitting Description: Radiated Emission Test Setup for Below 1GHz Test Mode: Transmitting Description: Radiated Emission Test Setup for 1~18GHz Test Mode: Transmitting Description: Radiated Emission Test Setup for Above 18GHz
