BRWHBZ3751Game Wireless Controller

Transmitter 1. Remove the transmitter bottom cover by pushing down with thumbs, as indicated by the arrows 2. Install batteries. Use fresh 1.5V “AA” batteries only. 3. Watch polarity. Replace cover. 4. To test, switch on transmitter—LED should glow brightly 5. Replace batteries when you hear low-battery alarm(beeping sound) Motor Test and Battery Discharging CAUTION:Keep everthing clear of the propller. A moving propller can cause injury 1. The buttons below the power switch and labeled as “TH. Trim” are the digital throttle trim buttons. With your boat on the stand, turn on the transmitter and install the battery. 2. If motor is running, make sure the throttle trigger is centered at neutral and press”-“ throttle trim button until the motor stops 3. Pull the throttle trigger back. Motor speed will increase as the throttle trigger is pulled back. 4. In order to fully discharge the battery , run the motor at high speed until it shuts off. If there is not eough charge in the battery to power the propeller, then proceed to Step4. 5. When finished with the motor test, be sure to disconnect the battery first, then turn off the transmitter. Rudder Test Move the steering wheel side to side. The rudder should move as shown in the drawings NOTE: The small buttons labeled as ”S T.Tr i m” under the power switch are the digital steering buttons and are used to adjust the “neutral” point of your steering wheel. To do this, leave the steering wheel in the center position. If rudder is not aligned straight ahead, use the digital rudder trim buttons to center it Choosing Your Location 1. Choose a locatoin that is not being used by swimmers when you are running your boat 2. If you choose a lake, be sure there is no moss, grass, weeds or debris present that could get warpped around the propeller or trap your boat offshore 3. Make sure the shoreline is clear and relatively flat so you can easily launch, operate and retrieve your boat. Do Not mix radio control boating and swimming. Range test You will need two people to do the range test: one to hold the transmiiter and one to hold the zig zag Racer 3. 1. One person holds the tranmitter; the other person walks 100paces away with the boat 2. Extend the transmitter antenna completely and turn the transmitter on. 3. Plug in the battery and close the hatch cover. 4. As the first person moves both of the trasmitter controls at the same time, the other person watches to be sure the boat’s motor and rudder controls operate smoothly This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment. This Category II radiocommunication device complies with Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada.

Horizon Hobby Distributors Inc. Letter of Authorization Company: Horizon Hobby Distributors Inc. Address: 4105 Fieldstone Road,Champaign,IL 61822,USA Product Name: Transmitter Model Number: HBZ3751, HBZ3752, HBZ3753, HBZ3754, HBZ3755, HBZ3756 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: - Testing - Approval applications and procedures - Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Steven Hall Date: 2013/2/13 Title: Vice President Signature of applicant

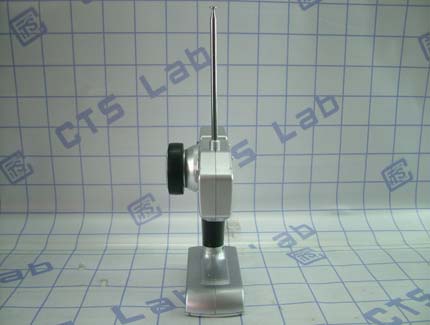

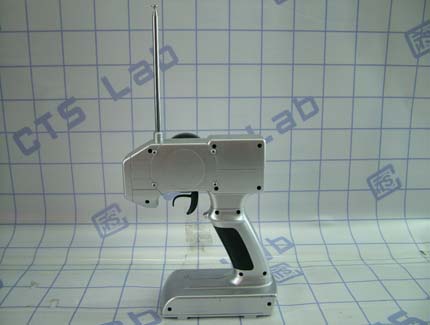

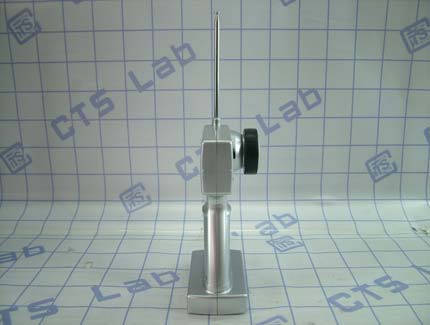

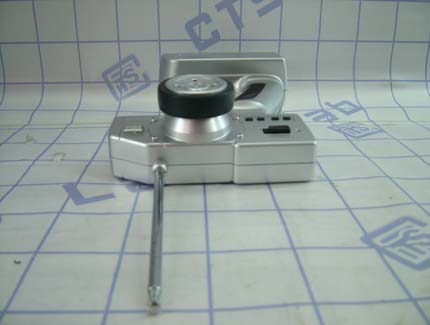

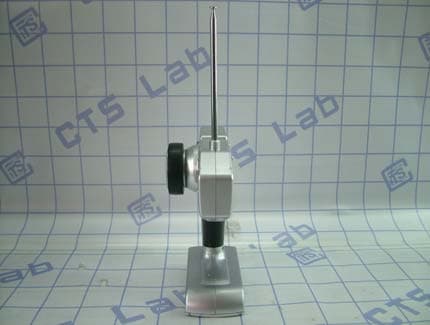

FCC ID:BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-E Page 1 of 2 1 External and Internal Photos of the EUT External view-side1 External view-side2 External view-side3 FCC ID:BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-E Page 2 of 2 External view-side4 External view-side5 External view-side6

FCC ID:BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 1 of 3 1 Product Label 40 mm 40 mm 40 mm 17mm 17mm 17mm FCC ID:BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 2 of 3 40 mm 40 mm 40 mm 17mm 17mm 17mm FCC ID:BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 3 of 3 2 Label Location

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID TEST REPORT TEST REPORT NUMBER : CGZ3120314-00175-EF CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. FCC ID: BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 1 of 27 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2012 Report Reference No. .................... CGZ3120314-00175-EF Date of issue..................................... 20 February 2013 Testing Laboratory Name .............. CETRE OF TESTING SERVICE CO., LTD Address............................................. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................Horizon Hobby Address.............................................4105 Fieldstone Road,Champaign,IL 61822,USA Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2012 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD Master TRF....................................... Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................Transmitter Trade Mark....................................... / Manufacturer....................................Horizon Hobby Model/Type reference...................... HBZ3751, HBZ3752, HBZ3753, HBZ3754, HBZ3755, HBZ3756 Ratings............................................. 8xStandard AAA Batteries Operating Frequency........................ 26.995~27.255MHz/ FM Result ............................................... PASSED Compiled by: Supervised by: Approved by: Kate zhang / File administrators Duke yang / Technique principal Vincent yao / Manager FCC ID: BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 2 of 27 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3120314-00175-EF 20 February 2013 Date of issue Type / Model............................ HBZ3751, HBZ3752, HBZ3753, HBZ3754, HBZ3755, HBZ3756 EUT.......................................... transmitter Applicant........................... Horizon Hobby Address.................................... 4105 Fieldstone Road,Champaign,IL 61822,USA Telephone................................ + 1-2174033542 Fax........................................... / Contact..................................... Mr.Henry Lin Manufacturer...................... Horizon Hobby Address.................................... 4105 Fieldstone Road,Champaign,IL 61822,USA Telephone................................ + 1-2174033542 Fax........................................... / Contact..................................... Mr.Henry Lin Test report holder................ Horizon Hobby Address.................................... 4105 Fieldstone Road,Champaign,IL 61822,USA Telephone................................ + 1-2174033542 Fax........................................... / Contact..................................... Mr.Henry Lin The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID: BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 3 of 27 TABLE OF CONTENTS Description Page 1 TEST STANDARDS .......................................................................................................................................4 2 SUMMARY.....................................................................................................................................................4 2.1 GENERAL REMARKS .......................................................................................................................................4 2.2 FINAL ASSESSMENT .......................................................................................................................................4 3 EQUIPMENT UNDER TEST ..........................................................................................................................4 3.1 POWER SUPPLY SYSTE…

Text truncated - open the document above for the full version.

FCC ID: BRWHBZ3751 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3120314-00175-EF Page 1 of 1 1 TEST PHOTOGRAPHS Photos of Radiated emission (TX) measurement (Below 30MHz) Photos of Radiated emission (TX) measurement (Above 30MHz)
