BRWLSR-2000Losi AM27MHz

User Manual Replacement Parts for Micro Rally LOSB0817 Servo w/Servo Saver: Micro SCT, Rally LOSB0843 AM Receiver/ESC Unit: Micro SCT, Rally LOSB0846 4.8V 220mAh NiMH Pack: MC SCT, Rally LOSB0879 Micro Wall Charger NiMH: Micro SCT, Rally LOSB1523 Wheel Nuts LOSB1584 Tires, Mounted, Black: Micro Rally LOSB1586 Tires, Mounted, Gold: Micro Rally LOSB1730 Bearing Set: Micro SCT, Rally LOSB1740 Chassis Set: Micro SCT, Rally LOSB1741 Suspension Arm Set: Micro SCT, Rally LOSB1742 Spindles, Carriers, Hubs: Micro SCT, Rally LOSB1743 Diff Covers & Shock Towers: Micro SCT, Rally LOSB1744 Steering & Servo Saver Hardware: Micro SCT, Rally LOSB1746 Bumper Set: Micro Rally LOSB1747 Side Bumpers & Mounts: Micro SCT, Rally LOSB1748 Main Drive Shaft & Hardware: Micro SCT, Rally LOSB1749 Hinge Pin Kit: Micro SCT, Rally LOSB1751 Motor: Micro SCT & Rally LOSB1752 Pinion & Spur Set: Micro SCT, Rally LOSB1754 Complete Front Gearbox: Micro SCT, Rally LOSB1755 Complete Rear Gearbox: Micro SCT, Rally LOSB1757 Diff Outdrive Set: Micro SCT, Rally LOSB1758 Dogbone Set: Micro SCT, Rally LOSB1759 Axle Set: Micro SCT, Rally LOSB1760 Ring & Pinion Gear Set: Micro SCT, Rally LOSB1762 Oil Filled Damper (Shock) Set: Micro SCT, Rally LOSB1763 Damper Spring Set, Hard (4): Micro SCT, Rally LOSB1764 Screw Set: Micro SCT, Rally LOSB1786 1/24 4WD Rally Painted Body, Gray LOSB1787 1/24 4WD Rally Painted Body, Orange LOSB1788 1/24 4WD Rally Painted Body, Red LOSB1789 1/24 4WD Rally Painted Body, Blue LOSB1798 Micro Rally Decal Sheet Set LOSB4605 Wrench Set: Micro SCT, Rally Option Parts LOSB1765 Damper Spring, Soft (4): Micro SCT, Rally LOSB1766 Damper Spring, Medium (4): Micro SCT, Rally LOSB1785 Micro Rally Body, Clear LOSB9635 LiPo Charger & 7.4V 205mAh LiPo Battery Combo LOSB9825 7.4V 250mAh LiPo: Micro SCT, Rally WWW.LOSI.COM ©2010 Losi, a Division of Horizon Hobby, Inc. NOTICE All instructions, warranties and other collatera l documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://WWW.LOSI.COM/SUPPORT. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly follo wed, create a possibility of physical property damage AND a little or no possibility of injury. WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury. WARNING: Read the ENTIRE instru ction manual to become familiar with the feat ures of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other pr operty. This product is not intended for use by children without direct adult supervi sion. Do not attempt disassemble, use with incompatible components or augment product in any way without the approval of Horizon Hobby, In c. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. 800-0433 Printed 05/10 28514 Operations Guide Introduction Thank you for choosing the 1/24 Micro 4WD Rally Car. This guide contains the basic instructions for operating the vehicle. Read all of the instructions and all accompanying printed material in order to operate your model correctly and avoid unnecessary damage. Please take a moment to look them over before running your model. DO NOT RUN YOUR MICRO 4W D RALLY CAR ON PLUSH CARPET, GRASS OR SAND. NOTICE: Although the best materials and components are used, and due to the size of this model, using anything other than genuine Losi r eplacement and performance parts specifi- cally designed for the Losi Micro 4WD Rally Car could cause damage. CONNECT - REGISTER - WIN Register your product online so we can notify you about the latest option parts, product updates, tech tips, service bulletins and more. Visit WWW.LOSI.COM and follow the Product Registration link to stay connected. For registering your Losi Product you will be automatically entered for a chance to win the Losi Pick Your Prize Sweepstakes. The winner will be allowed to select a total prize package of $1,000 (retail value) based on their preference. WWW.LOSI.COM/REGISTER Safety Guidelines and Warnings Age Recommendation: 14 years or over. This is not a toy. This product is not intended for use by chil- dren without direct adult supervision. This is a sophisticated radio controlled model that must be operated with caution and common sense. Failure to operate your Micro 4WD Rally Car in a safe and responsible manner could result in damage to the model and property. Losi and Horizon Hobby, Inc. shall not be liable for any loss or damages, whether direct, indirect, special, inciden- tal, or consequential, arising from the use, misuse, or abuse of this product or any product required to operate it. • This model is controlled by a radio signal that is subject to interference from many sources outside your control. This interference can cause momentary loss of control so it is advisable to always keep a safety margin in all directi ons to avoid collisions. • Always operate your model in an open area away from cars, traffic and people. • Never run out into the street for any reason. • Never run your Micro 4WD Rally Car with low transmitter batteries. • Carefully follow the directions and warnings for th is and any optional support equipment that you use. • Keep all chemicals, small parts and a…

Text truncated - open the document above for the full version.

Block Diagram of LSR-2000 Steering Wheel VR, Steering Trimmer & ATV (Adjustable Travel Volume) Steering Reverse Switch Throttle Trigger VR & Throttle Trimmer Throttle Reverse Switch MCU: 5V PIC12F675 Regulator (5V) 8 x AA Battery (12V) Low Pass Filter + AM Modulator (5V) 27.045MHz(TX) RF Power Amplifier Crystal (5V) Bias: 5V, Power :12V LED Indicator RED LED: Power Green LED: Battery Low Antenna RF Band Pass Filter

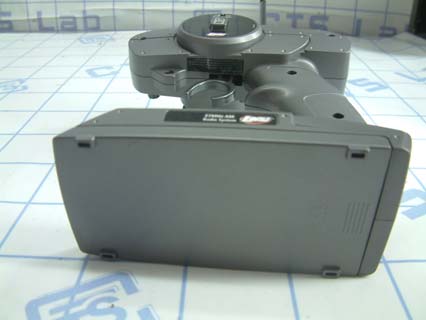

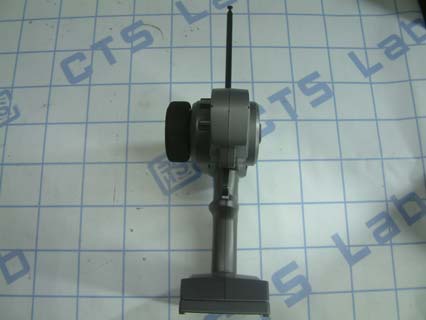

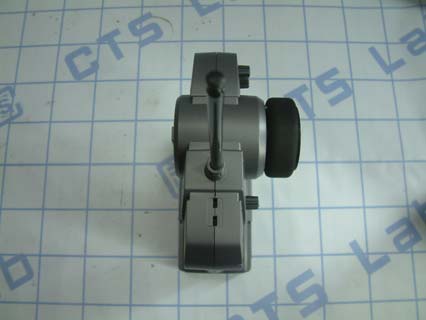

FCC ID:BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110622-00444-E Page 1 of 2 1 External and Internal Photos of the EUT External view front External view base External view-side1 FCC ID:BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110622-00444-E Page 2 of 2 External view-side2

FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110622-00444-E Page 1 of 1 1 Product Label 40 mm 2 Lable Location 17mm

FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110622-00444-E Page 1 of 2 1 Internal Photos of the EUT Internal view PCB Layout Crystal location Crystal location on PCB board FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110622-00444-E Page 2 of 2 PCB Solder

Losi AM 27MHzProduct Description The equipment under test (EUT) is a 27MHz AM transmitter for radio controlled car and powered by 8 x AA batteries. The operating frequency of EUT is 27.045 MHz AM by crystal. There are power ON/OFF slide switch for radio transmitter reverse functions. There are also steering wheel, trigger for radio transmitter trimming.

1 2 3 4 5 6 7 8 ABCD 8 7 6 5 4 3 2 1 D CBA R9 4K7 R10 2K Y1 1 23 Q2 C380Y R2 2K2 R4 1K 1 23 Q1 KSC2690AY C13 120pF NPO C7 47pF NPO C23 100NF C24 * C6 68pF NPO C5 100pF NPO C3 220pF NPO L3 330nH L2 330nH C2 150pF NPO C8 47NF C10 47pF NPO C121NF NPO R15 10 R16 68 C141NF R12K2 ANT1ANTENNA 32 1 Q3MMBT3906 R32K2 SW1 POWER ON/OFF VIN 3 VOUT 1 GND 2 IC178L05 12 LED1 GREEN, 5G4HD 12 LED2 RED, 5R53HD 12 Z1 5V1 R18390 R19 1K5 C17100NF C18 100NF 1 3 2 VR2B5K (ATV) 1 3 2 VR1B5K 85deg (ST) 1 3 2 SFVR11K C201NF R1122 R61K R833 R12470 C26 22nF X7R R142K Vbat 5V Vbat 5V R132K 1 3 2 VR5B5K (THT) 1 3 2 VR4B5K 85deg (TH) R26270K R2133K C191NF R25 470K 5V C251NF VDD 1 GP5 2 GP4 3 GP3 4 VSS 8 GP0 7 GP1 6 GP2 5 U1PIC12F675 5V 5V 5V C15100NF RF_OUT V_KEY V_STT V_STV_TH V_ST V_TH RF_OUT ST_VR V_STT TH_VR THT_VR 27MHz, 2ch AM Transmitter LSR-2000 R6C 1 1 Mun Ah Plastic Electronic Toys Co., Ltd. Model No.:Model Name:Approved By: Rev. Sheet of Date: Approved By: 28th Aug, 2002 (Robot Gear) (MA Toys) C111NF 2 13 5 46 SW2TH REV SW 2 13 5 46 SW3ST REV SW NormalNormalReverseReverse R22 1K8 R231K V_KEY 5V R30 470 R314K7 C91NF J2GNDJ1+12V TP4 Test_Point4 TP3Test_Point3 R510K J3CHARGER IN 12 C21 10uF 1 2 R7 1K VDD 1 GP5 2 GP4 3 GP3 4 VSS 8 GP0 7 GP1 6 GP2 5 U2PIC12F675 C16100NF 5V RF_OUT V_KEY V_STT V_THV_ST L8 3.3uH L72.7UH PIN_4 PIN_4 JP2JUMPER VBAT 1 3 2 VR3B5K (STT) JP1JUMPER L1 0.47uH PIN_4V_THV_ST 5V V_KEY 13245678 J4SIP8 V_STTRF_OUT C2247NF C1 10uF C4 10uF R17 47

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID TEST REPORT TEST REPORT NUMBER : CGZ3110622-00444-E CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ31105622-00444-E Page 1 of 24 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2010 Report Reference No. .................... CGZ3110622-00444-E Date of issue ..................................... 24 Jun 2011 Testing Laboratory Name .............. CETRE OF TESTING SERVICE CO., LTD Address............................................. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................Horizon Hobby Address.............................................4105 Fieldstone Road,Champaign,IL 61822,USA Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2010 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD Master TRF....................................... Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................Losi AM 27MHz Trade Mark....................................... -- Manufacturer....................................Horizon Hobby Model/Type reference...................... LSR2000 Ratings............................................. 8xStandard AA Batteries Operating Frequency ........................ 27.045MHz/ AM Result ............................................... Positive Compiled by: Supervised by: Approved by: Violet Lee / File administrators Tom Xiao / Technique principal Vincent yao / Manager FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ31105622-00444-E Page 2 of 24 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3110526-00331-E 24 Jun 2011 Date of issue Type / Model............................ LSR2000 EUT.......................................... Losi AM 27M Applicant........................... Horizon Hobby Address.................................... 4105 Fieldstone Road,Champaign,IL 61822,USA Telephone................................ + 1-2174033542 Fax........................................... / Contact..................................... Mr.Henry Lin Manufacturer...................... Horizon Hobby Address.................................... 4105 Fieldstone Road,Champaign,IL 61822,USA Telephone................................ + 1-2174033542 Fax........................................... / Contact..................................... Mr.Henry Lin Test report holder................ Horizon Hobby Address.................................... 4105 Fieldstone Road,Champaign,IL 61822,USA Telephone................................ + 1-2174033542 Fax........................................... / Contact..................................... Mr.Henry Lin Test Result according to the standards on page 3:Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ31105622-00444-E Page 3 of 24 TABLE OF CONTENTS Description Page 1.TEST STANDARDS........................................................................................................................................5 2.SUMMARY......................................................................................................................................................5 2.1 GENERAL REMARKS .......................................................................................................................................5 2.2 FINAL ASSESSMENT .......................................................................................................................................5 3.EQUIPMENT UNDER TEST ...........................................................................................................................5 3.1 POWER SUPPLY SYSTEM UTILISED................................…

Text truncated - open the document above for the full version.

FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110526-00332-E Page 1 of 2 1 TEST PHOTOGRAPHS 1.1. Photos of Radiated emission (TX) measurement (Below 30MHz) Photos of Radiated emission (TX) measurement (Above 30MHz) FCC ID: BRWLSR-2000 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3110526-00332-E Page 2 of 2 1.2. Photos of Radiated emission (RX) measurement
