BTQATH49MRemote Control Toy Transmitter

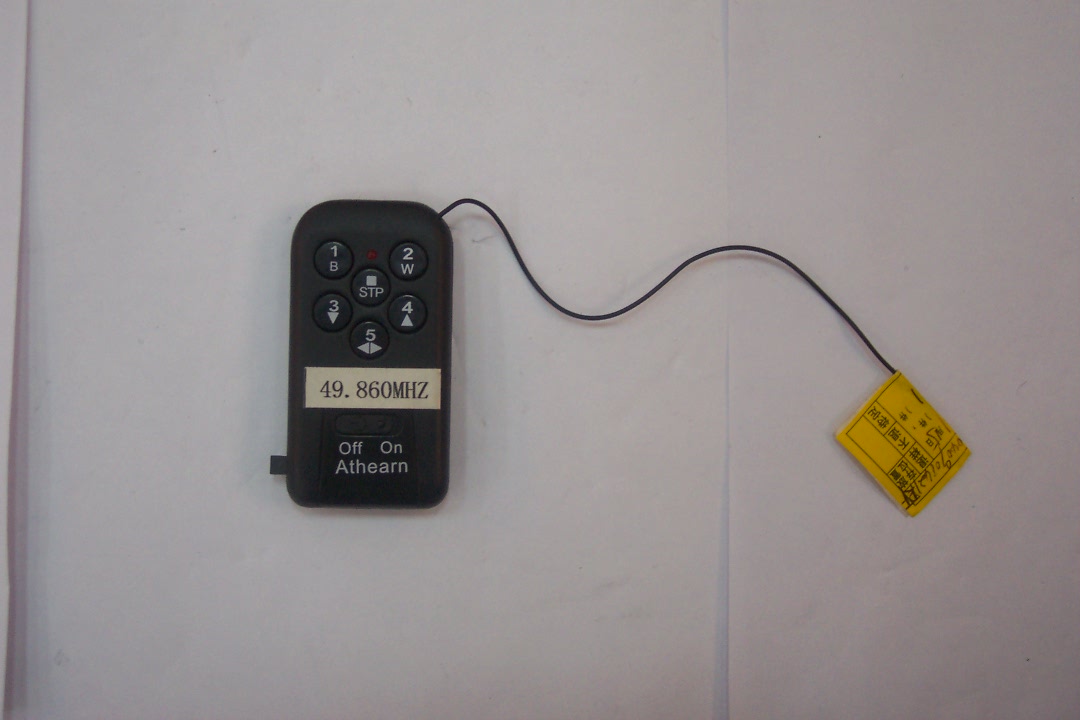

Universal Wireless Remote Control For Use In Model Rail Roading Application Application: 5 Remote controls outputs can be used to control Building lights, Slow Motion Switch Machines, Triggering sound unit. It can also be used to remote control any model rail roading accessory which need 3.6 - 5.5 V to operate. within 10 feet. Transmitter: Powered by A23 (12V) battery. It has a power switch and 6 push buttons. Reciever: Powered by 3.6-5.5 VDC Operation: Press and hold buttons #1 on the transmitter. The output #1 on the receiver will output high voltage (3.6 - 5.5V depends on the receiver’s DC power supply). Release button #1 on the transmitter. The output #1 on the receiver will output 0 volt. Press and hold button #2 to #5. The output #4 to #5 will output high voltage (3.6 - 5.5V) respectively. Press and hold button #6. The output #4 and #5 will output high voltage (3.6 - 5.5V) at the same time. Operation Range: 3 meter +5V Output 3 LED Output 5 Output 4 Output 2 Output 1 GND Receiver Antenna Transmitter 1 5 4 3 2 6 off on +5V GND 200 200 200 200 200 200 LED3 LED2 LED4 LED5 LED1 Example of control five LED NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

1234 A B C D 4 321 D C B A 两地线间用二极管隔离 不切地时是同一个地 Frequency:49.860MHz File:XHS-T888A2 PCB:XHS-T888A2.PCB high frequency amplitude power amplifier encoder oscillatory circuit modulation high frequency A1 11 XHS-R888A1 辛华圣实业发展有限公司 PROJECT NAME： PART NAME： DWN BY/DATE CHECK BY/DATE ： APPROVED BY/DATE： FILE NAME ： PROJECT NO.: PART NO.: REV: PAGE OF XINHUASHENG INDUSTRIAL DEVELOP CO.,LTD XHS XHS-R888

In transmitter, IC SM6136 is a RF amplifier and encoder ,Q1 and X1 is a crystal oscillator ,Q2 is a modulator, output of Q2 drives the inductor ,the antenna is coupled to the modulator by the inductor. press any keypad, the diode under the switcher will short the board to the ground, at the same time, the IC SM6136 Pin10 driver the crystal oscillator Q1 to work. And the IC SM6136 Pin8 generates the encoding signal, it is modulated by Q2 and sent outside by Antenna. In Receiver, IC SM6135 is a RF amplifier and detector,Q1 is a signal amplifier and decoder. The antenna receives the signal, the signal is amplified and decoded by Q1 and then controls the output of IC SM6135 Pin6,7 and Pin10,11,12 to supply driver .

49M遥控器.sch-1 - Fri Dec 10 09:37:57 2004

Report No.: GLEMO040901421RFI Page: 1 of 11 FCC ID: BTQATH49M Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO040901421RF Applicant : Model Rectifier Corporation FCC ID : BTQATH49M Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : MRC wireless controller na d remote for toy motor with sound Model : ATH 49MHZ Standards : FCC PART 15, SUBPART C : 2004 Section 15.235 Date of Receipt : 03 September 2004 Date of Test : 09 September to 16 November 2004 Date of Issue : 13 December 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID:BTQATH49M Report No.: GLEMO040901421RFI Page:2 of 11 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION............................................................................................................................................ 3 3.2 DETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 TEST LOCATION...................................................................................................................................................... 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 TEST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 TEST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................... 8 4.3.3 Photographs - Radiated Emission Test Setup in Chamber ..........................................................................9 5 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................10-11 FCC ID:BTQATH49M Report No.: GLEMO040901421RFI Page:3 of 11 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: Model Rectifier Corporation Address of Applicant: 80 Newfield Avenue Edison, NJ 08837,USA 3.2 Details of E.U.T. Product Name: MRC wireless controller na d remote for toy motor with sound (Transmitter part). Model: ATH 49MHZ Power Supply: 12V DC (1 x Alkaline Battery) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Ltd., Guangzhou EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID:BTQATH49M Report No.: GLEMO040901421RFI Page…
